LF Driver
Dayton Audio
Dayton Audio RS150-8
Dayton Audio RS150-8 is a 6" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 48Hz, Qts 0.34, Vas 16.6L, Xmax 4mm, sensitivity 88.3dB, plus 34cm³ Vd and 111 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £41.18.
Size
6"
Impedance
8Ω
RMS Power
40W
Sensitivity
88.3dB
EBP
111
Vented alignment
Vd
34cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
15 degrees222 ptsp1medium
30 degrees220 ptsp1medium
45 degrees240 ptsp1medium
on-axis240 ptsp1medium
Curve provenanceInspect 5 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
15 degrees
Frequency response
222 plotted pointsMedium confidence986 selected pixels of 1,361 - Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
220 plotted pointsMedium confidence516 selected pixels of 1,151 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,058 selected pixels of 2,202 - Trace datasheet-response-trace-poc/v1
on-axis
Frequency response
240 plotted pointsMedium confidence1,495 selected pixels of 1,495 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,162 selected pixels of 1,162
T/S Parameters
Valid
Fs48Hz
Qts0.34
Qes0.43
Qms1.7
Vas16.6L
Re6.3Ω
Le0.55mH
BL5.6Tm
Sd85cm²
Mms7g
Xmax4.0mm
SPL88dB
Power40W
Impedance8Ω
F Low47Hz
F High4200Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£41.18
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Diameter150.0mm
Overall Depth73.5mm
Cutout Diameter121.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
RS150-8
6"
Best current price
£41.18
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
40%
Similarity
33% cheaper£27.70
Dayton Audio
DSA135-8
5"
Lower price
Xmax4.9mm+23%
Qts0.38+12%
BL6.2Tm+11%
Vas7.9L-52%
Qes0.47+9%
36%
Similarity
33% cheaper£27.70
Dayton Audio
DS135-8
5"
Lower price
Xmax4.8mm+21%
Qts0.39+15%
BL6.2Tm+11%
Vas7.3L-56%
Qes0.48+12%
47%
Similarity
19% more£48.95
Monacor
SPH-5M
5"
Higher price
Xmax3.5mm-12%
Qts0.41+21%
BL6.4Tm+15%
Vas13.5L-19%
Qes0.47+9%
42%
Similarity
55% more£63.95
Scanspeak
12W/8524G00
5"
Higher price
Xmax3mm-25%
Qts0.32-6%
BL5.4Tm-3%
Vas8.2L-51%
Qes0.35-19%
18%
Similarity
55% more£63.95

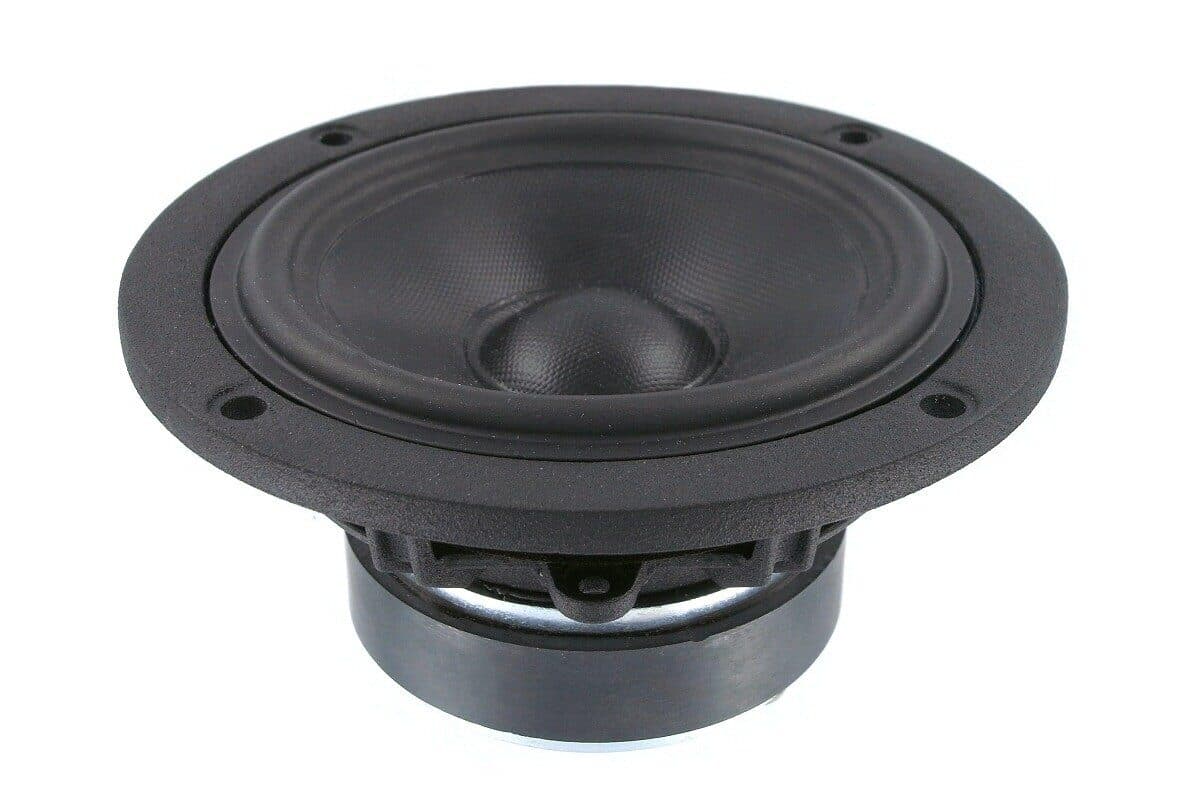

Scanspeak
12W/4524G00
5"
Higher price
Xmax3mm-25%
Qts0.27-21%
BL4.4Tm-21%
Vas8.2L-51%
Qes0.3-30%
61%
Similarity
106% more£84.95
Scanspeak
18W/4434G00
7"
Higher price
Xmax4.3mm+7%
Qts0.35+3%
BL6Tm+7%
Vas20.7L+25%
Qes0.37-14%
Image unavailable
63%
Similarity
138% more£98.11
Wavecor
WF152BD13
6"
Higher price
Xmax4.5mm+13%
Qts0.33-3%
BL6.3Tm+14%
Vas9.2L-45%
Qes0.34-21%
Image unavailable
70%
Similarity
167% more£110.10
Wavecor
WF152BD09
6"
Higher price
Xmax4.5mm+13%
Qts0.340%
BL5.8Tm+4%
Vas8.6L-48%
Qes0.35-19%
52%
Similarity
369% more£192.95
Scanspeak
15M/4531K00
6"
Higher price
Xmax3mm-25%
Qts0.27-21%
BL6Tm+7%
Vas16L-4%
Qes0.28-35%
100%
Similarity
Dayton Audio
RS150P-8A
6"
Xmax4mm0%
Qts0.340%
BL5.6Tm0%
Vas16.7L+1%
Qes0.430%
86%
Similarity
Dayton Audio
RS150T-8
6"
Xmax4mm0%
Qts0.37+9%
BL5.7Tm+2%
Vas14.4L-13%
Qes0.47+9%
83%
Similarity
CIARE
CW161N
6.5"
Xmax4mm0%
Qts0.35+3%
BL6.1Tm+9%
Vas17.4L+5%
Qes0.42-2%
