LF DriverCW series
CIARE

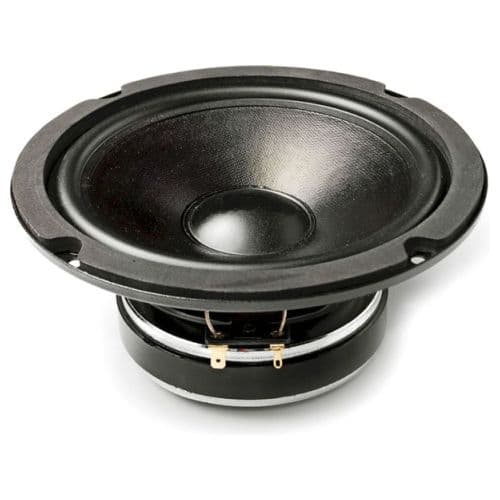

CIARE CW161N
CIARE CW161N is a 6.5" 4 ohm LF driver rated at 180W RMS. The validated T/S data includes Fs 52Hz, Qts 0.35, Vas 17.4L, Xmax 4mm, sensitivity 89.7dB, plus 53cm³ Vd and 124 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
180W
Sensitivity
89.7dB
EBP
124
Vented alignment
Vd
53cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,557 selected pixels of 1,750
T/S Parameters
Valid
Fs52Hz
Qts0.35
Qes0.42
Qms2.2
Vas17.4L
Re3.6Ω
Le0.44mH
BL6.1Tm
Sd133cm²
Mms13g
Xmax4.0mm
SPL90dB
Power180W
Power Nominal80W
Impedance4Ω
F Low45Hz
F High45Hz
Voice Coil32mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.4kg
Diameter169.0mm
Overall Depth81.5mm
Cutout Diameter142.0mm
Bolt Circle Diameter158.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CW161N
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
84%
Similarity
Dayton Audio
RS150P-8A
6"
Xmax4mm0%
Qts0.34-3%
BL5.6Tm-8%
Vas16.7L-4%
Qes0.43+2%
84%
Similarity
£41.18
Dayton Audio
RS150-8
6"
Xmax4mm0%
Qts0.34-3%
BL5.6Tm-8%
Vas16.6L-5%
Qes0.43+2%
81%
Similarity
CIARE
HWB160
6.5"
Xmax4.5mm+13%
Qts0.36+3%
BL6.5Tm+7%
Vas19.5L+12%
Qes0.38-10%
77%
Similarity
£84.95
Scanspeak
18W/4434G00
7"
Xmax4.3mm+7%
Qts0.350%
BL6Tm-1%
Vas20.7L+19%
Qes0.37-12%
77%
Similarity

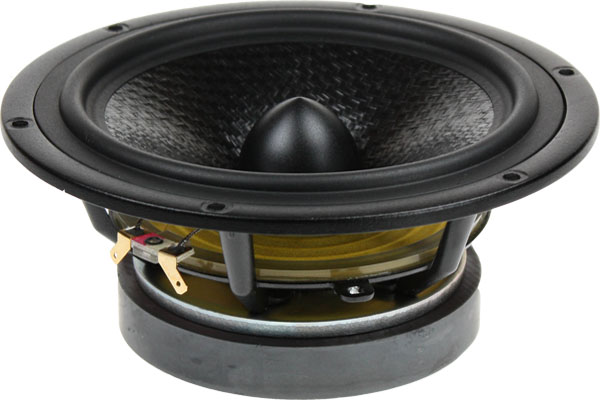

SEAS
H1571-08 U18RNX/P
6.5"
Xmax4mm0%
Qts0.32-9%
BL6.3Tm+4%
Vas25L+44%
Qes0.38-10%
75%
Similarity
Dayton Audio
RS150T-8
6"
Xmax4mm0%
Qts0.37+6%
BL5.7Tm-6%
Vas14.4L-17%
Qes0.47+12%
71%
Similarity
CIARE
CW169
6.5"
Xmax5mm+25%
Qts0.32-9%
BL5.9Tm-2%
Vas21.2L+22%
Qes0.39-7%
69%
Similarity
Dayton Audio
RS150P-4A
6"
Xmax4.4mm+10%
Qts0.34-3%
BL4.4Tm-28%
Vas15.7L-10%
Qes0.420%
66%
Similarity
SEAS
H1216-08 CA15RLY
6"
Xmax5mm+25%
Qts0.34-3%
BL5.5Tm-9%
Vas14L-20%
Qes0.420%
66%
Similarity
Tang Band
W6-2313
6"
Xmax4mm0%
Qts0.4+14%
BL7.1Tm+17%
Vas13.3L-24%
Qes0.44+5%
65%
Similarity

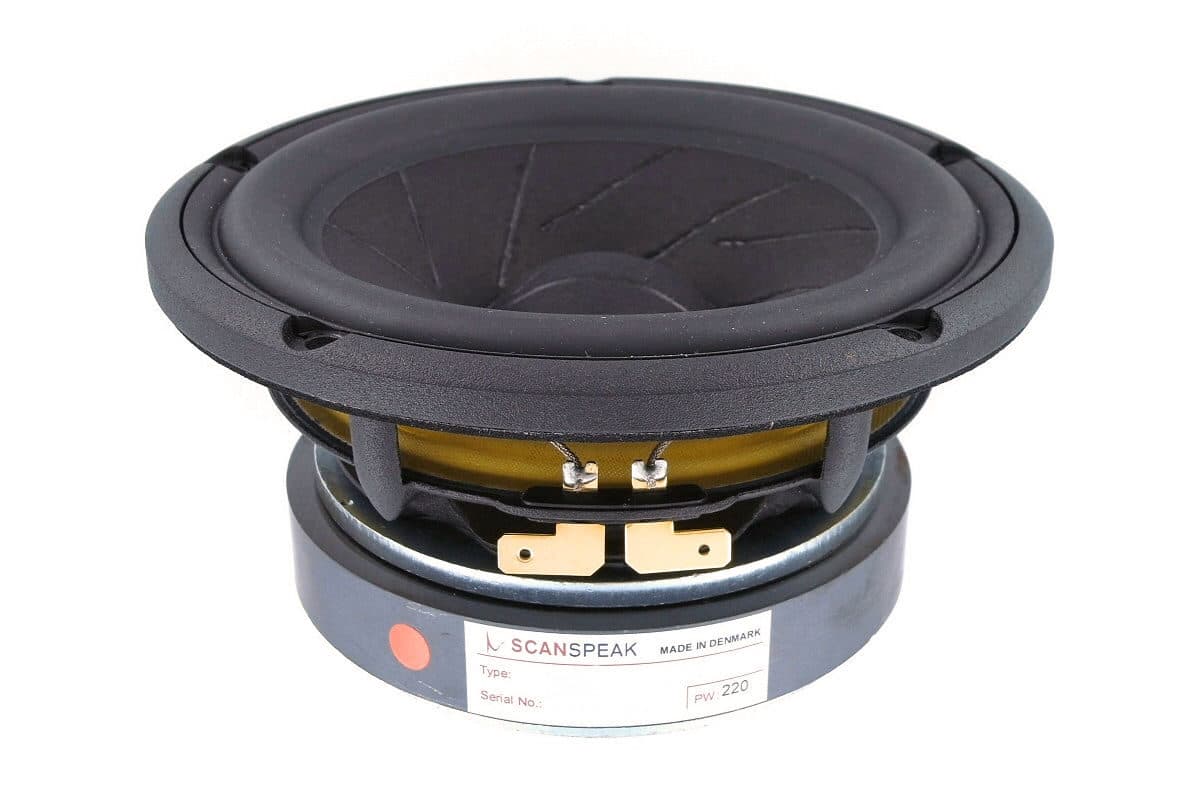

Scanspeak
15M/8631G00
6"
Xmax3mm-25%
Qts0.350%
BL6.8Tm+12%
Vas16.2L-7%
Qes0.37-12%
65%
Similarity
Wavecor
WF146WA06
5.75"
Xmax3mm-25%
Qts0.36+3%
BL6.3Tm+4%
Vas16.6L-5%
Qes0.38-10%
