6.5-inch LF driver · SPH series · 37 mm voice coil · 60 W
Monacor SPH-6M 8Ω
8 Ω · 3–3000 Hz
£64.34
2.4%Willys-Hifi · All 4 offers
- Fs
- 39Hz
- Xmax
- 4mm
- SPL
- 87dB
- Pe
- 60W
- BL
- 9.7T·m
- Vd
- 51cm³
- Qts
- 0.30
- Vas
- 18L
Monacor SPH-6M is a 6.5-inch 8 ohm LF driver rated at 60 W RMS. The validated T/S data includes Fs 39 Hz, Qts 0.30, Vas 17.6 L, Xmax 4 mm, sensitivity 86.8 dB, plus 51 cm³ Vd and 111 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £58.61.
The published T/S values agree with each other
Thiele/Small
- Fs
- 39Hz
- Qts
- 0.30
- Qes
- 0.35
- Qms
- 2.3
- Vas
- 17.6L
- Re
- 6.3Ω
- Le
- 0.82mH
Motor and cone
- BL
- 9.7T·m
- Sd
- 127cm²
- Mms
- 20g
- Xmax
- 4mm
- Vd †
- 51cm³
- Voice coil
- 37mm

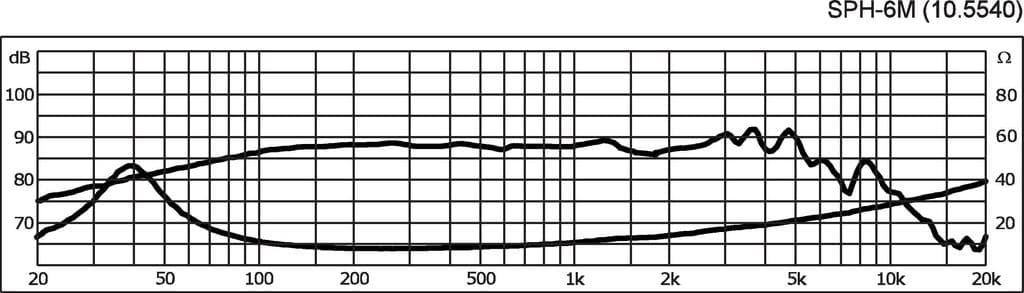

Power and response
- Sensitivity †
- 86.8dB
- Manufacturer sensitivity
- 88dB
- Power
- 60W
- Impedance
- 8Ω
- Range
- 3–3000Hz
- EBP †
- 111 · Leans vented

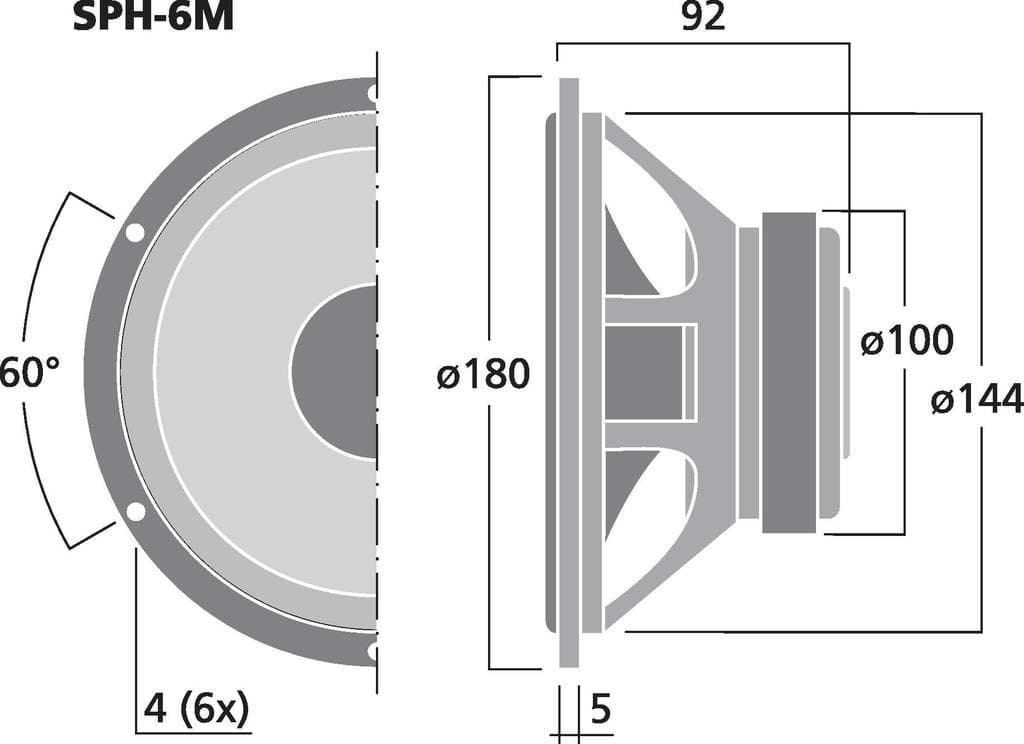

Size and mounting
- Diameter
- 180mm
- Cutout
- 144mm
- Depth
- 92mm
- Weight
- 2.0kg
Other published values
- Cms
- 0.78mm/N
- Power Peak
- 120
Other dimensions
- Mounting Depth
- 87
Sensitivity shows 86.8 dB, calculated from the T/S values. Monacor publishes 88.0 dB, 1.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 6.5″
- BL
- 9.7T·m
- Fs
- 39Hz
- Le
- 0.82mH
- Re
- 6.3Ω
- Sd
- 127cm²
- Cms
- 0.78mm/N
- Mms
- 20g
- Qes
- 0.35
- Qms
- 2.3
- Qts
- 0.30
- SPL
- 86.8dB
- Vas
- 17.6L
- Xmax
- 4mm
- Power
- 60W
- Impedance
- 8Ω
- Power Peak
- 120
- Sensitivity
- 88dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 86.8dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 88dB
- Voice coil
- 37mm
- Weight
- 2.0kg
- Diameter
- 180mm
- Depth
- 92mm
- Mounting Depth
- 87
- Cutout
- 144mm
