6.5-inch LF driver · PTT series · 39 mm voice coil · 80 W
Purifi PTT6.5W08-NFA-06 8Ω
8 Ω
No current price
- Fs
- 38Hz
- Xmax
- 5.9mm
- SPL
- 87dB
- Pe
- 80W
- BL
- 9.5T·m
- Vd
- 78cm³
- Qts
- 0.33
- Vas
- 23L

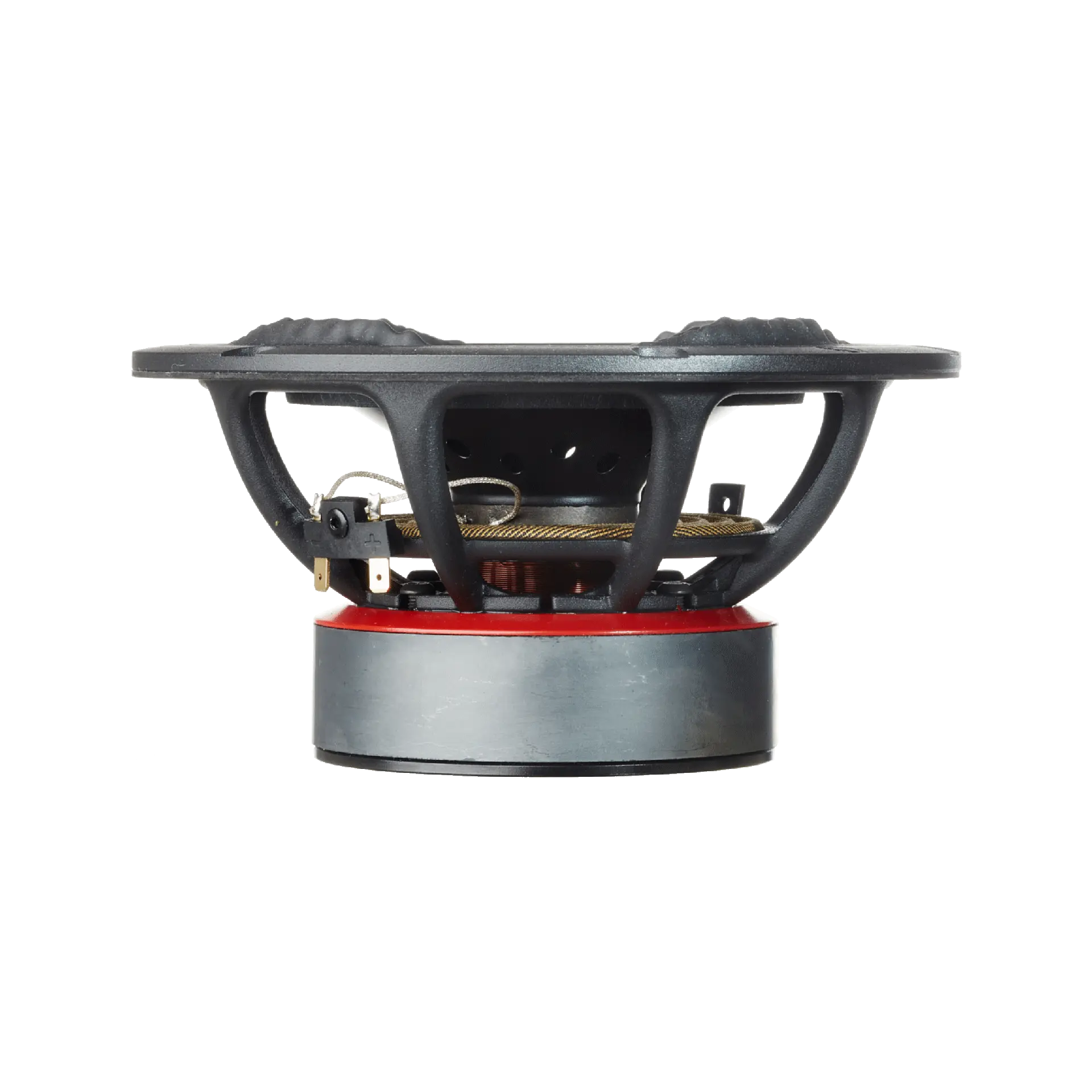

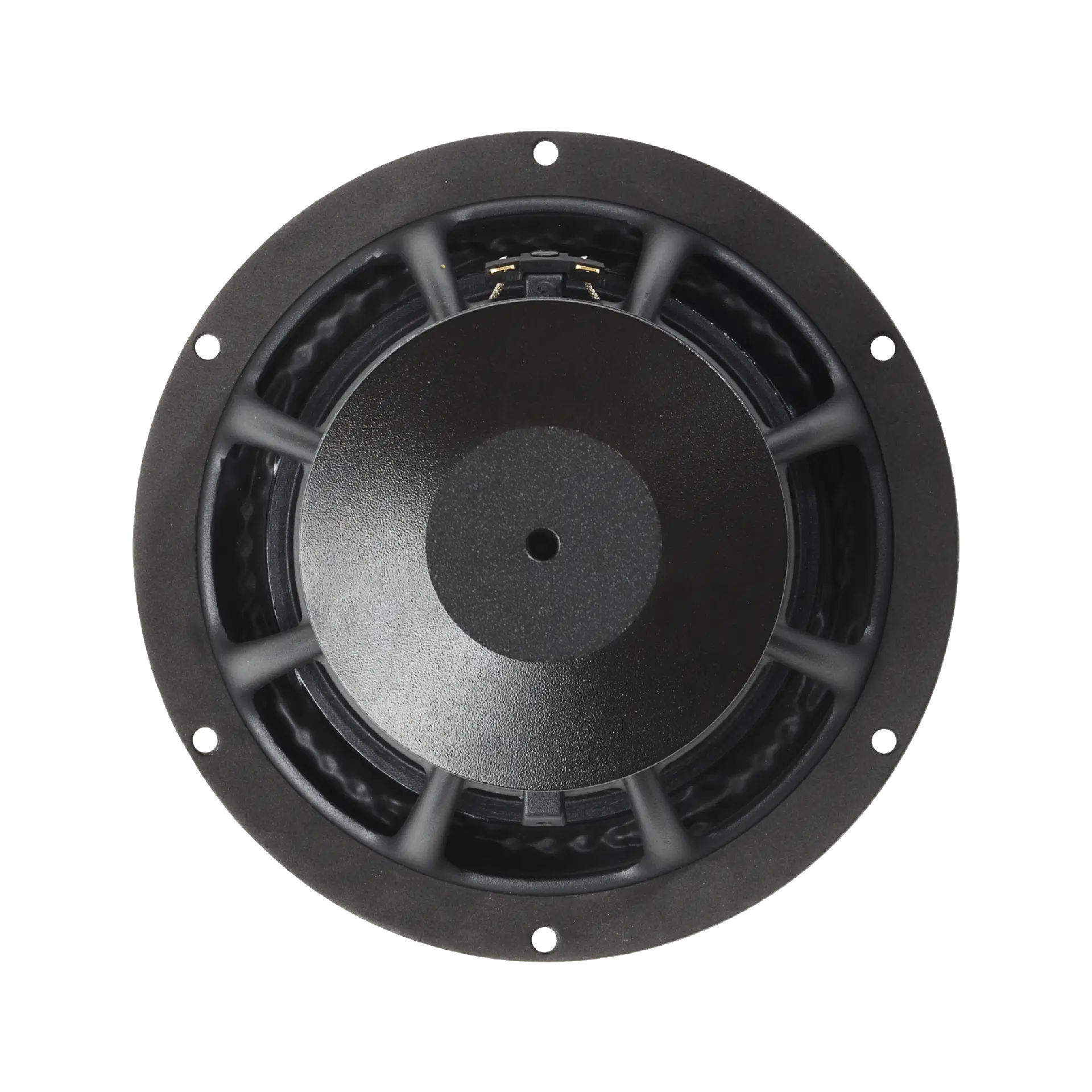

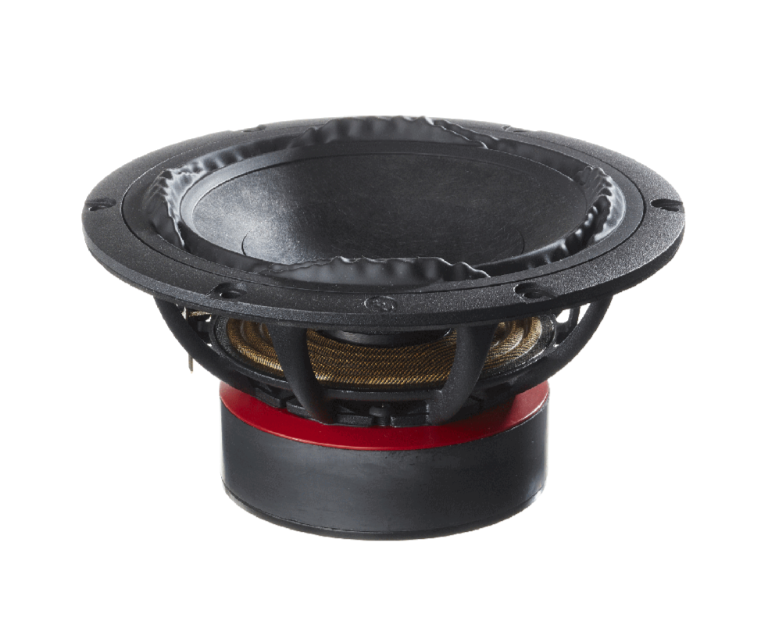

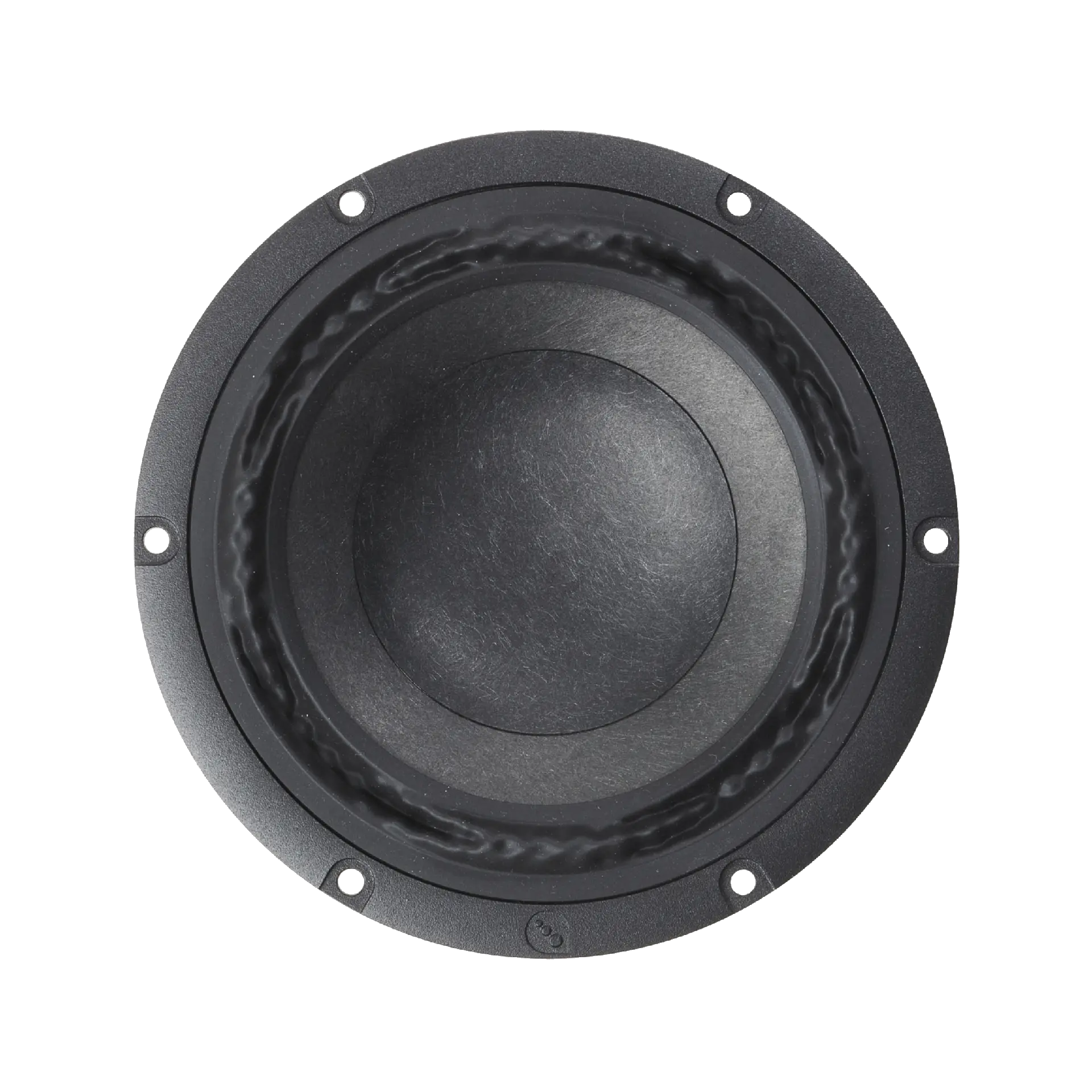

Purifi PTT6.5W08-NFA-06 is a 6.5-inch 8 ohm LF driver rated at 80 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.33, Vas 22.5 L, Xmax 5.9 mm, sensitivity 87.4 dB, plus 78 cm³ Vd and 106 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.33
- Qes
- 0.36
- Qms
- 5.4
- Vas
- 22.5L
- Re
- 6.9Ω
- Le
- 0.48mH
Motor and cone
- BL
- 9.5T·m
- Sd
- 133cm²
- Mms
- 19g
- Xmax
- 5.9mm
- Vd †
- 78cm³
- Voice coil
- 39mm
Power and response
- Sensitivity †
- 87.4dB
- Manufacturer sensitivity
- 87.8dB
- Power
- 80W
- Impedance
- 8Ω
- Min. impedance
- 7.6Ω
- EBP †
- 106 · Leans vented
Size and mounting
- Diameter
- 176mm
- Cutout
- 148mm
- Bolt circle
- 166mm
- Weight
- 1.8kg
Other published values
- Cms
- 0.90mm/N
- Rms
- 0.86kg/s
- Xmech
- 14.5
- Power Peak
- 250
Other dimensions
- Mounting Depth
- 85.2
† Calculated by bits from the published values
What this validation status means
Everything else Purifi lists
LF · Primary · 6.5″
- BL
- 9.5T·m
- Fs
- 38Hz
- Le
- 0.48mH
- Re
- 6.9Ω
- Sd
- 133cm²
- Cms
- 0.90mm/N
- Mms
- 19g
- Qes
- 0.36
- Qms
- 5.4
- Qts
- 0.33
- Rms
- 0.86kg/s
- SPL
- 87.4dB
- Vas
- 22.5L
- Xmax
- 5.9mm
- Xmech
- 14.5
- Power
- 80W
- Impedance
- 8Ω
- Power Peak
- 250
- Sensitivity
- 87.8dB
- Calculated sensitivity †
- 87.4dB
- Manufacturer sensitivity
- 87.8dB
- Min. impedance
- 7.6Ω
- Voice coil
- 39mm
- Weight
- 1.8kg
- Diameter
- 176mm
- Mounting Depth
- 85.2
- Cutout
- 148mm
- Bolt circle
- 166mm
