Purifi PTT6.5W04-NAA-08 4Ω
4 Ω
No current price
- Fs
- 33Hz
- Xmax
- 5.9mm
- SPL
- 86dB
- Pe
- 80W
- BL
- 7.7T·m
- Vd
- 78cm³
- Qts
- 0.30
- Vas
- 23L

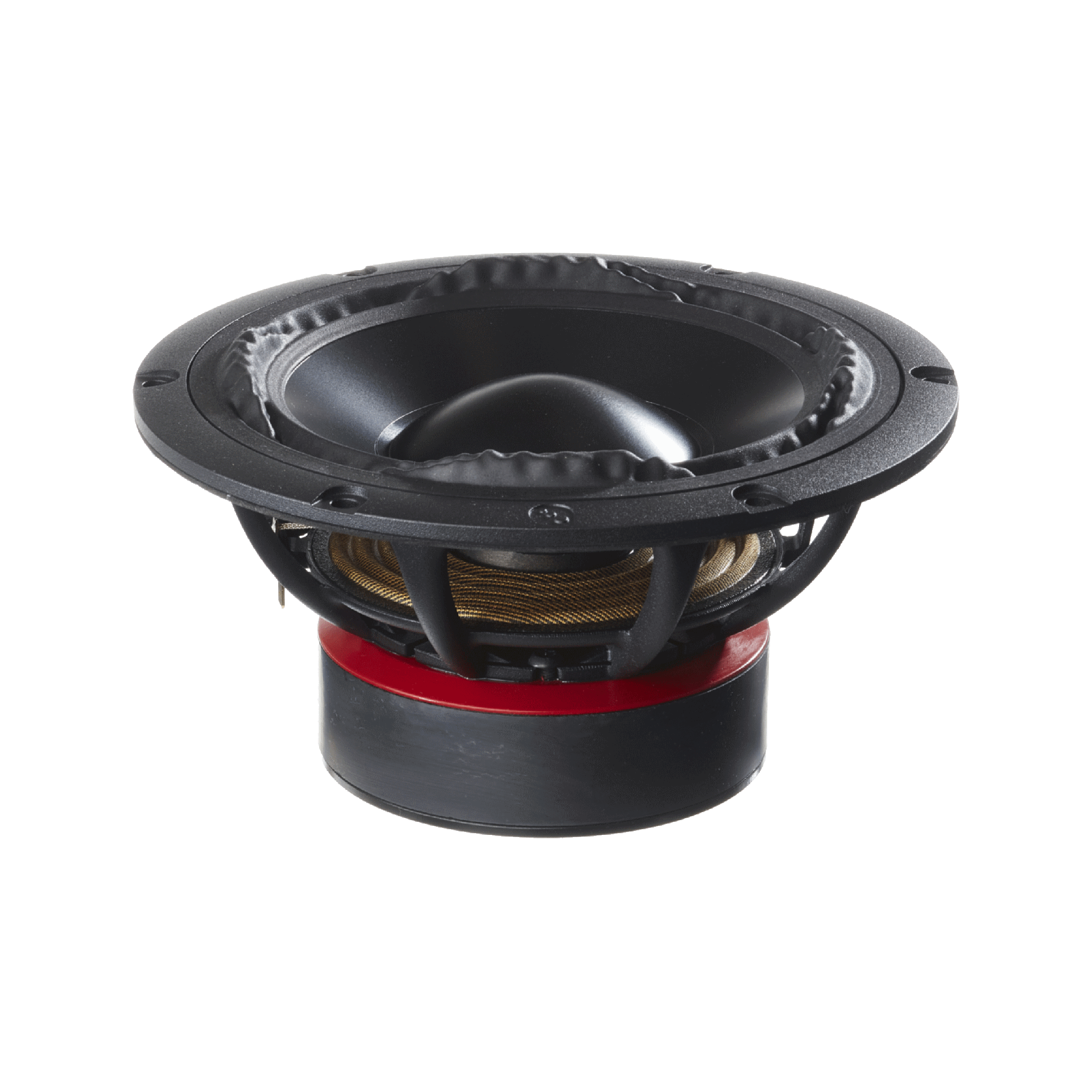

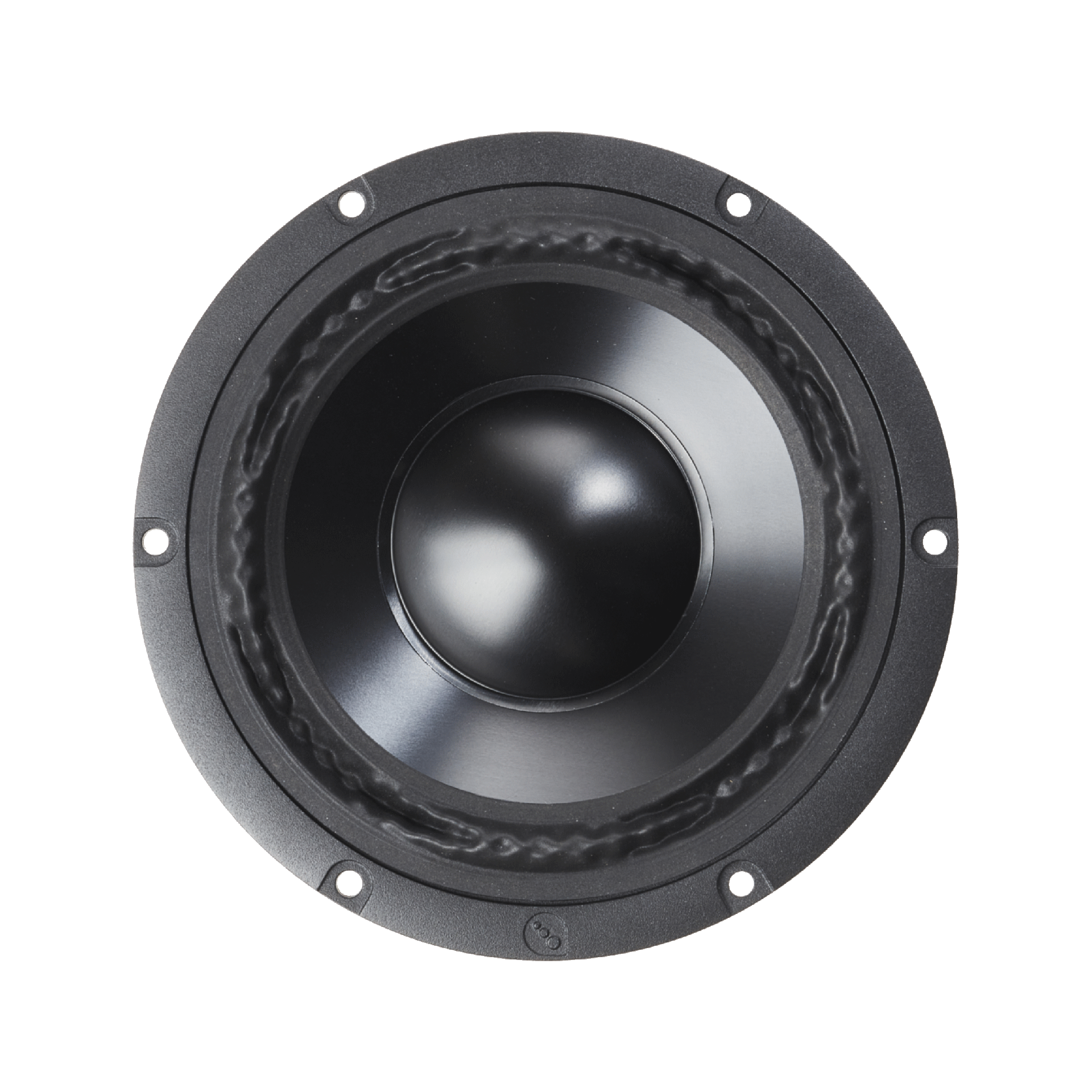

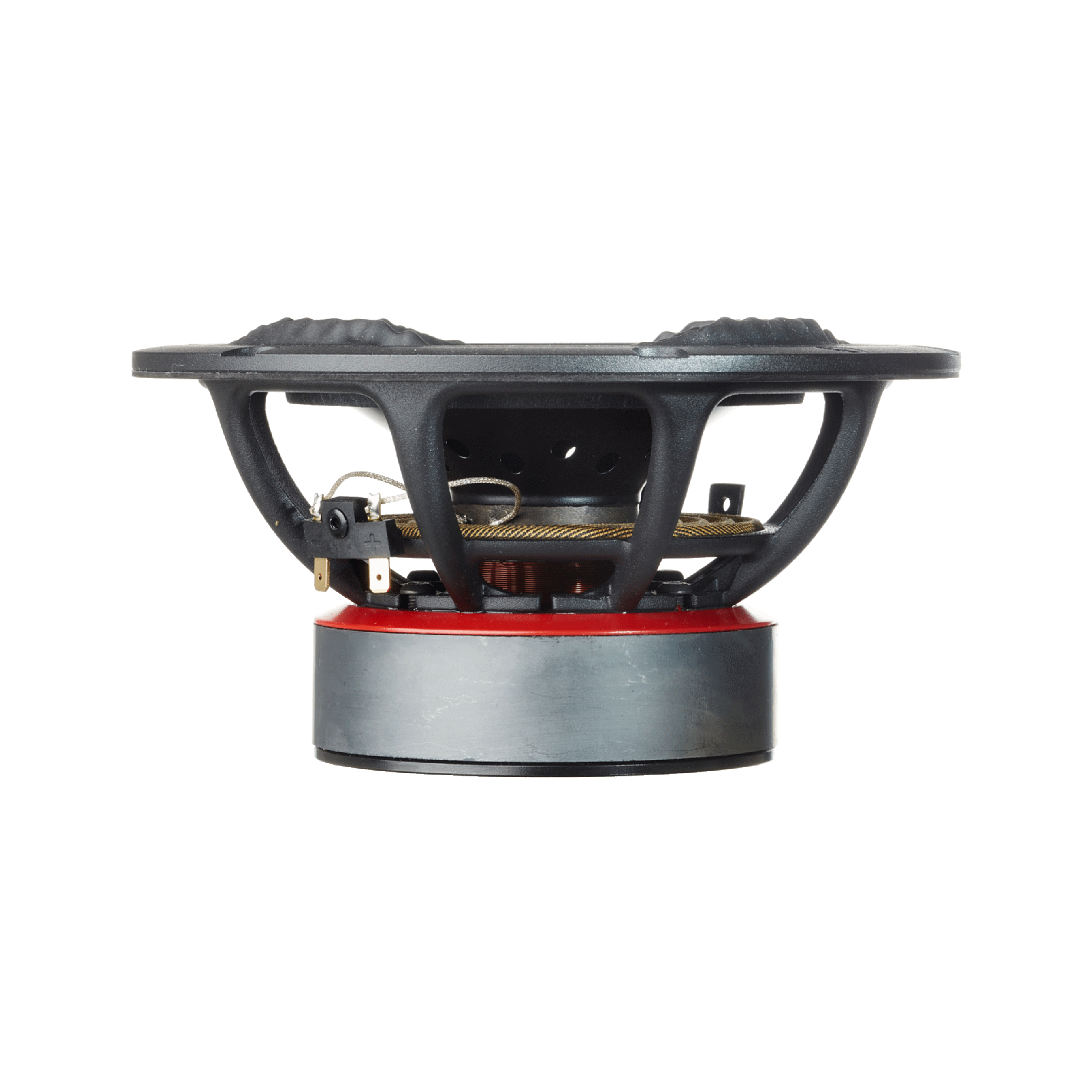

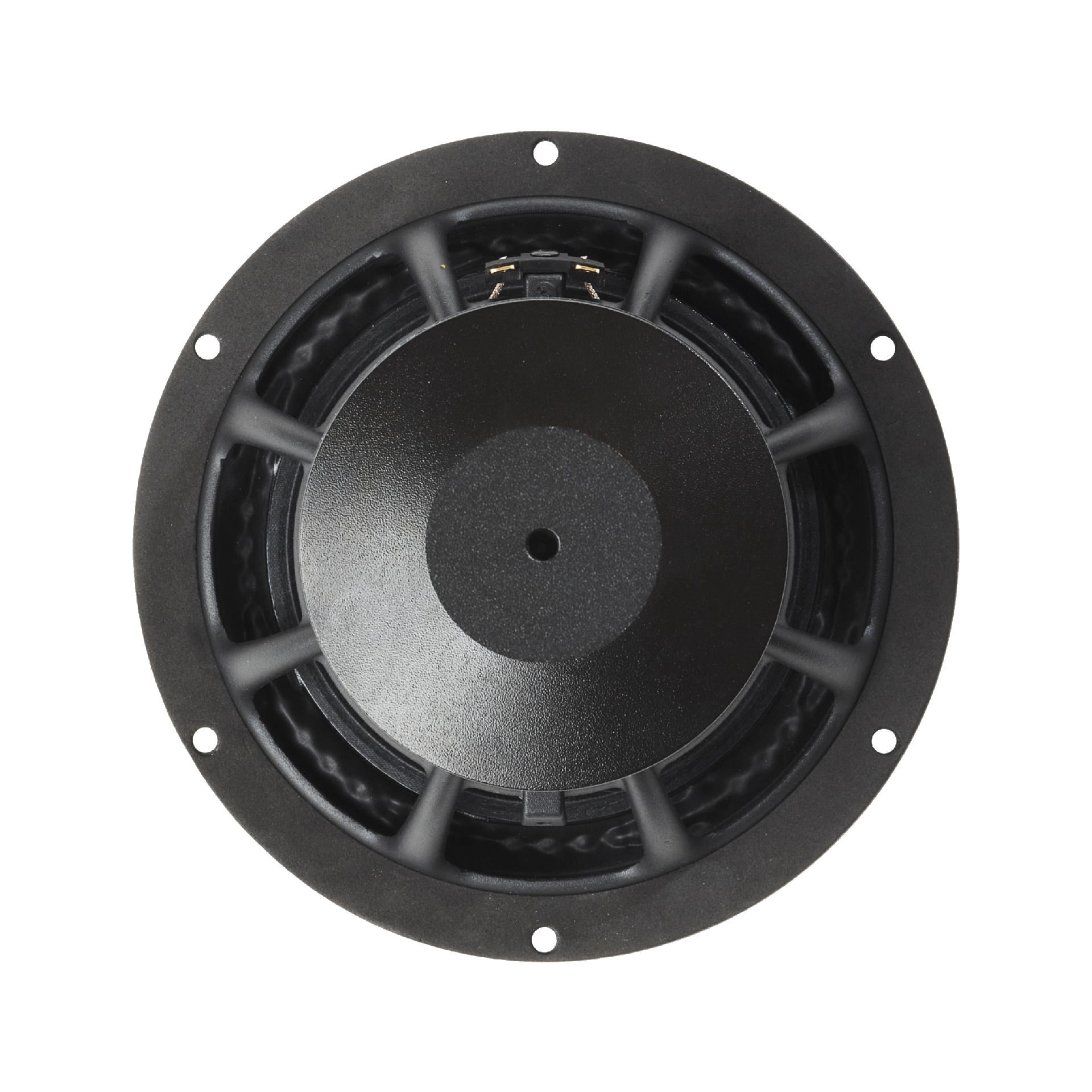

Purifi PTT6.5W04-NAA-08 is a 6.5-inch 4 ohm LF driver rated at 80 W RMS. The validated T/S data includes Fs 33 Hz, Qts 0.30, Vas 23.3 L, Xmax 5.9 mm, sensitivity 86.3 dB, plus 78 cm³ Vd and 106 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 33Hz
- Qts
- 0.30
- Qes
- 0.31
- Qms
- 6.2
- Vas
- 23.3L
- Re
- 3.6Ω
- Le
- 0.33mH
Motor and cone
- BL
- 7.7T·m
- Sd
- 133cm²
- Mms
- 25g
- Xmax
- 5.9mm
- Vd †
- 78cm³
- Voice coil
- 39mm
Power and response
- Sensitivity †
- 86.3dB
- Manufacturer sensitivity
- 89dB
- Power
- 80W
- Impedance
- 4Ω
- Min. impedance
- 4.1Ω
- EBP †
- 106 · Leans vented
Size and mounting
- Diameter
- 176mm
- Cutout
- 148mm
- Bolt circle
- 166mm
- Weight
- 1.8kg
Other published values
- Cms
- 0.93mm/N
- Rms
- 0.83kg/s
- Xmech
- 14.5
- Power Peak
- 250
Other dimensions
- Mounting Depth
- 85.2
Sensitivity shows 86.3 dB, calculated from the T/S values. Purifi publishes 89.0 dB, 2.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Purifi lists
LF · Primary · 6.5″
- BL
- 7.7T·m
- Fs
- 33Hz
- Le
- 0.33mH
- Re
- 3.6Ω
- Sd
- 133cm²
- Cms
- 0.93mm/N
- Mms
- 25g
- Qes
- 0.31
- Qms
- 6.2
- Qts
- 0.30
- Rms
- 0.83kg/s
- SPL
- 86.3dB
- Vas
- 23.3L
- Xmax
- 5.9mm
- Xmech
- 14.5
- Power
- 80W
- Impedance
- 4Ω
- Power Peak
- 250
- Sensitivity
- 89dB
- Calculated sensitivity †
- 86.3dB
- Manufacturer sensitivity
- 89dB
- Min. impedance
- 4.1Ω
- Voice coil
- 39mm
- Weight
- 1.8kg
- Diameter
- 176mm
- Mounting Depth
- 85.2
- Cutout
- 148mm
- Bolt circle
- 166mm
