Overview
LF DriverCeramic series
Accuton

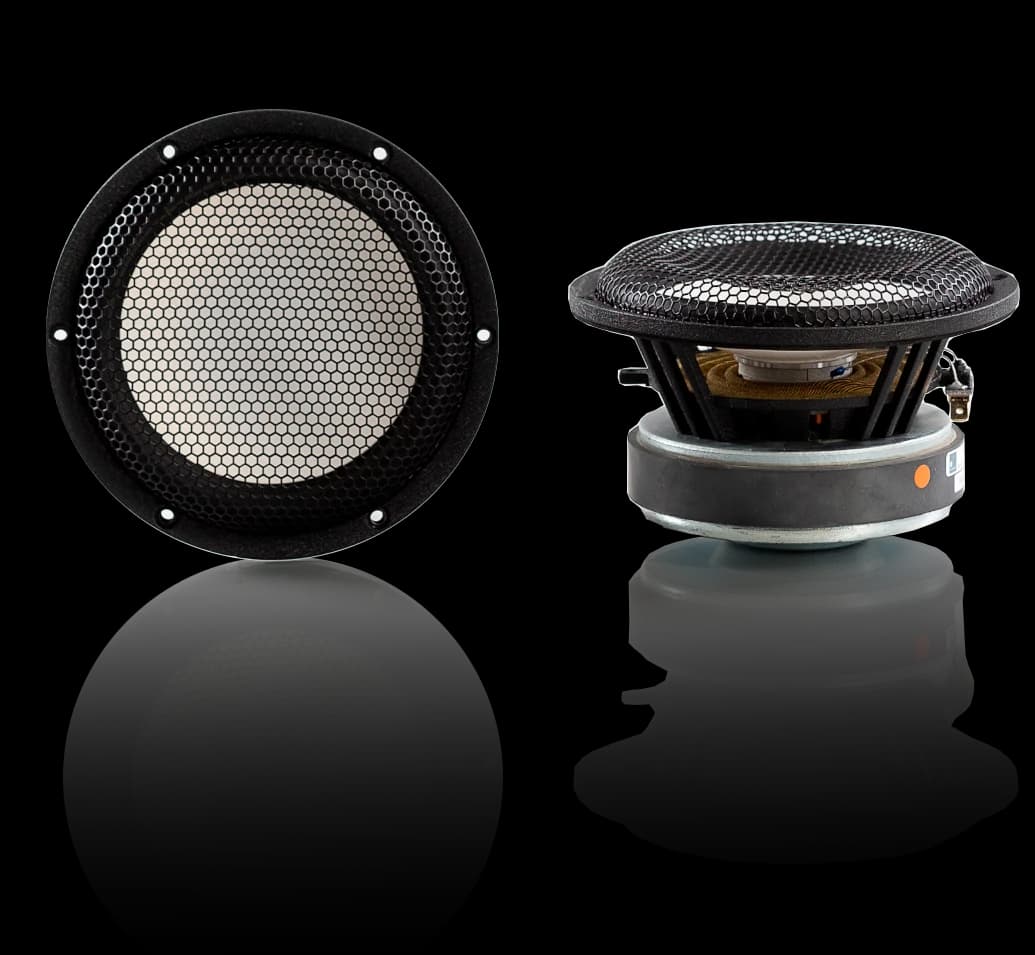

Accuton C158-6-851
Accuton C158-6-851 is a 6" 6 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 31Hz, Qts 0.28, Vas 25.7L, Xmax 5mm, sensitivity 86.2dB, plus 57cm³ Vd and 107 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £302.95.
Size
6"
Impedance
6Ω
RMS Power
120W
Sensitivity
86.2dB
88.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
107
Vented alignment
Vd
57cm³
T/S Parameters
Valid
Fs31Hz
Qts0.28
Qes0.29
Qms5.1
Vas25.7L
Re6.1Ω
Le0.77mH
BL8.7Tm
Sd113cm²
Mms19g
Xmax5.0mm
SPL86dB
Power120W
Impedance6Ω
F Low35Hz
F High3000Hz
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
£302.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

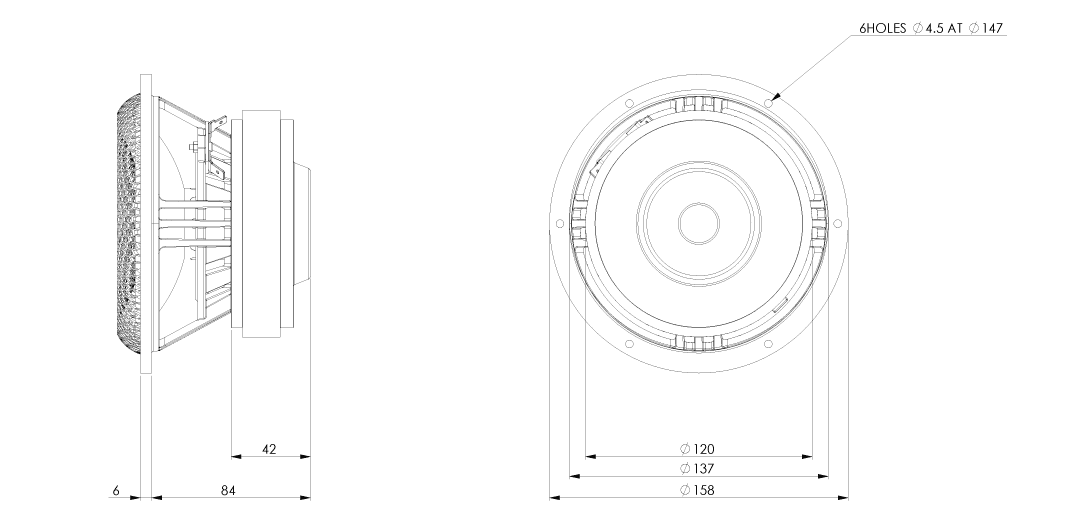

Dimensions & Physical
Diameter158.0mm
Overall Depth90.0mm
Cutout Diameter137.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Accuton
C158-6-851
6"
Best current price
£302.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
28%
Similarity
85% cheaper£44.95
Eighteen Sound
5W430
5"
Lower price
Xmax6mm+20%
Qts0.32+14%
BL6.3Tm-28%
Vas15L-42%
Qes0.36+24%
53%
Similarity
79% cheaper£64.95

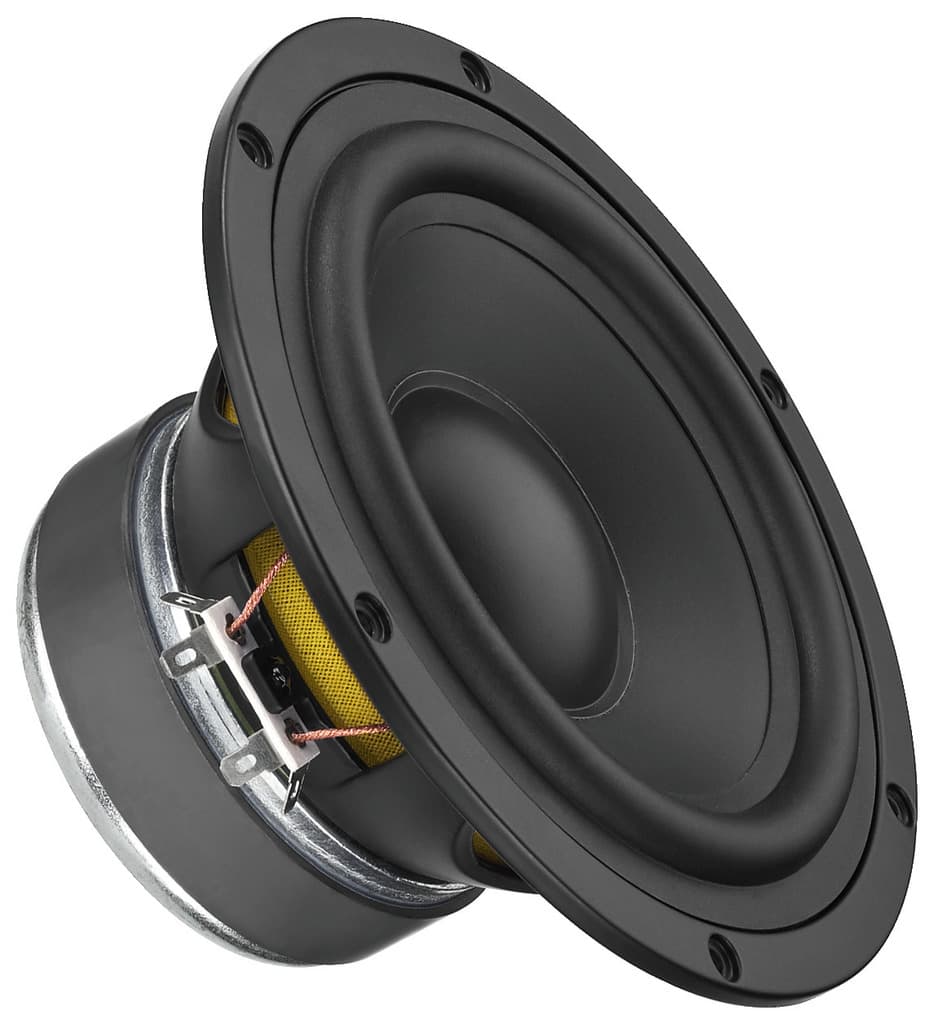

Monacor
SPH-6M
6.5"
Lower price
Xmax4mm-20%
Qts0.3+7%
BL9.7Tm+11%
Vas17.6L-32%
Qes0.35+21%
59%
Similarity
78% cheaper£66.95

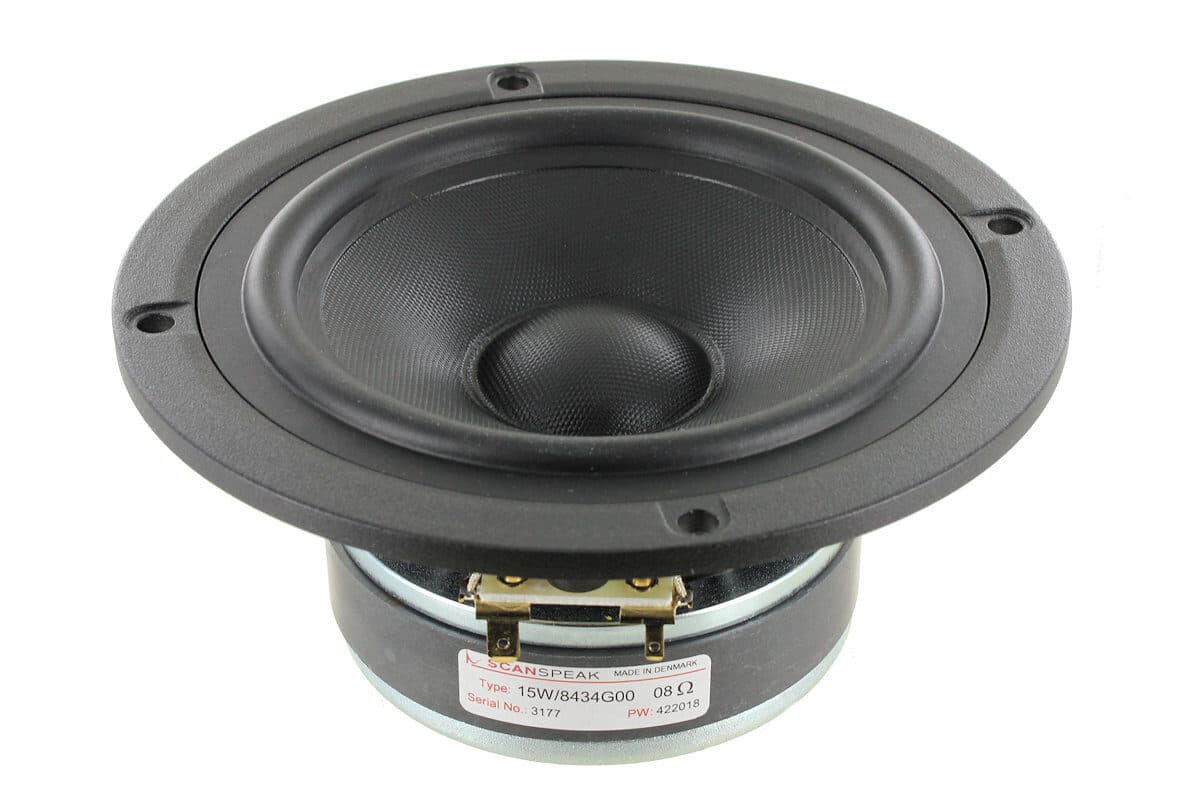

Scanspeak
15W/8434G00
6"
Lower price
Xmax4.2mm-16%
Qts0.25-11%
BL7.3Tm-16%
Vas12.8L-50%
Qes0.27-7%
59%
Similarity
73% cheaper£83.14
Lavoce
WAN061.80
6.5"
Lower price
Xmax5.2mm+4%
Qts0.27-4%
BL10.9Tm+25%
Vas11.2L-56%
Qes0.290%
27%
Similarity
72% cheaper£84.95

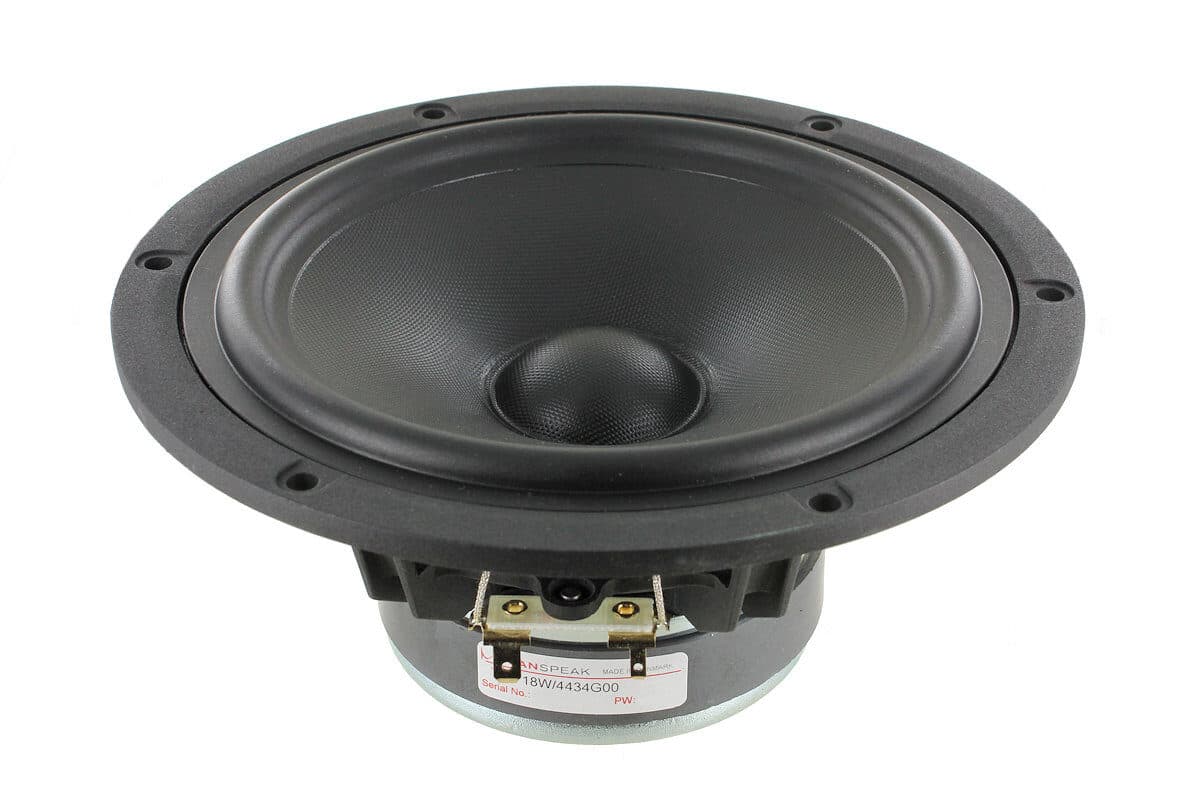

Scanspeak
18W/4434G00
7"
Lower price
Xmax4.3mm-14%
Qts0.35+25%
BL6Tm-31%
Vas20.7L-19%
Qes0.37+28%
58%
Similarity
71% cheaper£88.81
Beyma
6P200FE
6.5"
Lower price
Xmax5mm0%
Qts0.26-7%
BL10.5Tm+21%
Vas11.1L-57%
Qes0.27-7%
46%
Similarity
66% cheaper£103.00

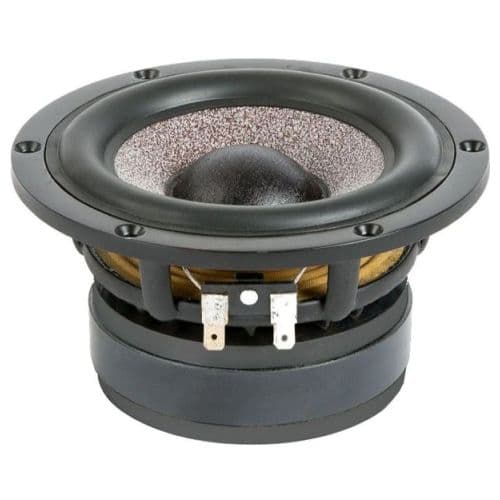

CIARE
HWG130
5"
Lower price
Xmax6.5mm+30%
Qts0.280%
BL7.8Tm-10%
Vas12.5L-51%
Qes0.3+3%
66%
Similarity
63% cheaper£110.59

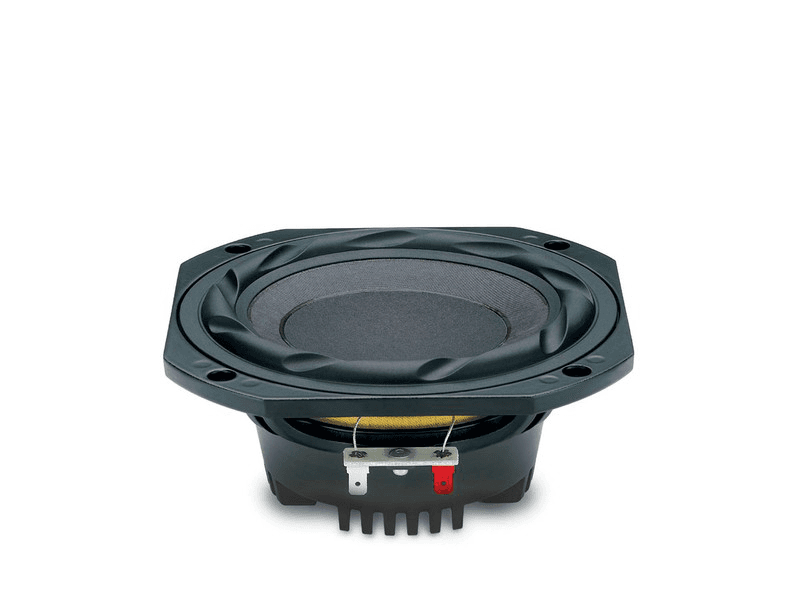

Eighteen Sound
6ND430
6.5"
Lower price
Xmax5mm0%
Qts0.27-4%
BL10Tm+15%
Vas12.6L-51%
Qes0.28-3%
36%
Similarity
62% cheaper£115.00
SB Acoustics
MR13PNW-8
5"
Lower price
Xmax6mm+20%
Qts0.3+7%
BL6.2Tm-29%
Vas12.9L-50%
Qes0.32+10%
31%
Similarity
55% cheaper£135.77
SB Acoustics
MR13P-8
5"
Lower price
Xmax6mm+20%
Qts0.31+11%
BL6.1Tm-30%
Vas12.5L-51%
Qes0.33+14%
67%
Similarity
52% cheaper£144.60
Monacor
SPH-170C
6.5"
Lower price
Xmax4mm-20%
Qts0.26-7%
BL9.4Tm+9%
Vas24L-7%
Qes0.27-7%
Image unavailable
55%
Similarity
48% cheaper£158.03
Wavecor
WF182BD13
7"
Lower price
Xmax5.5mm+10%
Qts0.26-7%
BL6.9Tm-21%
Vas20.8L-19%
Qes0.27-7%
