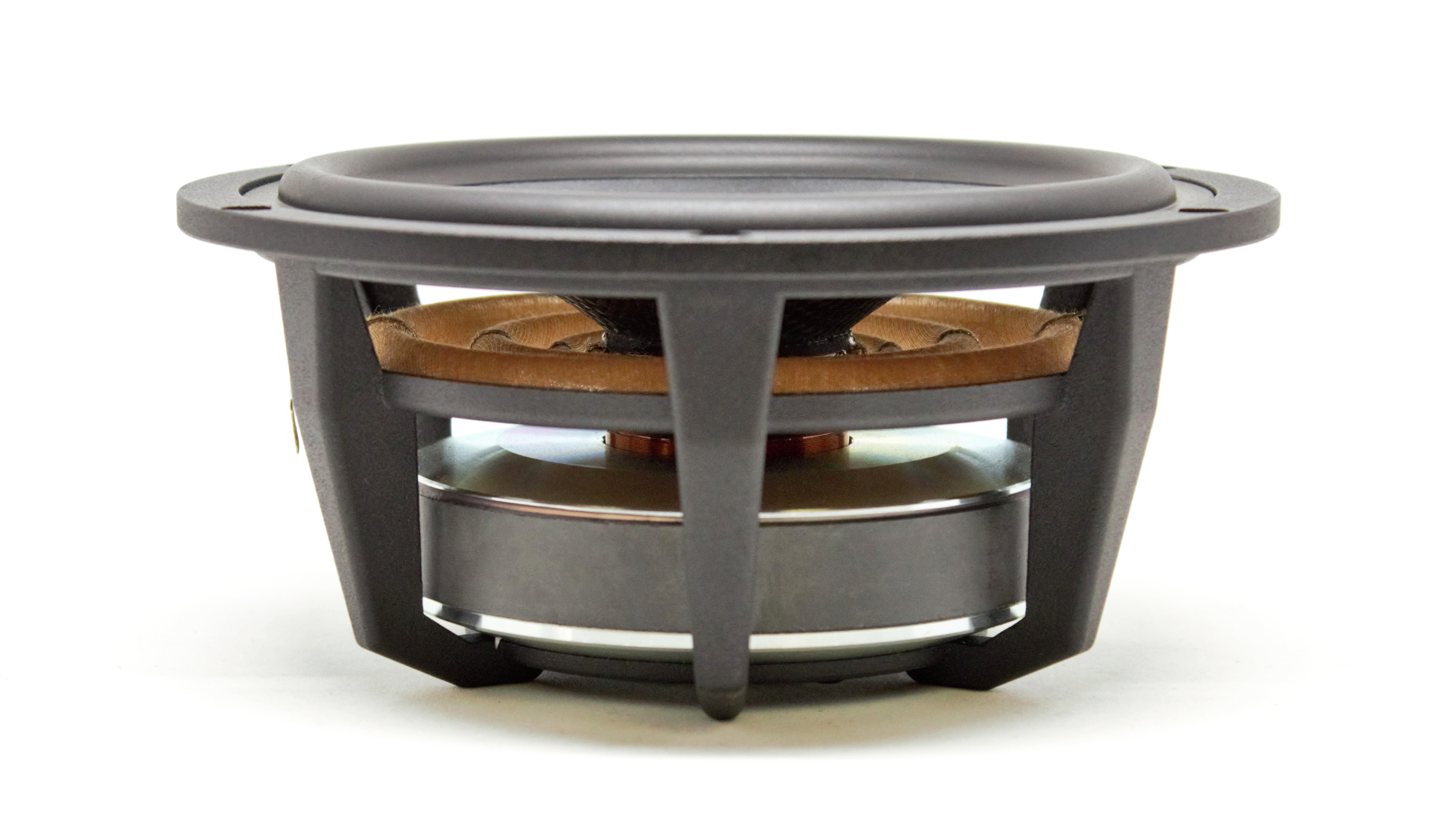

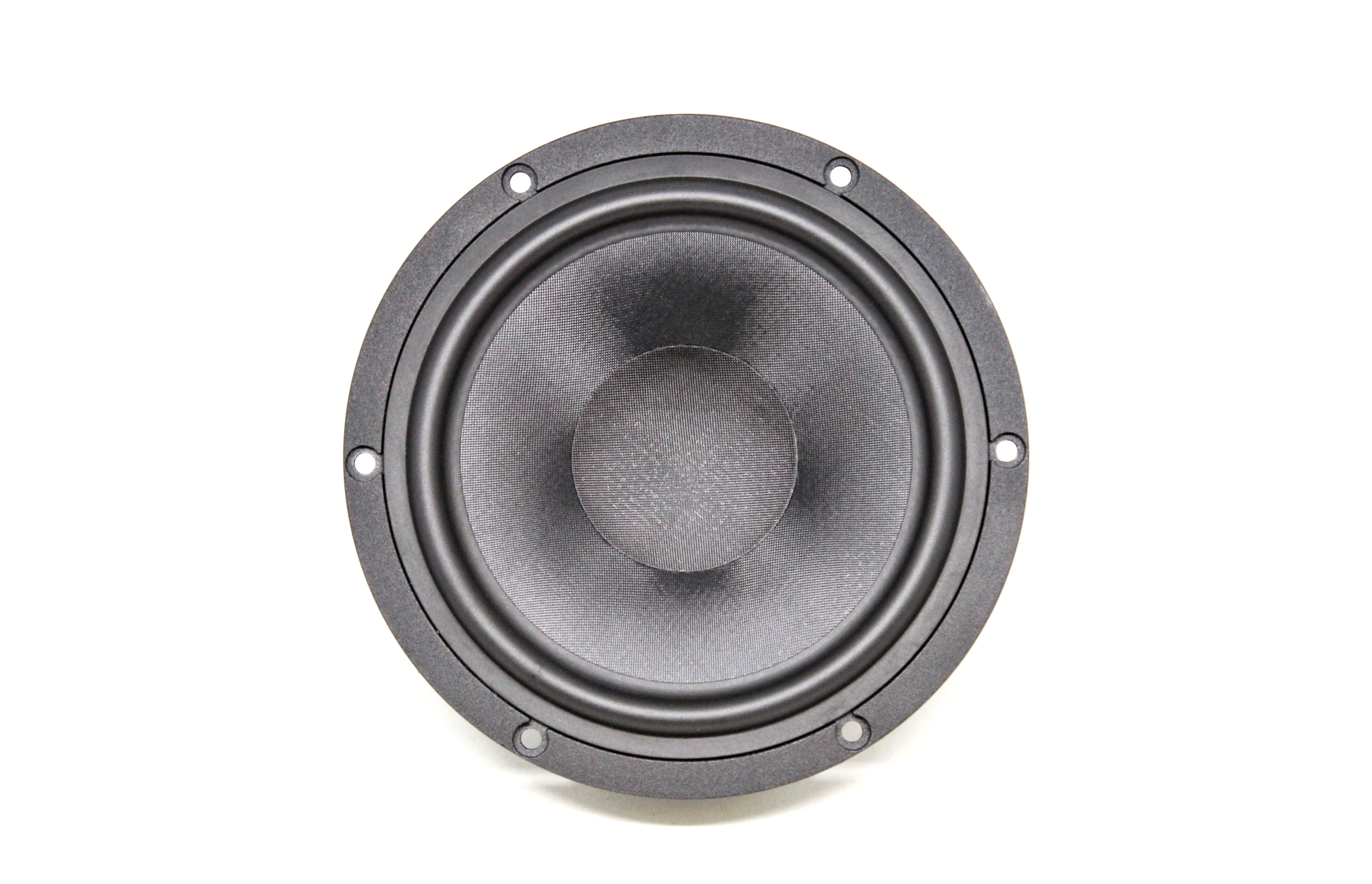

6.5-inch LF driver

Kartesian WOM165_VMS 8Ω

Name: Kartesian WOM165_VMS 8 Ohm
Brand: Kartesian
SKU: WOM165_VMS

8 Ω · 45–2500 Hz

No current price

View offers

Open in 00 Simulator

Fs: 39Hz
Xmax: 4.5mm
SPL: 90dB
Pe: –
BL: 8.8T·m
Vd: 56cm³
Qts: 0.27
Vas: 22L

See all 14 specs

Specifications

Published by Kartesian

Manufacturer page

Datasheet PDF

Kartesian WOM165_VMS is a 6.5-inch 8 ohm LF driver. The validated T/S data includes Fs 39 Hz, Qts 0.27, Vas 22.1 L, Xmax 4.5 mm, sensitivity 90 dB, plus 56 cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Partial source evidence

Automated T/S checks passed, but some material low-frequency parameters are not published for this record.

Material fields not published: Qes

Manufacturer page linked
Datasheet linked
Canonical units normalized for comparison
Vd can be derived from Sd and Xmax

Manufacturer source Datasheet Validation methodology

Thiele/Small

Fs: 39Hz
Qts: 0.27
Qms: 2.8
Vas: 22.1L
Re: 6.2Ω

Motor and cone

BL: 8.8T·m
Sd: 125cm²
Mms: 14g
Xmax: 4.5mm
Vd †: 56cm³

Power and response

Sensitivity: 90dB
Impedance: 8Ω
Range: 45–2500Hz

Size and mounting

Diameter: 165mm

† Calculated by bits from the published values

What this validation status means

Everything else Kartesian lists

LF · Primary · 6.496062992125984″

BL: 8.8T·m
Fs: 39Hz
Re: 6.2Ω
Sd: 125cm²
Mms: 14g
Qms: 2.8
Qts: 0.27
SPL: 90dB
Vas: 22.1L
Xmax: 4.5mm
Impedance: 8Ω
Sensitivity: 90dB
Low limit: 45Hz
High limit: 2500Hz
Manufacturer sensitivity: 90dB
Diameter: 165mm
