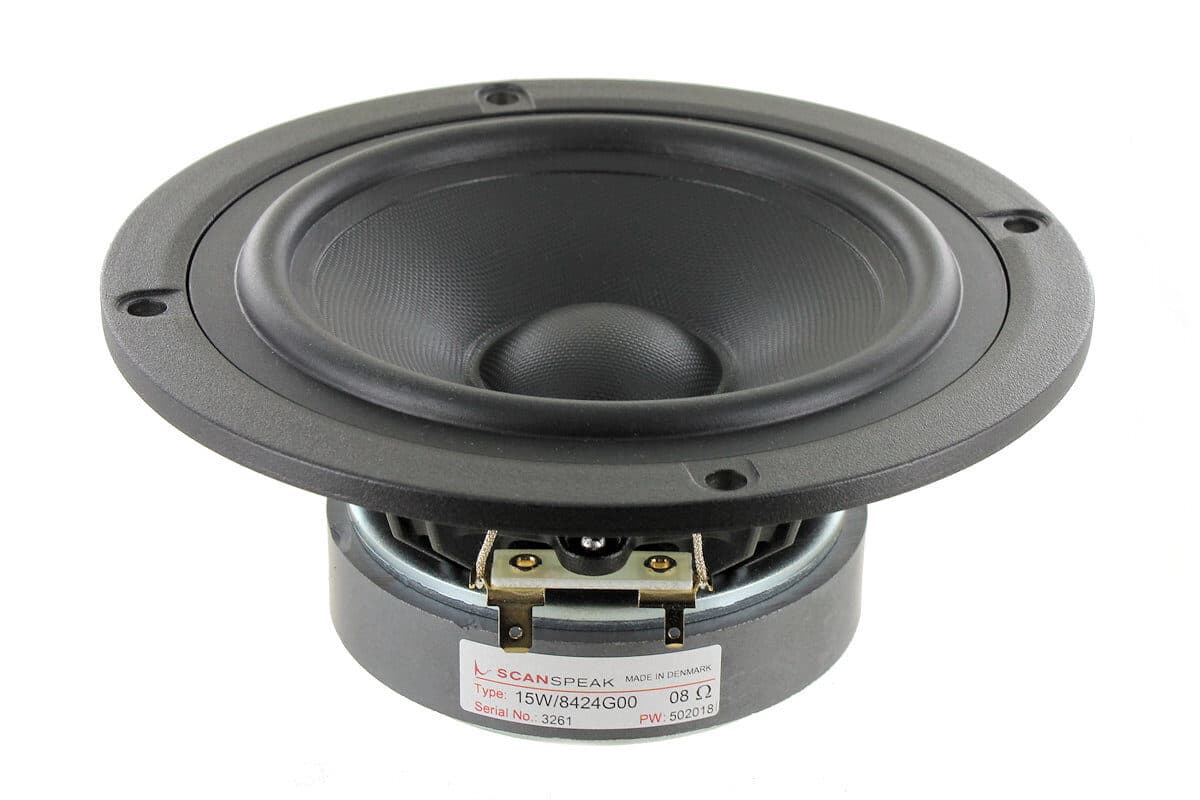

Scanspeak15W/8424G00
£49.40Fs46 Hz +28%, worse
Qts0.25 −7%
Vas14.5 L −36%, better
BL6.6 T·m −20%, worse
Xmax2.6 mm −10%, worse
Sensitivity89.2 dB +1.4
6.5-inch LF driver · PTT series · 39 mm voice coil · 80 W
Purifi PTT6.5M04-NAA-08 4Ω
4 Ω
No current price
- Fs
- 36Hz
- Xmax
- 2.9mm
- SPL
- 88dB
- Pe
- 80W
- BL
- 8.2T·m
- Vd
- 38cm³
- Qts
- 0.27
- Vas
- 23L

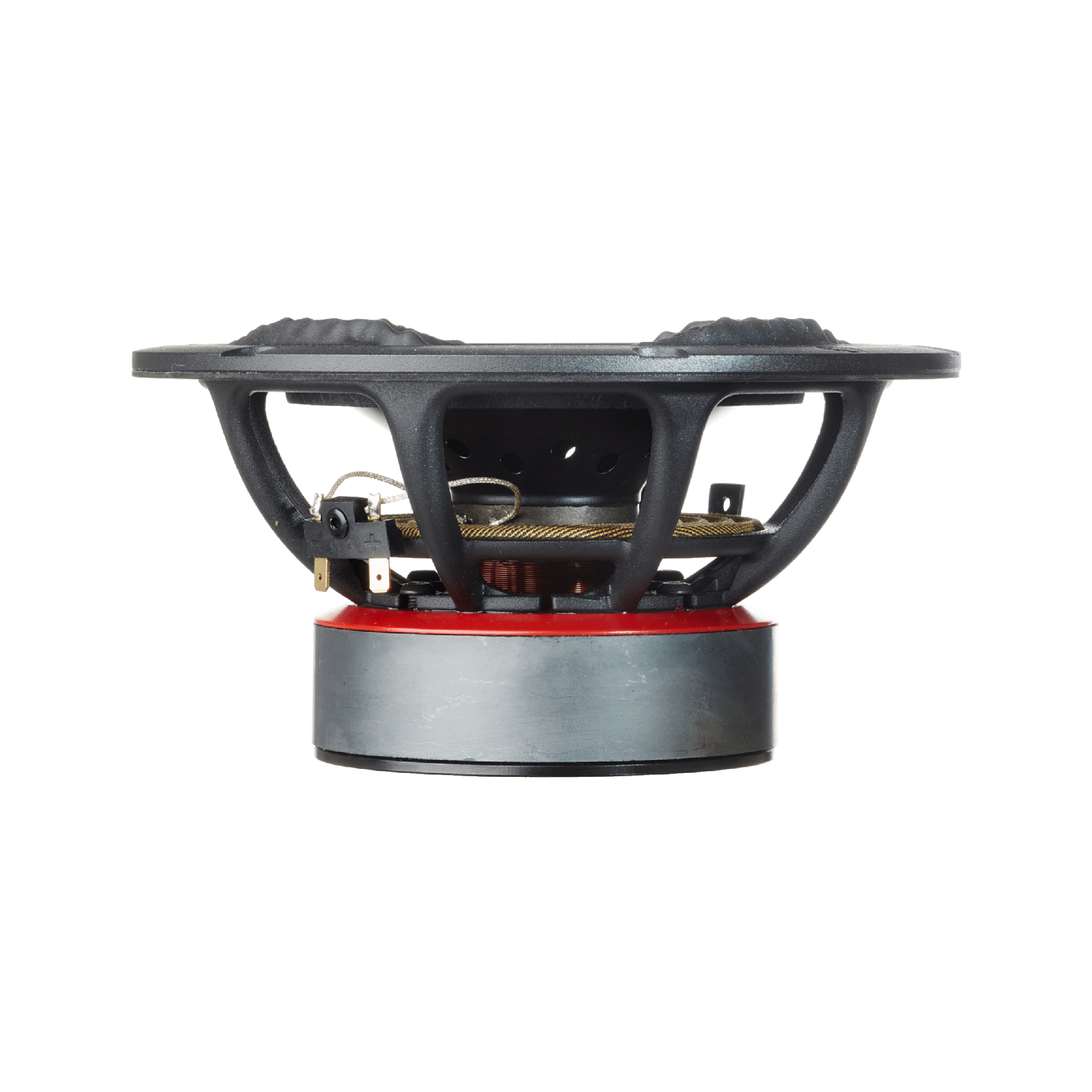

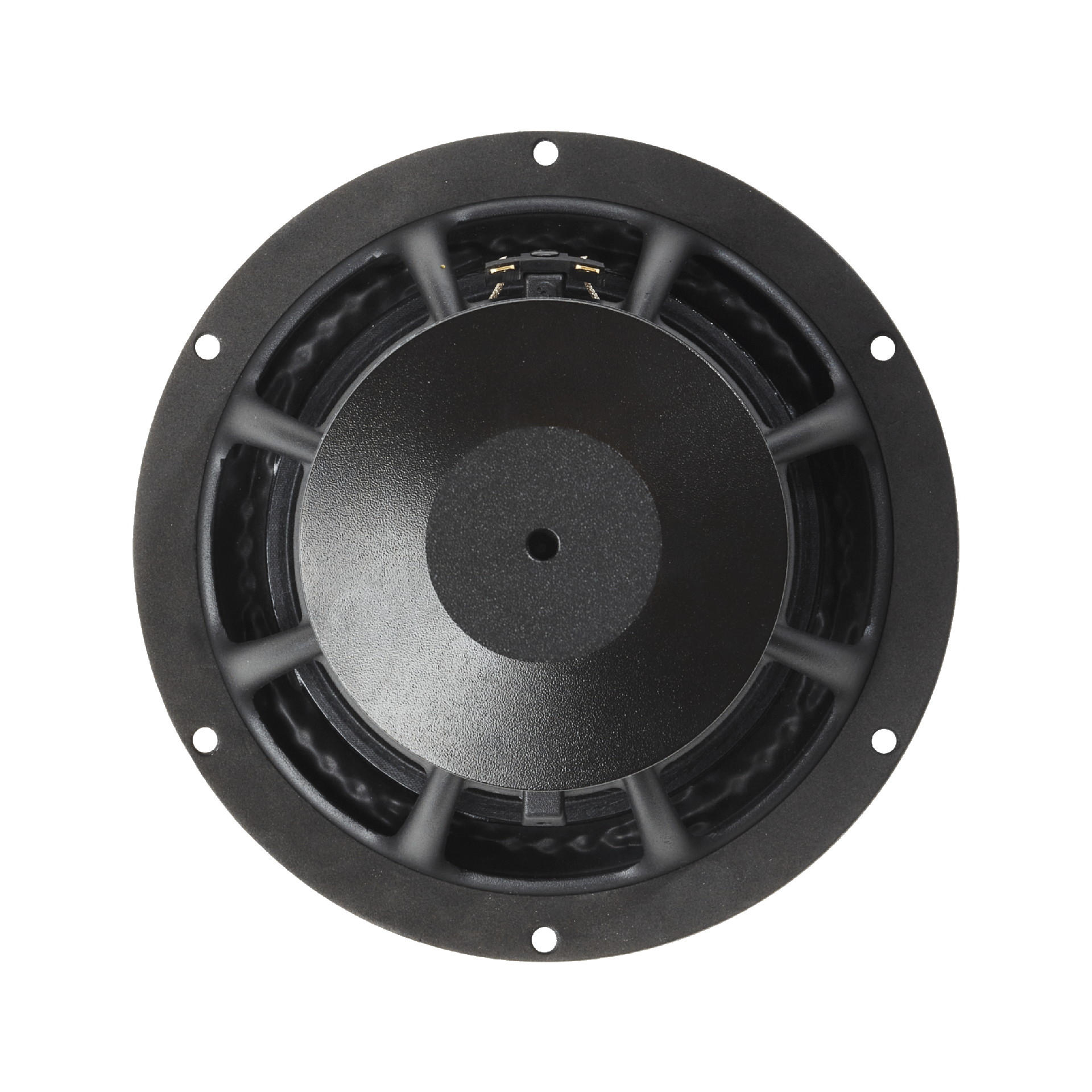

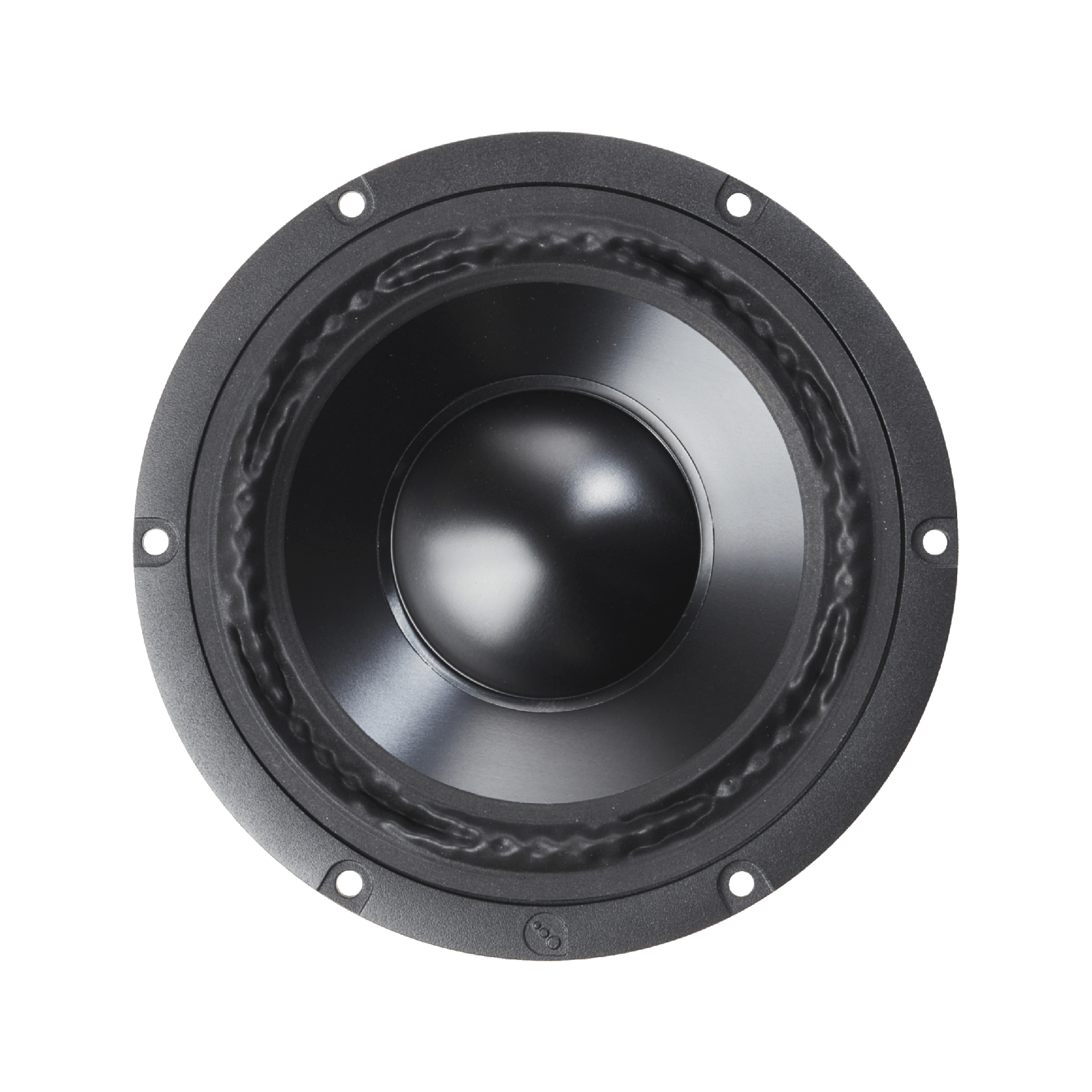

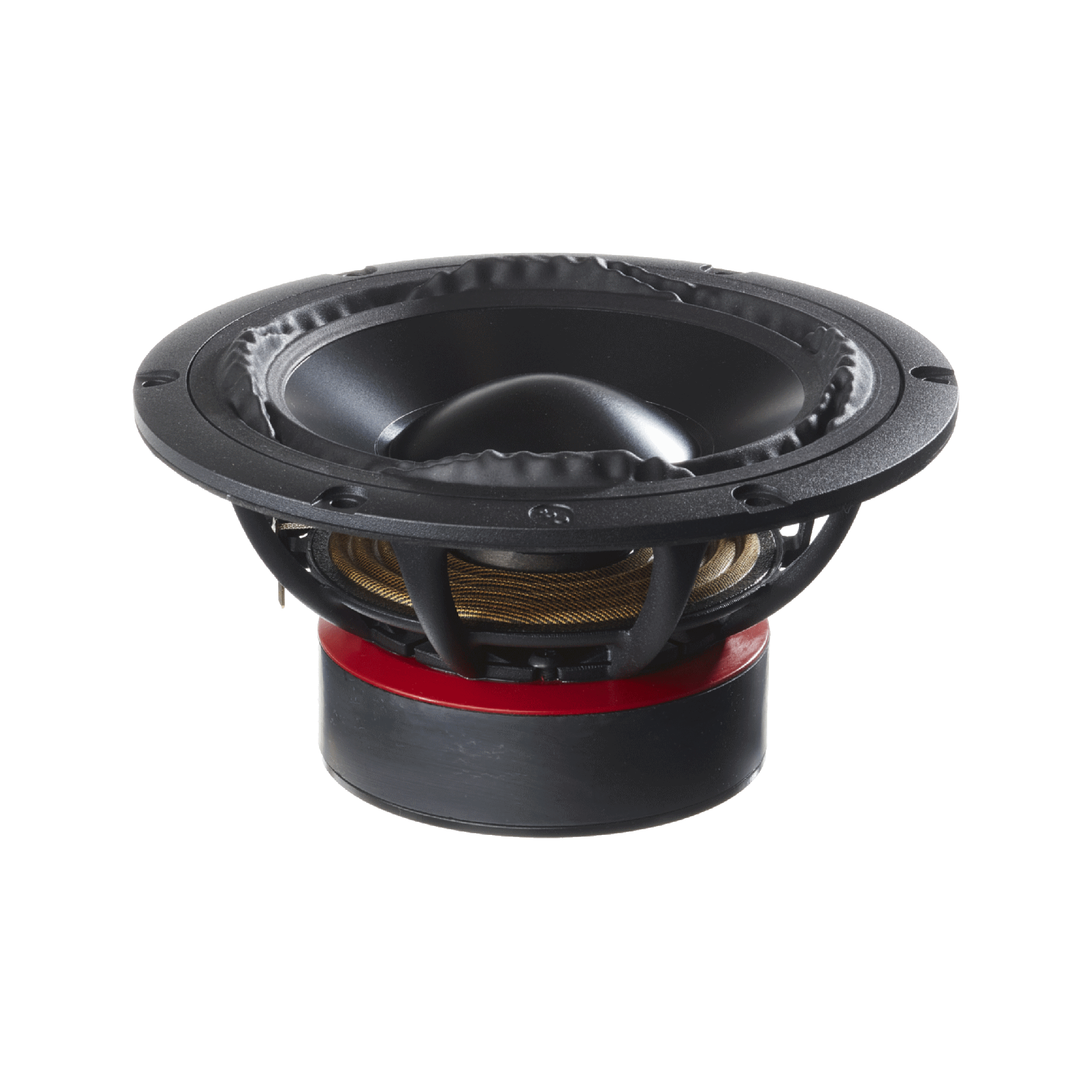

Purifi PTT6.5M04-NAA-08 is a 6.5-inch 4 ohm LF driver rated at 80 W RMS. The validated T/S data includes Fs 36 Hz, Qts 0.27, Vas 22.7 L, Xmax 2.9 mm, sensitivity 87.8 dB, plus 38 cm³ Vd and 129 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 36Hz
- Qts
- 0.27
- Qes
- 0.28
- Qms
- 6.8
- Vas
- 22.7L
- Re
- 3.9Ω
- Le
- 0.27mH
Motor and cone
- BL
- 8.2T·m
- Sd
- 133cm²
- Mms
- 22g
- Xmax
- 2.9mm
- Vd †
- 38cm³
- Voice coil
- 39mm
Power and response
- Sensitivity †
- 87.8dB
- Manufacturer sensitivity
- 90.3dB
- Power
- 80W
- Impedance
- 4Ω
- Min. impedance
- 4.3Ω
- Crossover
- 200Hz
- EBP †
- 129 · Leans vented
Size and mounting
- Diameter
- 176mm
- Cutout
- 148mm
- Bolt circle
- 166mm
- Weight
- 1.8kg
Other published values
- Cms
- 0.91mm/N
- Rms
- 0.72kg/s
- Xmech
- 14.5
- Power Peak
- 200
Other dimensions
- Mounting Depth
- 85.2
Sensitivity shows 87.8 dB, calculated from the T/S values. Purifi publishes 90.3 dB, 2.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Purifi lists
MF · Primary · 6.5″
- BL
- 8.2T·m
- Fs
- 36Hz
- Le
- 0.27mH
- Re
- 3.9Ω
- Sd
- 133cm²
- Cms
- 0.91mm/N
- Mms
- 22g
- Qes
- 0.28
- Qms
- 6.8
- Qts
- 0.27
- Rms
- 0.72kg/s
- SPL
- 87.8dB
- Vas
- 22.7L
- Xmax
- 2.9mm
- Xmech
- 14.5
- Power
- 80W
- Impedance
- 4Ω
- Power Peak
- 200
- Sensitivity
- 90.3dB
- Calculated sensitivity †
- 87.8dB
- Manufacturer sensitivity
- 90.3dB
- Min. impedance
- 4.3Ω
- Voice coil
- 39mm
- Crossover
- 200Hz
- Weight
- 1.8kg
- Diameter
- 176mm
- Mounting Depth
- 85.2
- Cutout
- 148mm
- Bolt circle
- 166mm
02
Compare
Same-size drivers, compared with the PTT6.5M04-NAA-08. Clear differences are green when better and red when worse.
This driverPTT6.5M04-NAA-08
Best price
–
Fs
36 Hz
Qts
0.27
Vas
22.7 L
BL
8.2 T·m
Xmax
2.9 mm
Sensitivity
87.8 dB
Power
80 W
SB AcousticsSB17NRX2L35-4
£59.85Fs41 Hz +14%, worse
Qts0.25 −7%
Vas21.9 L −4%
BL6.5 T·m −21%, worse
Xmax4.8 mm +66%, better
Sensitivity89.7 dB +1.9
SB AcousticsSB17NRX2L35-8
£71.13Fs38 Hz +5%
Qts0.28 +4%
Vas26.1 L +15%, worse
BL7.8 T·m −4%
Xmax4.8 mm +66%, better
Sensitivity88.7 dB +0.9
REDCATT6FHM
£82.06Fs36 Hz –
Qts0.29 +7%
Vas26.1 L +15%, worse
BL9.9 T·m +21%, better
Xmax4.3 mm +47%, better
Sensitivity88.3 dB +0.5
ETON7-612/C8/32 RP
£96.25Fs37 Hz –
Qts0.30 +11%, worse
Vas28 L +23%, worse
BL8.6 T·m +5%
Xmax4.5 mm +55%, better
Sensitivity88.5 dB +0.7
Scanspeak18W/8545K00
£144.00Fs28 Hz −22%, better
Qts0.28 +4%
Vas46.4 L +104%, worse
BL8.2 T·m –
Xmax6.5 mm +124%, better
Sensitivity87.3 dB −0.5
MonacorSPH-170C
£144.60Fs38 Hz +6%
Qts0.26 −4%
Vas24 L +6%
BL9.4 T·m +15%, better
Xmax4 mm +38%, better
Sensitivity88.9 dB +1.1

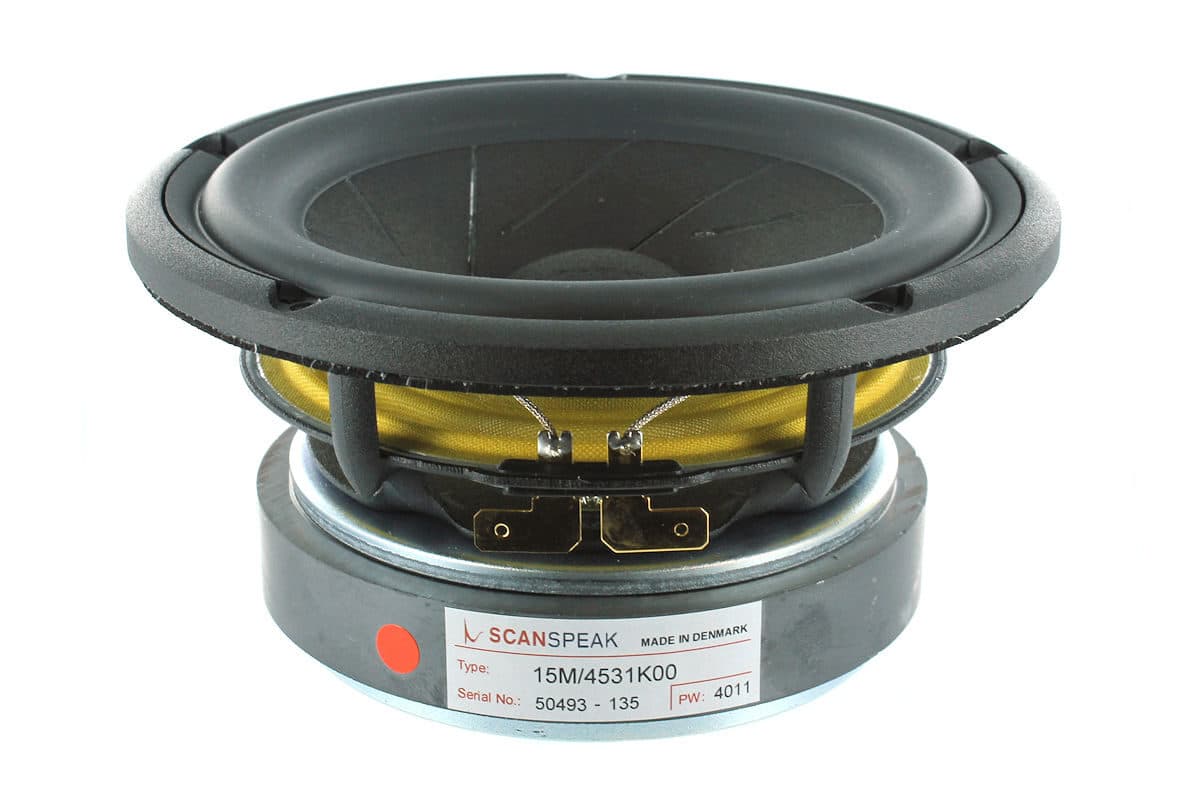

Scanspeak15M/4531K00
£150.70Fs42 Hz +17%, worse
Qts0.27 –
Vas16 L −30%, better
BL6 T·m −27%, worse
Xmax3 mm +3%
Sensitivity88.3 dB +0.5
WavecorWF182BD13
£157.84Fs38 Hz +6%
Qts0.26 −4%
Vas20.8 L −8%
BL6.9 T·m −16%, worse
Xmax5.5 mm +90%, better
Sensitivity88.3 dB +0.5
WavecorWF182BD03
£190.66Fs39 Hz +8%
Qts0.29 +7%
Vas24.4 L +7%
BL6.8 T·m −18%, worse
Xmax5.5 mm +90%, better
Sensitivity88.9 dB +1.1
WavecorWF182BD08
£190.66Fs33 Hz −7%
Qts0.29 +7%
Vas32.4 L +43%, worse
BL8.5 T·m +4%
Xmax5.5 mm +90%, better
Sensitivity88.1 dB –
WavecorWF182BD16
£191.74Fs37 Hz –
Qts0.30 +11%, worse
Vas23 L –
BL8.5 T·m +4%
Xmax5.5 mm +90%, better
Sensitivity87.8 dB –
AccutonC158-6-851
£293.02Fs31 Hz −14%, better
Qts0.28 +4%
Vas25.7 L +13%, worse
BL8.7 T·m +6%
Xmax5 mm +72%, better
Sensitivity86.2 dB −1.6
Scanspeak15WU/8741T00
£301.39Fs35 Hz –
Qts0.26 −4%
Vas19.9 L −12%, better
BL7.5 T·m −9%
Xmax9 mm +210%, better
Sensitivity86.9 dB −0.9
£373.14
Fs34 Hz −6%
Qts0.26 −4%
Vas30 L +32%, worse
BL8.4 T·m –
Xmax5 mm +72%, better
Sensitivity88 dB –
PurifiPTT6.5M08-NAA-08
No current priceFs38 Hz +6%
Qts0.31 +15%, worse
Vas21.6 L −5%
BL9.6 T·m +17%, better
Xmax2.9 mm –
Sensitivity87.6 dB –
PurifiPTT6.5W04-NFA-06
No current priceFs32 Hz −11%, better
Qts0.26 −4%
Vas28.3 L +25%, worse
BL7.6 T·m −7%
Xmax5.9 mm +103%, better
Sensitivity87.2 dB −0.6
No photo
PHL Audio1343
No current priceFs40 Hz +11%, worse
Qts0.28 +4%
Vas29.9 L +32%, worse
BL8.1 T·m –
Xmax5 mm +72%, better
Sensitivity90.2 dB +2.4, better
No photo
PHL Audio1343NDU
No current priceFs40 Hz +11%, worse
Qts0.28 +4%
Vas29.9 L +32%, worse
BL8.1 T·m –
Xmax5 mm +72%, better
Sensitivity90.2 dB +2.4, better
PurifiPTT6.5X04-NFA-06
No current priceFs30 Hz −17%, better
Qts0.29 +7%
Vas25.9 L +14%, worse
BL7.9 T·m −4%
Xmax9.8 mm +238%, better
Sensitivity85.7 dB −2.1, worse
Dayton AudioPM180-8
No current priceFs53 Hz +48%, worse
Qts0.28 +4%
Vas28 L +23%, worse
BL7.7 T·m −6%
Xmax4.6 mm +59%, better
Sensitivity93.5 dB +5.7, better
PurifiPTT6.5W04-NAA-08
No current priceFs33 Hz −8%
Qts0.30 +11%, worse
Vas23.3 L –
BL7.7 T·m −6%
Xmax5.9 mm +103%, better
Sensitivity86.3 dB −1.5
WavecorWF182BD14
No current priceFs36 Hz –
Qts0.25 −7%
Vas23 L –
BL6.9 T·m −16%, worse
Xmax5.5 mm +90%, better
Sensitivity88.2 dB –
Acoustic EleganceTD6M-8
No current priceFs76 Hz +111%, worse
Qts0.27 –
Vas9.2 L −59%, better
BL10.6 T·m +29%, better
Xmax3 mm +3%
Sensitivity93.5 dB +5.7, better
No photo
PHL Audio1362
No current priceFs39 Hz +8%
Qts0.28 +4%
Vas34.8 L +53%, worse
BL8.1 T·m –
Xmax5 mm +72%, better
Sensitivity90.4 dB +2.6, better
No photo
PHL Audio1362NDU
No current priceFs39 Hz +8%
Qts0.28 +4%
Vas34.8 L +53%, worse
BL8.1 T·m –
Xmax5 mm +72%, better
Sensitivity90.4 dB +2.6, better
No photo
PHL Audio1752
No current priceFs119 Hz +231%, worse
Qts0.27 –
Vas4.4 L −81%, better
BL12.5 T·m +52%, better
Xmax3 mm +3%
Sensitivity96 dB +8.2, better
KartesianWOM165_VMS
No current priceFs39 Hz +8%
Qts0.27 –
Vas22.1 L –
BL8.8 T·m +7%
Xmax4.5 mm +55%, better
Sensitivity90 dB +2.2, better
No current price
Fs32 Hz −11%, better
Qts0.30 +11%, worse
Vas29 L +28%, worse
BL8.5 T·m +4%
Xmax5 mm +72%, better
Sensitivity86.8 dB −1
CIAREPM160
No current priceFs66 Hz +83%, worse
Qts0.31 +15%, worse
Vas17.7 L −22%, better
BL8 T·m –
Xmax1.8 mm −38%, worse
Sensitivity94 dB +6.2, better
