Overview
LF DriverExcel series
SEAS
SEAS E0017-08S W18EX001
SEAS E0017-08S W18EX001 is a 7" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 34Hz, Qts 0.26, Vas 30L, Xmax 5mm, sensitivity 88dB, plus 63cm³ Vd and 113 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
7"
Impedance
8Ω
RMS Power
100W
Sensitivity
88.0dB
EBP
113
Vented alignment
Vd
63cm³

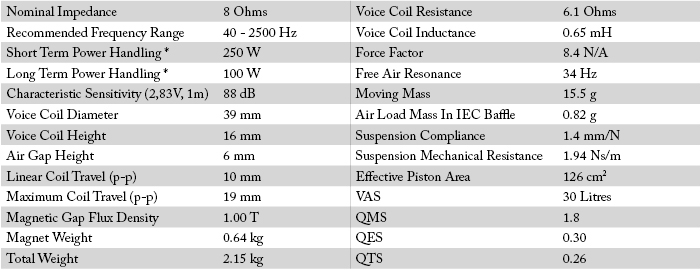

T/S Parameters
Valid
Fs34Hz
Qts0.26
Qes0.30
Qms1.8
Vas30.0L
Re6.1Ω
Le0.65mH
BL8.4Tm
Sd126cm²
Mms16g
Xmax5.0mm
SPL88dB
Power100W
Impedance8Ω
F Low40Hz
F High2500Hz
Voice Coil39mm
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.1kg
