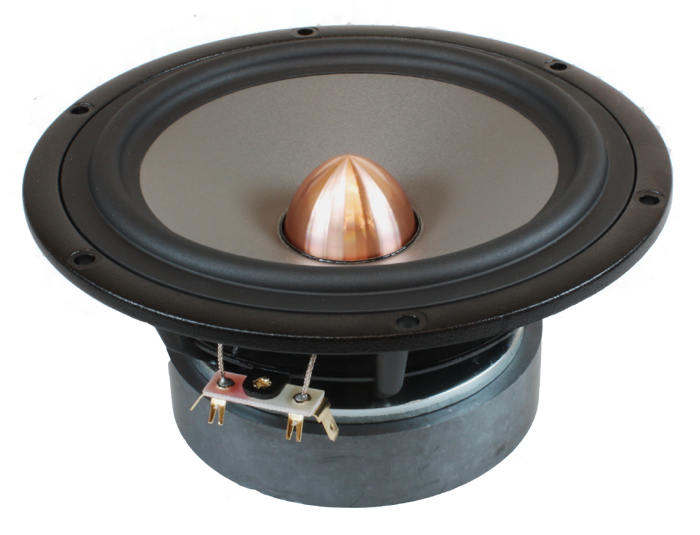

REDCATT 6FHM 8Ω
8 Ω
£83.67
Lautsprecherteile · 8 in stock · All 1 offer
- Fs
- 36Hz
- Xmax
- 4.3mm
- SPL
- 88dB
- Pe
- 40W
- BL
- 9.9T·m
- Vd
- 56cm³
- Qts
- 0.29
- Vas
- 26L
REDCATT 6FHM is a 6-inch 8 ohm LF driver rated at 40 W RMS. The validated T/S data includes Fs 36 Hz, Qts 0.29, Vas 26.1 L, Xmax 4.3 mm, sensitivity 88.3 dB, plus 56 cm³ Vd and 124 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £83.67.
The published T/S values agree with each other
Thiele/Small
- Fs
- 36Hz
- Qts
- 0.29
- Qes
- 0.29
- Qms
- 12.7
- Vas
- 26.1L
- Re
- 6.9Ω
- Le
- 0.26mH
Motor and cone
- BL
- 9.9T·m
- Sd
- 133cm²
- Mms
- 18g
- Xmax
- 4.3mm
- Vd †
- 56cm³
- Voice coil
- 33mm
Power and response
- Sensitivity †
- 88.3dB
- Manufacturer sensitivity
- 89dB
- Power
- 40W
- Impedance
- 8Ω
- EBP †
- 124 · Leans vented
Size and mounting
- Diameter
- 181.5mm
- Cutout
- 151mm
- Bolt circle
- 169.5mm
- Weight
- 2.4kg
Other published values
- Xmech
- 10.25
- Power Peak
- 160
Other dimensions
- Mounting Depth
- 81.7
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 6″
- BL
- 9.9T·m
- Fs
- 36Hz
- Le
- 0.26mH
- Re
- 6.9Ω
- Sd
- 133cm²
- Mms
- 18g
- Qes
- 0.29
- Qms
- 12.7
- Qts
- 0.29
- SPL
- 88.3dB
- Vas
- 26.1L
- Xmax
- 4.3mm
- Xmech
- 10.25
- Power
- 40W
- Impedance
- 8Ω
- Power Peak
- 160
- Sensitivity
- 89dB
- Calculated sensitivity †
- 88.3dB
- Manufacturer sensitivity
- 89dB
- Voice coil
- 33mm
- Weight
- 2.4kg
- Diameter
- 181.5mm
- Mounting Depth
- 81.7
- Cutout
- 151mm
- Bolt circle
- 169.5mm
02
Compare
Same-size drivers, compared with the 6FHM. Clear differences are green when better and red when worse.
This driver6FHM
Best price
£83.67
Fs
36 Hz
Qts
0.29
Vas
26.1 L
BL
9.9 T·m
Xmax
4.3 mm
Sensitivity
88.3 dB
Power
40 W
Dayton AudioDSA175-8
£55.41 · 34% less, betterFs38 Hz +7%
Qts0.29 –
Vas18.7 L −28%, better
BL9.8 T·m –
Xmax5.3 mm +25%, better
Sensitivity86.8 dB −1.5
MonacorSPH-6M
£59.76 · 29% less, betterFs39 Hz +8%
Qts0.30 +3%
Vas17.6 L −33%, better
BL9.7 T·m –
Xmax4 mm −6%
Sensitivity86.8 dB −1.5
SB AcousticsSB17NRX2L35-8
£72.53 · 13% less, betterFs38 Hz +5%
Qts0.28 −3%
Vas26.1 L –
BL7.8 T·m −21%, worse
Xmax9.6 mm +126%, better
Sensitivity88.7 dB –
ETON7-612/C8/32 RP
£98.14 · 17% more, worseFs37 Hz –
Qts0.30 +3%
Vas28 L +7%
BL8.6 T·m −13%, worse
Xmax4.5 mm +6%
Sensitivity88.5 dB –
CIAREHWG160
£104.16 · 24% more, worseFs39 Hz +8%
Qts0.27 −7%
Vas27 L +3%
BL8.9 T·m −10%, worse
Xmax6.5 mm +53%, better
Sensitivity89.6 dB +1.3
Eighteen Sound6ND430
£110.59 · 32% more, worseFs61 Hz +69%, worse
Qts0.27 −7%
Vas12.6 L −52%, better
BL10 T·m –
Xmax5 mm +18%, better
Sensitivity92.1 dB +3.8, better
MonacorSPH-170C
£144.60 · 73% more, worseFs38 Hz +6%
Qts0.26 −10%, better
Vas24 L −8%
BL9.4 T·m −5%
Xmax4 mm −6%
Sensitivity88.9 dB +0.6

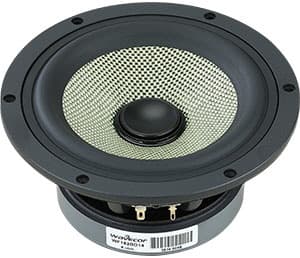

WavecorWF182BD08
