LF DriverSPH series
Monacor
Monacor SPH-170C
Monacor SPH-170C is a 6.5" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 38Hz, Qts 0.26, Vas 24L, Xmax 4mm, sensitivity 88.9dB, plus 51cm³ Vd and 141 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £144.60.
Size
6.5"
Impedance
8Ω
RMS Power
60W
Sensitivity
88.9dB
EBP
141
Vented alignment
Vd
51cm³
T/S Parameters
Valid
Fs38Hz
Qts0.26
Qes0.27
Qms7.2
Vas24.0L
Re6.0Ω
Le0.80mH
BL9.4Tm
Sd127cm²
Mms16g
Xmax4.0mm
SPL89dB
Power60W
Impedance8Ω
F Low3Hz
F High3500Hz
Voice Coil37mm
Pricing & availability
Price definitionsPrice movement
Best current price
£144.60
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

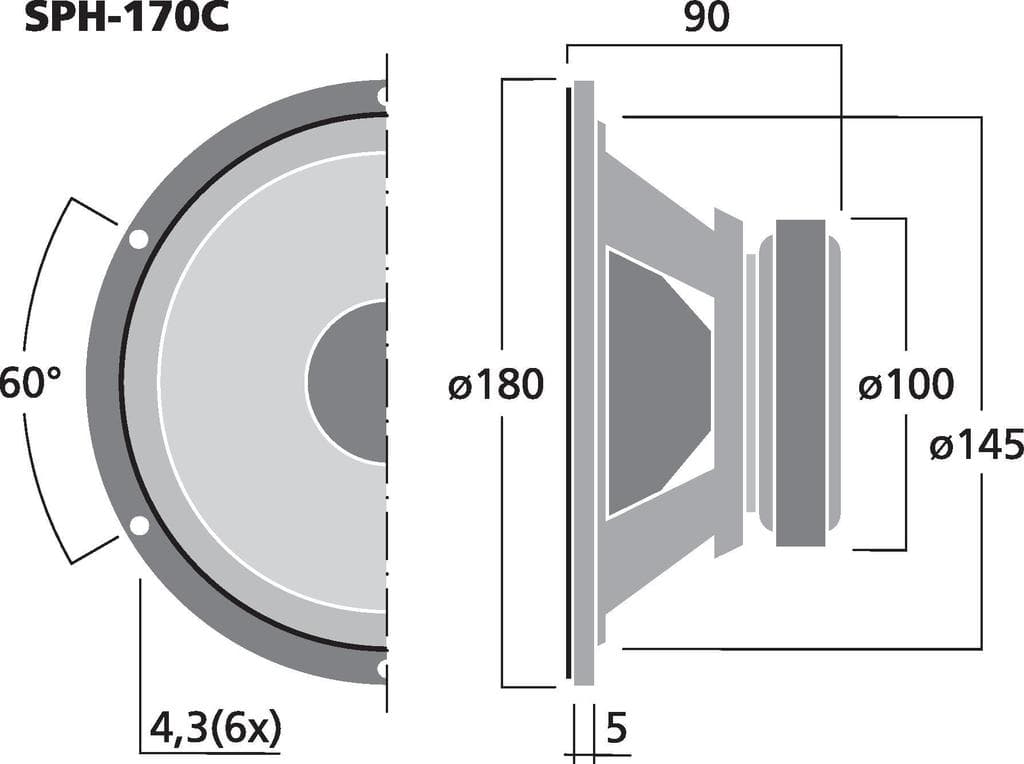

Dimensions & Physical
Weight2.0kg
Diameter180.0mm
Overall Depth90.0mm
Cutout Diameter145.0mm
