7.25-inch LF driver · vKi series · 300 W

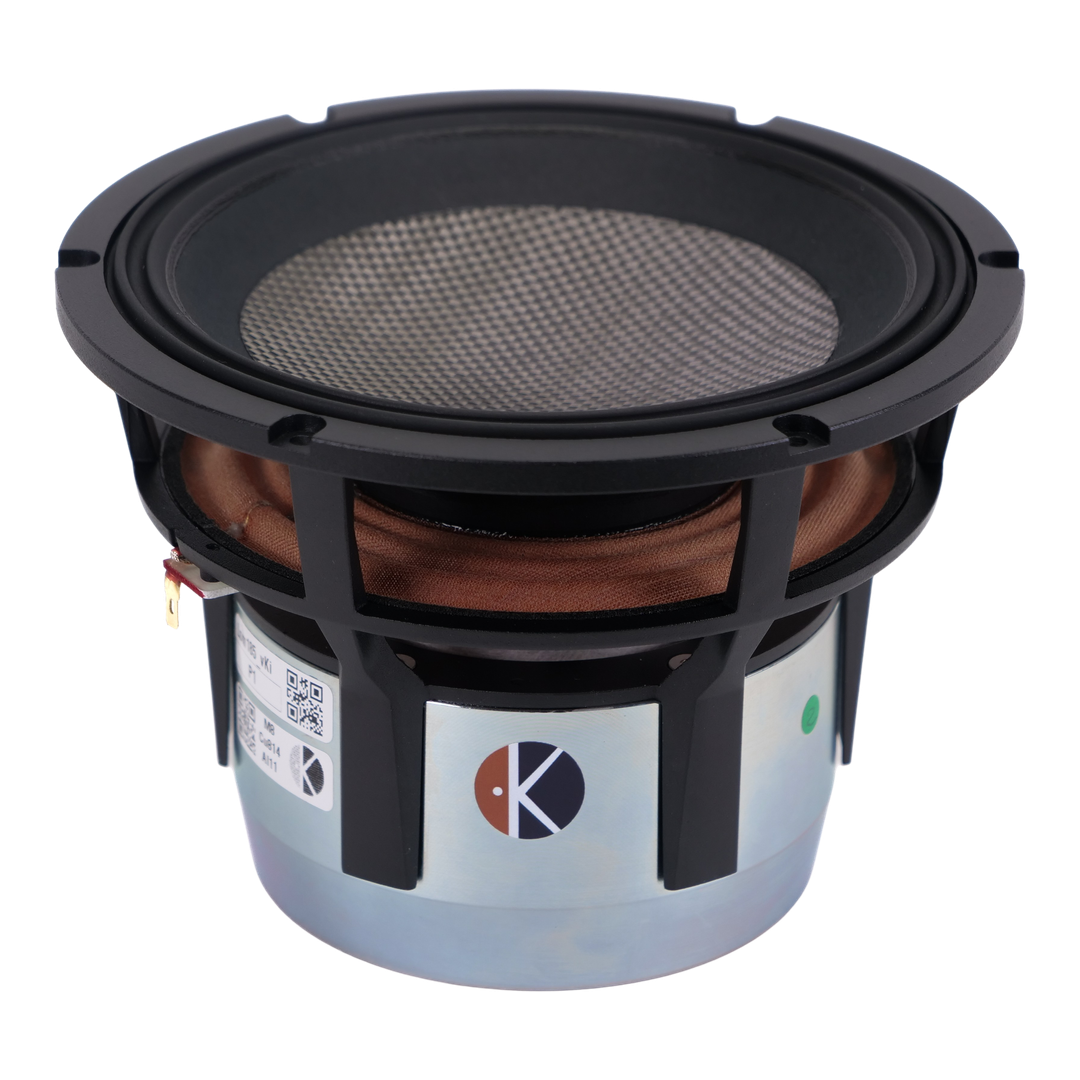

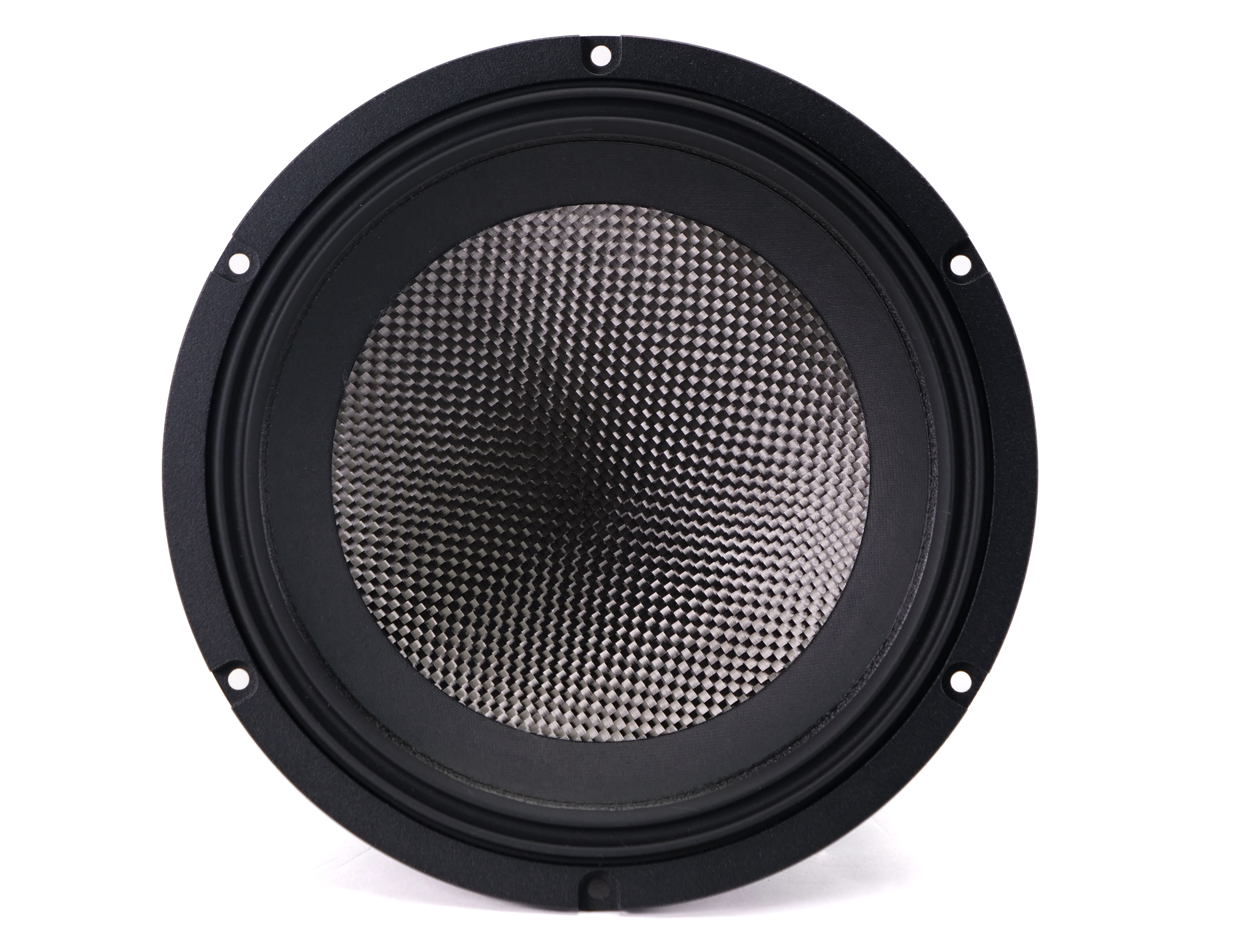

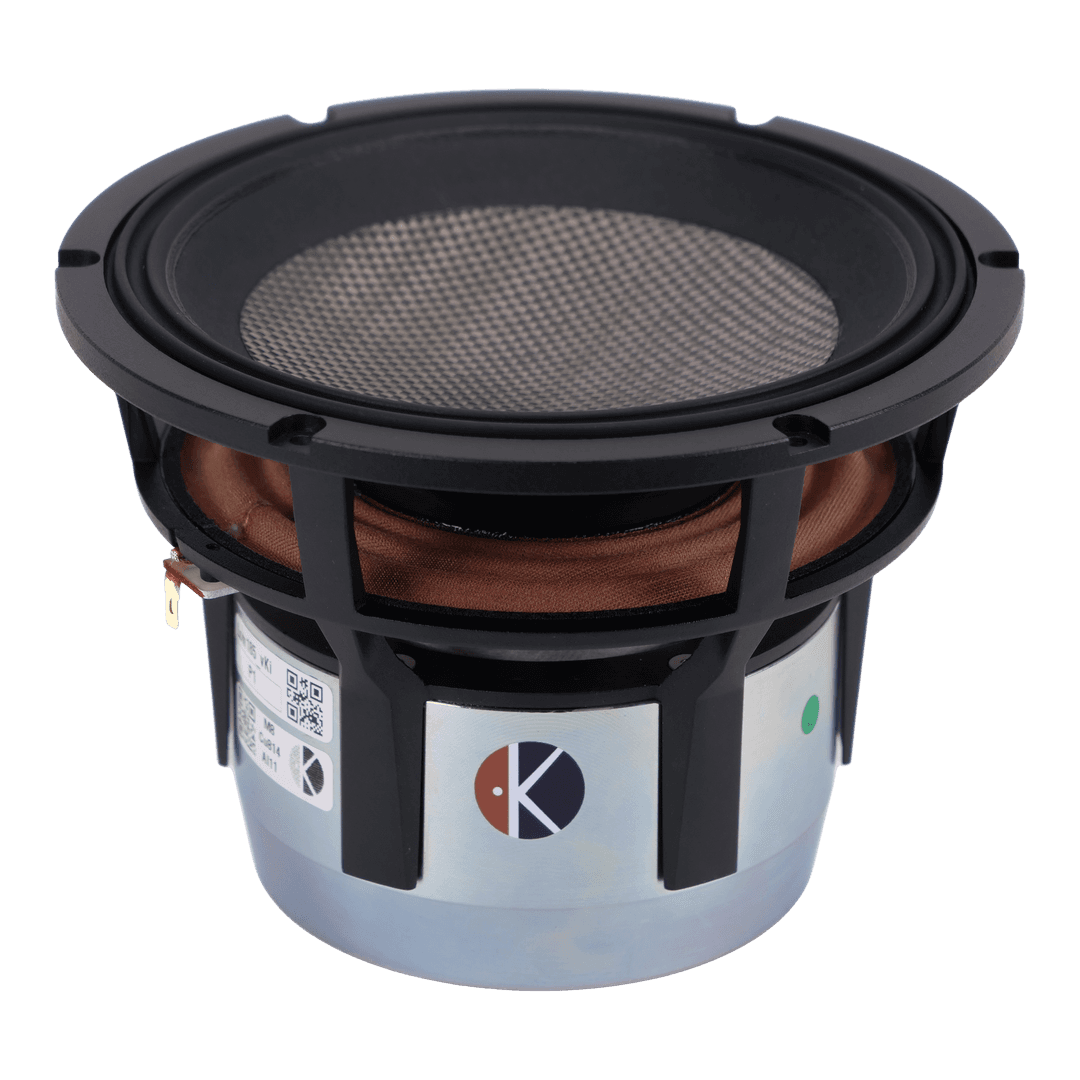

Kartesian LOM185_VKI 6Ω
6 Ω · 55–3000 Hz
No current price
- Fs
- 40Hz
- Xmax
- 8mm
- SPL
- 91dB
- Pe
- 300W
- BL
- 10.4T·m
- Vd
- 155cm³
- Qts
- 0.25
- Vas
- 29L
Kartesian LOM185_VKI is a 7.25-inch 6 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 40 Hz, Qts 0.25, Vas 29 L, Xmax 8 mm, sensitivity 90.6 dB, plus 155 cm³ Vd and 154 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 40Hz
- Qts
- 0.25
- Qes
- 0.26
- Qms
- 7.6
- Vas
- 29L
- Re
- 3.9Ω
- Le
- 0.10mH
Motor and cone
- BL
- 10.4T·m
- Sd
- 194cm²
- Mms
- 29g
- Xmax
- 8mm
- Vd †
- 155cm³
Power and response
- Sensitivity †
- 90.6dB
- Manufacturer sensitivity
- 93dB
- Power
- 300W
- Impedance
- 6Ω
- Range
- 55–3000Hz
- EBP †
- 154 · Leans vented
Size and mounting
- Diameter
- 185mm
Other published values
- Rms
- 0.96kg/s
Sensitivity shows 90.6 dB, calculated from the T/S values. Kartesian publishes 93.0 dB, 2.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Kartesian lists
LF · Primary · 7.283464566929134″
- BL
- 10.4T·m
- Fs
- 40Hz
- Le
- 0.10mH
- Re
- 3.9Ω
- Sd
- 194cm²
- Mms
- 29g
- Qes
- 0.26
- Qms
- 7.6
- Qts
- 0.25
- Rms
- 0.96kg/s
- SPL
- 90.6dB
- Vas
- 29L
- Xmax
- 8mm
- Power
- 300W
- Impedance
- 6Ω
- Sensitivity
- 93dB
- Low limit
- 55Hz
- Calculated sensitivity †
- 90.6dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 93dB
- Diameter
- 185mm
