Overview
LF DriverRevelator series
Scanspeak
Scanspeak 22W/8851T00

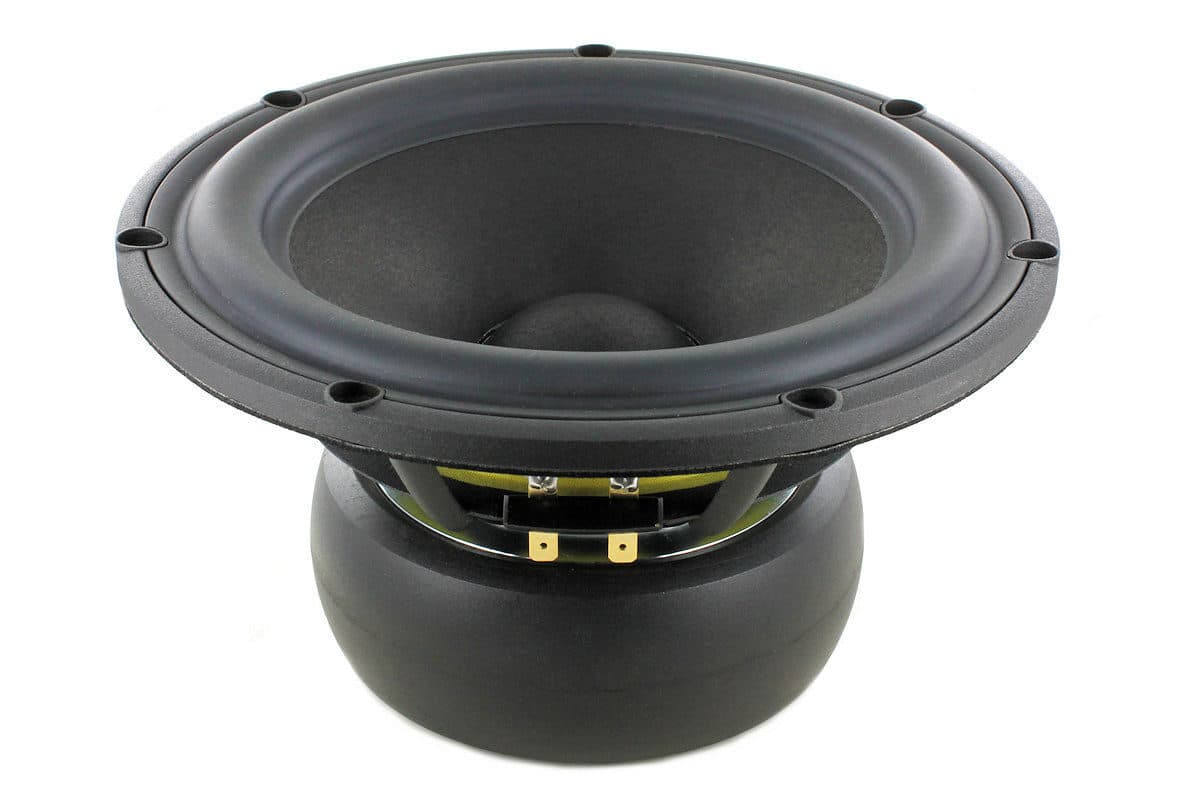

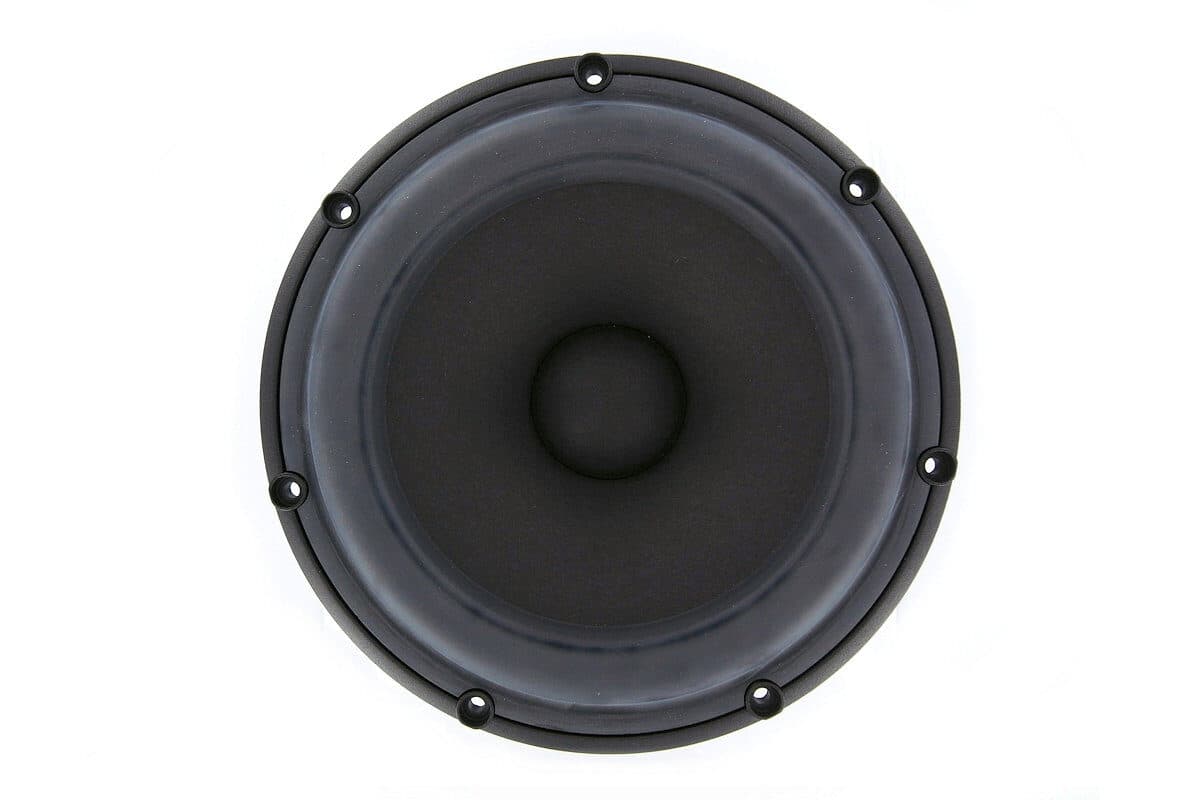

Scanspeak 22W/8851T00 is a 8" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 21Hz, Qts 0.25, Vas 126L, Xmax 9mm, sensitivity 88.5dB, plus 198cm³ Vd and 81 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £332.95.
Size
8"
Impedance
8Ω
RMS Power
80W
Sensitivity
88.5dB
EBP
81
Either alignment
Vd
198cm³
T/S Parameters
Valid
Fs21Hz
Qts0.25
Qes0.26
Qms5.1
Vas126.0L
Re6.2Ω
Le0.35mH
BL9.9Tm
Sd220cm²
Mms31g
Xmax9.0mm
SPL89dB
Power80W
Impedance8Ω
Min Impedance7.2Ω
Voice Coil50mm
Pricing & availability
Price definitionsPrice movement
Best current price
£332.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter220.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
22W/8851T00
8"
Best current price
£332.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
28%
Similarity
46% cheaper£180.95
Scanspeak
18W/8545-01
7"
Lower price
Xmax6.5mm-28%
Qts0.2-20%
BL8.4Tm-15%
Vas68.6L-46%
Qes0.22-15%
46%
Similarity
26% cheaper£246.95
Scanspeak
21W/8555-10
8"
Lower price
Xmax6.5mm-28%
Qts0.31+24%
BL8.2Tm-17%
Vas134L+6%
Qes0.33+27%
67%
Similarity
5% cheaper£317.95
Scanspeak
22W/8857T00
8"
Lower price
Xmax9mm0%
Qts0.3+20%
BL10.1Tm+2%
Vas87.7L-30%
Qes0.32+23%
79%
Similarity
£332.95
Scanspeak
22W/4851T00
8"
Xmax9mm0%
Qts0.22-12%
BL8.2Tm-17%
Vas126L0%
Qes0.23-12%
50%
Similarity
211% more£1,034.95
Scanspeak
21WE/4542T00
8"
Higher price
Xmax7.2mm-20%
Qts0.28+12%
BL8.2Tm-17%
Vas54L-57%
Qes0.3+15%
74%
Similarity
SEAS
H1192-08 CD22RN4X
8"
Xmax7mm-22%
Qts0.24-4%
BL11.4Tm+15%
Vas108L-14%
Qes0.260%
72%
Similarity
Audio Technology
8 I 52 20 06 SD
8"
Xmax8mm-11%
Qts0.26+4%
BL10Tm+1%
Vas70L-44%
Qes0.3+15%
56%
Similarity
CIARE
HWB205
8"
Xmax7mm-22%
Qts0.29+16%
BL9.3Tm-6%
Vas79L-37%
Qes0.3+15%
49%
Similarity
Audio Technology
8 A 77 20 06 SD
8"
Xmax8mm-11%
Qts0.3+20%
BL9.3Tm-6%
Vas67L-47%
Qes0.35+35%
