Overview
LF DriverCeramic series
Accuton

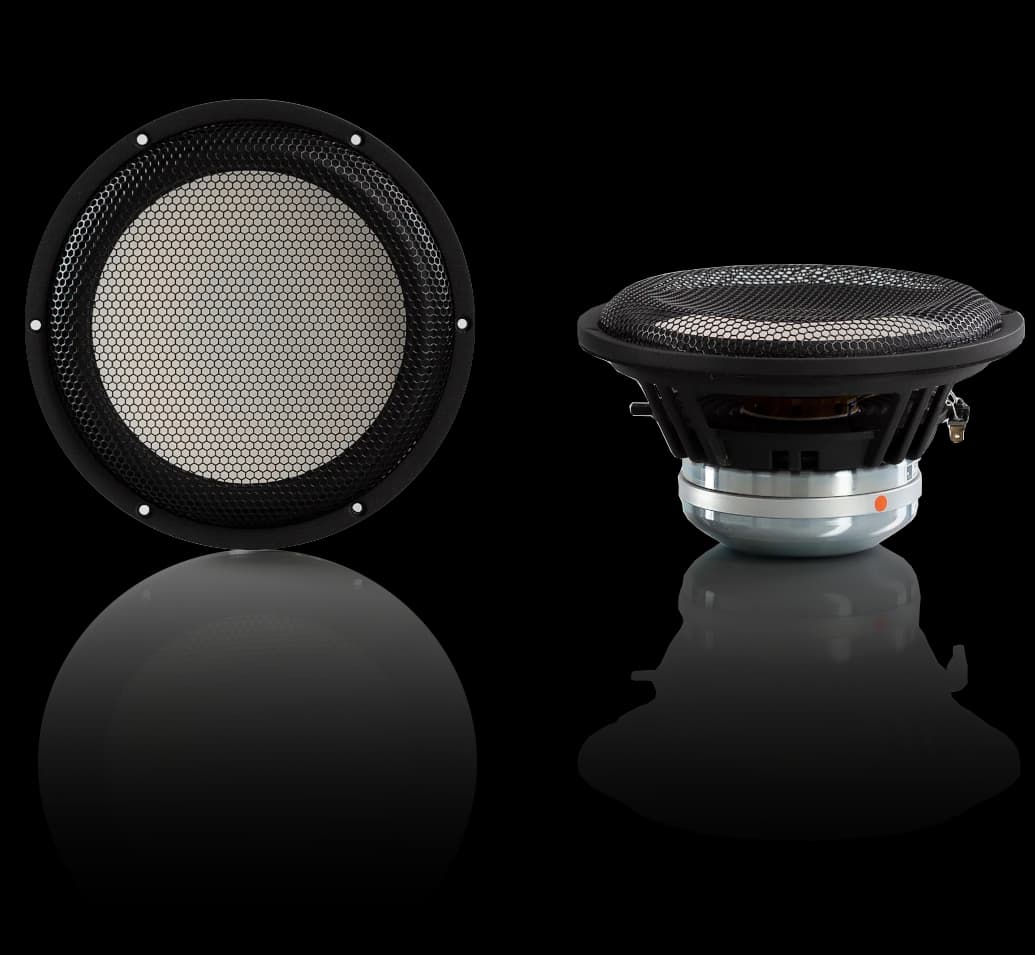

Accuton C220-6-222
Accuton C220-6-222 is a 8" 6 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 30Hz, Qts 0.26, Vas 74L, Xmax 6mm, sensitivity 90.5dB, plus 134cm³ Vd and 109 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £1165.95.
Size
8"
Impedance
6Ω
RMS Power
150W
Sensitivity
90.5dB
93.0dBmanufacturer; using T/S-derived value (2.5dB delta).
EBP
109
Vented alignment
Vd
134cm³
T/S Parameters
Valid
Fs30Hz
Qts0.26
Qes0.27
Qms5.6
Vas74.0L
Re7.2Ω
Le0.37mH
BL11.7Tm
Sd224cm²
Mms28g
Xmax6.0mm
SPL91dB
Power150W
Impedance6Ω
F Low32Hz
F High2000Hz
Voice Coil55mm
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026· 6Ω
Source: inc VAT
£1,202.81
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
willyshifi
£1,165.95
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

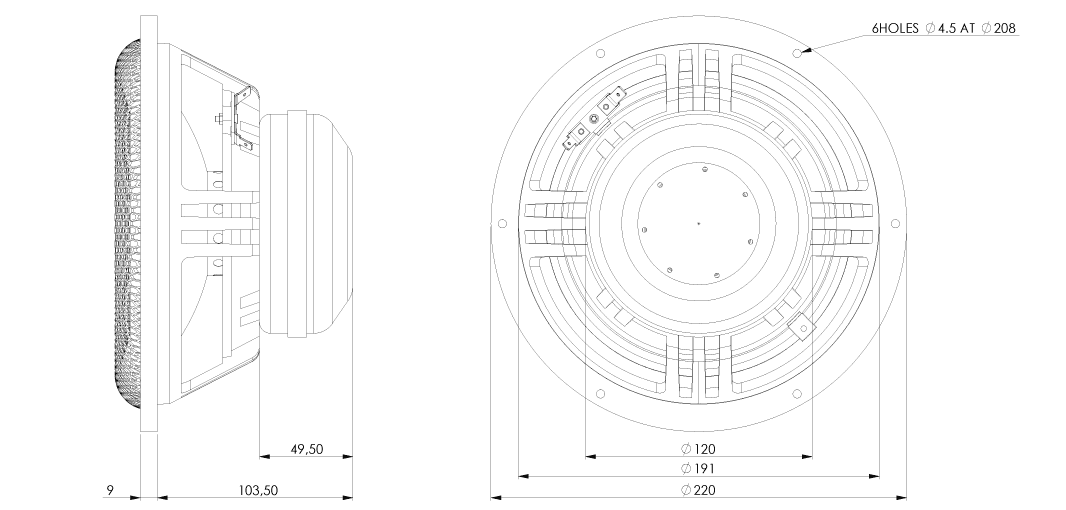

Dimensions & Physical
Diameter220.0mm
Overall Depth112.5mm
Cutout Diameter191.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Accuton
C220-6-222
8"
Best current price
£1,165.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
65%
Similarity
90% cheaper£120.21
Eighteen Sound
8NMB420
8"
Lower price
Xmax5.8mm-3%
Qts0.28+8%
BL10Tm-15%
Vas33L-55%
Qes0.31+15%
45%
Similarity
88% cheaper£144.00
Scanspeak
18W/8545K00
7"
Lower price
Xmax6.5mm+8%
Qts0.28+8%
BL8.2Tm-30%
Vas46.4L-37%
Qes0.3+11%
39%
Similarity
87% cheaper£149.18

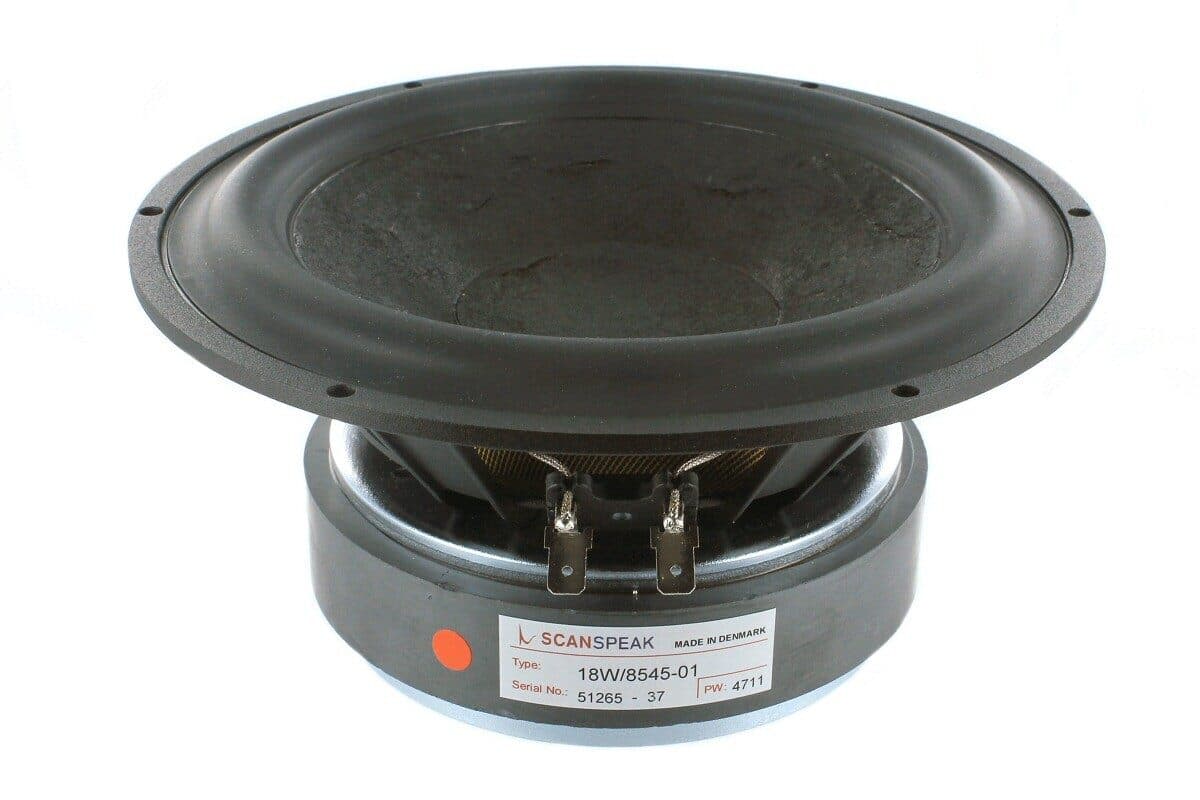

Scanspeak
18W/8545-01
7"
Lower price
Xmax6.5mm+8%
Qts0.2-23%
BL8.4Tm-28%
Vas68.6L-7%
Qes0.22-19%
84%
Similarity
20% cheaper£929.95

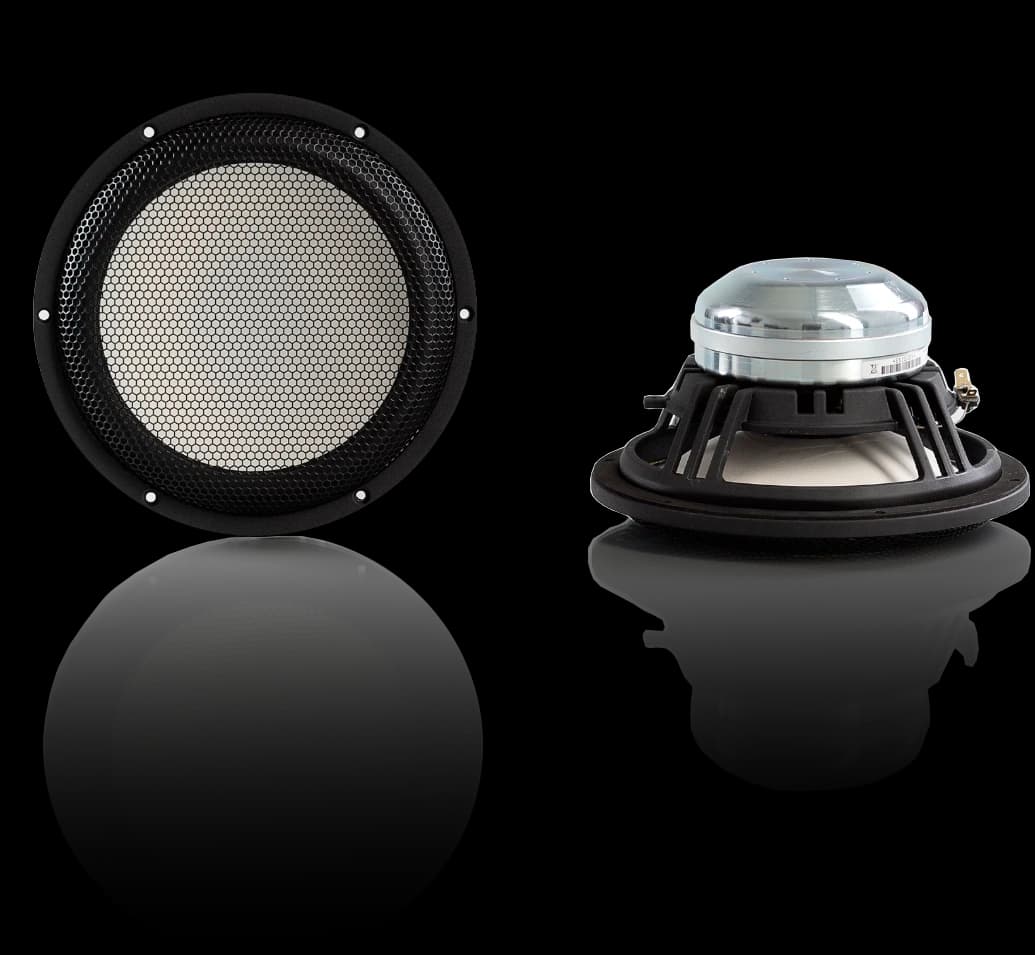

Accuton
S220-6-222
8"
Lower price
Xmax5.3mm-12%
Qts0.260%
BL10.9Tm-6%
Vas89.7L+21%
Qes0.270%
58%
Similarity
9% cheaper£1,058.95

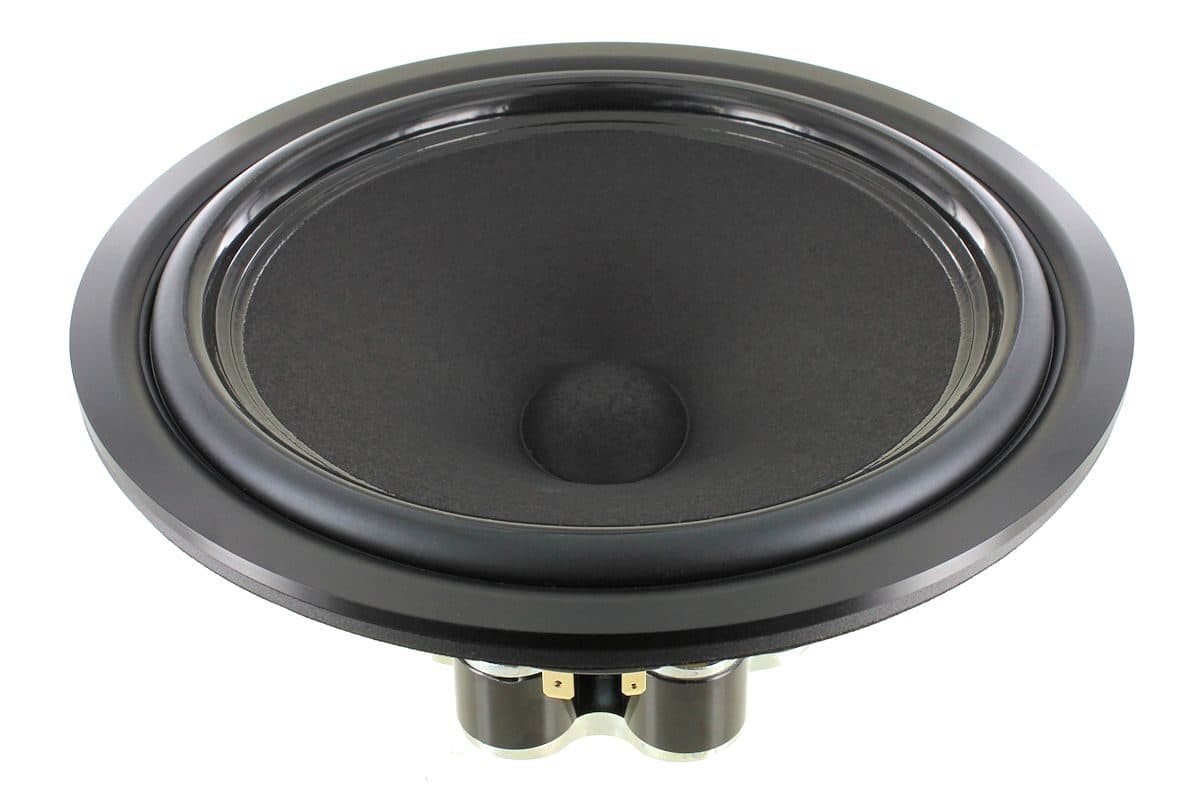

Scanspeak
21WE/4542T00
8"
Lower price
Xmax7.2mm+20%
Qts0.28+8%
BL8.2Tm-30%
Vas54L-27%
Qes0.3+11%
79%
Similarity
HiVi
SS8IIN
8"
Xmax5mm-17%
Qts0.27+4%
BL10.6Tm-9%
Vas80.1L+8%
Qes0.29+7%
70%
Similarity

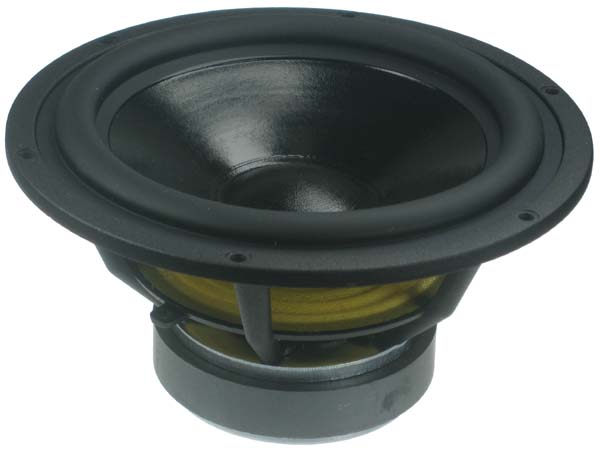

SEAS
H1192-08 CD22RN4X
8"
Xmax7mm+17%
Qts0.24-8%
BL11.4Tm-3%
Vas108L+46%
Qes0.26-4%
67%
Similarity

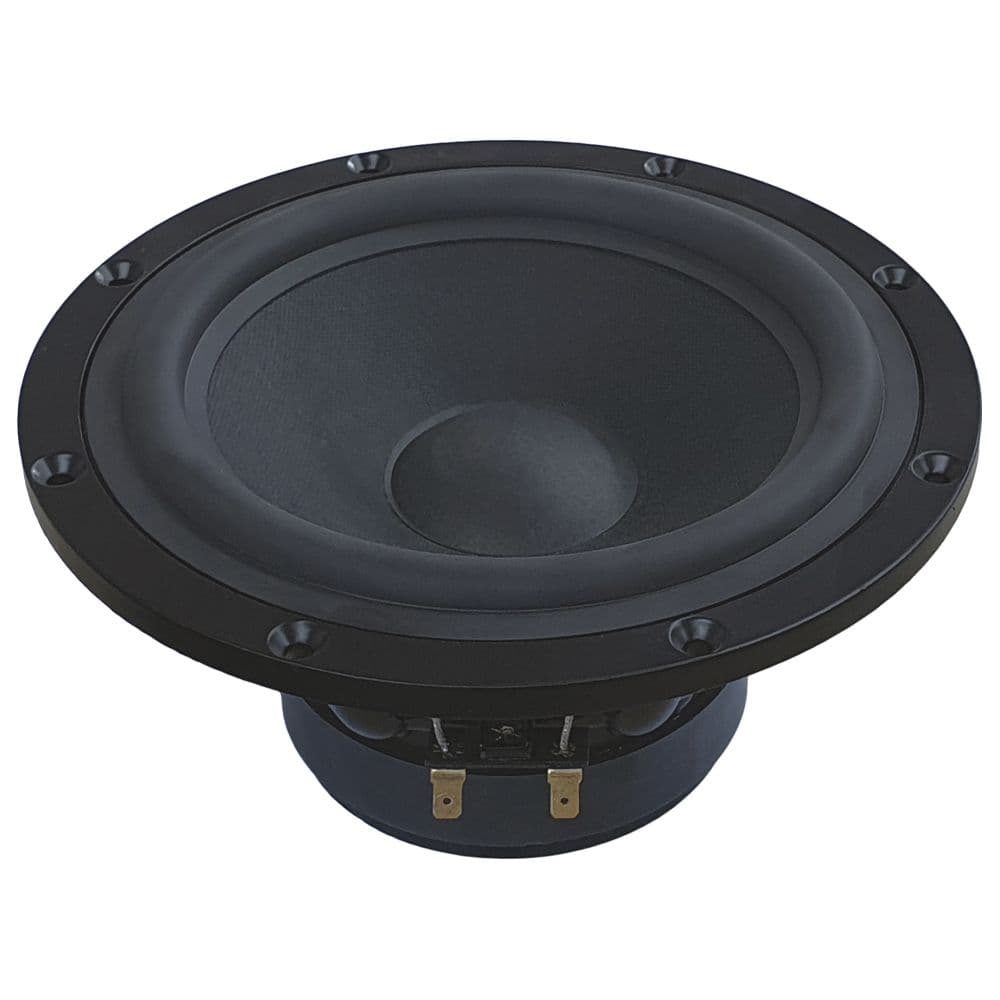

CIARE
HWB205
8"
Xmax7mm+17%
Qts0.29+12%
BL9.3Tm-21%
Vas79L+7%
Qes0.3+11%
66%
Similarity
HiVi
SS8IIR
8"
Xmax4.8mm-20%
Qts0.28+8%
BL9.2Tm-21%
Vas59.6L-19%
Qes0.29+7%
61%
Similarity

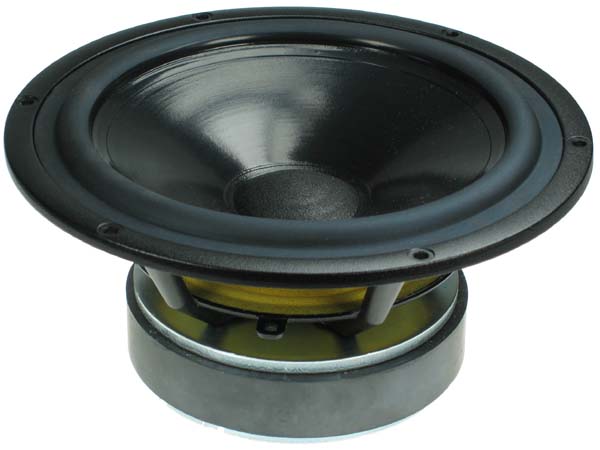

SEAS
H1471-08 CA22RNY
8"
Xmax6mm0%
Qts0.3+15%
BL8.5Tm-27%
Vas82L+11%
Qes0.36+33%
56%
Similarity
HiVi
SS8II
8"
Xmax5.8mm-3%
Qts0.32+23%
BL8.5Tm-27%
Vas61.6L-17%
Qes0.34+26%
48%
Similarity
HiVi
C8N
8"
Xmax4.9mm-18%
Qts0.32+23%
BL10.7Tm-9%
Vas47.8L-35%
Qes0.36+33%
