8-inch LF driver · 8MDN series · 51 mm voice coil · 200 W
B&C 8MDN51 16Ω
70–4000 Hz
£136.46
SteadyJP Leisure · In stock · All 6 offers
- Fs
- 68Hz
- Xmax
- 6mm
- SPL
- 95dB
- Pe
- 200W
- BL
- 17.8T·m
- Vd
- 132cm³
- Qts
- 0.27
- Vas
- 18L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 16ebac8cc6d3…Medium confidence6,526 selected pixels of 6,526 - Trace datasheet-response-trace-poc/v2

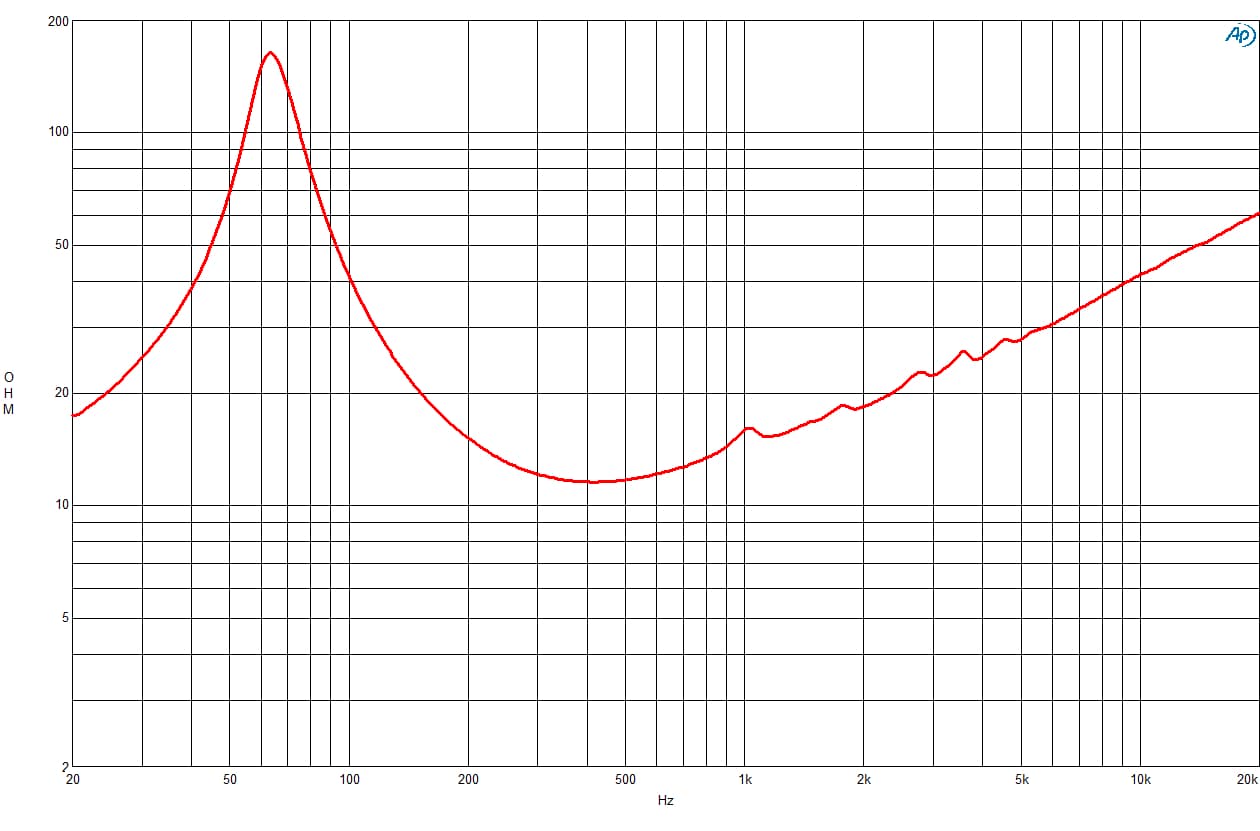

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 16ebac8cc6d3…Medium confidence3,765 selected pixels of 3,765
Published graphs
B&C 8MDN51 is an 8-inch 16 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 68 Hz, Qts 0.27, Vas 17.5 L, Xmax 6 mm, sensitivity 94.8 dB, plus 132 cm³ Vd and 234 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £136.46.
The published T/S values agree with each other
Thiele/Small
- Fs
- 68Hz
- Qts
- 0.27
- Qes
- 0.29
- Qms
- 5.2
- Vas
- 17.5L
- Re
- 10Ω
- Le
- 1.25mH
Motor and cone
- BL
- 17.8T·m
- Sd
- 220cm²
- Mms
- 22g
- Xmax
- 6mm
- Vd †
- 132cm³
- Voice coil
- 51mm
- Flux density
- 1.45T
Power and response
- Sensitivity †
- 94.8dB
- Manufacturer sensitivity
- 97dB
- Power
- 200W
- Nominal power
- 200W
- Impedance
- 16Ω
- Min. impedance
- 11.6Ω
- Range
- 70–4000Hz
- EBP †
- 234 · Leans vented
Size and mounting
- Diameter
- 225mm
- Cutout
- 187mm
- Bolt circle
- 210mm
- Depth
- 95mm
- Weight
- 2.6kg
Sensitivity shows 94.8 dB, calculated from the T/S values. B&C publishes 97.0 dB, 2.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 17.8T·m
- Fs
- 68Hz
- Le
- 1.25mH
- Re
- 10Ω
- Sd
- 220cm²
- Mms
- 22g
- Qes
- 0.29
- Qms
- 5.2
- Qts
- 0.27
- SPL
- 94.8dB
- Vas
- 17.5L
- Xmax
- 6mm
- Power
- 200W
- Impedance
- 16Ω
- Flux density
- 1.45T
- Sensitivity
- 97dB
- Low limit
- 70Hz
- Nominal power
- 200W
- Calculated sensitivity †
- 94.8dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 97dB
- Min. impedance
- 11.6Ω
- Voice coil
- 51mm
- Weight
- 2.6kg
- Diameter
- 225mm
- Depth
- 95mm
- Cutout
- 187mm
- Bolt circle
- 210mm
- Bl
- 17.8 Tm
- Fs
- 68 Hz
- Le
- 1.25 mH
- Re
- 10 Ω
- Sd
- 220 cm² (34.1 in²)
- Ebp
- 234 Hz
- Mms
- 22 g
- Qes
- 0.29
- Qms
- 5.2
- Qts
- 0.27
- Vas
- 17.5 dm³ (0.62 ft³)
- Η0
- 1.5 %
- Cone
- RCK008MDN5116
- Xmax
- 6 mm
- Xvar
- 6 mm
- Depth
- 95 mm (3.74 in)
- Spider
- Single
- Cone shape
- Exponential
- Net weight
- 2.6 kg (5.73 lb)
- Pole design
- T-Pole
- Sensitivity
- 97 dB
- Flux density
- 1.45 T
- Shipping box
- 255x255x150 mm (10.04x10.04x5.91 in)
- Winding depth
- 16 mm (0.65 in)
- Shipping units
- 1 pcs
- Surround shape
- Double Roll
- Former material
- Kapton
- Frequency range
- 70 Hz - 4000 Hz
- Magnet material
- Neodymium Ring
- Shipping weight
- 3.05 kg (6.72 lb)
- Nominal diameter
- 200 mm (8 in)
- Overall diameter
- 225 mm (8.8 in)
- Winding material
- Aluminium
- Minimum impedance
- 11.6 Ω
- Nominal impedance
- 16 Ω
- Magnetic gap depth
- 8 mm (0.31 in)
- Voice coil diameter
- 51 mm (2 in)
- Bolt circle diameter
- 210 mm (8.3 in)
- Woofer cone treatment
- WP Waterproof Front Side
- Baffle cutout diameter
- 187 mm (7.4 in)
- Nominal power handling
- 200 W
- Continuous power handling
- 400 W
- Flange and gasket thickness
- 11 mm (0.4 in)
- Air volume occupied by driver
- 1.1 dm³ (0.04 ft³)
