8-inch LF driver · 8NB series · 51 mm voice coil · 200 W
Oberton 8NB201 8Ω
8 Ω · 65–3000 Hz
No current price
- Fs
- 71Hz
- Xmax
- 5.3mm
- SPL
- 94dB
- Pe
- 200W
- BL
- 14.4T·m
- Vd
- 106cm³
- Qts
- 0.24
- Vas
- 13L

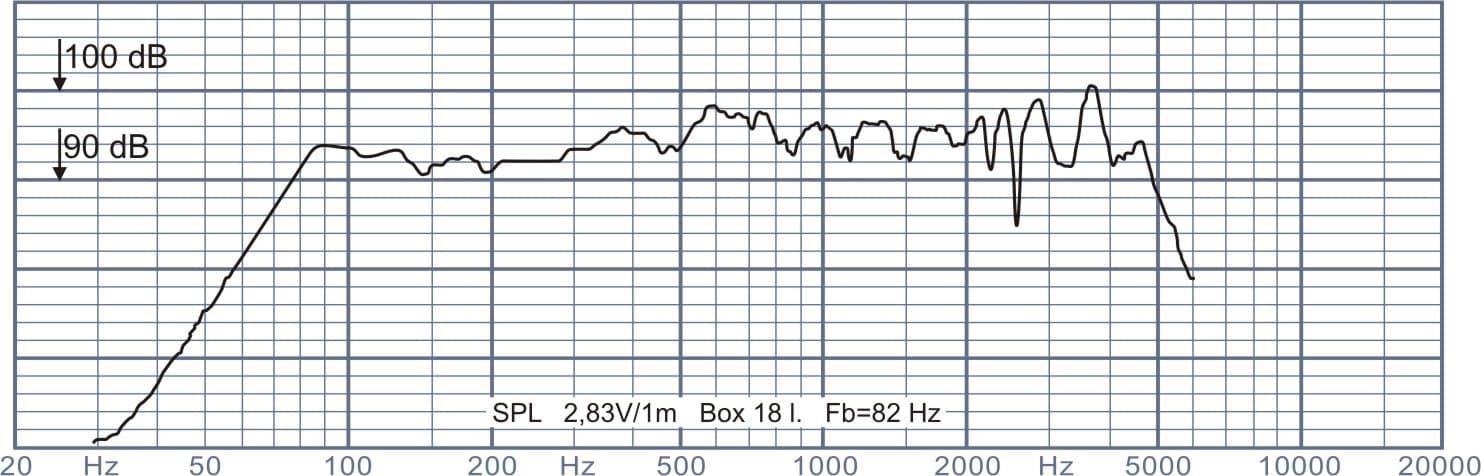

Published graphs
Oberton 8NB201 is an 8-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 71 Hz, Qts 0.24, Vas 12.5 L, Xmax 5.3 mm, sensitivity 94.4 dB, plus 106 cm³ Vd and 277 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 71Hz
- Qts
- 0.24
- Qes
- 0.26
- Qms
- 6.0
- Vas
- 12.5L
- Re
- 5.3Ω
- Le
- 0.96mH
Motor and cone
- BL
- 14.4T·m
- Sd
- 202cm²
- Mms
- 23g
- Xmax
- 5.3mm
- Vd †
- 106cm³
- Voice coil
- 51mm
- Flux density
- 1.25T
Power and response
- Sensitivity †
- 94.4dB
- Manufacturer sensitivity
- 200dB
- Power
- 200W
- Impedance
- 8Ω
- Min. impedance
- 6.4Ω
- Range
- 65–3000Hz
- EBP †
- 277 · Leans vented

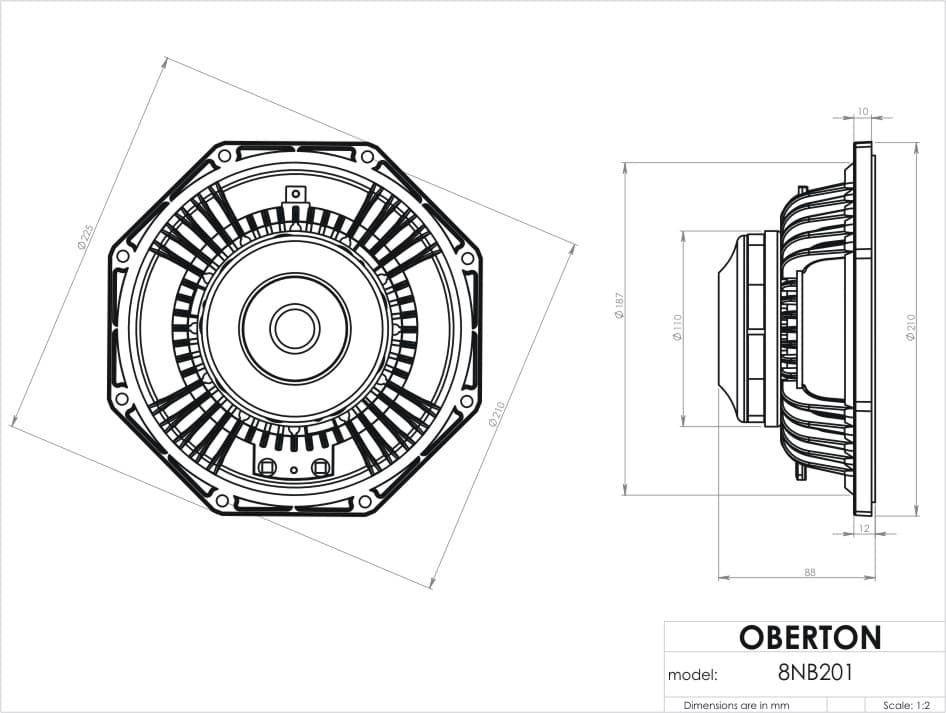

Size and mounting
- Diameter
- 225mm
- Cutout
- 187mm
- Bolt circle
- 210mm
- Depth
- 89mm
- Weight
- 2.4kg
Other published values
- Cms
- 0.22mm/N
- Power Program
- 400
Sensitivity shows 94.4 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 105.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 8″
- BL
- 14.4T·m
- Fs
- 71Hz
- Le
- 0.96mH
- Re
- 5.3Ω
- Sd
- 202cm²
- Cms
- 0.22mm/N
- Mms
- 23g
- Qes
- 0.26
- Qms
- 6.0
- Qts
- 0.24
- SPL
- 94.4dB
- Vas
- 12.5L
- Xmax
- 5.3mm
- Power
- 200W
- Impedance
- 8Ω
- Flux density
- 1.25T
- Sensitivity
- 200dB
- Low limit
- 65Hz
- Power Program
- 400
- Calculated sensitivity †
- 94.4dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 200dB
- Min. impedance
- 6.4Ω
- Voice coil
- 51mm
- Weight
- 2.4kg
- Diameter
- 225mm
- Depth
- 89mm
- Cutout
- 187mm
- Bolt circle
- 210mm
