Wavecor WF211PA02 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverWF211PA series
Wavecor

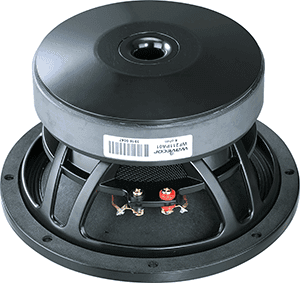

Wavecor WF211PA02
Wavecor WF211PA02 is a 8" 8 ohm LF driver. The validated T/S data includes Fs 59Hz, Qts 0.25, Vas 18.2L, Xmax 2mm, sensitivity 93.6dB, plus 43cm³ Vd and 227 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
Sensitivity
93.6dB
EBP
227
Vented alignment
Vd
43cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
FR040WA01 impedance240 ptsp2medium
FR040WA02 impedance240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
FR040WA01 impedance
Impedance response
240 plotted pointsMedium confidence672 selected pixels of 672 - Trace datasheet-response-trace-poc/v1
FR040WA02 impedance
Impedance response
240 plotted pointsMedium confidence687 selected pixels of 687
T/S Parameters
Valid
Fs59Hz
Qts0.25
Qes0.26
Qms5.8
Vas18.2L
Re6.1Ω
BL13.4Tm
Sd214cm²
Mms26g
Xmax2.0mm
SPL94dB
Impedance8Ω
Voice Coil64mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter209.6mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Wavecor
WF211PA02
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
66%
Similarity
Wavecor
WF211PA01
8"
Xmax2mm0%
Qts0.29+16%
BL10.7Tm-20%
Vas13.6L-25%
Qes0.3+15%
65%
Similarity

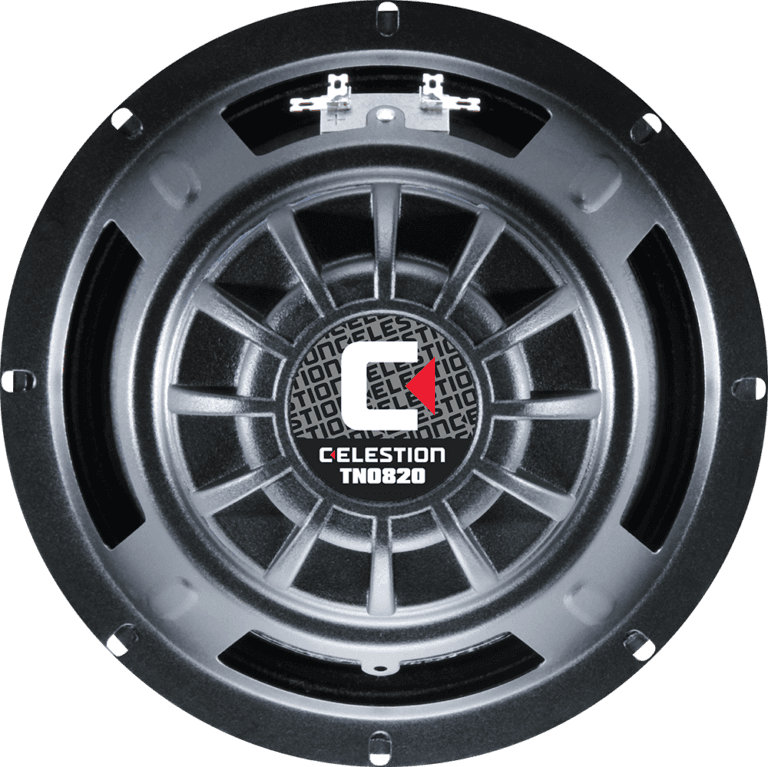

Celestion
TN0820
8"
Xmax2mm0%
Qts0.28+13%
BL11.8Tm-12%
Vas21.9L+20%
Qes0.35+33%
40%
Similarity
£96.00

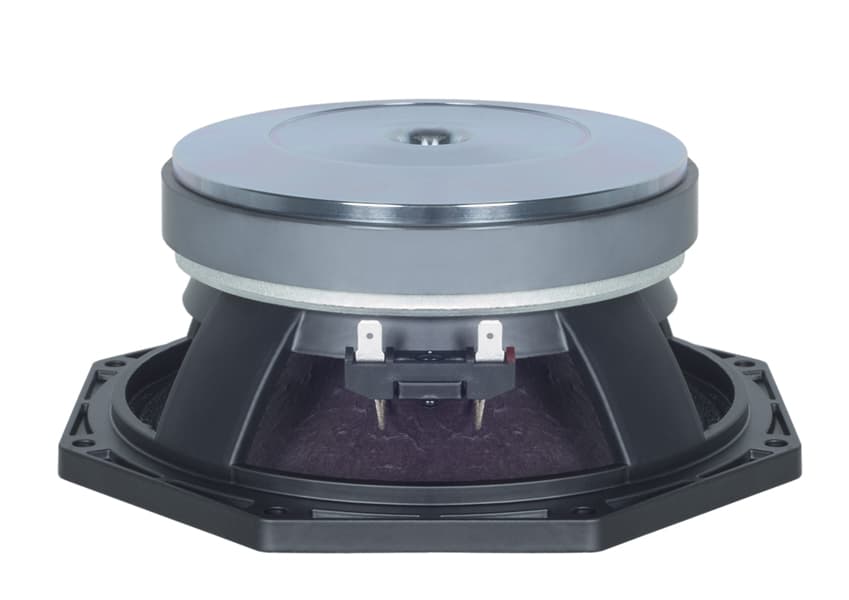

B&C
8PE21
8"
Xmax2.5mm+25%
Qts0.19-24%
BL16.6Tm+24%
Vas13L-29%
Qes0.2-23%
