LF Driver8M series
Oberton
Oberton 8M150
Oberton 8M150 is a 8" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 68Hz, Qts 0.22, Vas 21.6L, Xmax 3.3mm, sensitivity 96.9dB, plus 66cm³ Vd and 303 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
150W
Sensitivity
96.9dB
200.0dBmanufacturer; using T/S-derived value (103.1dB delta).
EBP
303
Vented alignment
Vd
66cm³
T/S Parameters
Valid
Fs68Hz
Qts0.22
Qes0.23
Qms6.1
Vas21.6L
Re5.0Ω
Le0.74mH
BL11.6Tm
Sd202cm²
Mms14g
Xmax3.3mm
SPL97dB
Power150W
Impedance8Ω
Min Impedance5.8Ω
F Low80Hz
F High5000Hz
Voice Coil51mm
Flux Density1.35T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

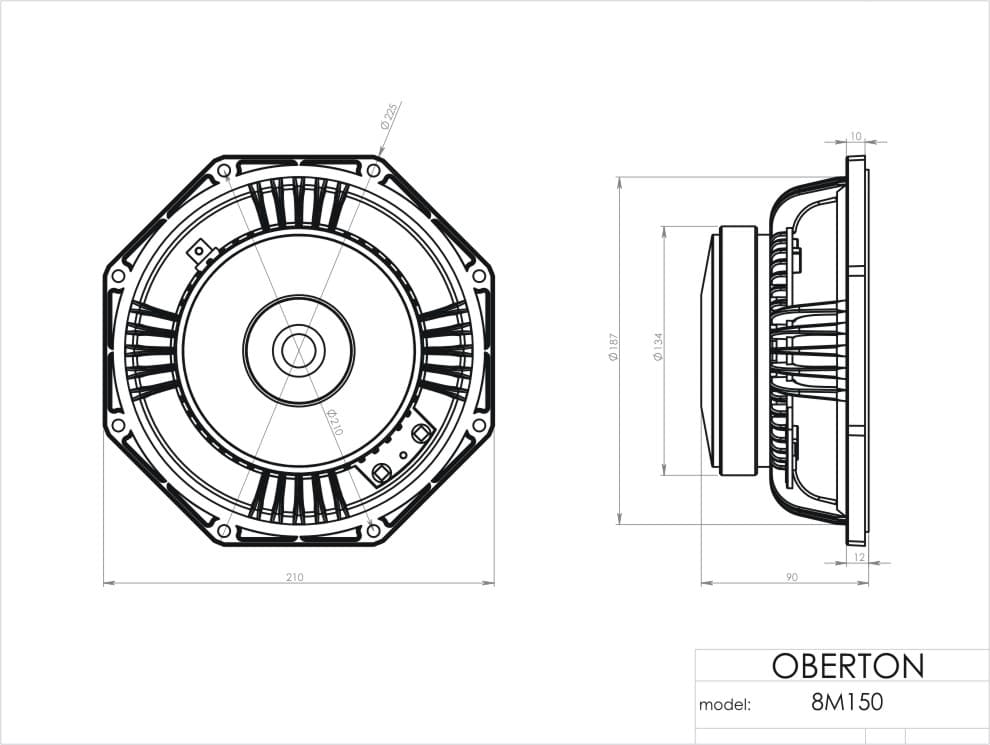

Dimensions & Physical
Weight3.3kg
Diameter225.0mm
Overall Depth90.0mm
Cutout Diameter187.0mm
Bolt Circle Diameter210.0mm
