Overview
LF DriverCPF082 series
Lavoce
Lavoce CPF082.00K
Lavoce CPF082.00K is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 93Hz, Qts 0.46, Vas 11.1L, Xmax 3.3mm, sensitivity 94.4dB, plus 73cm³ Vd and 179 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
94.4dB
95.5dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
179
Vented alignment
Vd
73cm³
Overall Parameters
Valid
Fs93Hz
Qts0.46
Qes0.52
Qms4.1
Vas11.1L
Re5.9Ω
Le0.43mH
BL10.9Tm
Sd220cm²
Mms18g
Xmax3.3mm
SPL94dB
Power200W
Impedance8Ω
Min Impedance6.7Ω
F Low90Hz
F High20000Hz
Voice Coil51mm
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

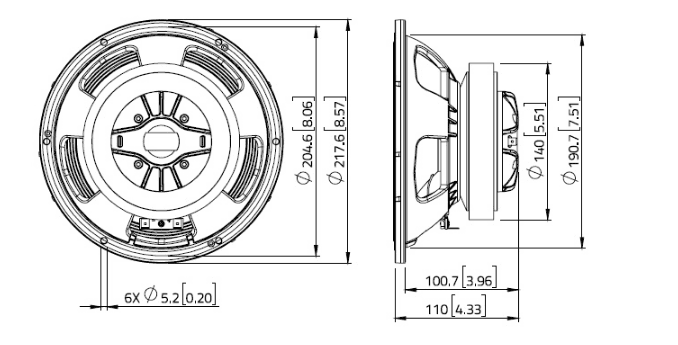

Dimensions & Physical
Weight2.9kg
Driver Components
LF
Fs93 Hz
Qts0.46
Qes0.52
Qms4.1
Vas11.1 L
Re5.9 Ω
Le0.43 mH
BL10.9 Tm
Sd220 cm²
Mms18 g
Xmax3.3 mm
SPL94 dB
Power200 W
Impedance8 Ω
Min Impedance6.7 Ω
F Low90 Hz
F High5000 Hz
Voice Coil51 mm
Cms0.162
Power Program400
Xmech7.3
Section dimensions
Weight2900.0 kg
HF
SPL104 dB
Power35 W
Impedance8 Ω
Min Impedance7.5 Ω
F Low1500 Hz
F High20000 Hz
Xover2200 Hz
Throat25 mm
Voice Coil35 mm
Flux Density1.50 T
Power Program70
