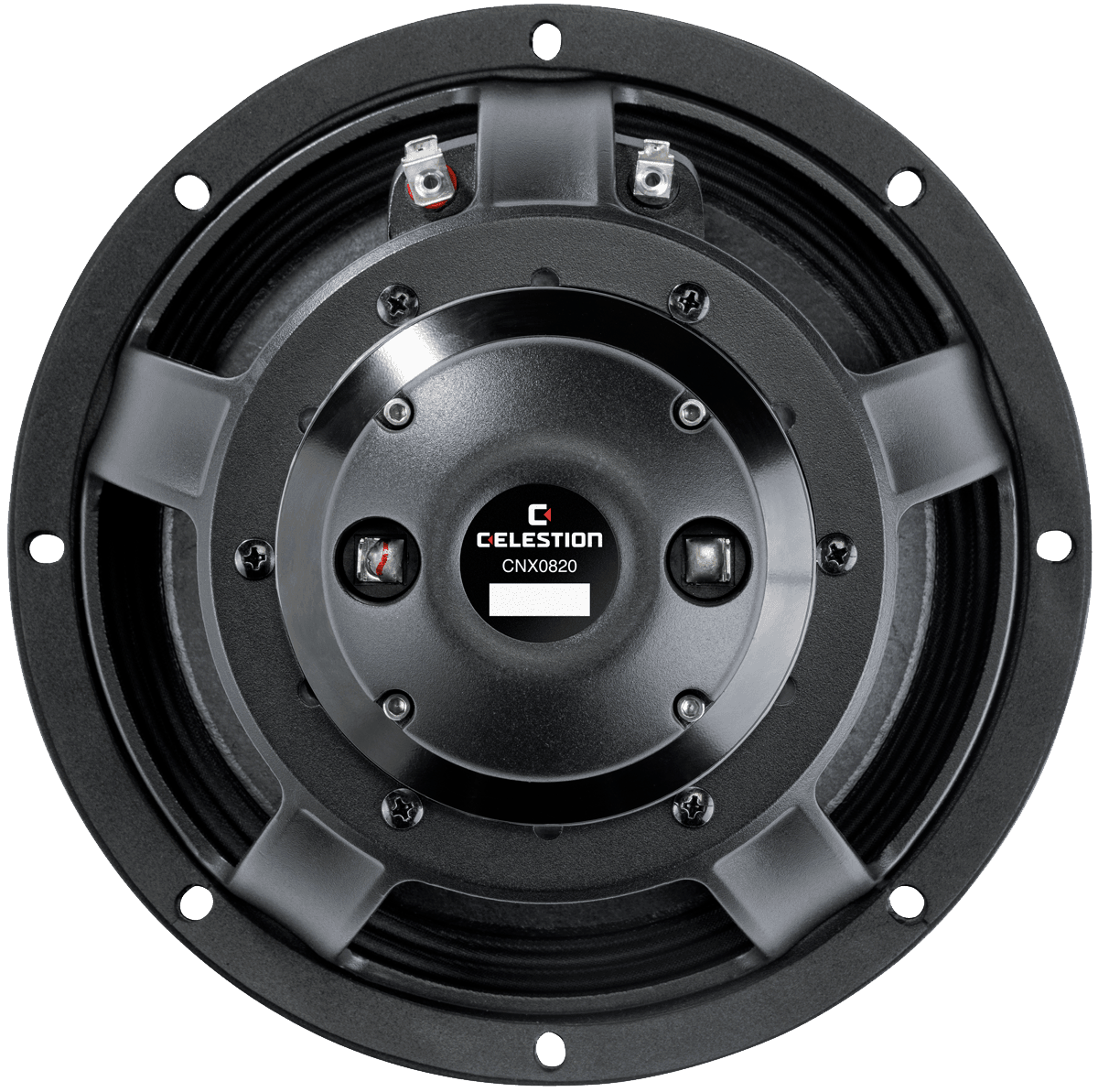

8-inch LF driver · CNX0820 series · 44 mm voice coil · 50 W

Celestion CNX0820 8Ω

Name: Celestion CNX0820 8 Ohm
Brand: Celestion
SKU: CNX0820

8 Ω · 1200–20000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 95Hz
Xmax: 6mm
SPL: 95dB
Pe: 50W
BL: 12.0T·m
Vd: 136cm³
Qts: 0.40
Vas: 10L

See all 27 specs

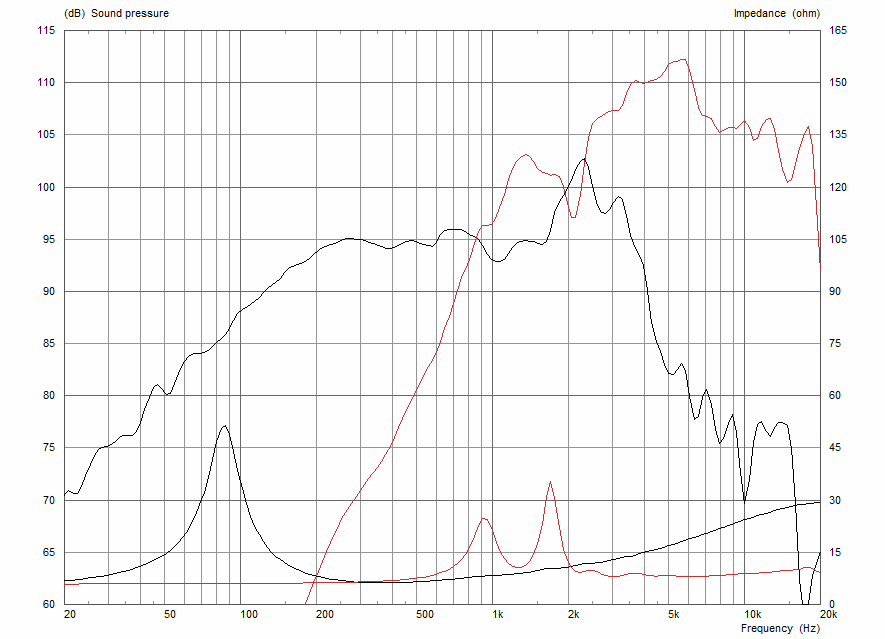

Published graphs

Specifications

Published by Celestion

Manufacturer page

Datasheet PDF

Celestion CNX0820 is an 8-inch 8 ohm LF driver rated at 50 W RMS. The validated T/S data includes Fs 95 Hz, Qts 0.40, Vas 9.9 L, Xmax 6 mm, sensitivity 94.7 dB, plus 136 cm³ Vd and 211 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 95Hz
Qts: 0.40
Qes: 0.45
Qms: 3.3
Vas: 9.9L
Re: 5.1Ω
Le: 0.46mH

Motor and cone

BL: 12.0T·m
Sd: 227cm²
Mms: 21g
Xmax: 6mm
Vd †: 136cm³
Voice coil: 44mm

Power and response

Sensitivity †: 94.7dB
Manufacturer sensitivity: 107dB
Power: 50W
Impedance: 8Ω
Range: 1200–20000Hz
EBP †: 211 · Leans vented

Size and mounting

Diameter: 215mm
Cutout: 187mm
Bolt circle: 200mm
Depth: 115mm
Weight: 2.5kg

Other published values

Cms: 0.14mm/N
Rms: 3.77kg/s
Power Program: 100

Sensitivity shows 94.7 dB, calculated from the T/S values. Celestion publishes 107.0 dB, 12.3 dB apart.

Excursion and motor values come from the LF section; the frequency range spans every section.

† Calculated by bits from the published values

What this validation status means

Components and manufacturer details

LF · Primary · 8″

BL: 12.0T·m
Fs: 95Hz
Le: 0.46mH
Re: 5.1Ω
Sd: 227cm²
Cms: 0.14mm/N
Mms: 21g
Qes: 0.45
Qms: 3.3
Qts: 0.40
Rms: 3.77kg/s
SPL: 94.7dB
Vas: 9.9L
Xmax: 6mm
Power: 50W
Impedance: 8Ω
Sensitivity: 107dB
Low limit: 1200Hz
Power Program: 100
Calculated sensitivity †: 94.7dB
High limit: 20000Hz
Manufacturer sensitivity: 107dB
Voice coil: 44mm
Weight: 2.5kg
Diameter: 215mm
Depth: 115mm
Cutout: 187mm
Bolt circle: 200mm

Compare

Same-size drivers, compared with the CNX0820. Clear differences are green when better and red when worse.

This driverCNX0820

Best price

–

95 Hz

Qts

0.40

Vas

9.9 L

12.0 T·m

Xmax

6 mm

Sensitivity

94.7 dB

Power

50 W

FaitalPRO8FE300

£43.52

Fs70 Hz −26%

Qts0.44 +11%

Vas15.7 L +59%

BL11.3 T·m −6%

Xmax5.5 mm −8%

Sensitivity92.7 dB −2

SB AudienceBIANCO-8MW250

£49.00

Fs74 Hz −22%

Qts0.40 –

Vas13.8 L +40%

BL11 T·m −8%

Xmax6.5 mm +8%

Sensitivity93 dB −1.7

FaneSOVEREIGN 8-225

£49.00

Fs62 Hz −34%

Qts0.38 −4%

Vas22 L +122%

BL11 T·m −8%

Xmax5.5 mm −8%

Sensitivity93 dB −1.7

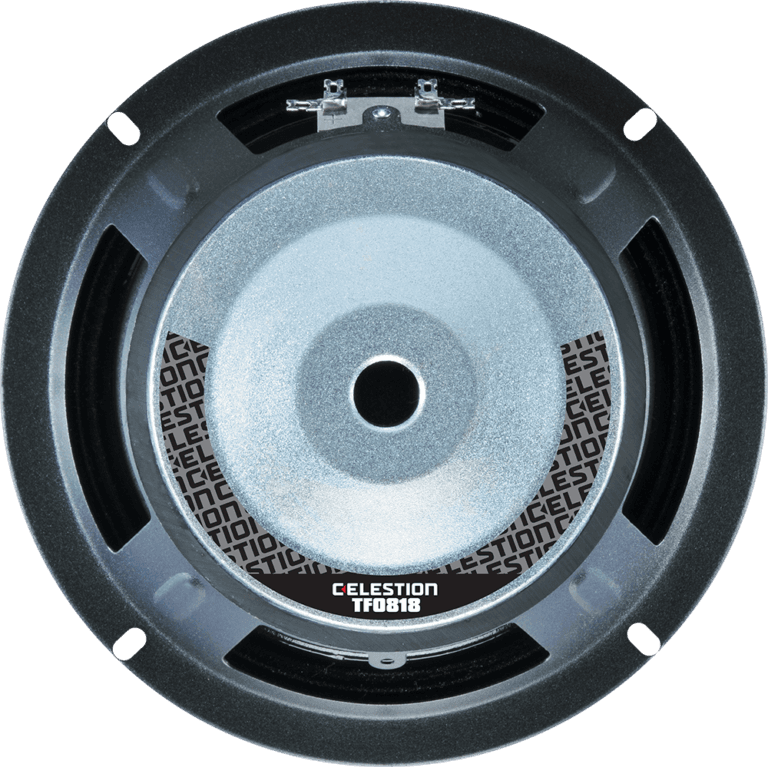

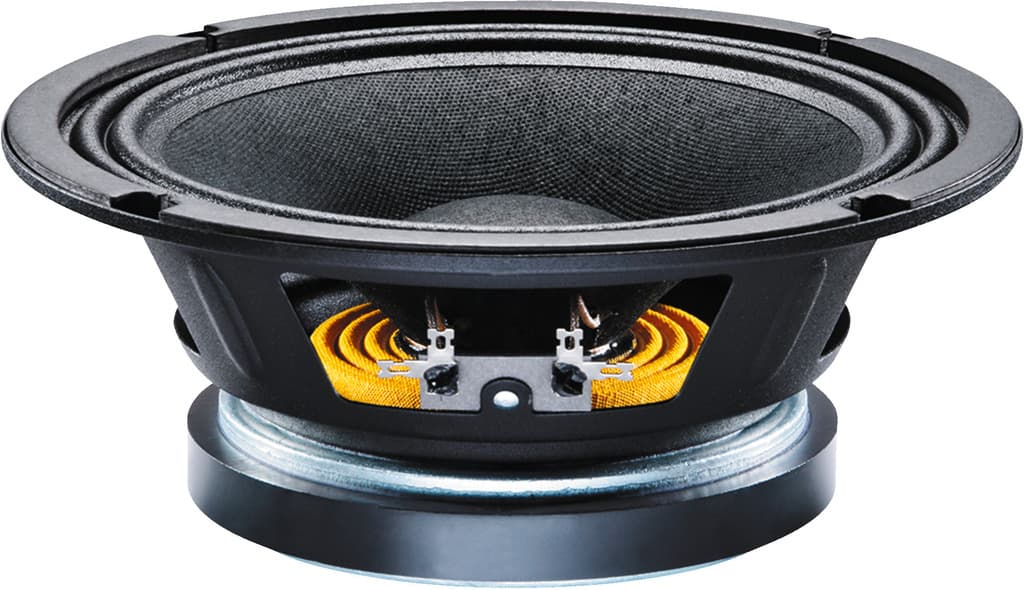

CelestionTF0818

£55.00

Fs100 Hz +6%

Qts0.43 +9%

Vas9.4 L −5%

BL12.9 T·m +8%

Xmax5 mm −17%

Sensitivity94.9 dB –

CelestionTRUVOX 0820

£59.70

Fs74 Hz −22%

Qts0.39 –

Vas17.3 L +74%

BL11.5 T·m −4%

Xmax5 mm −17%

Sensitivity94.3 dB –

HiViE8

£71.05

Fs34 Hz −64%

Qts0.37 −6%

Vas49.8 L +404%

BL9.9 T·m −18%

Xmax5.9 mm –

Sensitivity88.6 dB −6.1

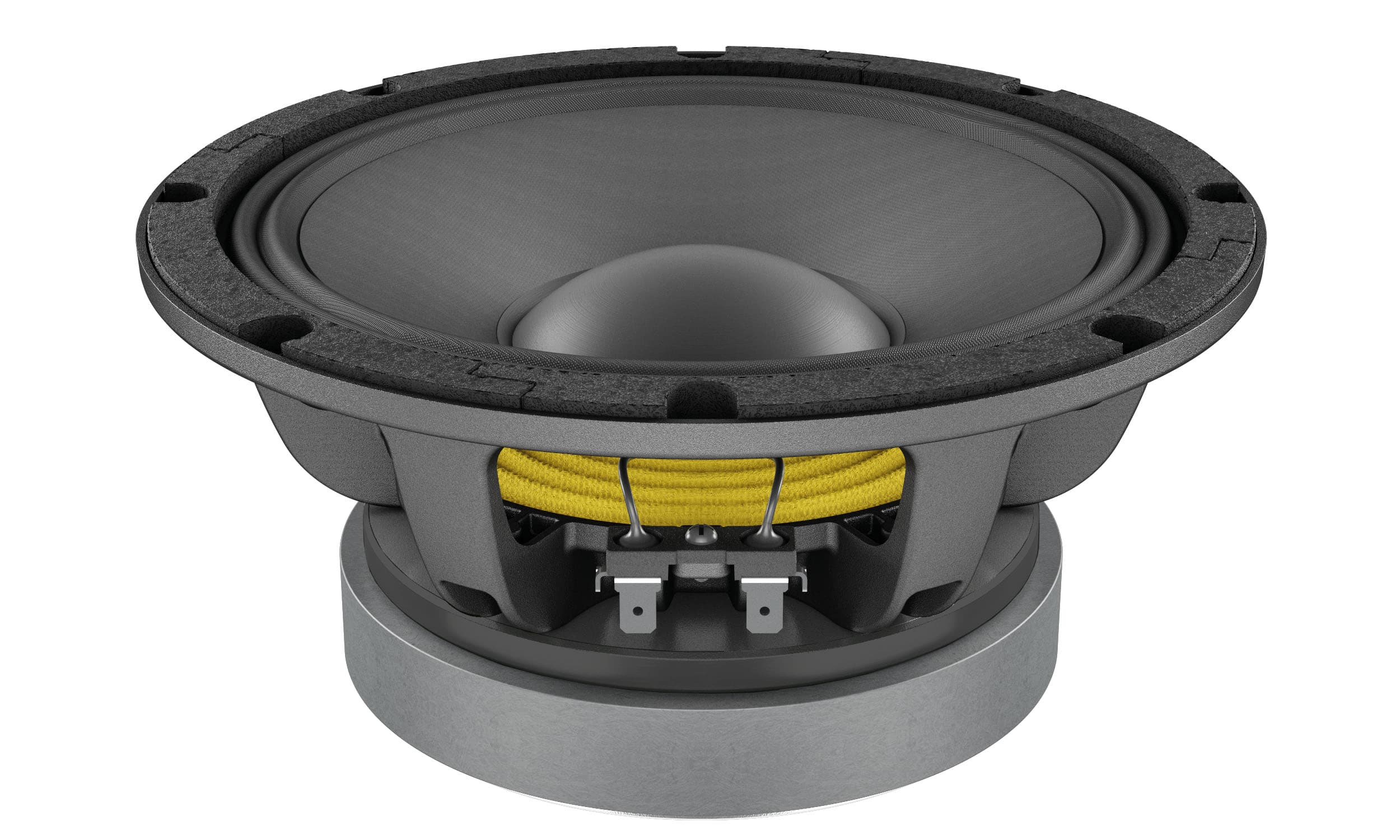

LavoceWAF082.00

£71.42

Fs78 Hz −18%

Qts0.37 −6%

Vas11.9 L +21%

BL12.5 T·m +4%

Xmax6.3 mm +5%

Sensitivity93.4 dB −1.3

FaitalPRO8PR320

£75.00

Fs65 Hz −31%

Qts0.41 +4%

Vas13.1 L +32%

BL12.9 T·m +7%

Xmax7.3 mm +22%

Sensitivity91.3 dB −3.4

CIAREPWA8.50

£77.03

Fs74 Hz −22%

Qts0.38 −4%

Vas12 L +21%

BL12.7 T·m +6%

Xmax6.8 mm +13%

Sensitivity92.8 dB −1.9

SB AudienceBIANCO-8MWN150

£81.76

Fs74 Hz −22%

Qts0.38 −4%

Vas9.9 L –

BL16.5 T·m +37%

Xmax6.0 mm –

Sensitivity92 dB −2.7

B&C8CL51

£88.75

Fs69 Hz −27%

Qts0.41 +4%

Vas12.5 L +26%

BL12 T·m –

Xmax6.5 mm +8%

Sensitivity91.7 dB −3

PRV Audio8MR600X

£94.57

Fs77 Hz −19%

Qts0.40 –

Vas20.0 L +102%

BL10.5 T·m −12%

Xmax5.3 mm −13%

Sensitivity95.3 dB +0.6

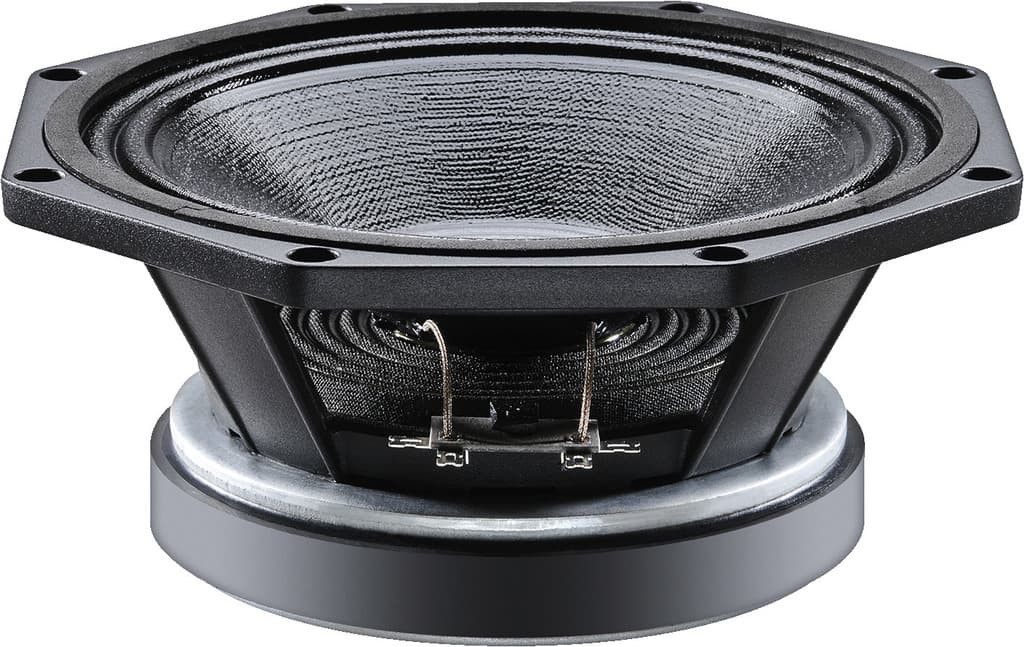

CelestionFTR08-2011D
