LF DriverNERO series
SB Audience
SB Audience NERO-8MWN400D
SB Audience NERO-8MWN400D is a 8" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 63Hz, Qts 0.38, Vas 13.9L, Xmax 6.7mm, sensitivity 91.3dB, plus 140cm³ Vd and 154 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £152.56.
Size
8"
Impedance
8Ω
RMS Power
400W
Sensitivity
91.3dB
EBP
154
Vented alignment
Vd
140cm³

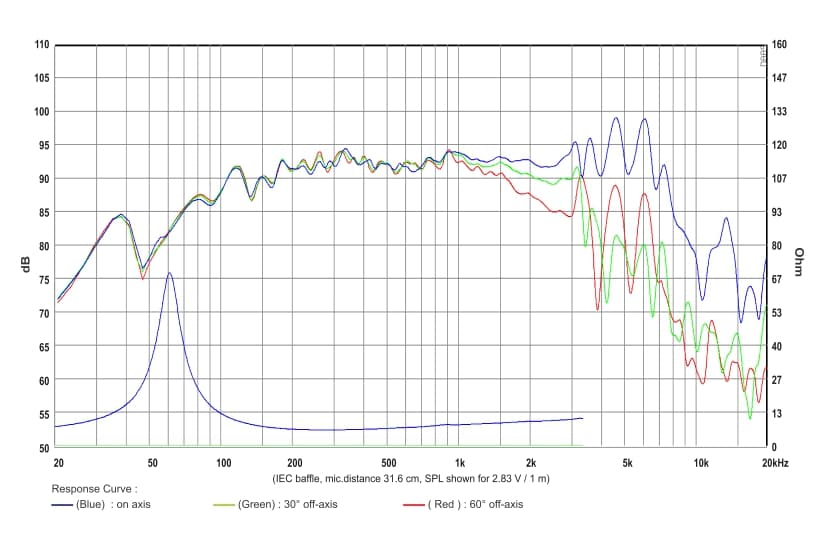

Frequency response
Manufacturer-provided response plots and related charts.

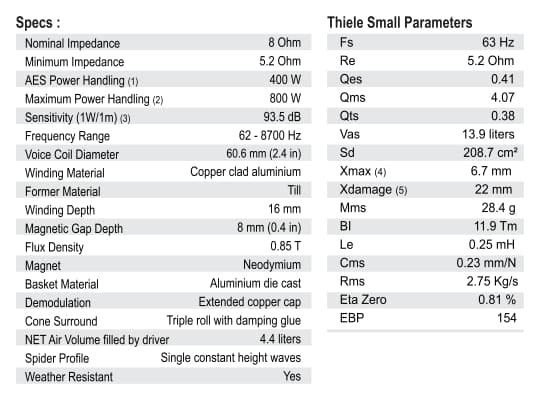

T/S Parameters
Valid
Fs63Hz
Qts0.38
Qes0.41
Qms4.1
Vas13.9L
Re5.2Ω
Le0.25mH
BL11.9Tm
Sd209cm²
Mms28g
Xmax6.7mm
SPL91dB
Power400W
Impedance8Ω
Min Impedance5.2Ω
F Low62Hz
F High8700Hz
Voice Coil61mm
Flux Density0.85T
Pricing & availability
Price definitionsPrice movement
Best current price
£152.56
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

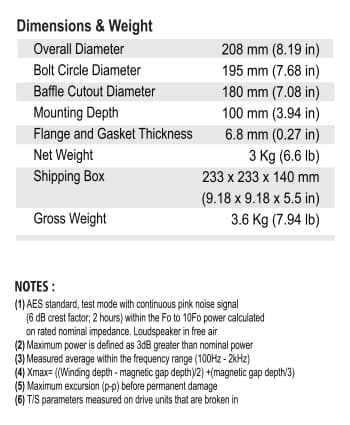

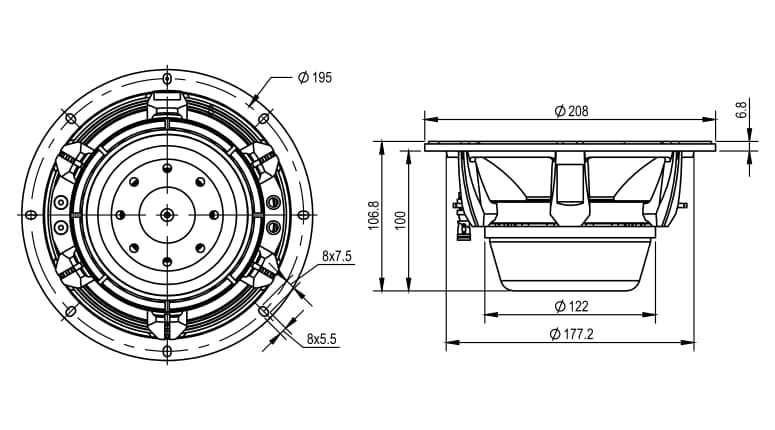

Dimensions & Physical
Weight3.0kg
Diameter208.0mm
Cutout Diameter180.0mm
Bolt Circle Diameter195.0mm
