Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverWSF081 series
Lavoce
Lavoce WSF081.82

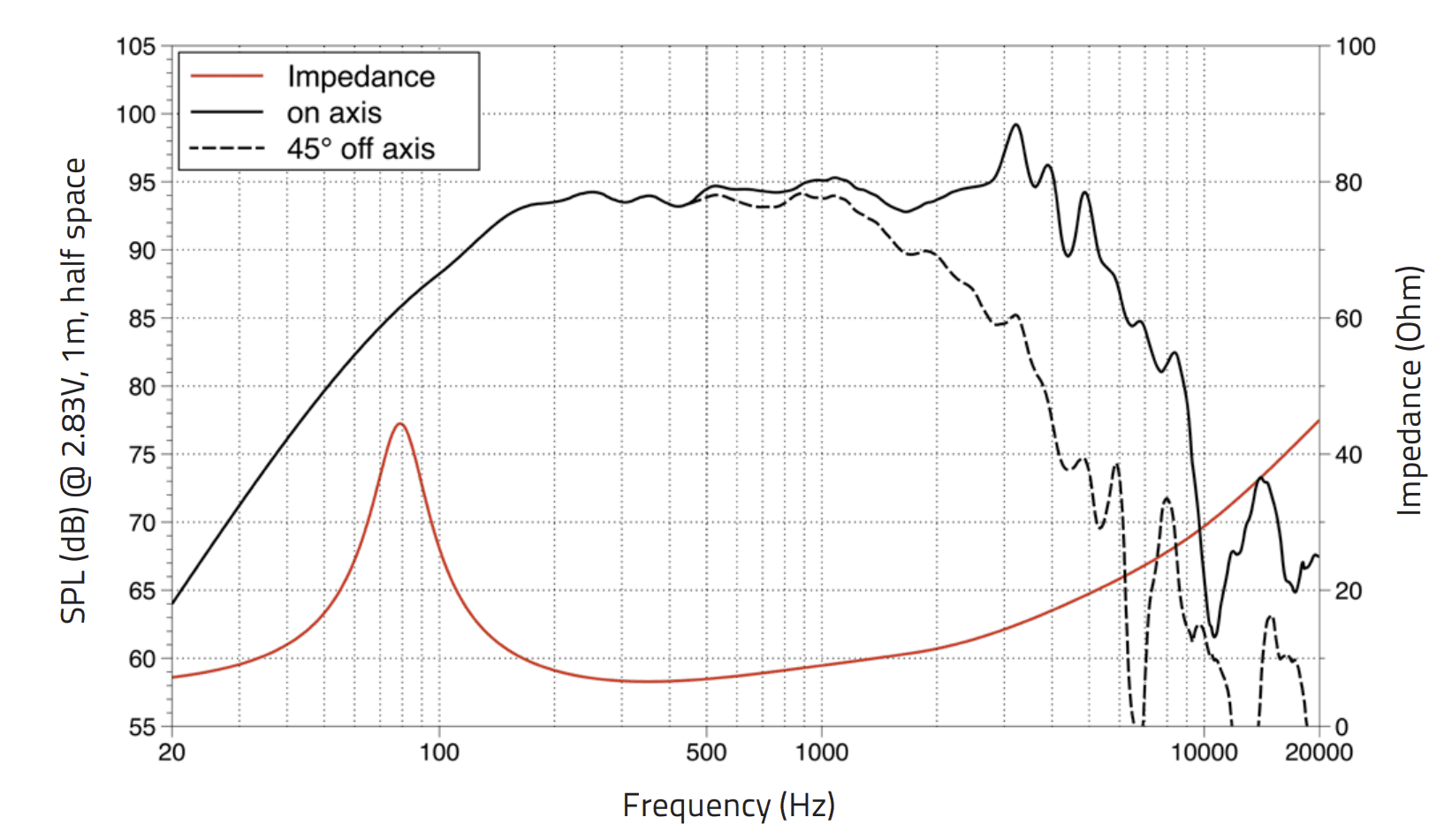

Lavoce WSF081.82 is a 8" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 79Hz, Qts 0.38, Vas 14.3L, Xmax 4.6mm, sensitivity 94.2dB, plus 101cm³ Vd and 184 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £34.02.
Size
8"
Impedance
8Ω
RMS Power
150W
Sensitivity
94.2dB
95.5dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
184
Vented alignment
Vd
101cm³
T/S Parameters
Valid
Fs79Hz
Qts0.38
Qes0.43
Qms3.0
Vas14.3L
Re5.7Ω
Le0.49mH
BL11.3Tm
Sd220cm²
Mms19g
Xmax4.6mm
SPL94dB
Power150W
Impedance8Ω
Min Impedance6.5Ω
F Low80Hz
F High5000Hz
Voice Coil45mm
Pricing & availability
Price definitionsPrice movement
Best current price
£34.02
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

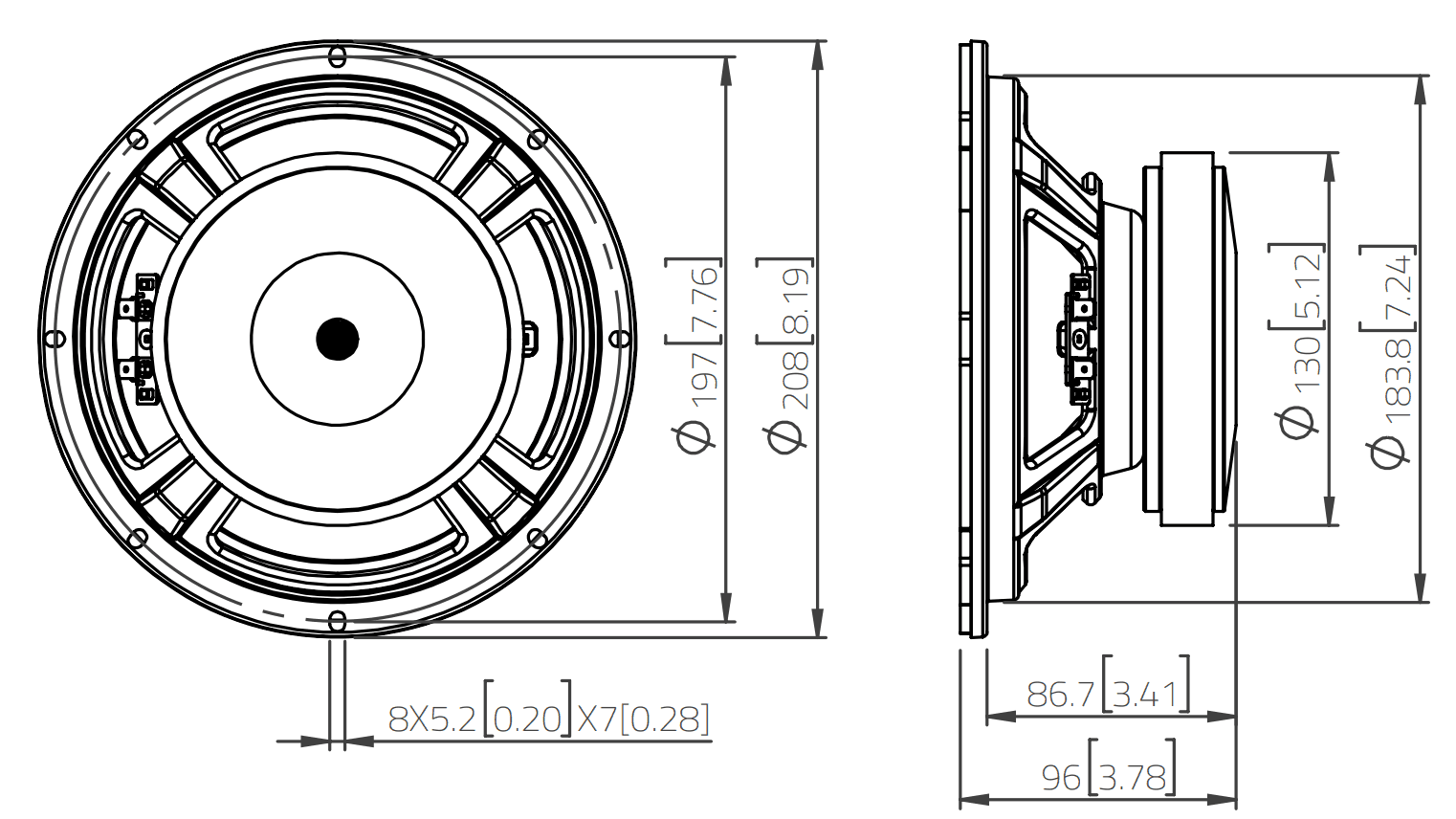

Dimensions & Physical
Weight2.3kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Lavoce
WSF081.82
8"
Best current price
£34.02
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
59%
Similarity
10% more£37.43
Dayton Audio
MB820-8
8"
Higher price
Xmax4mm-13%
Qts0.46+21%
BL9.6Tm-15%
Vas15.8L+10%
Qes0.52+21%
72%
Similarity
28% more£43.52
FaitalPRO
8FE300
8"
Higher price
Xmax5.5mm+20%
Qts0.44+16%
BL11.3Tm0%
Vas15.7L+10%
Qes0.46+7%
63%
Similarity
47% more£50.00
Celestion
TF0818
8"
Higher price
Xmax5mm+9%
Qts0.43+13%
BL12.9Tm+15%
Vas9.4L-34%
Qes0.49+15%
72%
Similarity
50% more£51.00
Fane
SOVEREIGN 8-225
8"
Higher price
Xmax5.5mm+20%
Qts0.380%
BL11Tm-2%
Vas22L+54%
Qes0.42-2%
85%
Similarity
75% more£59.70
Celestion
TRUVOX 0820
8"
Higher price
Xmax5mm+9%
Qts0.39+3%
BL11.5Tm+2%
Vas17.3L+21%
Qes0.42-3%
63%
Similarity
91% more£64.86
FaitalPRO
8PR155
8"
Higher price
Xmax3.6mm-22%
Qts0.37-3%
BL13.4Tm+19%
Vas9.4L-34%
Qes0.39-9%
65%
Similarity
184% more£96.76
B&C
8FMB51
8"
Higher price
Xmax5.5mm+20%
Qts0.39+3%
BL13.7Tm+22%
Vas20.5L+43%
Qes0.430%
52%
Similarity
191% more£99.00
Celestion
FTR08-2011D
8"
Higher price
Xmax5.5mm+20%
Qts0.44+15%
BL12.7Tm+13%
Vas9L-37%
Qes0.54+26%
73%
Similarity
202% more£102.78
B&C
8PS21
8"
Higher price
Xmax5mm+9%
Qts0.33-13%
BL12.6Tm+12%
Vas14L-2%
Qes0.36-16%
43%
Similarity
256% more£121.21
Lavoce
WAN082.01
8"
Higher price
Xmax5.8mm+26%
Qts0.32-16%
BL14.4Tm+28%
Vas9L-37%
Qes0.35-19%
49%
Similarity
274% more£127.25
PRV Audio
8MB700FT-NDY
8"
Higher price
Xmax3.6mm-21%
Qts0.3-21%
BL12.8Tm+14%
Vas18.8L+31%
Qes0.33-23%
87%
Similarity
297% more£135.13
FaitalPRO
8HX150
8"
Higher price
Xmax4.9mm+7%
Qts0.41+8%
BL11.6Tm+3%
Vas13L-9%
Qes0.430%
