8-inch LF driver · SP series · 50 mm voice coil · 150 W

Monacor SP-308CX 8Ω

Name: Monacor SP-308CX 8 Ohm
Brand: Monacor
SKU: SP-308CX

8 Ω · 3–3000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 80Hz
Xmax: 2.5mm
SPL: 95dB
Pe: 150W
BL: 12.1T·m
Vd: 55cm³
Qts: 0.36
Vas: 15L

See all 26 specs

Specifications

Published by Monacor

Manufacturer page

Datasheet PDF

Monacor SP-308CX is an 8-inch 8 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 80 Hz, Qts 0.36, Vas 15.4 L, Xmax 2.5 mm, sensitivity 94.7 dB, plus 55 cm³ Vd and 186 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 80Hz
Qts: 0.36
Qes: 0.43
Qms: 2.2
Vas: 15.4L
Re: 5.8Ω
Le: 0.58mH

Motor and cone

BL: 12.1T·m
Sd: 221cm²
Mms: 17g
Xmax: 2.5mm
Vd †: 55cm³
Voice coil: 50mm

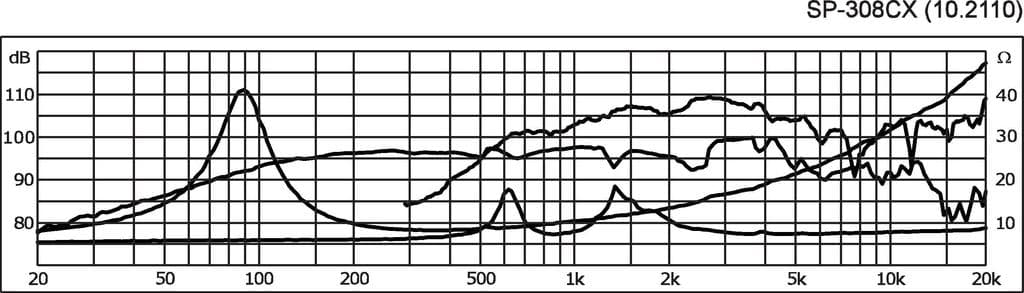

Power and response

Sensitivity †: 94.7dB
Manufacturer sensitivity: 95dB
Power: 150W
Impedance: 8Ω
Range: 3–3000Hz
EBP †: 186 · Leans vented

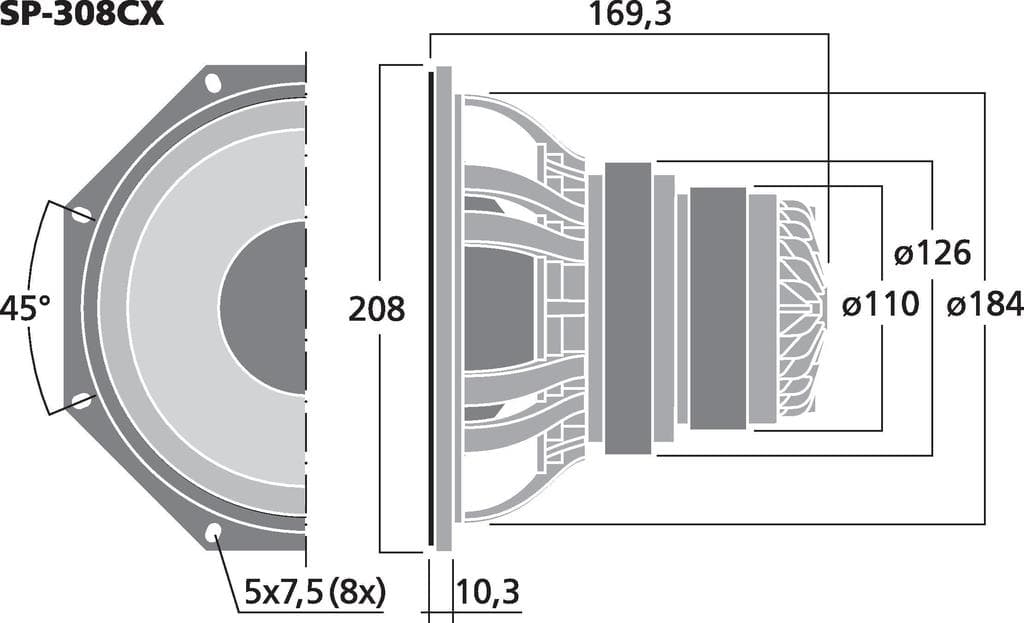

Size and mounting

Diameter: 208mm
Cutout: 184mm
Depth: 169.3mm
Weight: 4.8kg

Other published values

Cms: 0.22mm/N
Power Peak: 300

Other dimensions

Mounting Depth: 159

Excursion and motor values come from the LF section; the frequency range spans every section.

† Calculated by bits from the published values

What this validation status means

Components and manufacturer details

LF · Primary · 8″

BL: 12.1T·m
Fs: 80Hz
Le: 0.58mH
Re: 5.8Ω
Sd: 221cm²
Cms: 0.22mm/N
Mms: 17g
Qes: 0.43
Qms: 2.2
Qts: 0.36
SPL: 94.7dB
Vas: 15.4L
Xmax: 2.5mm
Power: 150W
Impedance: 8Ω
Power Peak: 300
Sensitivity: 95dB
Low limit: 3Hz
Calculated sensitivity †: 94.7dB
High limit: 3000Hz
Manufacturer sensitivity: 95dB
Voice coil: 50mm
Weight: 4.8kg
Diameter: 208mm
Depth: 169.3mm
Mounting Depth: 159
Cutout: 184mm
