Overview
LF Driver
Sica

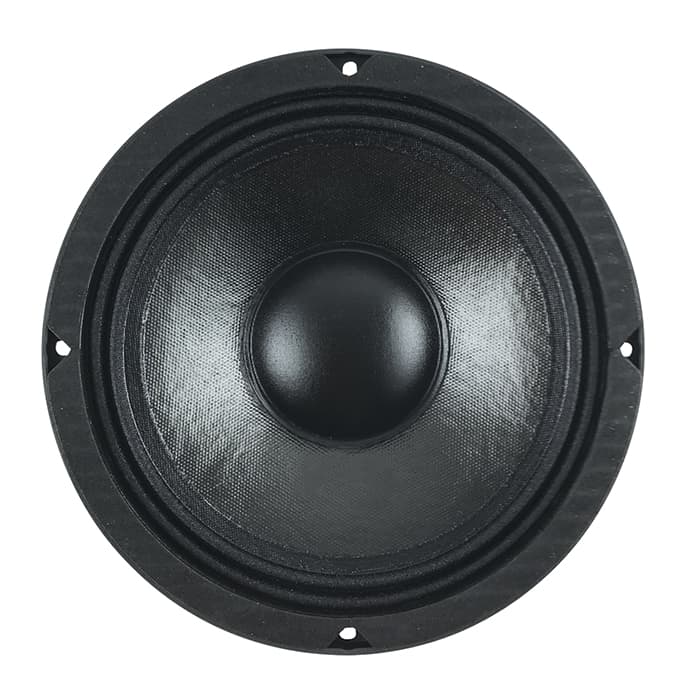

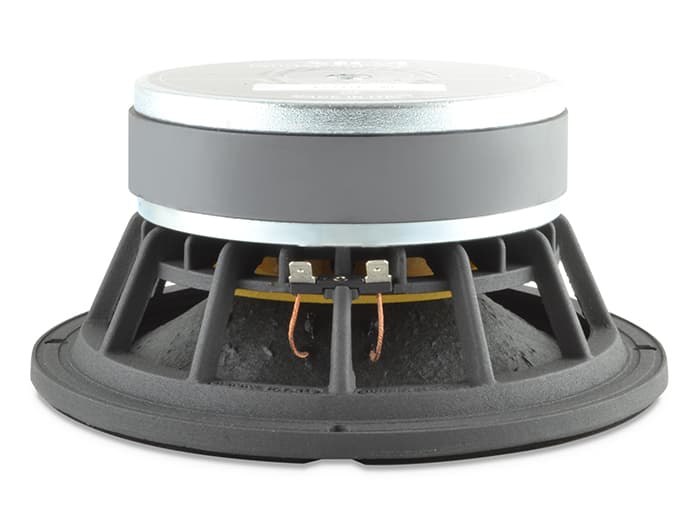

Sica 8 S 2.5 CP
Sica 8 S 2.5 CP is a 8" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 54Hz, Qts 0.33, Vas 18.6L, Xmax 5mm, sensitivity 91dB, plus 107cm³ Vd and 146 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
300W
Sensitivity
91.0dB
93.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
146
Vented alignment
Vd
107cm³
T/S Parameters
Valid
Fs54Hz
Qts0.33
Qes0.37
Qms3.4
Vas18.6L
Re5.1Ω
Le1.00mH
BL11.9Tm
Sd214cm²
Mms30g
Xmax5.0mm
SPL91dB
Power300W
Impedance8Ω
Voice Coil65mm
Flux Density0.89T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.5kg
Diameter210.0mm
Overall Depth98.0mm
Cutout Diameter184.0mm
Bolt Circle Diameter196.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
8 S 2.5 CP
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
89%
Similarity
£102.78
B&C
8PS21
8"
Xmax5mm0%
Qts0.330%
BL12.6Tm+6%
Vas14L-25%
Qes0.36-3%
88%
Similarity
£107.51
Sica
8 FE 2 CP
8"
Xmax4.5mm-10%
Qts0.32-3%
BL12.3Tm+3%
Vas16.9L-9%
Qes0.370%
87%
Similarity
£135.00
SB Audience
ROSSO-8CX250
8"
Xmax5.4mm+8%
Qts0.32-3%
BL11.4Tm-4%
Vas15.8L-15%
Qes0.370%
Image unavailable
83%
Similarity
PHL Audio
2420
8"
Xmax5.5mm+10%
Qts0.330%
BL12.9Tm+8%
Vas13.3L-28%
Qes0.370%
82%
Similarity
£67.85
PRV Audio
8MR600X-4
8"
Xmax5.1mm+2%
Qts0.34+3%
BL8.9Tm-25%
Vas19.6L+6%
Qes0.36-3%
81%
Similarity
CIARE
NDI8
8"
Xmax4.5mm-10%
Qts0.330%
BL12.8Tm+8%
Vas13L-30%
Qes0.36-3%
81%
Similarity
£224.00
Eighteen Sound
8CX650
8"
Xmax6mm+20%
Qts0.35+6%
BL12Tm+1%
Vas16.6L-11%
Qes0.370%
Image unavailable
81%
Similarity
PHL Audio
2440
8"
Xmax5mm0%
Qts0.31-6%
BL12.8Tm+8%
Vas13.1L-30%
Qes0.34-8%
80%
Similarity
£178.00
B&C
8FCX51
8"
Xmax6mm+20%
Qts0.34+3%
BL11.5Tm-3%
Vas16L-14%
Qes0.36-3%
80%
Similarity
Jensen
BS8N250A-8
8"
Xmax5mm0%
Qts0.37+12%
BL12.8Tm+8%
Vas14.9L-20%
Qes0.39+5%
79%
Similarity
£151.61
B&C
8CX21
8"
Xmax5.5mm+10%
Qts0.36+9%
BL11.5Tm-3%
Vas15L-19%
Qes0.39+5%
79%
Similarity
£59.70
Celestion
TRUVOX 0820
8"
Xmax5mm0%
Qts0.39+18%
BL11.5Tm-3%
Vas17.3L-7%
Qes0.42+13%
