LF DriverSP series
Monacor
Monacor SP-8/150PRO
Monacor SP-8/150PRO is a 8" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 56Hz, Qts 0.32, Vas 22L, Xmax 6mm, sensitivity 91.8dB, plus 128cm³ Vd and 137 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
150W
Sensitivity
91.8dB
93.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
137
Vented alignment
Vd
128cm³
T/S Parameters
Valid
Fs56Hz
Qts0.32
Qes0.41
Qms1.5
Vas22.0L
Re7.2Ω
Le2.00mH
BL12.0Tm
Sd213cm²
Mms23g
Xmax6.0mm
SPL92dB
Power150W
Impedance8Ω
F Low3Hz
F High3000Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

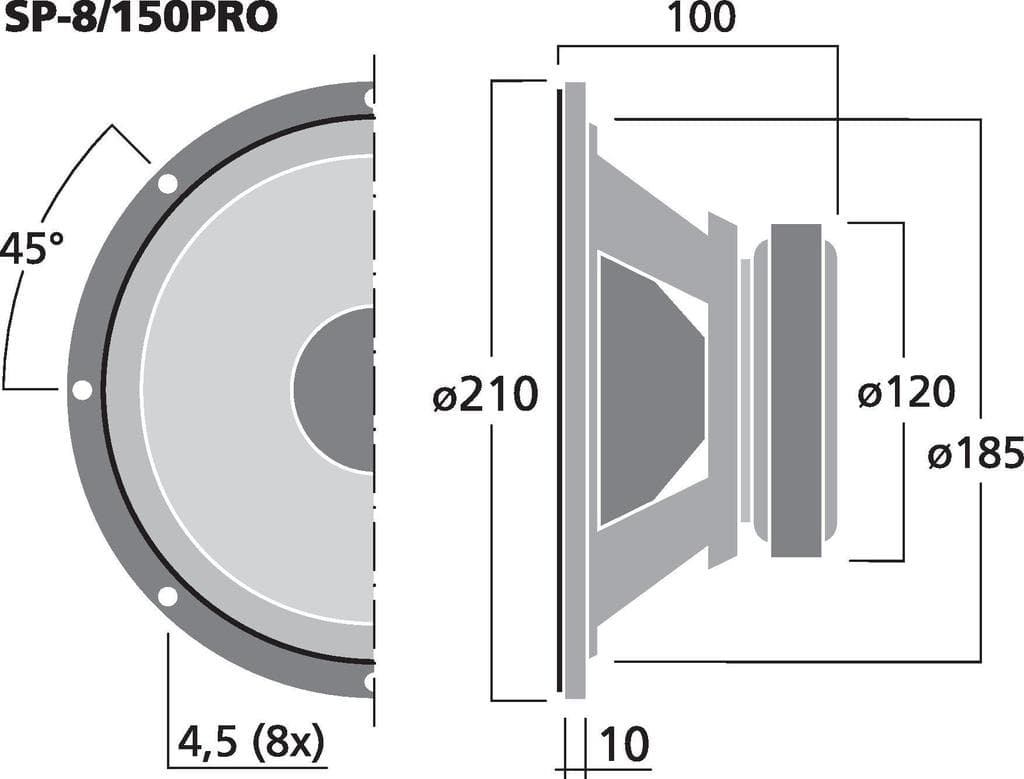

Dimensions & Physical
Weight2.5kg
Diameter210.0mm
Overall Depth100.0mm
Cutout Diameter185.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
SP-8/150PRO
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
84%
Similarity
Beyma
108P3FEN8
8"
Xmax6mm0%
Qts0.31-3%
BL11.6Tm-3%
Vas24.8L+13%
Qes0.32-22%
83%
Similarity
£224.00
Eighteen Sound
8CX650
8"
Xmax6mm0%
Qts0.35+9%
BL12Tm0%
Vas16.6L-25%
Qes0.37-10%
82%
Similarity
£106.30
B&C
8FG51
8"
Xmax6.5mm+8%
Qts0.320%
BL12.9Tm+8%
Vas20L-9%
Qes0.34-17%
81%
Similarity
£178.00
B&C
8FCX51
8"
Xmax6mm0%
Qts0.34+6%
BL11.5Tm-4%
Vas16L-27%
Qes0.36-12%
81%
Similarity
Beyma
108CX3NDN8
8"
Xmax6mm0%
Qts0.29-9%
BL12Tm0%
Vas23L+5%
Qes0.3-27%
80%
Similarity
£113.58

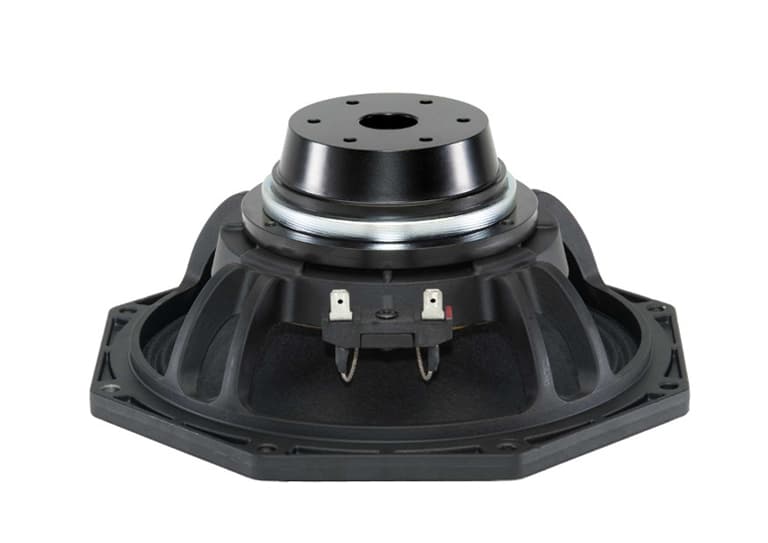

B&C
8MBX51
8"
Xmax6mm0%
Qts0.29-9%
BL11.4Tm-5%
Vas23L+5%
Qes0.31-24%
78%
Similarity
£113.58
B&C
8MBX51
8"
Xmax6mm0%
Qts0.38+19%
BL13.7Tm+15%
Vas22L0%
Qes0.43+5%
78%
Similarity
Monacor
SPH-225C
8"
Xmax6mm0%
Qts0.3-6%
BL13.2Tm+10%
Vas24L+9%
Qes0.31-24%
78%
Similarity
£51.00
Fane
SOVEREIGN 8-225
8"
Xmax5.5mm-8%
Qts0.38+19%
BL11Tm-8%
Vas22L0%
Qes0.42+2%
78%
Similarity
Fane
SOVEREIGN PRO 8-225
8"
Xmax5.5mm-8%
Qts0.38+19%
BL11Tm-8%
Vas22L0%
Qes0.42+2%
78%
Similarity
£199.68
Eighteen Sound
8CX401F
8"
Xmax5.8mm-3%
Qts0.34+6%
BL9.3Tm-22%
Vas23.9L+9%
Qes0.38-7%
77%
Similarity
Beyma
108G48
8"
Xmax6.5mm+8%
Qts0.36+12%
BL12.2Tm+2%
Vas17L-23%
Qes0.38-7%
