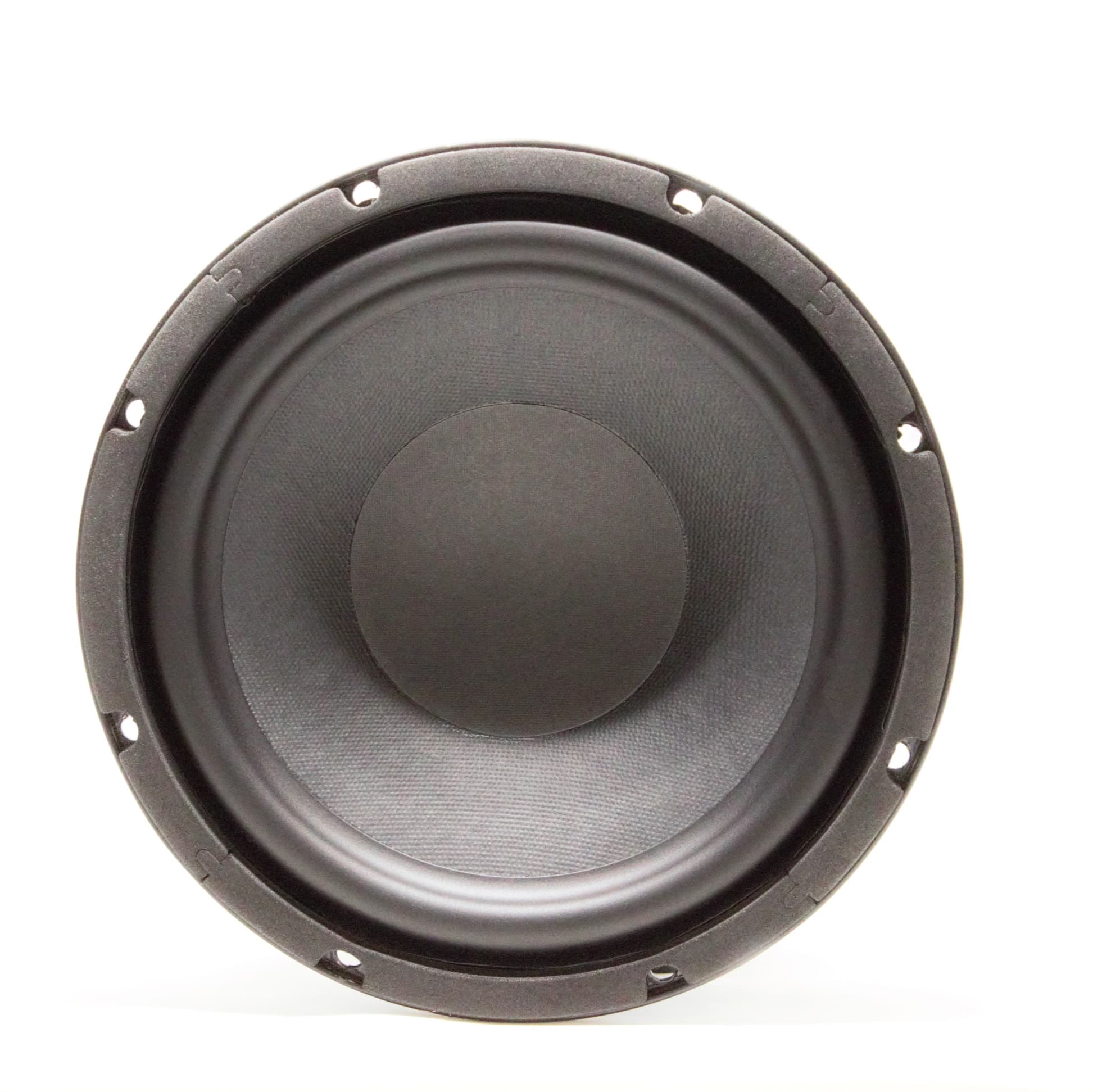

7.75-inch LF driver

Kartesian WOM200_VPA-S 6Ω

Name: Kartesian WOM200_VPA-S 6 Ohm
Brand: Kartesian
SKU: WOM200_VPA-S

6 Ω · 48–2000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 53Hz
Xmax: 6mm
SPL: 92dB
Pe: –
BL: 11.8T·m
Vd: 128cm³
Qts: 0.35
Vas: 21L

See all 14 specs

Specifications

Published by Kartesian

Manufacturer page

Datasheet PDF

Kartesian WOM200_VPA-S is a 7.75-inch 6 ohm LF driver. The validated T/S data includes Fs 53 Hz, Qts 0.35, Vas 20.9 L, Xmax 6 mm, sensitivity 92 dB, plus 128 cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Partial source evidence

Automated T/S checks passed, but some material low-frequency parameters are not published for this record.

Material fields not published: Qes

Manufacturer page linked
Datasheet linked
Canonical units normalized for comparison
Vd can be derived from Sd and Xmax

Manufacturer source Datasheet Validation methodology

Thiele/Small

Fs: 53Hz
Qts: 0.35
Qms: 7.8
Vas: 20.9L
Re: 5.5Ω

Motor and cone

BL: 11.8T·m
Sd: 214cm²
Mms: 28g
Xmax: 6mm
Vd †: 128cm³

Power and response

Sensitivity: 92dB
Impedance: 6Ω
Range: 48–2000Hz

Size and mounting

Diameter: 200mm

† Calculated by bits from the published values

What this validation status means

Everything else Kartesian lists

LF · Primary · 7.874015748031496″

BL: 11.8T·m
Fs: 53Hz
Re: 5.5Ω
Sd: 214cm²
Mms: 28g
Qms: 7.8
Qts: 0.35
SPL: 92dB
Vas: 20.9L
Xmax: 6mm
Impedance: 6Ω
Sensitivity: 92dB
Low limit: 48Hz
High limit: 2000Hz
Manufacturer sensitivity: 92dB
Diameter: 200mm

Compare

Same-size drivers, compared with the WOM200_VPA-S. Clear differences are green when better and red when worse.

This driverWOM200_VPA-S

Best price

–

53 Hz

Qts

0.35

Vas

20.9 L

11.8 T·m

Xmax

6 mm

Sensitivity

92 dB

Power

–

FaneSOVEREIGN 8-225

£51.00

Fs62 Hz +17%

Qts0.38 +8%

Vas22 L +5%

BL11 T·m −7%

Xmax5.5 mm −8%

Sensitivity93 dB +1

CelestionTRUVOX 0820

£59.70

Fs74 Hz +40%

Qts0.39 +11%

Vas17.3 L −17%

BL11.5 T·m –

Xmax5 mm −17%

Sensitivity94.3 dB +2.3

MonacorSP-8/150PRO

£60.46

Fs56 Hz +6%

Qts0.32 −9%

Vas22 L +5%

BL12.0 T·m –

Xmax6 mm –

Sensitivity91.8 dB –

Dayton AudioRS180P-8

£60.56

Fs46 Hz −14%

Qts0.34 −3%

Vas22 L +5%

BL7.2 T·m −39%

Xmax6 mm –

Sensitivity88.8 dB −3.2

LavoceWAF082.00

£71.42

Fs78 Hz +47%

Qts0.37 +5%

Vas11.9 L −43%

BL12.5 T·m +6%

Xmax6.3 mm +5%

Sensitivity93.4 dB +1.4

Dayton AudioRS180S-8

£79.53

Fs38 Hz −29%

Qts0.36 –

Vas23 L +10%

BL7.3 T·m −38%

Xmax6 mm –

Sensitivity86 dB −6

Beyma8P300FE

£79.99

Fs53 Hz –

Qts0.31 −12%

Vas24.8 L +19%

BL11.6 T·m –

Xmax6 mm –

Sensitivity92.7 dB +0.7

Sica8 S 2.5 CP

£81.22

Fs54 Hz –

Qts0.33 −6%

Vas18.6 L −11%

BL11.9 T·m –

Xmax5 mm −17%

Sensitivity91 dB −1

CelestionCF0820BMB

£85.00

Fs51 Hz −5%

Qts0.37 +4%

Vas22.4 L +7%

BL11.9 T·m –

Xmax7.3 mm +21%

Sensitivity90.7 dB −1.3

B&C8FMB51

£92.32

Fs68 Hz +28%

Qts0.39 +11%

Vas20.5 L –

BL13.7 T·m +16%

Xmax5.5 mm −8%

Sensitivity93.8 dB +1.8

PRV Audio8MR600X

£95.66

Fs77 Hz +45%

Qts0.40 +14%

Vas20.0 L −4%

BL10.5 T·m −11%

Xmax5.3 mm −13%

Sensitivity95.3 dB +3.3

B&C8FG51

£95.71

Fs49 Hz −8%

Qts0.32 −9%

Vas20 L −4%

BL12.9 T·m +9%

Xmax6.5 mm +8%

Sensitivity90.4 dB −1.6

Eighteen Sound8NMB420

£99.97

Fs66 Hz +25%

Qts0.41 +16%

Vas24.5 L +17%

BL12 T·m –

Xmax5.8 mm −3%

Sensitivity93.8 dB +1.8

Beyma8G40

£101.22

Fs70 Hz +32%

Qts0.36 –

Vas17 L −19%

BL12.2 T·m +3%

Xmax6.5 mm +8%

Sensitivity93.9 dB +1.9

B&C8BG51

£106.72

Fs52 Hz –

Qts0.40 +14%

Vas18 L −14%

BL11.8 T·m –

Xmax6.5 mm +8%

Sensitivity89.8 dB −2.2

Eighteen Sound8MB500

£108.24

Fs73 Hz +38%

Qts0.50 +42%

Vas21.3 L –

BL11 T·m −7%

Xmax6 mm –

Sensitivity93.6 dB +1.6

B&C8MBX51

£113.58

Fs68 Hz +28%

Qts0.38 +8%

Vas22 L +5%

BL13.7 T·m +16%

Xmax6 mm –

Sensitivity94.1 dB +2.1

MonacorSPH-225C

£130.43

Fs39 Hz −26%

Qts0.30 −15%

Vas24 L +15%

BL13.2 T·m +12%

Xmax6 mm –

Sensitivity88.6 dB −3.4

B&C8CX21

£151.61

Fs74 Hz +40%

Qts0.36 –

Vas15 L −28%

BL11.5 T·m –

Xmax5.5 mm −8%

Sensitivity94 dB +2

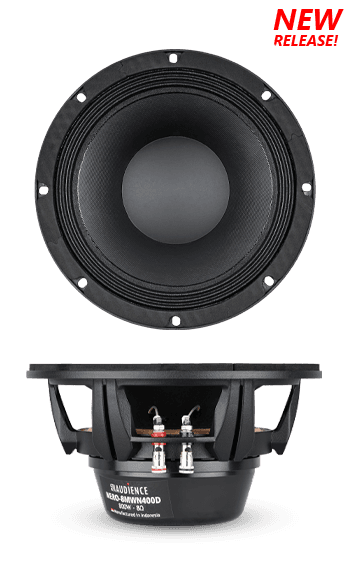

SB AudienceNERO-8MWN400D

£152.56

Fs63 Hz +19%

Qts0.38 +8%

Vas13.9 L −33%

BL11.9 T·m –

Xmax6.7 mm +12%

Sensitivity91.3 dB −0.7

B&C8FCX51

£178.00

Fs69 Hz +30%

Qts0.34 −3%

Vas16 L −23%

BL11.5 T·m –

Xmax6 mm –

Sensitivity93.7 dB +1.7

Eighteen Sound8CX401F

£199.68

Fs56 Hz +6%

Qts0.34 −3%

Vas23.9 L +14%

BL9.3 T·m −21%

Xmax5.8 mm −3%

Sensitivity92.5 dB +0.5

Beyma8CX300ND

£321.98

Fs61 Hz +15%

Qts0.29 −18%

Vas23 L +10%

BL12 T·m –

Xmax6 mm –

Sensitivity94.4 dB +2.4

Eighteen Sound8CX650

£344.69

Fs65 Hz +23%

Qts0.35 –

Vas16.6 L −21%

BL12 T·m –

Xmax6 mm –

Sensitivity92.9 dB +0.9

FaneSOVEREIGN PRO 8-225

No current price

Fs62 Hz +17%

Qts0.38 +8%

Vas22 L +5%

BL11 T·m −7%

Xmax5.5 mm −8%

Sensitivity93 dB +1

MonacorCF0820BMB/8

No current price

Fs51 Hz −5%

Qts0.37 +4%

Vas22.4 L +7%

BL11.9 T·m –

Xmax7.3 mm +21%

Sensitivity90.7 dB −1.3

LavoceCAF082.00K

No current price

Fs72 Hz +36%

Qts0.34 −3%

Vas15.1 L −28%

BL11.7 T·m –

Xmax6.7 mm +12%

Sensitivity93.7 dB +1.7

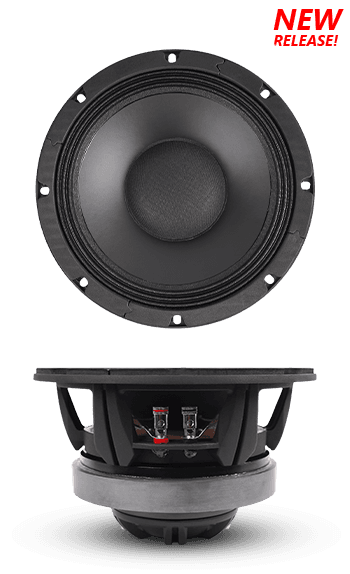

SB AudienceROSSO-8CX250

No current price

Fs70 Hz +32%

Qts0.32 −9%

Vas15.8 L −24%

BL11.4 T·m −3%

Xmax5.4 mm −10%

Sensitivity93.7 dB +1.7

Eighteen Sound8MB400

No current price

Fs64 Hz +21%

Qts0.38 +8%

Vas23.9 L +14%

BL9.3 T·m −21%

Xmax5.8 mm −3%

Sensitivity93.7 dB +1.7

No photo

PHL Audio2420

No current price

Fs72 Hz +36%

Qts0.33 −6%

Vas13.3 L −36%

BL12.9 T·m +9%

Xmax5.5 mm −8%

Sensitivity93.3 dB +1.3

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Where to buy

Prices for delivery to the UK, including VAT. How prices work

Watch price

No current price found. Pricing may appear after the next vendor refresh.

bits00 AUDIO

7.75-inch LF driver

Kartesian WOM200_VPA-S 6Ω

6 Ω · 48–2000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 53Hz
Xmax: 6mm
SPL: 92dB
Pe: –
BL: 11.8T·m
Vd: 128cm³
Qts: 0.35
Vas: 21L

See all 14 specs

Specifications

Published by Kartesian

Manufacturer page

Datasheet PDF

Partial source evidence

Automated T/S checks passed, but some material low-frequency parameters are not published for this record.

Material fields not published: Qes

Manufacturer page linked
Datasheet linked
Canonical units normalized for comparison
Vd can be derived from Sd and Xmax

Manufacturer source Datasheet Validation methodology

Thiele/Small

Fs: 53Hz
Qts: 0.35
Qms: 7.8
Vas: 20.9L
Re: 5.5Ω

Motor and cone

BL: 11.8T·m
Sd: 214cm²
Mms: 28g
Xmax: 6mm
Vd †: 128cm³

Power and response

Sensitivity: 92dB
Impedance: 6Ω
Range: 48–2000Hz

Size and mounting

Diameter: 200mm

† Calculated by bits from the published values

What this validation status means

Everything else Kartesian lists

LF · Primary · 7.874015748031496″

BL: 11.8T·m
Fs: 53Hz
Re: 5.5Ω
Sd: 214cm²
Mms: 28g
Qms: 7.8
Qts: 0.35
SPL: 92dB
Vas: 20.9L
Xmax: 6mm
Impedance: 6Ω
Sensitivity: 92dB
Low limit: 48Hz
High limit: 2000Hz
Manufacturer sensitivity: 92dB
Diameter: 200mm

Compare

Same-size drivers, compared with the WOM200_VPA-S. Clear differences are green when better and red when worse.

This driverWOM200_VPA-S

Best price

–

53 Hz

Qts

0.35

Vas

20.9 L

11.8 T·m

Xmax

6 mm

Sensitivity

92 dB

Power

–

FaneSOVEREIGN 8-225

£51.00

Fs62 Hz +17%

Qts0.38 +8%

Vas22 L +5%

BL11 T·m −7%

Xmax5.5 mm −8%

Sensitivity93 dB +1

CelestionTRUVOX 0820

£59.70

Fs74 Hz +40%

Qts0.39 +11%

Vas17.3 L −17%

BL11.5 T·m –

Xmax5 mm −17%

Sensitivity94.3 dB +2.3

MonacorSP-8/150PRO

£60.46

Fs56 Hz +6%

Qts0.32 −9%

Vas22 L +5%

BL12.0 T·m –

Xmax6 mm –

Sensitivity91.8 dB –

Dayton AudioRS180P-8

£60.56

Fs46 Hz −14%

Qts0.34 −3%

Vas22 L +5%

BL7.2 T·m −39%

Xmax6 mm –

Sensitivity88.8 dB −3.2

LavoceWAF082.00

£71.42

Fs78 Hz +47%

Qts0.37 +5%

Vas11.9 L −43%

BL12.5 T·m +6%

Xmax6.3 mm +5%

Sensitivity93.4 dB +1.4

Dayton AudioRS180S-8

£79.53

Fs38 Hz −29%

Qts0.36 –

Vas23 L +10%

BL7.3 T·m −38%

Xmax6 mm –

Sensitivity86 dB −6

Beyma8P300FE

£79.99

Fs53 Hz –

Qts0.31 −12%

Vas24.8 L +19%

BL11.6 T·m –

Xmax6 mm –

Sensitivity92.7 dB +0.7

Sica8 S 2.5 CP

£81.22

Fs54 Hz –

Qts0.33 −6%

Vas18.6 L −11%

BL11.9 T·m –

Xmax5 mm −17%

Sensitivity91 dB −1

CelestionCF0820BMB

£85.00

Fs51 Hz −5%

Qts0.37 +4%

Vas22.4 L +7%

BL11.9 T·m –

Xmax7.3 mm +21%

Sensitivity90.7 dB −1.3

B&C8FMB51

£92.32

Fs68 Hz +28%

Qts0.39 +11%

Vas20.5 L –

BL13.7 T·m +16%

Xmax5.5 mm −8%

Sensitivity93.8 dB +1.8

PRV Audio8MR600X

£95.66

Fs77 Hz +45%

Qts0.40 +14%

Vas20.0 L −4%

BL10.5 T·m −11%

Xmax5.3 mm −13%

Sensitivity95.3 dB +3.3

B&C8FG51

£95.71

Fs49 Hz −8%

Qts0.32 −9%

Vas20 L −4%

BL12.9 T·m +9%

Xmax6.5 mm +8%

Sensitivity90.4 dB −1.6

Eighteen Sound8NMB420

£99.97

Fs66 Hz +25%

Qts0.41 +16%

Vas24.5 L +17%

BL12 T·m –

Xmax5.8 mm −3%

Sensitivity93.8 dB +1.8

Beyma8G40

£101.22

Fs70 Hz +32%

Qts0.36 –

Vas17 L −19%

BL12.2 T·m +3%

Xmax6.5 mm +8%

Sensitivity93.9 dB +1.9

B&C8BG51

£106.72

Fs52 Hz –

Qts0.40 +14%

Vas18 L −14%

BL11.8 T·m –

Xmax6.5 mm +8%

Sensitivity89.8 dB −2.2

Eighteen Sound8MB500

£108.24

Fs73 Hz +38%

Qts0.50 +42%

Vas21.3 L –

BL11 T·m −7%

Xmax6 mm –

Sensitivity93.6 dB +1.6

B&C8MBX51

£113.58

Fs68 Hz +28%

Qts0.38 +8%

Vas22 L +5%

BL13.7 T·m +16%

Xmax6 mm –

Sensitivity94.1 dB +2.1

MonacorSPH-225C

£130.43

Fs39 Hz −26%

Qts0.30 −15%

Vas24 L +15%

BL13.2 T·m +12%

Xmax6 mm –

Sensitivity88.6 dB −3.4

B&C8CX21

£151.61

Fs74 Hz +40%

Qts0.36 –

Vas15 L −28%

BL11.5 T·m –

Xmax5.5 mm −8%

Sensitivity94 dB +2

SB AudienceNERO-8MWN400D

£152.56

Fs63 Hz +19%

Qts0.38 +8%

Vas13.9 L −33%

BL11.9 T·m –

Xmax6.7 mm +12%

Sensitivity91.3 dB −0.7

B&C8FCX51

£178.00

Fs69 Hz +30%

Qts0.34 −3%

Vas16 L −23%

BL11.5 T·m –

Xmax6 mm –

Sensitivity93.7 dB +1.7

Eighteen Sound8CX401F

£199.68

Fs56 Hz +6%

Qts0.34 −3%

Vas23.9 L +14%

BL9.3 T·m −21%

Xmax5.8 mm −3%

Sensitivity92.5 dB +0.5

Beyma8CX300ND

£321.98

Fs61 Hz +15%

Qts0.29 −18%

Vas23 L +10%

BL12 T·m –

Xmax6 mm –

Sensitivity94.4 dB +2.4

Eighteen Sound8CX650

£344.69

Fs65 Hz +23%

Qts0.35 –

Vas16.6 L −21%

BL12 T·m –

Xmax6 mm –

Sensitivity92.9 dB +0.9

FaneSOVEREIGN PRO 8-225

No current price

Fs62 Hz +17%

Qts0.38 +8%

Vas22 L +5%

BL11 T·m −7%

Xmax5.5 mm −8%

Sensitivity93 dB +1

MonacorCF0820BMB/8

No current price

Fs51 Hz −5%

Qts0.37 +4%

Vas22.4 L +7%

BL11.9 T·m –

Xmax7.3 mm +21%

Sensitivity90.7 dB −1.3

LavoceCAF082.00K

No current price

Fs72 Hz +36%

Qts0.34 −3%

Vas15.1 L −28%

BL11.7 T·m –

Xmax6.7 mm +12%

Sensitivity93.7 dB +1.7

SB AudienceROSSO-8CX250

No current price

Fs70 Hz +32%

Qts0.32 −9%

Vas15.8 L −24%

BL11.4 T·m −3%

Xmax5.4 mm −10%

Sensitivity93.7 dB +1.7

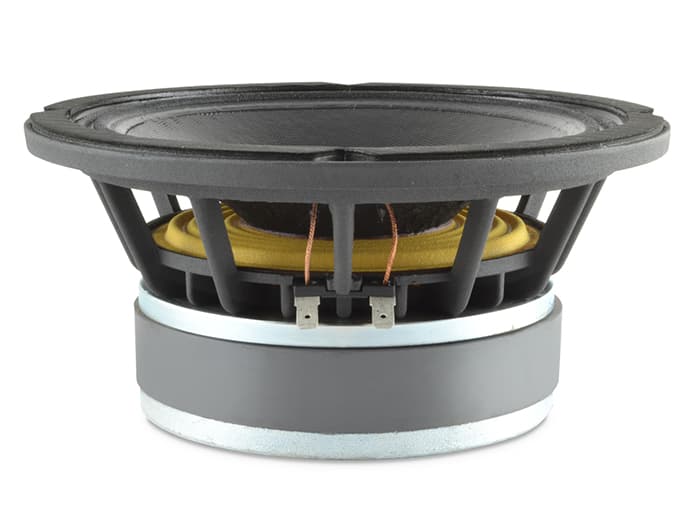

Eighteen Sound8MB400

No current price

Fs64 Hz +21%

Qts0.38 +8%

Vas23.9 L +14%

BL9.3 T·m −21%

Xmax5.8 mm −3%

Sensitivity93.7 dB +1.7

No photo

PHL Audio2420

No current price

Fs72 Hz +36%

Qts0.33 −6%

Vas13.3 L −36%

BL12.9 T·m +9%

Xmax5.5 mm −8%

Sensitivity93.3 dB +1.3

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Where to buy

Prices for delivery to the UK, including VAT. How prices work

Watch price

No current price found. Pricing may appear after the next vendor refresh.
