Overview
LF Driver8FMB series
B&C

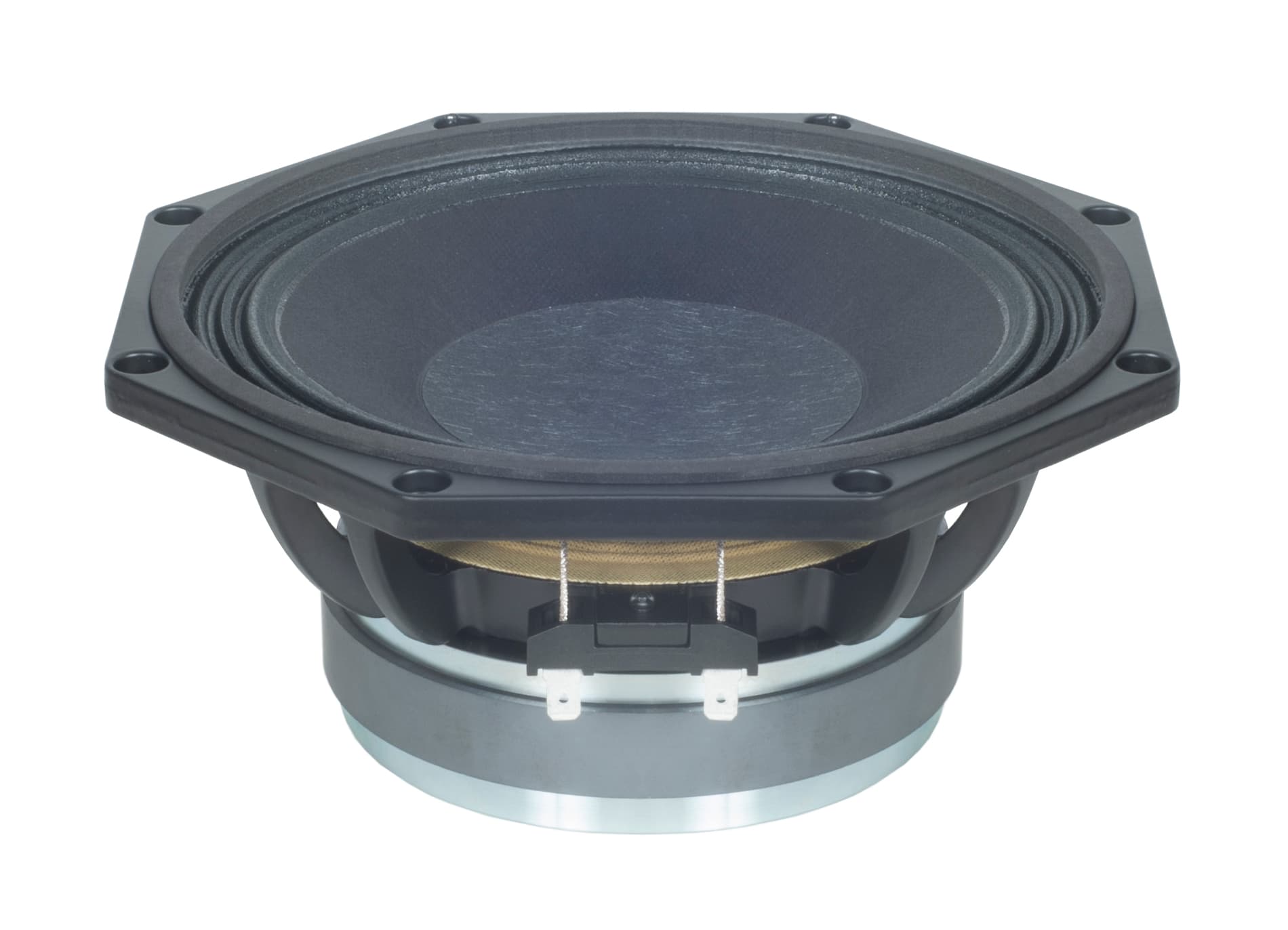

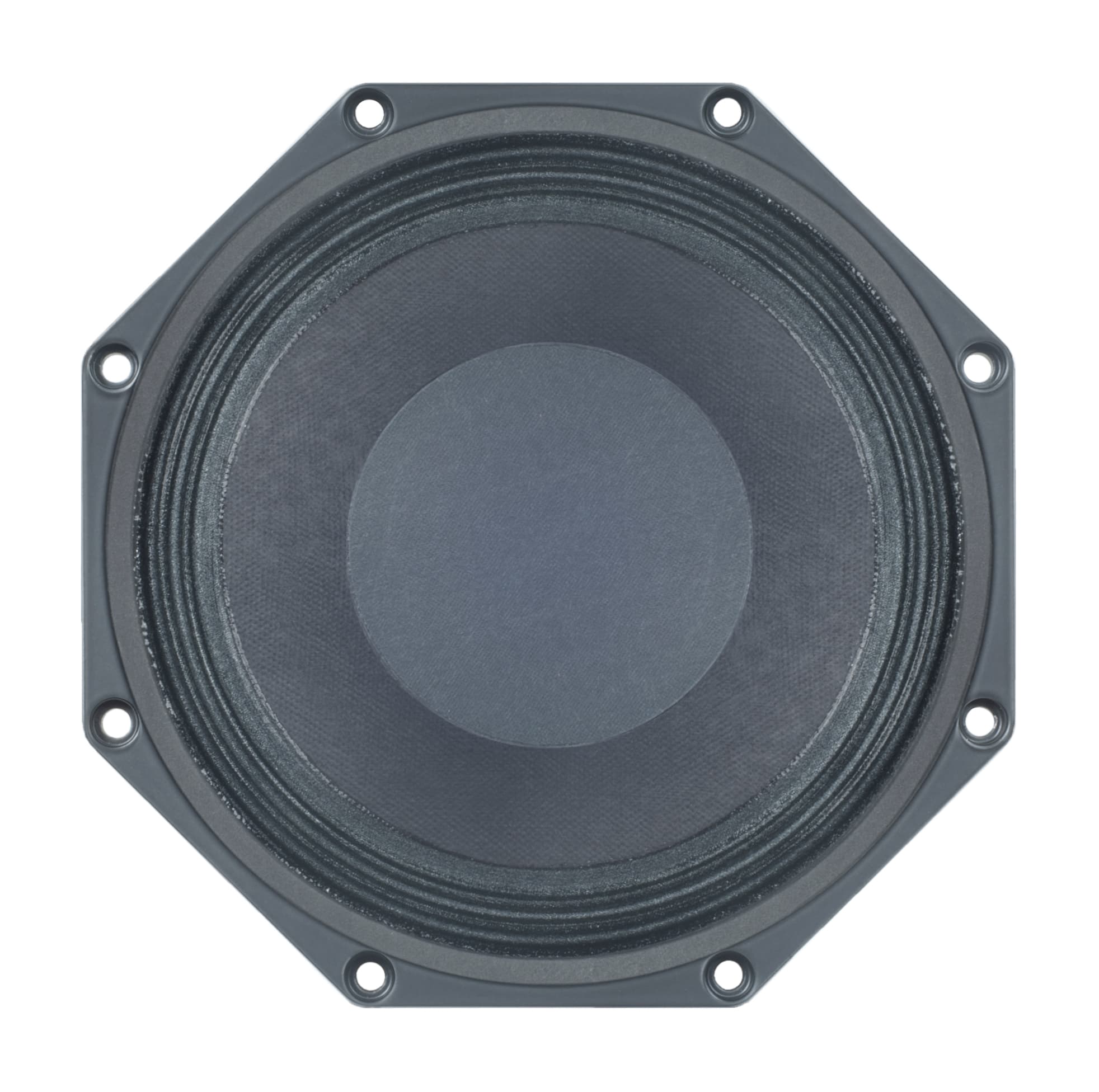

B&C 8FMB51
B&C 8FMB51 is a 8" 16 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 68Hz, Qts 0.39, Vas 20.5L, Xmax 5.5mm, sensitivity 93.8dB, plus 125cm³ Vd and 158 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £96.76.
Size
8"
Impedance
16Ω
RMS Power
250W
Sensitivity
93.8dB
96.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
158
Vented alignment
Vd
125cm³

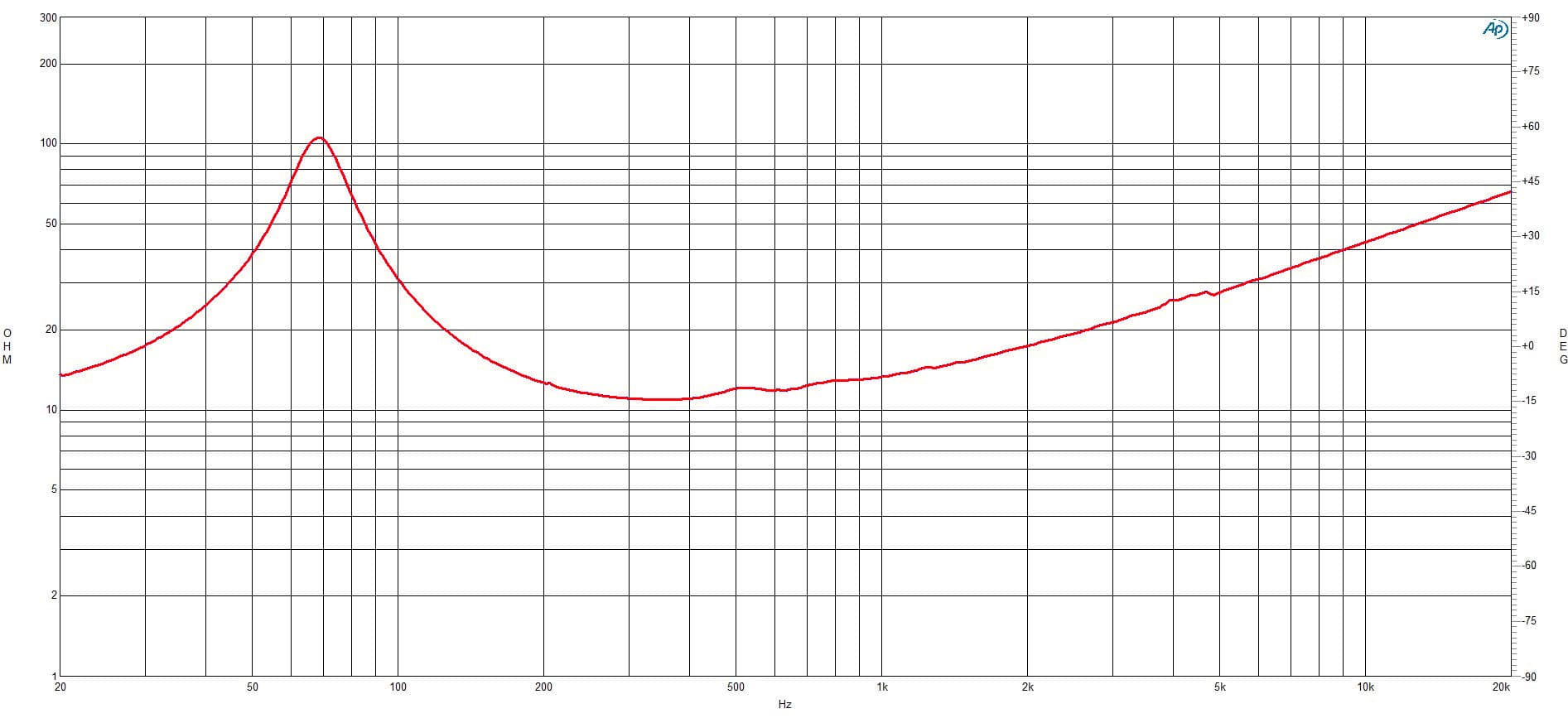

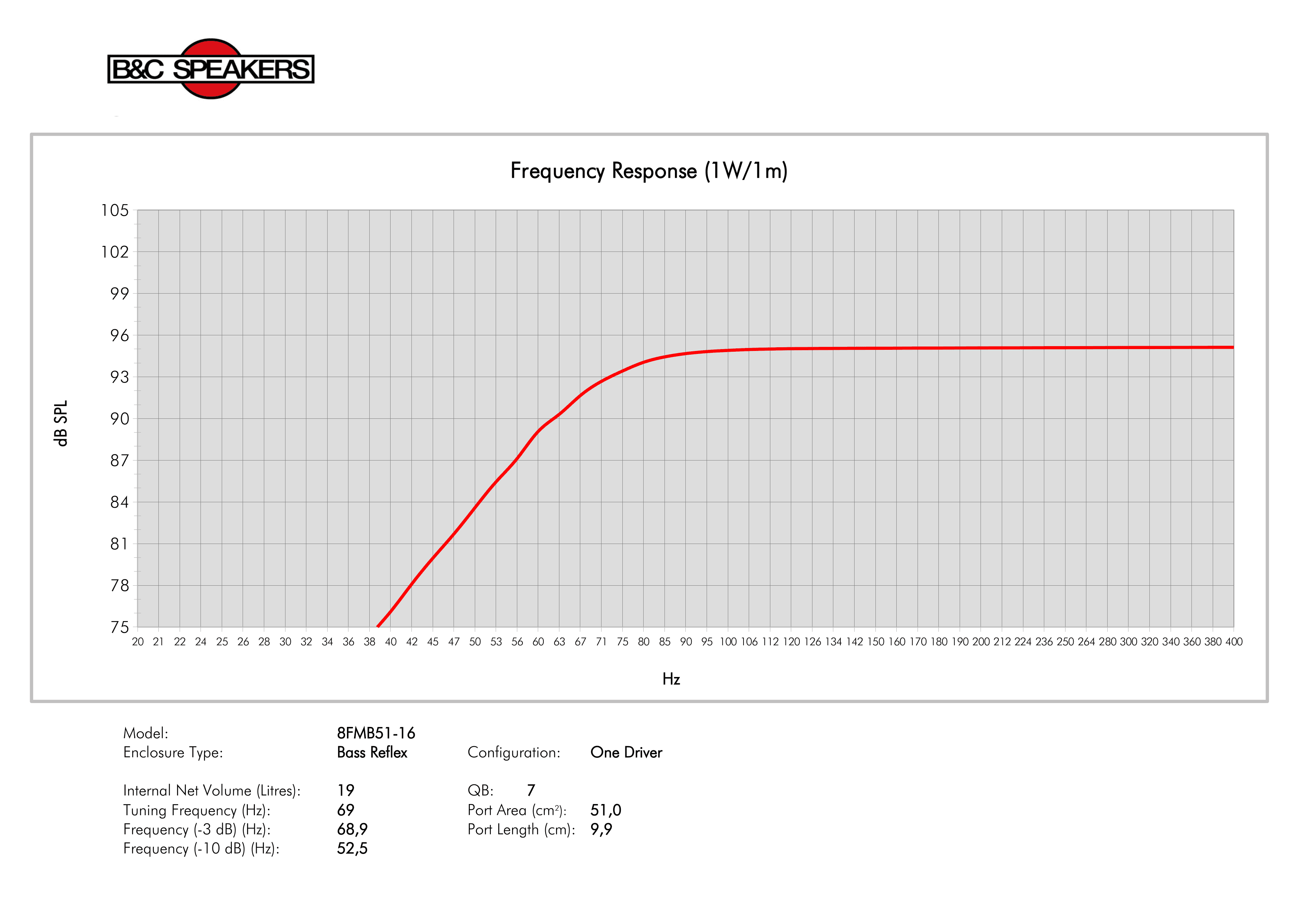

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs68Hz
Qts0.39
Qes0.43
Qms4.1
Vas20.5L
Re9.8Ω
Le0.83mH
BL13.7Tm
Sd227cm²
Mms20g
Xmax5.5mm
SPL94dB
Power250W
Power Nominal250W
Impedance16Ω
Min Impedance11.0Ω
F Low68Hz
F High4500Hz
Voice Coil51mm
Flux Density1.19T
Pricing & availability
Price definitionsPrice movement
Best current price
£96.76
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.4kg
Diameter225.0mm
Overall Depth92.0mm
Cutout Diameter187.0mm
Bolt Circle Diameter210.0mm
Additional Manufacturer Specs
Bl13.73 Tm
Fs68 Hz
Le0.83 mH
Re9.8 Ω
Sd227 cm² (35.19 in²)
Ebp158 Hz
Mms19.7 g
Qes0.43
Qms4.1
Qts0.39
Vas20.5 dm³ (0.72 ft³)
η01.4 %
ConeRCK008FMB5116
Xmax5.5 mm
Xvar5 mm
SpiderSingle
Cone ShapeCurvilinear
Pole DesignT-Pole
Winding Depth15 mm (0.59 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter200 mm (8 in)
Winding MaterialAluminium
Magnetic Gap Depth8 mm (0.31 in)
Recommended Tuning80 Hz
Bolt Circle Diameter210 mm (8.27 in)
Recommended Enclosure14 dm³ (0.49 ft³)
Woofer Cone TreatmentWaterproof Impregnated Cone
Baffle Cutout Diameter187 mm (7.36 in)
Flange And Gasket Thickness9 mm (0.35 in)
Air Volume Occupied By Driver1.1 dm³ (0.04 ft³)
