Overview
LF Driver
Eighteen Sound
Eighteen Sound 8MB400
Eighteen Sound 8MB400 is a 8" 8 ohm LF driver rated at 280W RMS. The validated T/S data includes Fs 64Hz, Qts 0.38, Vas 23.9L, Xmax 5.8mm, sensitivity 93.7dB, plus 132cm³ Vd and 149 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £90.00.
Size
8"
Impedance
8Ω
RMS Power
280W
Sensitivity
93.7dB
95.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
149
Vented alignment
Vd
132cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

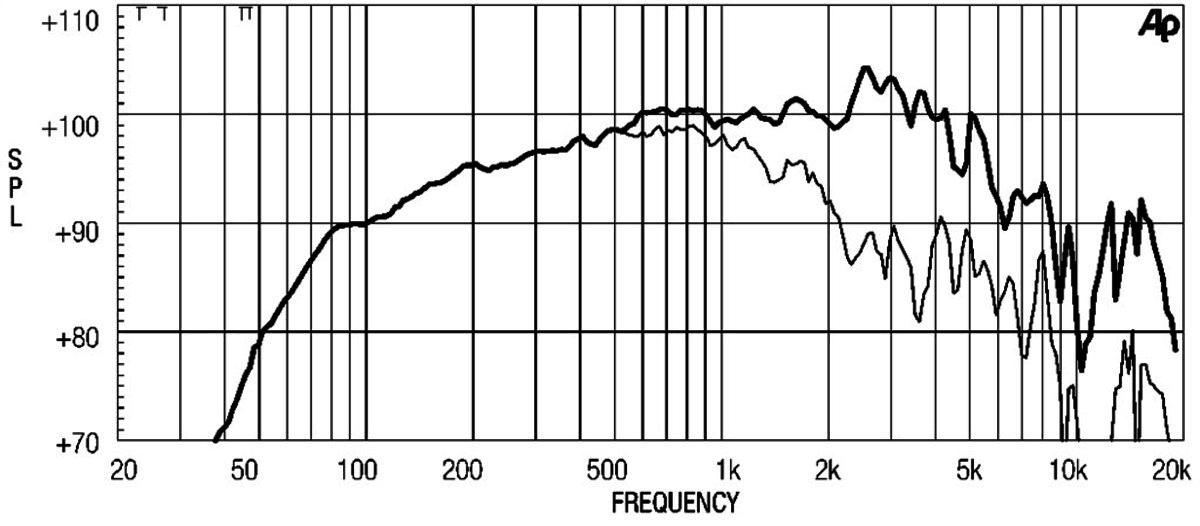

frequency response
Frequency response
240 plotted pointsMedium confidence3,815 selected pixels of 4,657 - Trace datasheet-response-trace-poc/v1

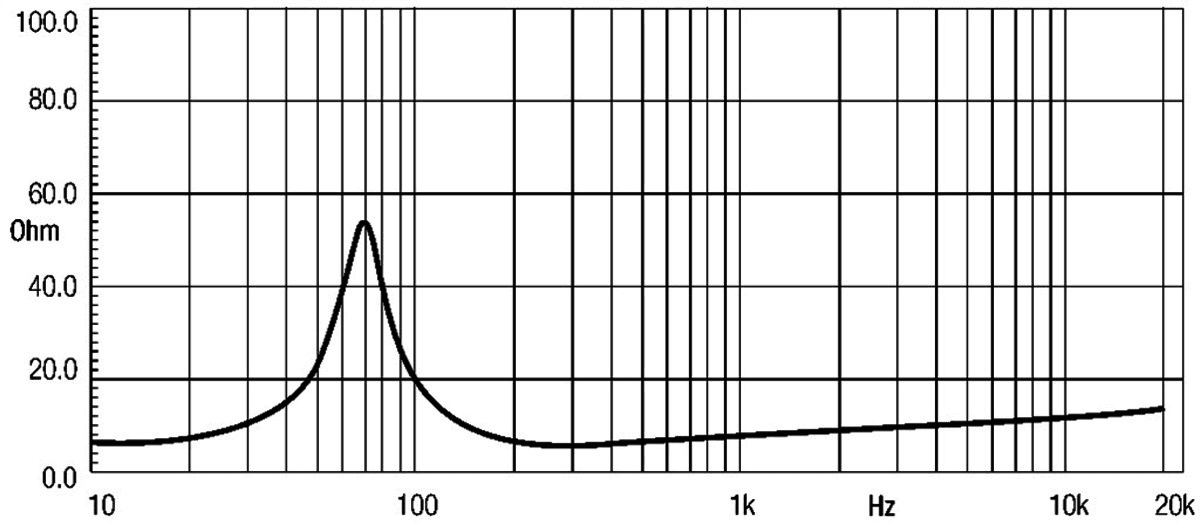

impedance
Impedance response
240 plotted pointsMedium confidence1,381 selected pixels of 1,463
T/S Parameters
Valid
Fs64Hz
Qts0.38
Qes0.43
Qms3.2
Vas23.9L
Re5.0Ω
Le0.96mH
BL9.3Tm
Sd227cm²
Mms18g
Xmax5.8mm
SPL94dB
Power280W
Power Nominal280W
Impedance8Ω
F Low55Hz
F High5200Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£90.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.6kg
Diameter210.0mm
Overall Depth99.0mm
Cutout Diameter186.0mm
Bolt Circle Diameter195.0mm
