LF Driver
Fane

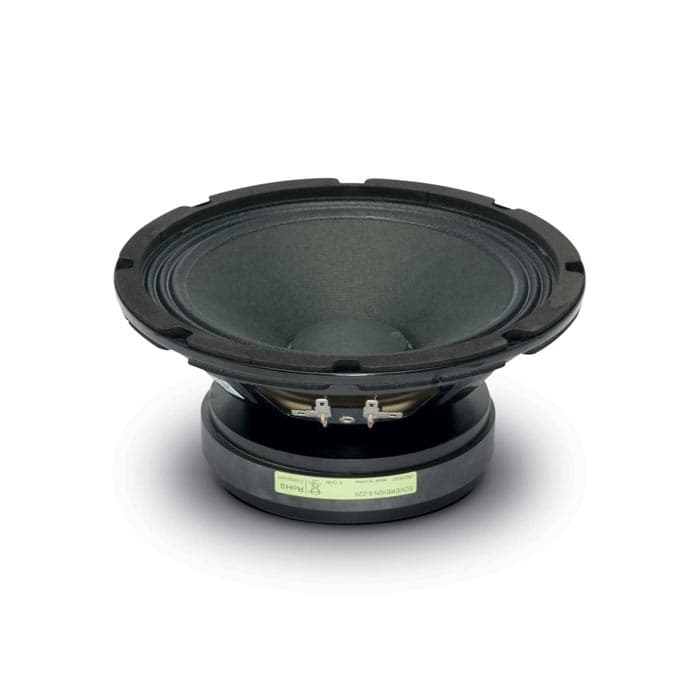

Fane SOVEREIGN 8-225
Fane SOVEREIGN 8-225 is a 8" 8 ohm LF driver rated at 225W RMS. The validated T/S data includes Fs 62Hz, Qts 0.38, Vas 22L, Xmax 5.5mm, sensitivity 93dB, plus 117cm³ Vd and 148 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £51.00.
Size
8"
Impedance
8Ω
RMS Power
225W
Sensitivity
93.0dB
97.0dBmanufacturer; using T/S-derived value (4.0dB delta).
EBP
148
Vented alignment
Vd
117cm³
T/S Parameters
Valid
Fs62Hz
Qts0.38
Qes0.42
Qms4.3
Vas22.0L
Re6.1Ω
Le1.47mH
BL11.0Tm
Sd213cm²
Mms21g
Xmax5.5mm
SPL93dB
Power225W
Impedance8Ω
F Low55Hz
F High5000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£51.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.1kg
Diameter207.8mm
Overall Depth95.0mm
