LF Driver8NCX series
Oberton
Oberton 8NCX
Oberton 8NCX is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 77Hz, Qts 0.40, Vas 14.9L, Xmax 5.3mm, sensitivity 94dB, plus 106cm³ Vd and 176 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
94.0dB
EBP
176
Vented alignment
Vd
106cm³
T/S Parameters
Valid
Fs77Hz
Qts0.40
Qes0.44
Qms4.7
Vas14.9L
Re5.8Ω
Le0.65mH
BL10.1Tm
Sd202cm²
Mms16g
Xmax5.3mm
SPL94dB
Power200W
Impedance8Ω
F Low70Hz
F High20000Hz
Voice Coil51mm
Flux Density0.90T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

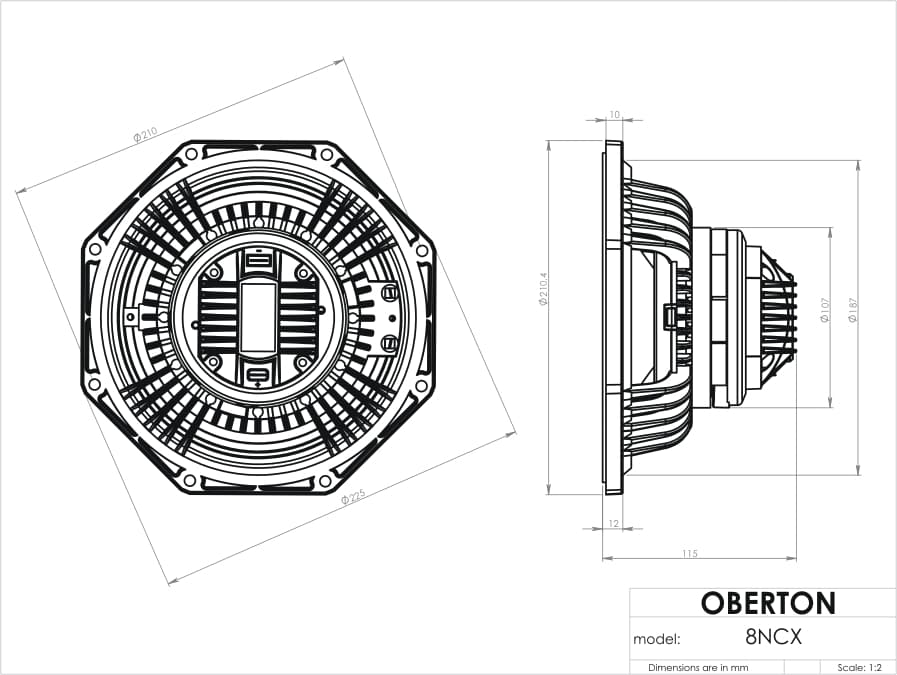

Dimensions & Physical
Weight2.5kg
Diameter225.0mm
Overall Depth115.0mm
Cutout Diameter187.0mm
Bolt Circle Diameter210.0mm
