Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespAccuton C220-6-221 6Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverCeramic series
Accuton
Accuton C220-6-221
Accuton C220-6-221 is a 8" 6 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 26Hz, Qts 0.40, Vas 86.2L, Xmax 5mm, sensitivity 87.8dB, plus 112cm³ Vd and 63 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £540.95.
Size
8"
Impedance
6Ω
RMS Power
150W
Sensitivity
87.8dB
EBP
63
Either alignment
Vd
112cm³
T/S Parameters
Valid
Fs26Hz
Qts0.40
Qes0.42
Qms7.1
Vas86.2L
Re6.3Ω
Le0.83mH
BL8.7Tm
Sd224cm²
Mms30g
Xmax5.0mm
SPL88dB
Power150W
Impedance6Ω
F Low32Hz
F High2000Hz
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026· 6Ω
Source: inc VAT
£601.38
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
willyshifi
£540.95
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

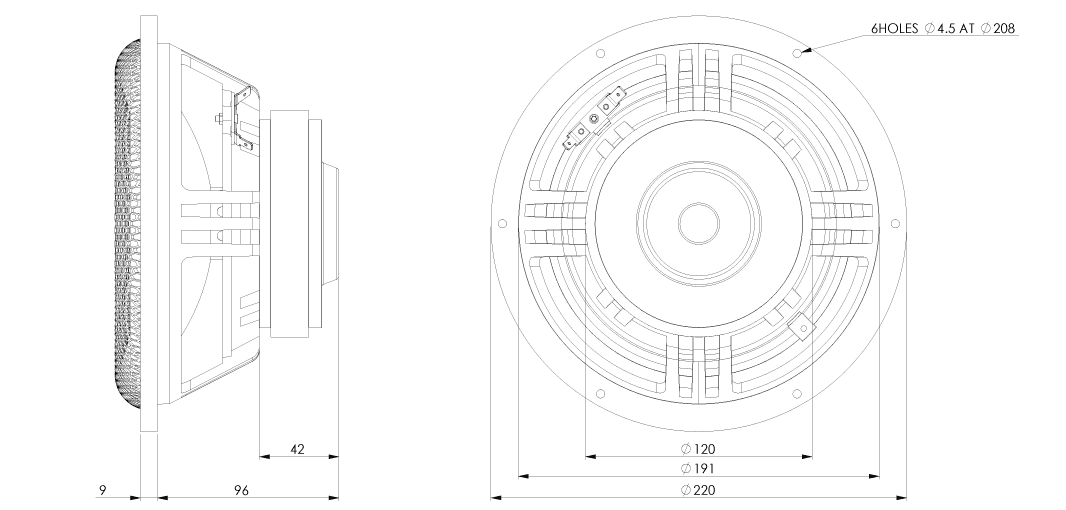

Dimensions & Physical
Diameter220.0mm
Overall Depth105.0mm
Cutout Diameter191.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Accuton
C220-6-221
8"
Best current price
£540.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
67%
Similarity
95% cheaper£29.57
Dayton Audio
DC200-8
8"
Lower price
Xmax4.5mm-10%
Qts0.42+5%
BL9.5Tm+9%
Vas45.7L-47%
Qes0.49+17%
51%
Similarity
94% cheaper£30.00
Visaton
BG 20
8"
Lower price
Xmax6mm+20%
Qts0.44+10%
BL6.1Tm-30%
Vas110L+28%
Qes0.51+21%
67%
Similarity
92% cheaper£41.41
Dayton Audio
DA215-8
8"
Lower price
Xmax5.3mm+6%
Qts0.37-8%
BL10Tm+15%
Vas42.7L-50%
Qes0.45+7%
55%
Similarity
91% cheaper£48.80
Dayton Audio
DS215-8
8"
Lower price
Xmax5.5mm+10%
Qts0.31-23%
BL9.9Tm+14%
Vas43.1L-50%
Qes0.38-10%
74%
Similarity
90% cheaper£53.24
HiVi
F8
8"
Lower price
Xmax5mm0%
Qts0.40%
BL10.3Tm+18%
Vas38.8L-55%
Qes0.44+5%
55%
Similarity
90% cheaper£55.46
Dayton Audio
DSA215-8
8"
Lower price
Xmax5.5mm+10%
Qts0.33-17%
BL10.6Tm+22%
Vas37.4L-57%
Qes0.4-5%
68%
Similarity
89% cheaper£60.64
HiVi
C8
8"
Lower price
Xmax5.9mm+18%
Qts0.36-10%
BL9.8Tm+13%
Vas56.1L-35%
Qes0.420%
54%
Similarity
88% cheaper£66.55
Dayton Audio
RS225P-4A
8"
Lower price
Xmax6mm+20%
Qts0.38-5%
BL6.4Tm-26%
Vas45.8L-47%
Qes0.48+14%
52%
Similarity
88% cheaper£66.55
Dayton Audio
RS225-4
8"
Lower price
Xmax6mm+20%
Qts0.41+2%
BL6.4Tm-27%
Vas46.4L-46%
Qes0.52+24%
66%
Similarity
87% cheaper£70.25
HiVi
E8
8"
Lower price
Xmax5.9mm+18%
Qts0.37-8%
BL9.9Tm+14%
Vas49.8L-42%
Qes0.43+2%
55%
Similarity
85% cheaper£83.70
CIARE
HW202
8"
Lower price
Xmax6.5mm+30%
Qts0.44+10%
BL6.7Tm-23%
Vas83L-4%
Qes0.52+24%
81%
Similarity
84% cheaper£85.75
Scanspeak
22W/8534G00
8"
Lower price
Xmax5.8mm+16%
Qts0.39-3%
BL7.8Tm-10%
Vas94.2L+9%
Qes0.43+2%
