LF DriverCME series
CIARE

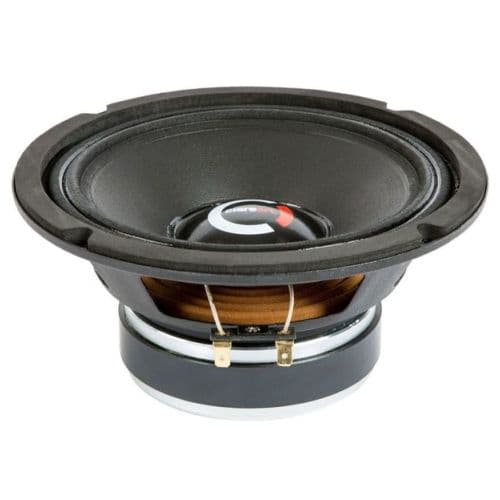

CIARE CME201
CIARE CME201 is a 8" 4 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 60Hz, Qts 0.40, Vas 21.5L, Xmax 4.5mm, sensitivity 92.3dB, plus 95cm³ Vd and 136 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
RMS Power
450W
Sensitivity
92.3dB
95.5dBmanufacturer; using T/S-derived value (3.2dB delta).
EBP
136
Vented alignment
Vd
95cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence2,315 selected pixels of 2,615 - Trace datasheet-response-trace-poc/v1
free air impedance
Impedance response
240 plotted pointsMedium confidence2,101 selected pixels of 2,101
T/S Parameters
Valid
Fs60Hz
Qts0.40
Qes0.44
Qms4.3
Vas21.5L
Re3.1Ω
Le0.44mH
BL7.5Tm
Sd210cm²
Mms22g
Xmax4.5mm
SPL92dB
Power450W
Power Nominal220W
Impedance4Ω
F Low70Hz
F High5000Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.6kg
Diameter210.0mm
Overall Depth97.0mm
Cutout Diameter182.0mm
Bolt Circle Diameter198.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CME201
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
75%
Similarity
CIARE
HW172
7"
Xmax4.5mm0%
Qts0.37-8%
BL7.6Tm+1%
Vas20L-7%
Qes0.45+2%
73%
Similarity

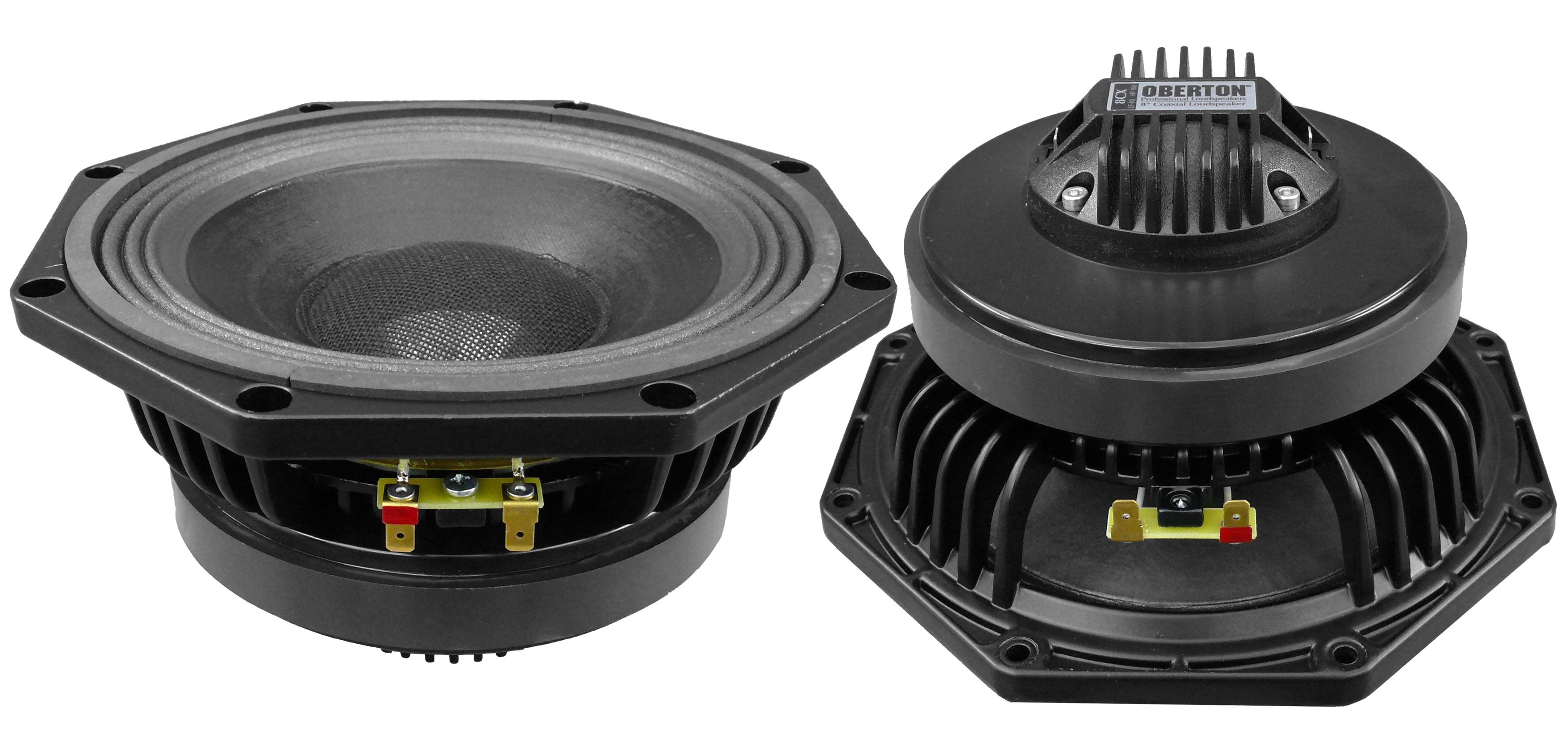

Oberton
8CX
8"
Xmax5.3mm+17%
Qts0.40%
BL9.4Tm+26%
Vas16.8L-22%
Qes0.440%
73%
Similarity
£58.19
CIARE
CME200
8"
Xmax3.5mm-22%
Qts0.37-8%
BL7.3Tm-3%
Vas18L-16%
Qes0.39-11%
71%
Similarity
PRV Audio
MT8MB600CF-NDY-4
8"
Xmax4.8mm+6%
Qts0.37-8%
BL9.3Tm+24%
Vas18.8L-13%
Qes0.38-14%
70%
Similarity

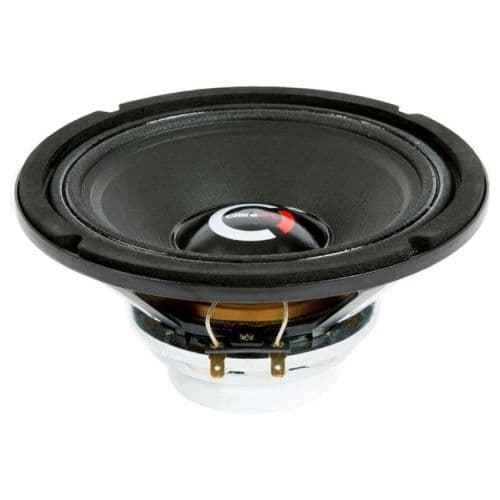

CIARE
CMI200ND
8"
Xmax4.5mm0%
Qts0.37-8%
BL8.8Tm+17%
Vas12.5L-42%
Qes0.39-11%
68%
Similarity
£86.95
Scanspeak
18W/8434G00
7"
Xmax4.2mm-7%
Qts0.43+7%
BL7.2Tm-4%
Vas19.5L-9%
Qes0.46+5%
66%
Similarity

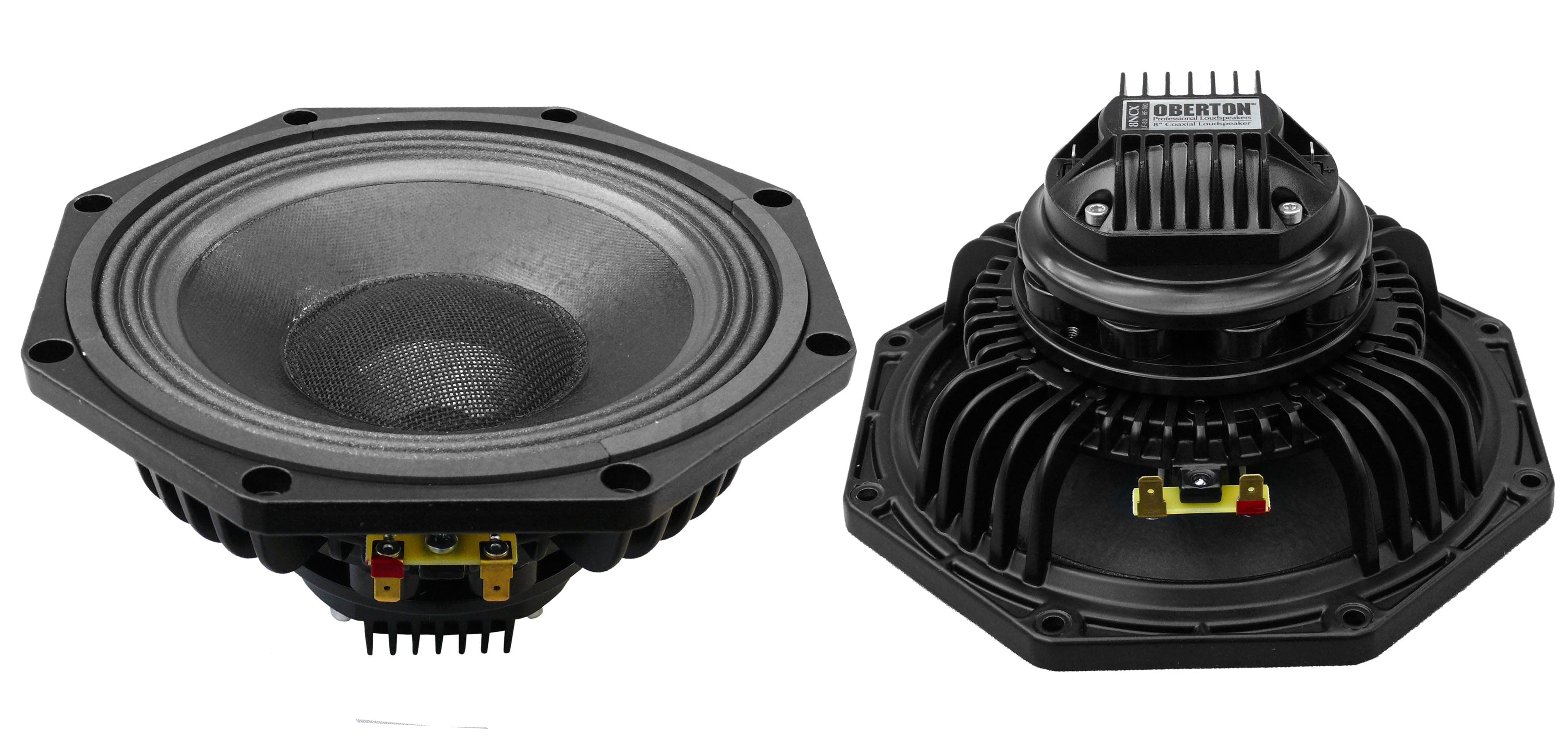

Oberton
8NCX
8"
Xmax5.3mm+17%
Qts0.40%
BL10.1Tm+35%
Vas14.9L-31%
Qes0.440%
66%
Similarity
£90.00
Eighteen Sound
8MB400
8"
Xmax5.8mm+29%
Qts0.38-5%
BL9.3Tm+24%
Vas23.9L+11%
Qes0.43-2%
64%
Similarity
PRV Audio
8MR600X-4
8"
Xmax5.1mm+13%
Qts0.34-15%
BL8.9Tm+19%
Vas19.6L-9%
Qes0.36-18%
64%
Similarity
£44.87
PRV Audio
8MR500-4
8"
Xmax3.3mm-28%
Qts0.46+15%
BL6.5Tm-14%
Vas20.8L-3%
Qes0.48+9%
63%
Similarity
Dayton Audio
SIG180-4
7"
Xmax5mm+11%
Qts0.38-5%
BL6.6Tm-12%
Vas23.2L+8%
Qes0.41-7%
61%
Similarity
Dayton Audio
PCS8-4
8"
Xmax5mm+11%
Qts0.49+22%
BL8.4Tm+12%
Vas20.5L-5%
Qes0.56+27%
