Overview
LF DriverHW series
CIARE
CIARE HW203
CIARE HW203 is a 8" 8 ohm LF driver rated at 180W RMS. The validated T/S data includes Fs 39Hz, Qts 0.42, Vas 48.9L, Xmax 4.5mm, sensitivity 89.8dB, plus 97cm³ Vd and 80 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
180W
Sensitivity
89.8dB
91.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
80
Either alignment
Vd
97cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,386 selected pixels of 1,512
T/S Parameters
Valid
Fs39Hz
Qts0.42
Qes0.49
Qms3.1
Vas48.9L
Re6.0Ω
Le0.47mH
BL8.1Tm
Sd216cm²
Mms22g
Xmax4.5mm
SPL90dB
Power180W
Power Nominal80W
Impedance8Ω
F Low45Hz
F High45Hz
Voice Coil32mm
Pricing & availability
Price definitionsVendor offers
1 vendorleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£50.59
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.3kg
Diameter205.5mm
Overall Depth90.5mm
Cutout Diameter185.0mm
Bolt Circle Diameter194.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
HW203
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
90%
Similarity
£29.57
Dayton Audio
DC200-8
8"
Xmax4.5mm0%
Qts0.420%
BL9.5Tm+17%
Vas45.7L-7%
Qes0.490%
84%
Similarity

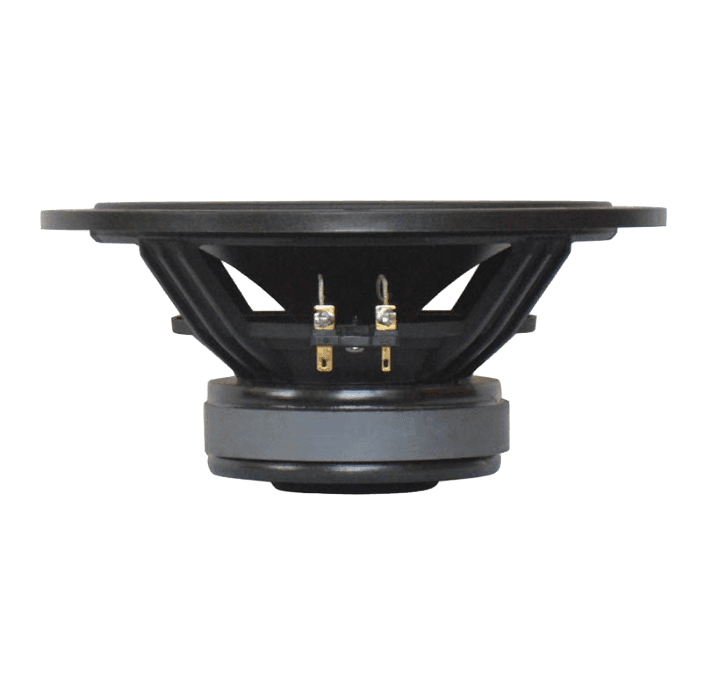

Tang Band
