8-inch LF driver · F8 series

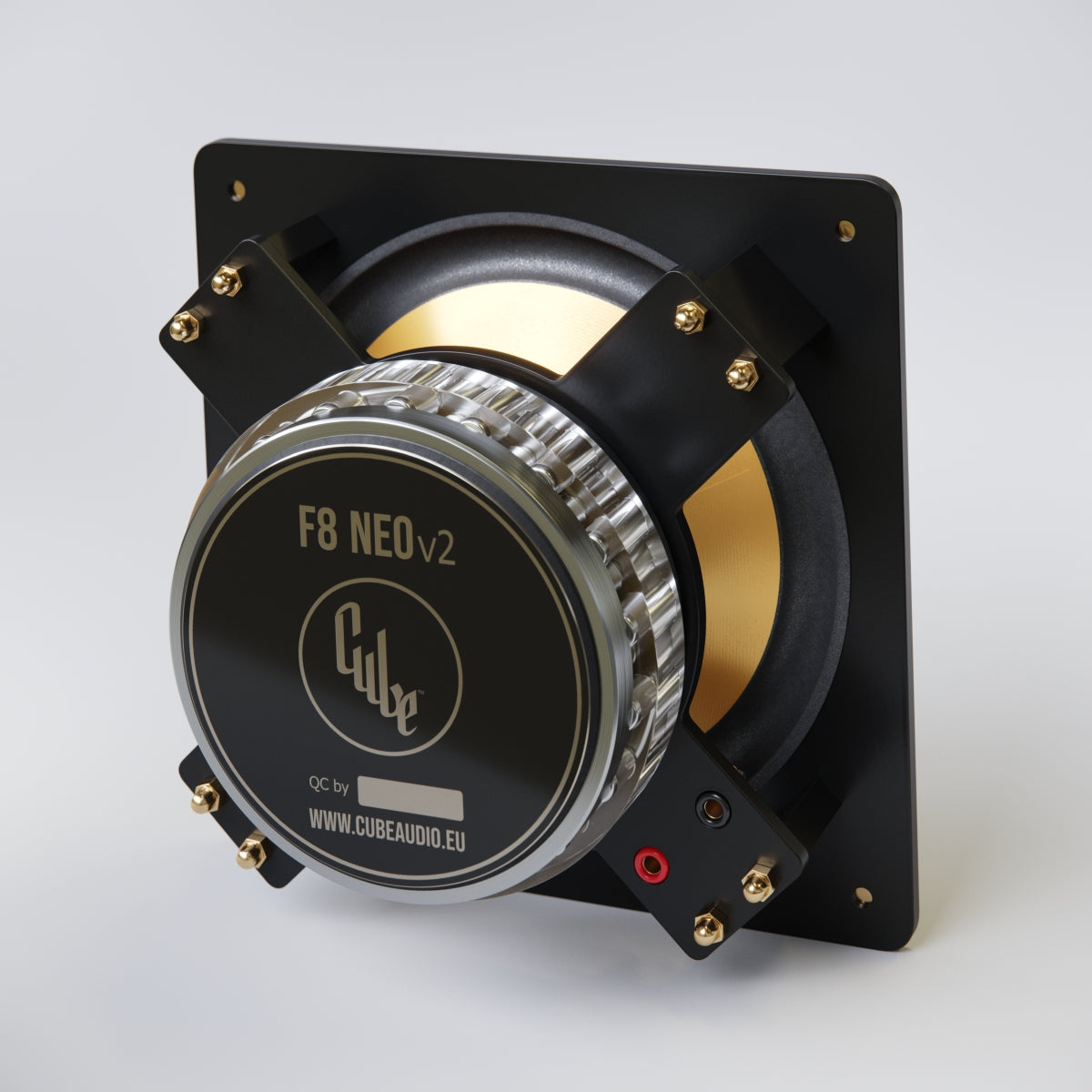

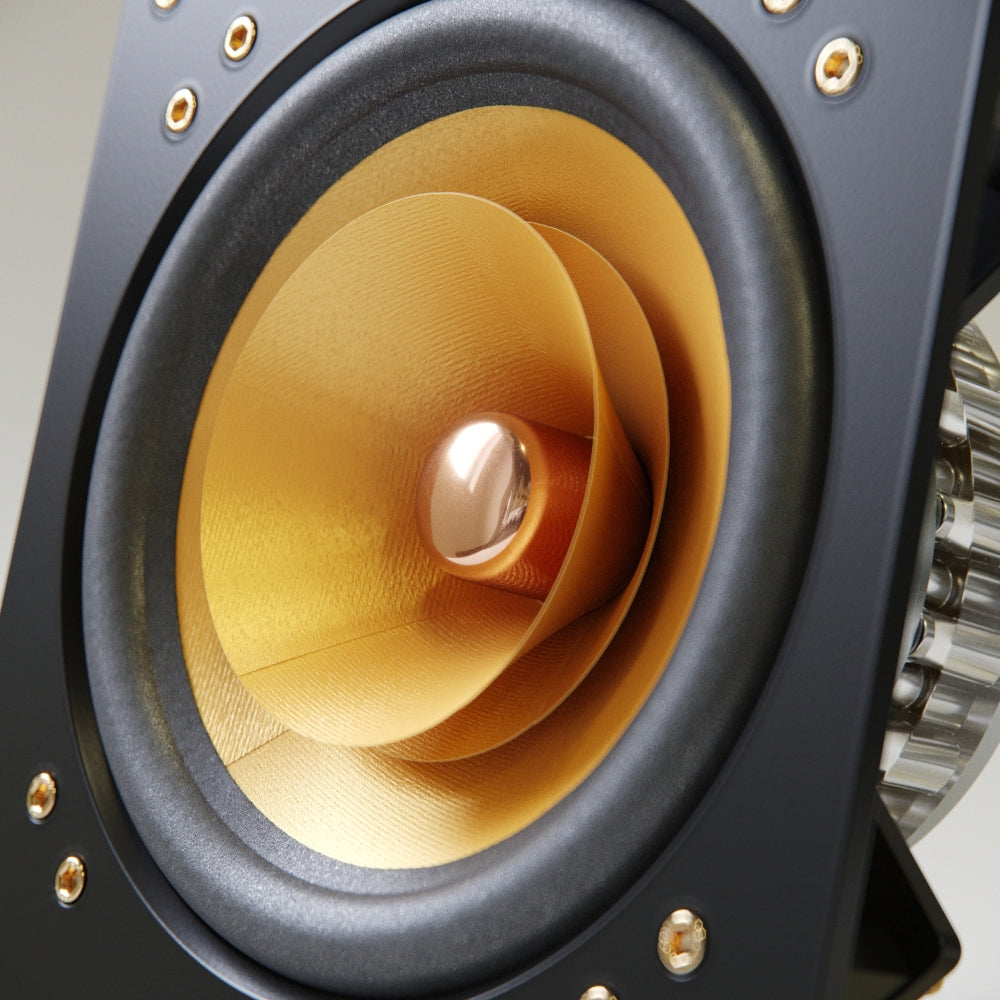

Cube Audio F8 NEO V2 8Ω

Name: Cube Audio F8 NEO V2 8 Ohm
Brand: Cube Audio
SKU: F8 NEO V2

8 Ω

No current price

View offers

Open in 00 Simulator

Fs: 39Hz
Xmax: 3mm
SPL: 90dB
Pe: –
BL: 9.5T·m
Vd: 69cm³
Qts: 0.47
Vas: 45L

See all 21 specs

Specifications

Published by Cube Audio

Manufacturer page

Cube Audio F8 NEO V2 is an 8-inch 8 ohm LF driver. The validated T/S data includes Fs 39 Hz, Qts 0.47, Vas 45 L, Xmax 3 mm, sensitivity 89.5 dB, plus 69 cm³ Vd and 81 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 39Hz
Qts: 0.47
Qes: 0.48
Qms: 21.7
Vas: 45L
Re: 7.2Ω
Le: 0.011mH

Motor and cone

BL: 9.5T·m
Sd: 230cm²
Mms: 24g
Xmax: 3mm
Vd †: 69cm³

Power and response

Sensitivity †: 89.5dB
Manufacturer sensitivity: 90dB
Impedance: 8Ω
EBP †: 81 · Sealed or vented

Size and mounting

Diameter: 260mm
Depth: 107mm
Weight: 6kg

Other published values

Cms: 0.74mm/N
Xmech: 6

† Calculated by bits from the published values

What this validation status means

Everything else Cube Audio lists

LF · Primary · 8″

BL: 9.5T·m
Fs: 39Hz
Le: 0.011mH
Re: 7.2Ω
Sd: 230cm²
Cms: 0.74mm/N
Mms: 24g
Qes: 0.48
Qms: 21.7
Qts: 0.47
SPL: 89.5dB
Vas: 45L
Xmax: 3mm
Xmech: 6
Impedance: 8Ω
Sensitivity: 90dB
Calculated sensitivity †: 89.5dB
Manufacturer sensitivity: 90dB
Weight: 6kg
Diameter: 260mm
Depth: 107mm

Compare

Same-size drivers, compared with the F8 NEO V2. Clear differences are green when better and red when worse.

This driverF8 NEO V2

Best price

–

39 Hz

Qts

0.47

Vas

45 L

9.5 T·m

Xmax

3 mm

Sensitivity

89.5 dB

Power

–

GRS8FR-8

£17.70

Fs45 Hz +16%

Qts0.56 +19%

Vas37.0 L −18%

BL8.5 T·m −10%

Xmax3 mm –

Sensitivity89.3 dB –

GRS8SMP-8

£30.22

Fs41 Hz +5%

Qts0.46 –

Vas32.5 L −28%

BL8.9 T·m −6%

Xmax5.5 mm +83%

Sensitivity88.1 dB −1.4

Dayton AudioDC200-8

£36.24

Fs30 Hz −22%

Qts0.42 −11%

Vas45.7 L –

BL9.5 T·m –

Xmax4.5 mm +50%

Sensitivity86.2 dB −3.3

PRV Audio8MR500-4

£37.71

Fs78 Hz +101%

Qts0.46 –

Vas20.8 L −54%

BL6.5 T·m −32%

Xmax3.3 mm +8%

Sensitivity95.2 dB +5.7

Dayton AudioMB820-8

£37.76

Fs69 Hz +77%

Qts0.46 –

Vas15.8 L −65%

BL9.6 T·m –

Xmax4 mm +33%

Sensitivity92 dB +2.5

Dayton AudioDA215-8

£42.30

Fs35 Hz −11%

Qts0.37 −21%

Vas42.7 L −5%

BL10 T·m +5%

Xmax5.3 mm +77%

Sensitivity88.1 dB −1.4

Dayton AudioPA200-8

£45.32

Fs55 Hz +42%

Qts0.48 –

Vas26.6 L −41%

BL9.3 T·m –

Xmax3 mm –

Sensitivity91.5 dB +2

HiViF8

£53.18

Fs37 Hz −5%

Qts0.40 −15%

Vas38.8 L −14%

BL10.3 T·m +8%

Xmax5 mm +67%

Sensitivity88.5 dB −1

CIAREHW203

£59.14

Fs39 Hz –

Qts0.42 −11%

Vas48.9 L +9%

BL8.1 T·m −14%

Xmax4.5 mm +50%

Sensitivity89.8 dB –

EminenceBETA-8A

£67.94

Fs65 Hz +67%

Qts0.38 −19%

Vas23.3 L −48%

BL9.6 T·m –

Xmax3 mm –

Sensitivity93.9 dB +4.4

Dayton AudioRS225-8

£67.99

Fs28 Hz −27%

Qts0.38 −19%

Vas56.8 L +26%

BL9.1 T·m −5%

Xmax7 mm +133%

Sensitivity86.1 dB −3.4

HiViE8

£71.76

Fs34 Hz −13%

Qts0.37 −21%

Vas49.8 L +11%

BL9.9 T·m +4%

Xmax5.9 mm +97%

Sensitivity88.6 dB −0.9

GRS8SW-4HE-8

£71.77

Fs25 Hz −36%

Qts0.45 −4%

Vas31.7 L −30%

BL10.5 T·m +11%

Xmax10.8 mm +260%

Sensitivity81.9 dB −7.6

Beyma8MI100

£73.79

Fs90 Hz +131%

Qts0.45 −4%

Vas12 L −73%

BL11.5 T·m +21%

Xmax3 mm –

Sensitivity94.6 dB +5.1

Sica8 H 2 CP

£82.71

Fs39 Hz –

Qts0.43 −9%

Vas35.9 L −20%

BL9.9 T·m +4%

Xmax6.5 mm +117%

Sensitivity88.6 dB −0.9

SB AcousticsSB23MFCL45-8

£117.27

Fs29 Hz −27%

Qts0.43 −9%

Vas37 L −18%

BL11.3 T·m +19%

Xmax21 mm +600%

Sensitivity84.7 dB −4.8

VisatonTIW 200 XS

£143.14

Fs30 Hz −23%

Qts0.46 –

Vas51.5 L +14%

BL8.5 T·m −10%

Xmax12.5 mm +317%

Sensitivity86.5 dB −3

WavecorSW215WA01

£147.76

Fs33 Hz −15%

Qts0.49 +4%

Vas26 L −42%

BL8.4 T·m −11%

Xmax10 mm +233%

Sensitivity84.7 dB −4.8

WavecorSW215WA02

£147.76

Fs30 Hz −23%

Qts0.44 −6%

Vas32.5 L −28%

BL11.4 T·m +20%

Xmax10 mm +233%

Sensitivity84.8 dB −4.7

VisatonTIW 200 XS - 8 OHM

£147.80

Fs30 Hz −23%

Qts0.46 –

Vas51.5 L +14%

BL8.5 T·m −10%

Xmax12.5 mm +317%

Sensitivity86.5 dB −3

Dayton AudioE180HE-44

£160.43

Fs35 Hz −10%

Qts0.46 –

Vas16.1 L −64%

BL9.6 T·m –

Xmax14.7 mm +390%

Sensitivity83.1 dB −6.4

VoltSB220.1

£285.12

Fs27 Hz −31%

Qts0.49 +4%

Vas37.4 L −17%

BL9.7 T·m –

Xmax12 mm +300%

Sensitivity83.5 dB −6

Cube AudioF8 MAGUS

No current price

Fs40 Hz –

Qts0.37 −21%

Vas53 L +18%

BL9 T·m −5%

Xmax3 mm –

Sensitivity91.7 dB +2.2

HiViMY8N

No current price

Fs37 Hz −5%

Qts0.43 −9%

Vas40.9 L −9%

BL9.9 T·m +4%

Xmax5 mm +67%

Sensitivity87.9 dB −1.6

HiViF8N

No current price

Fs35 Hz −10%

Qts0.39 −17%

Vas44.2 L –

BL10.1 T·m +6%

Xmax5 mm +67%

Sensitivity87.7 dB −1.8

Tang BandW8-670T

No current price

Fs40 Hz –

Qts0.45 −4%

Vas23.3 L −48%

BL9.4 T·m –

Xmax7.8 mm +162%

Sensitivity86.9 dB −2.6

LavoceCPF082.00K

No current price

Fs93 Hz +138%

Qts0.46 –

Vas11.1 L −75%

BL10.9 T·m +15%

Xmax3.3 mm +10%

Sensitivity94.4 dB +4.9

Tang BandW8-750C

No current price

Fs30 Hz −23%

Qts0.43 −9%

Vas57.0 L +27%

BL8.4 T·m −12%

Xmax3.9 mm +30%

Sensitivity86.9 dB −2.6

HiViBG8N

No current price

Fs37 Hz −5%

Qts0.36 −23%

Vas46.1 L –

BL10.1 T·m +6%

Xmax5 mm +67%

Sensitivity89.2 dB –

CIARECM200N

No current price

Fs94 Hz +141%

Qts0.46 –

Vas8.8 L −80%

BL8.6 T·m −10%

Xmax3.8 mm +27%

Sensitivity93.5 dB +4

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Where to buy

Prices for delivery to the UK, including VAT. How prices work

Watch price

No current price found. Pricing may appear after the next vendor refresh.
