LF DriverF8 series
Cube Audio

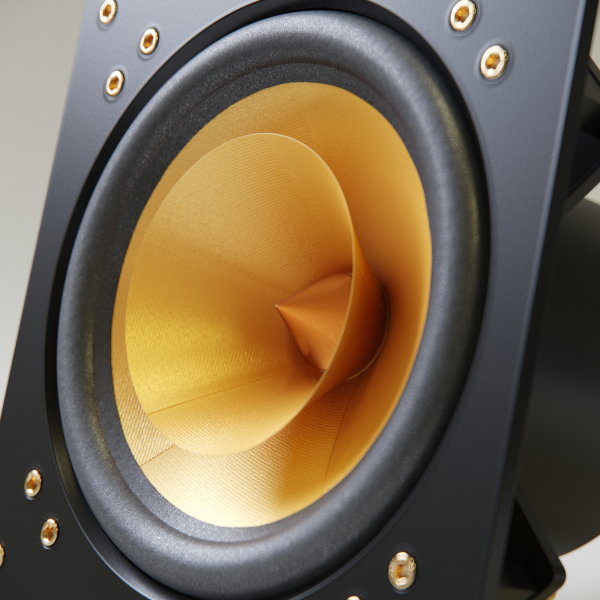

Cube Audio F8 MAGUS
Cube Audio F8 MAGUS is a 8" 8 ohm LF driver. The validated T/S data includes Fs 40Hz, Qts 0.37, Vas 53L, Xmax 3mm, sensitivity 91.7dB, plus 69cm³ Vd and 108 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Mms
- Manufacturer page linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
- EBP can be derived from Fs and Qes
Size
8"
Impedance
8Ω
Sensitivity
91.7dB
EBP
108
Vented alignment
Vd
69cm³
T/S Parameters
Valid
Fs40Hz
Qts0.37
Qes0.37
Qms16.4
Vas53.0L
Re6.0Ω
Le0.01mH
BL9.0Tm
Sd230cm²
Xmax3.0mm
SPL92dB
Impedance8Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Mms, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Mms, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.0kg
Diameter260.0mm
Overall Depth107.0mm
