Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMarkaudio MA200-M Multi 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverMA200 series
Markaudio

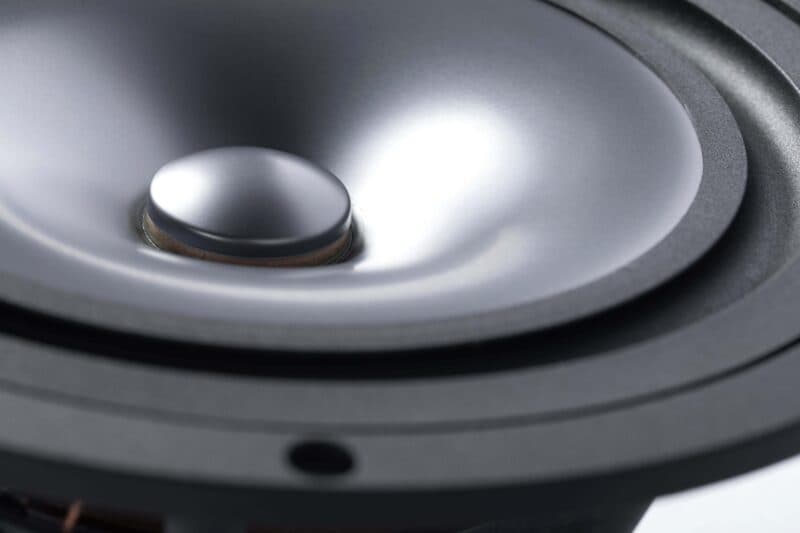

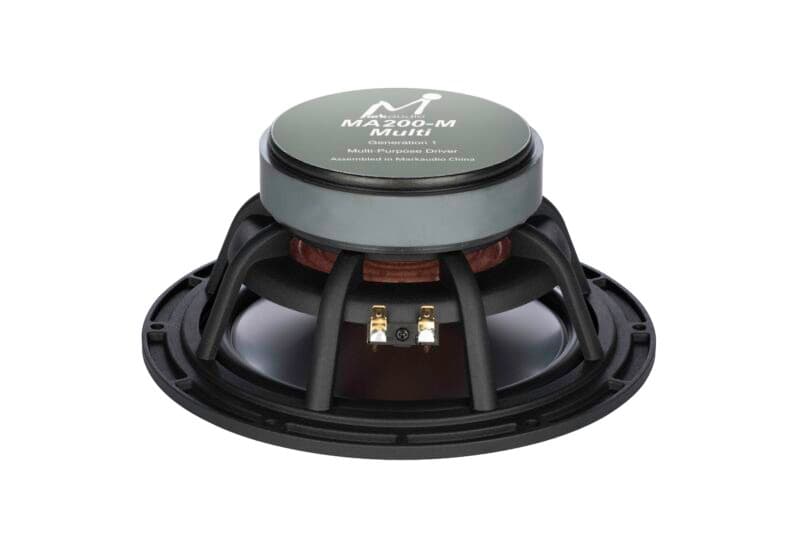

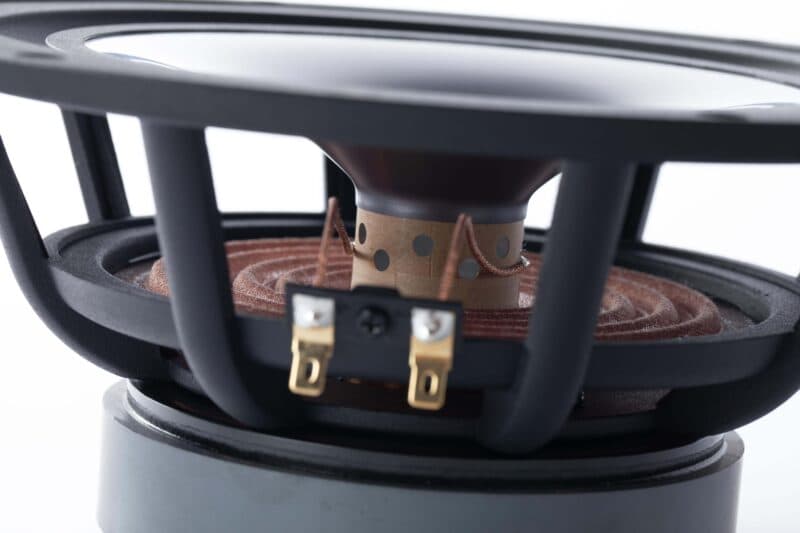

Markaudio MA200-M Multi
Markaudio MA200-M Multi is a 7.75" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 33Hz, Qts 0.35, Vas 65.2L, Xmax 9mm, sensitivity 89.6dB, plus 185cm³ Vd and 81 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £18240.00.
Size
7.75"
Impedance
8Ω
RMS Power
50W
Sensitivity
89.6dB
EBP
81
Either alignment
Vd
185cm³
T/S Parameters
Valid
Fs33Hz
Qts0.35
Qes0.41
Qms2.2
Vas65.2L
Re6.8Ω
Le0.05mH
BL8.5Tm
Sd206cm²
Mms21g
Xmax9.0mm
SPL90dB
Power50W
Impedance8Ω
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 11 Sept 2026
kjfaudio
£18,240.00
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.6kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Markaudio
MA200-M Multi
7.75"
Best current price
£18,240.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
62%
Similarity
100% cheaper£31.27
SB Acoustics
SB20PFCR30-4
8"
Lower price
Xmax11.5mm+28%
Qts0.33-4%
BL6.6Tm-23%
Vas66.2L+2%
Qes0.37-9%
68%
Similarity
100% cheaper£34.95
SB Acoustics
SB20PFCR30-8
8"
Lower price
Xmax11.5mm+28%
Qts0.37+7%
BL7.7Tm-10%
Vas66.2L+2%
Qes0.43+5%
71%
Similarity
100% cheaper£45.49
Peerless
HDS-P830869
8"
Lower price
Xmax7.5mm-17%
Qts0.38+10%
BL9.3Tm+9%
Vas57.6L-12%
Qes0.4-2%
81%
Similarity
100% cheaper£58.80
Visaton
W 200 S
8"
Lower price
Xmax10mm+11%
Qts0.35+1%
BL7.7Tm-10%
Vas65L0%
Qes0.38-7%
70%
Similarity
100% cheaper£63.09
CIARE
HWB200
8"
Lower price
Xmax7mm-22%
Qts0.39+13%
BL8.9Tm+4%
Vas59L-10%
Qes0.410%
77%
Similarity
100% cheaper£67.14
Visaton
W 200 S - 8 OHM
8"
Lower price
Xmax10mm+11%
Qts0.33-4%
BL9Tm+5%
Vas70L+7%
Qes0.36-12%
80%
Similarity
99% cheaper£140.05
Visaton
GF 200
8"
Lower price
Xmax10mm+11%
Qts0.34-2%
BL9.2Tm+8%
Vas68L+4%
Qes0.37-9%
38%
Similarity
99% cheaper£144.00
Scanspeak
18W/8545K00
7"
Lower price
Xmax6.5mm-28%
Qts0.28-19%
BL8.2Tm-4%
Vas46.4L-29%
Qes0.3-27%
54%
Similarity
99% cheaper£168.81
Scanspeak
18W/8531G00
7"
Lower price
Xmax6.5mm-28%
Qts0.36+4%
BL6.8Tm-20%
Vas58.2L-11%
Qes0.39-5%
44%
Similarity
99% cheaper£168.82
Scanspeak
18W/4531G01
7"
Lower price
Xmax6.5mm-28%
Qts0.35+1%
BL5.7Tm-33%
Vas45.6L-30%
Qes0.38-7%
80%
Similarity
99% cheaper£176.73
Visaton
AL 200
8"
Lower price
Xmax10mm+11%
Qts0.35+1%
BL8.8Tm+3%
Vas77L+18%
Qes0.39-5%
42%
Similarity
99% cheaper£212.95
Scanspeak
18W/4531G00
7"
Lower price
Xmax6.5mm-28%
Qts0.35+1%
BL5.7Tm-33%
Vas41.9L-36%
Qes0.38-7%
