SEAS E0022-08S W22EX001 – 15″ 120W Woofer, 8 Ohm

SEAS E0022-08S W22EX001 8Ω

LF Driver

WatchWatch price SimSimulate

Media

SEAS E0022-08S W22EX001 15 inch 8 ohm loudspeaker driver view 1

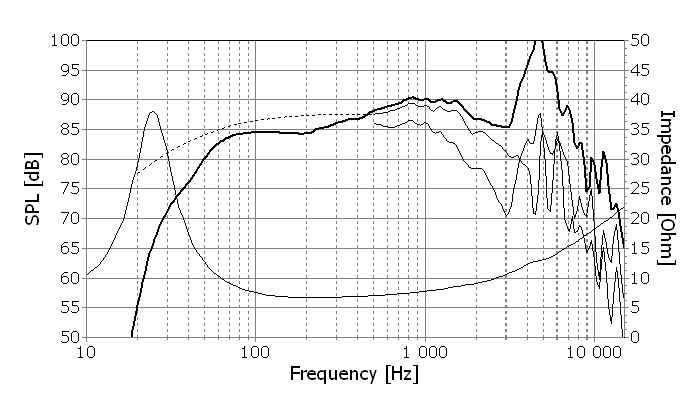

SEAS E0022-08S W22EX001 15 inch 8 ohm loudspeaker driver view 2

SEAS E0022-08S W22EX001 15 inch 8 ohm loudspeaker driver view 3

SEAS E0022-08S W22EX001 15 inch 8 ohm loudspeaker driver view 4

SEAS E0022-08S W22EX001 15 inch 8 ohm loudspeaker driver view 5

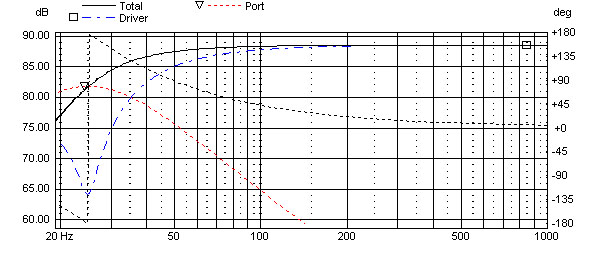

SEAS E0022-08S W22EX001 15 inch 8 ohm loudspeaker driver view 6

SEAS E0022-08S W22EX001 15 inch 8 ohm loudspeaker driver view 7

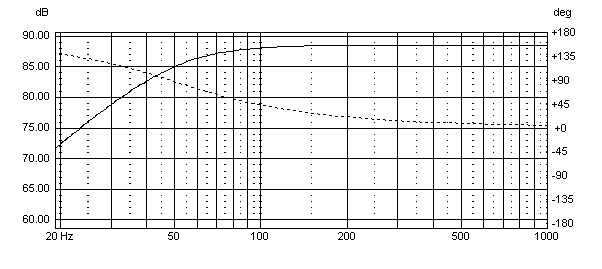

SEAS E0022-08S W22EX001 15 inch 8 ohm loudspeaker driver view 8

Auto-advancing

Overview

LF DriverExcel series

SEAS E0022-08S W22EX001

SEAS E0022-08S W22EX001 is a 15" 8 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 25Hz, Qts 0.34, Vas 98L, Xmax 5mm, sensitivity 87.8dB, plus 110cm³ Vd and 61 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size

15"

Impedance

8Ω

RMS Power

120W

Sensitivity

87.8dB

EBP

61

Either alignment

V_d

110cm³

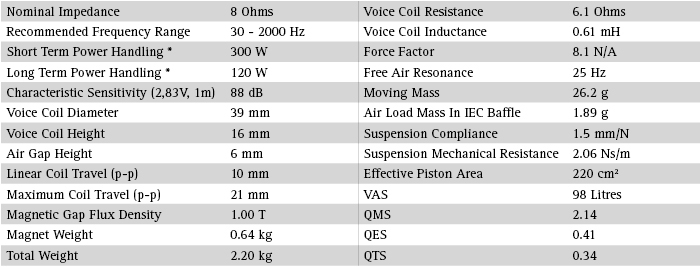

T/S Parameters

Valid

Canonical

Fs25Hz

Qts0.34

Qes0.41

Qms2.1

Vas98.0L

Re6.1Ω

Le0.61mH

BL8.1Tm

Sd220cm²

Mms26g

Xmax5.0mm

SPL88dB

Power120W

Impedance8Ω

F Low30Hz

F High2000Hz

Voice Coil39mm

Flux Density1.00T

What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

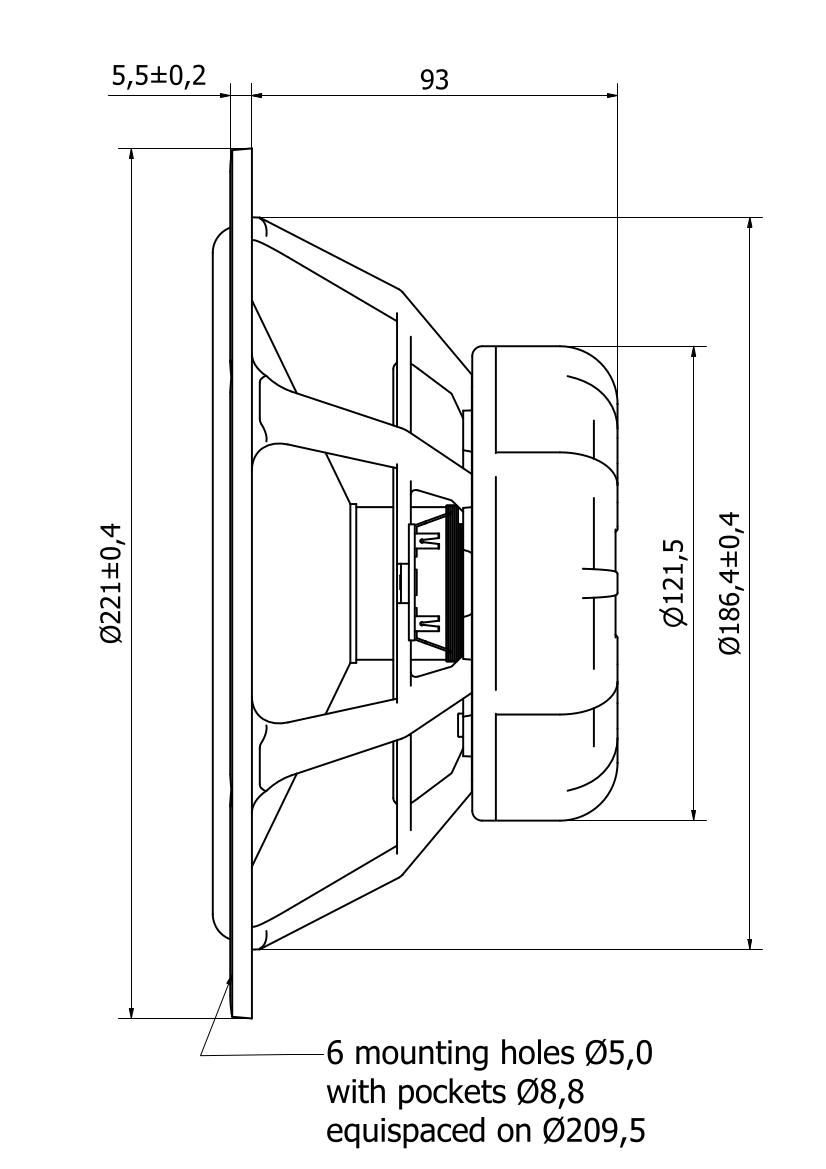

Dimensions & Physical

Weight2.2kg

Similar Drivers

Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.

SEAS E0022-08S W22EX001 15 inch 8 ohm loudspeaker driver similar-driver reference

Reference

SEAS

E0022-08S W22EX001

15"

Compare on

Matches sit inside every range. Size stays fixed automatically.

Q_ts

Q_es

V_as

L

X_max

mm

BL

Tm

5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.

1 match

Compare a specific driver

Added drivers stay at the front of the list, whatever the ranges say.

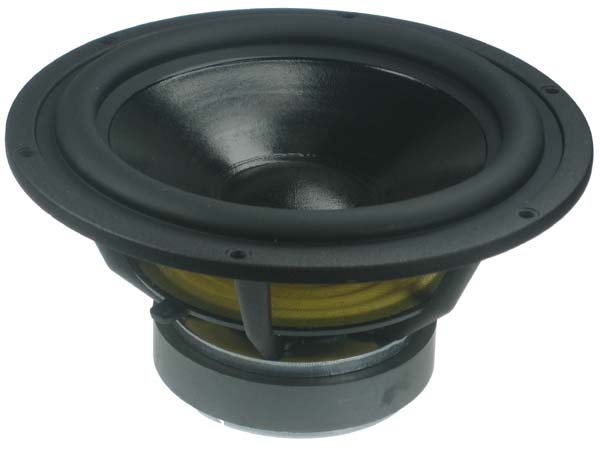

SEAS H1288-08 CA22RNX 15 inch 8 ohm loudspeaker driver similar driver
