Overview
LF DriverSPH series
Monacor

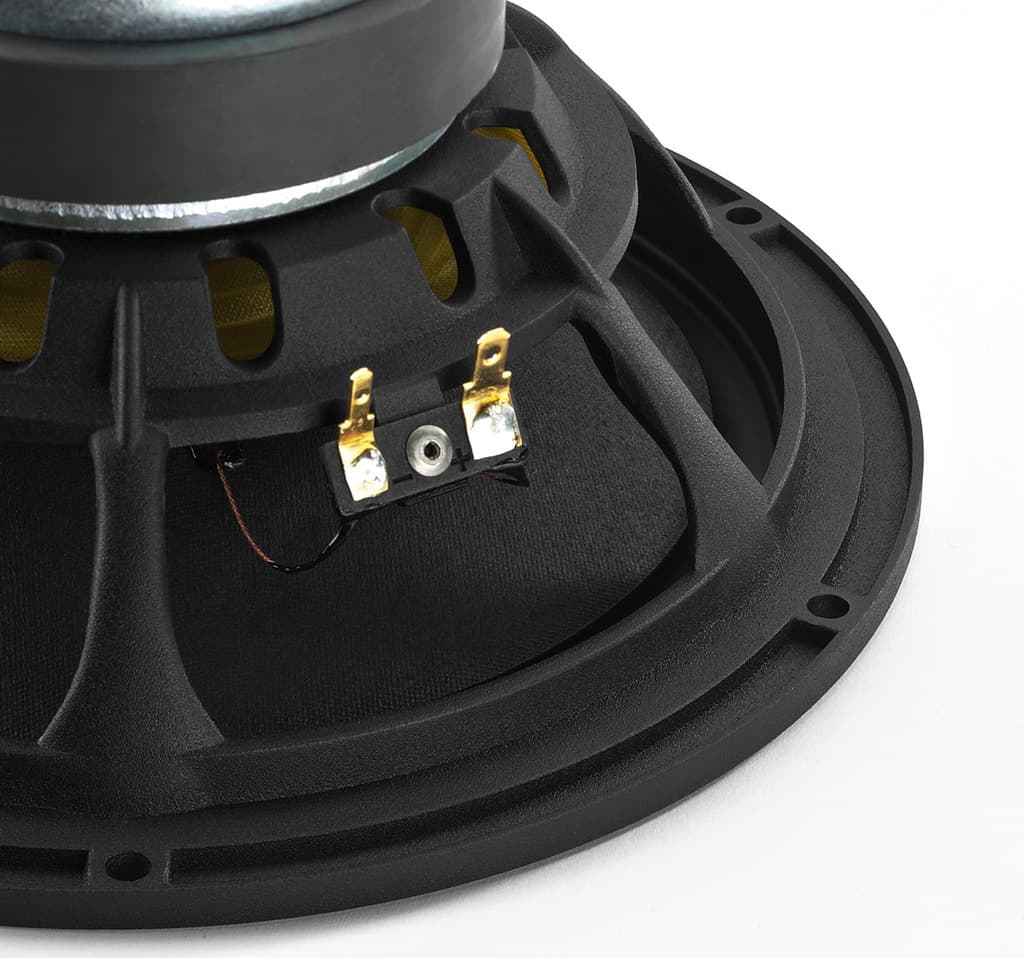

Monacor SPH-220HQ
Monacor SPH-220HQ is a 8" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 30Hz, Qts 0.40, Vas 80L, Xmax 5.5mm, sensitivity 88.7dB, plus 128cm³ Vd and 65 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
100W
Sensitivity
88.7dB
90.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
65
Either alignment
Vd
128cm³
T/S Parameters
Valid
Fs30Hz
Qts0.40
Qes0.46
Qms3.1
Vas80.0L
Re6.1Ω
Le0.90mH
BL7.6Tm
Sd232cm²
Mms25g
Xmax5.5mm
SPL89dB
Power100W
Impedance8Ω
F Low3Hz
F High4000Hz
Voice Coil37mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£128.83
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

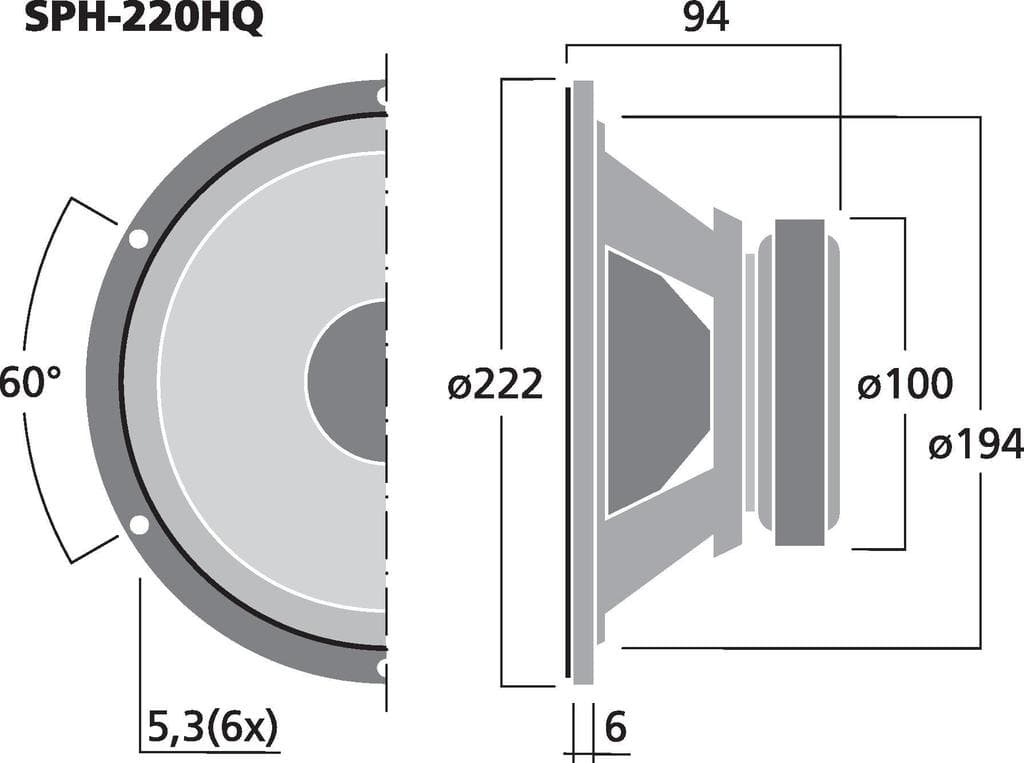

Dimensions & Physical
Weight1.8kg
Diameter222.0mm
Overall Depth94.0mm
Cutout Diameter194.0mm
