Overview
LF DriverPrestige series
SEAS
SEAS H1288-08 CA22RNX
SEAS H1288-08 CA22RNX is a 15" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 29Hz, Qts 0.41, Vas 97L, Xmax 6mm, sensitivity 88.6dB, plus 138cm³ Vd and 56 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
80W
Sensitivity
88.6dB
EBP
56
Either alignment
Vd
138cm³

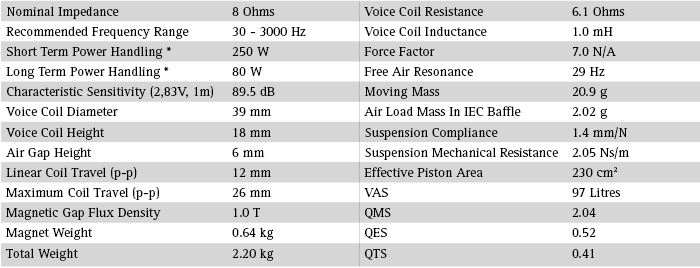

T/S Parameters
Valid
Fs29Hz
Qts0.41
Qes0.52
Qms2.0
Vas97.0L
Re6.1Ω
Le1.00mH
BL7.0Tm
Sd230cm²
Mms21g
Xmax6.0mm
SPL89dB
Power80W
Impedance8Ω
F Low30Hz
F High3000Hz
Voice Coil39mm
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

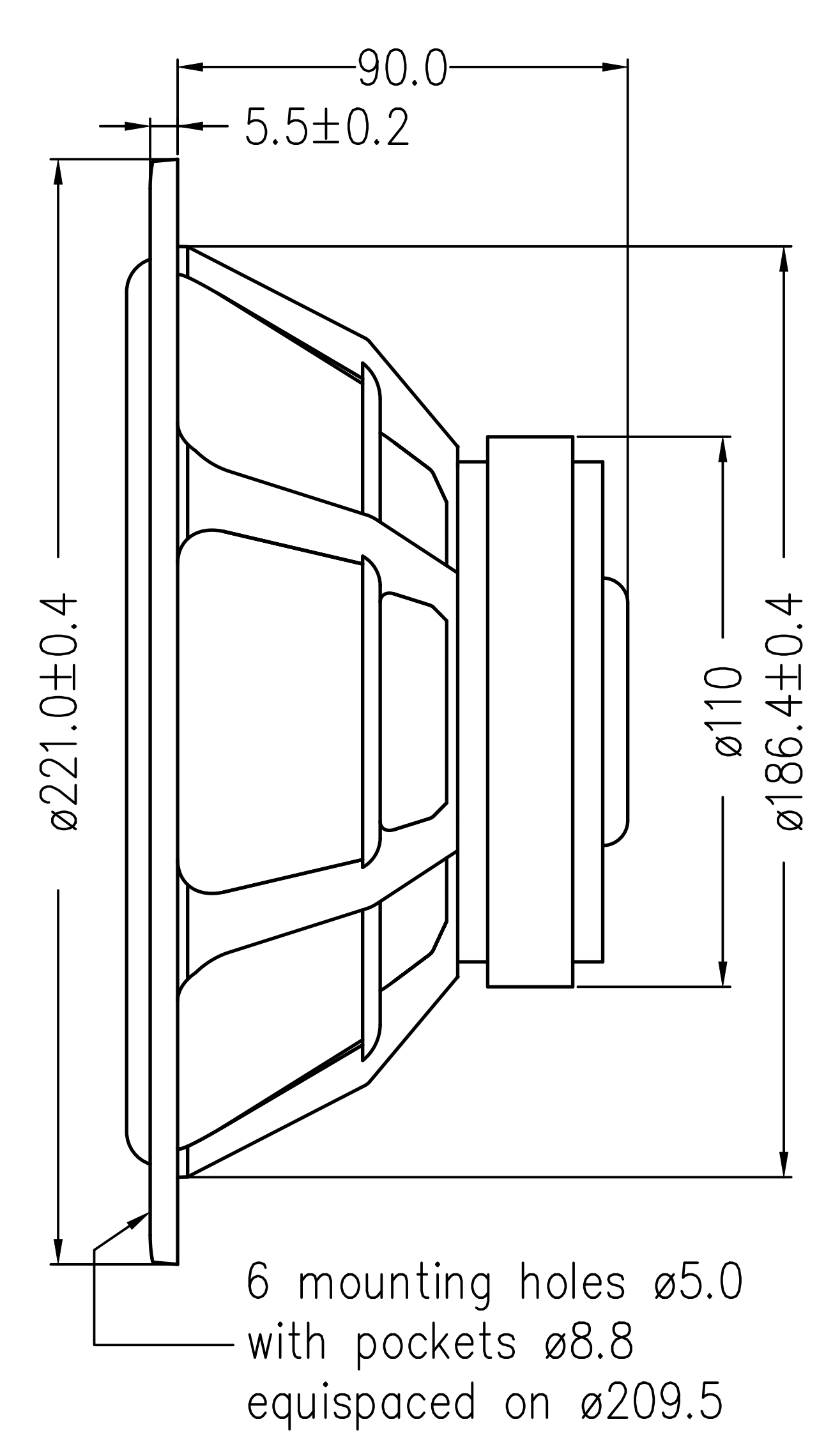

Dimensions & Physical
Weight2.2kg
