Overview
LF Driver
Tang Band

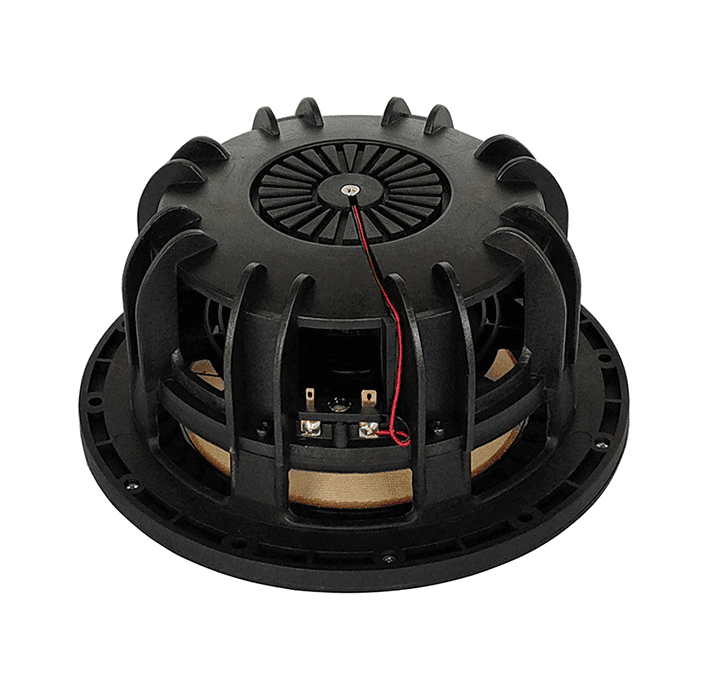

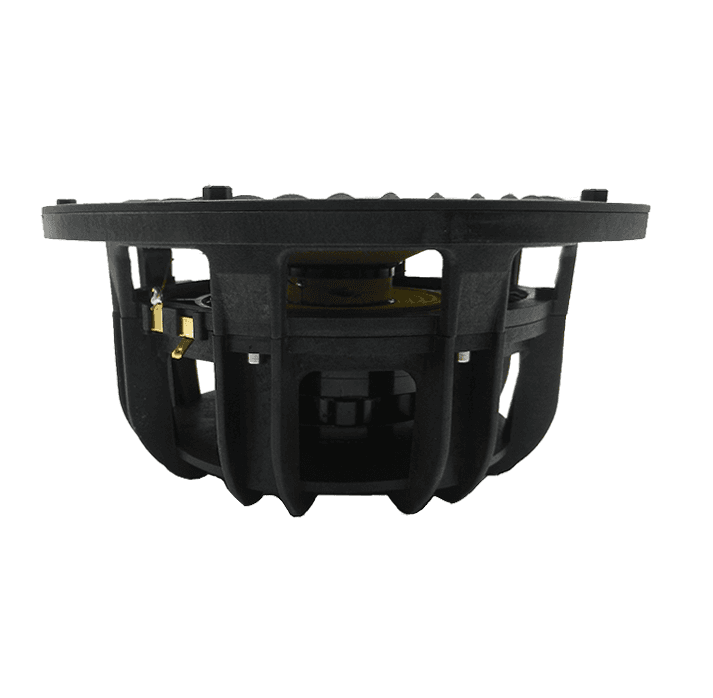

Tang Band W8-2314
Tang Band W8-2314 is a 8" 4 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 38Hz, Qts 0.46, Vas 49.5L, Xmax 6mm, sensitivity 89dB, plus 132cm³ Vd and 70 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
RMS Power
50W
Sensitivity
89.0dB
90.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
70
Either alignment
Vd
132cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl113 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
113 plotted pointsMedium confidence1,145 selected pixels of 2,403
Overall Parameters
Valid
Fs38Hz
Qts0.46
Qes0.54
Qms2.9
Vas49.5L
Re3.6Ω
Le0.06mH
BL6.1Tm
Sd220cm²
Mms22g
Xmax6.0mm
SPL89dB
Power50W
Impedance4Ω
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£300.67
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFPrimary
8"Fs38 Hz
Qts0.46
Qes0.54
Qms2.9
Vas49.5 L
Re3.6 Ω
Le0.06 mH
BL6.1 Tm
Sd220 cm²
Mms22 g
Xmax6.0 mm
SPL89 dB
Power50 W
Impedance4 Ω
Power Peak100
