Overview
LF Driver
Tang Band

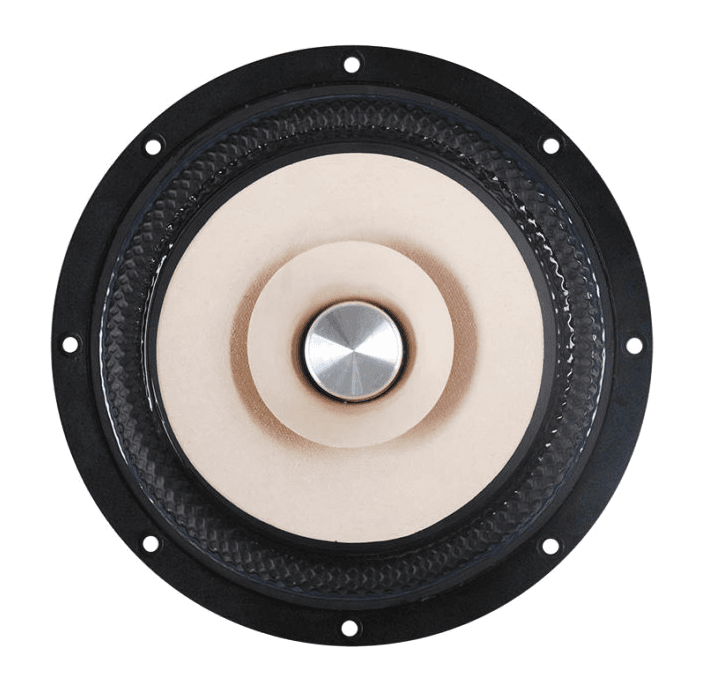

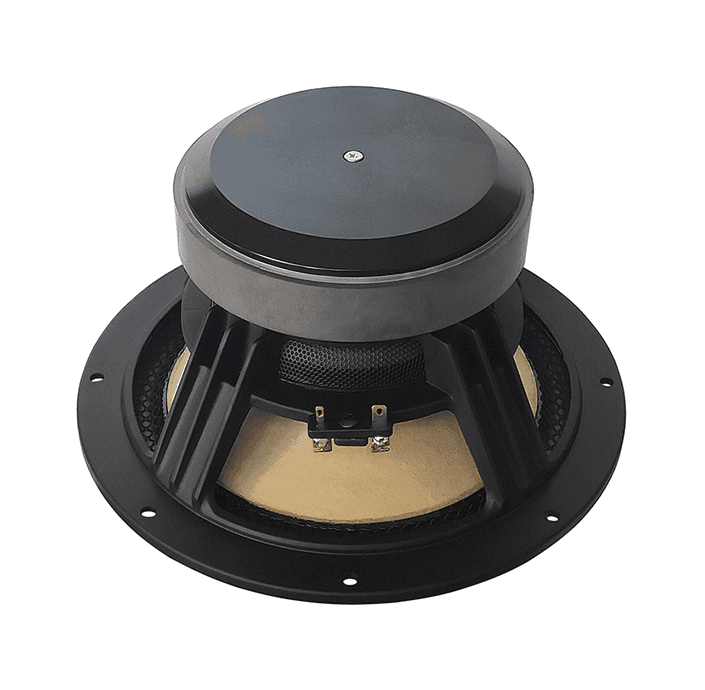

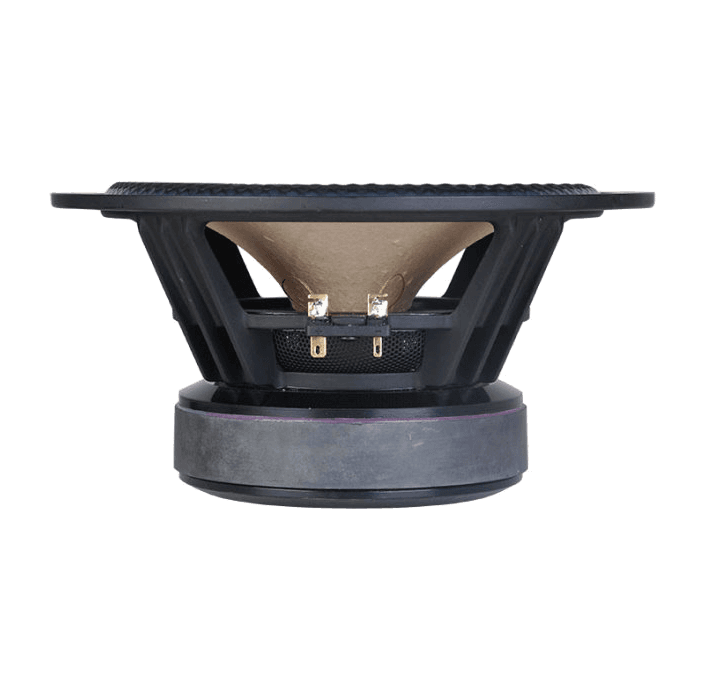

Tang Band W8-2145
Tang Band W8-2145 is a 8" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 40Hz, Qts 0.45, Vas 67.7L, Xmax 3mm, sensitivity 90.5dB, plus 66cm³ Vd and 66 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
40W
Sensitivity
90.5dB
EBP
66
Either alignment
Vd
66cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,569 selected pixels of 1,870 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,576 selected pixels of 2,576
T/S Parameters
Valid
Fs40Hz
Qts0.45
Qes0.61
Qms1.6
Vas67.7L
Re6.8Ω
Le0.01mH
BL6.6Tm
Sd220cm²
Mms15g
Xmax3.0mm
SPL91dB
Power40W
Impedance8Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
