LF DriverSPM series
Monacor
Monacor SPM-205/8
Monacor SPM-205/8 is a 8" 8 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 37Hz, Qts 0.70, Vas 54L, Xmax 3mm, sensitivity 86.8dB, plus 63cm³ Vd and 40 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £38.40.
Size
8"
Impedance
8Ω
RMS Power
70W
Sensitivity
86.8dB
89.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
40
Sealed alignment
Vd
63cm³
T/S Parameters
Valid
Fs37Hz
Qts0.70
Qes0.92
Qms3.0
Vas54.0L
Re7.2Ω
Le0.70mH
BL6.5Tm
Sd210cm²
Mms22g
Xmax3.0mm
SPL87dB
Power70W
Impedance8Ω
F Low3Hz
F High5000Hz
Voice Coil26mm
Pricing & availability
Price definitionsPrice movement
Best current price
£38.40
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

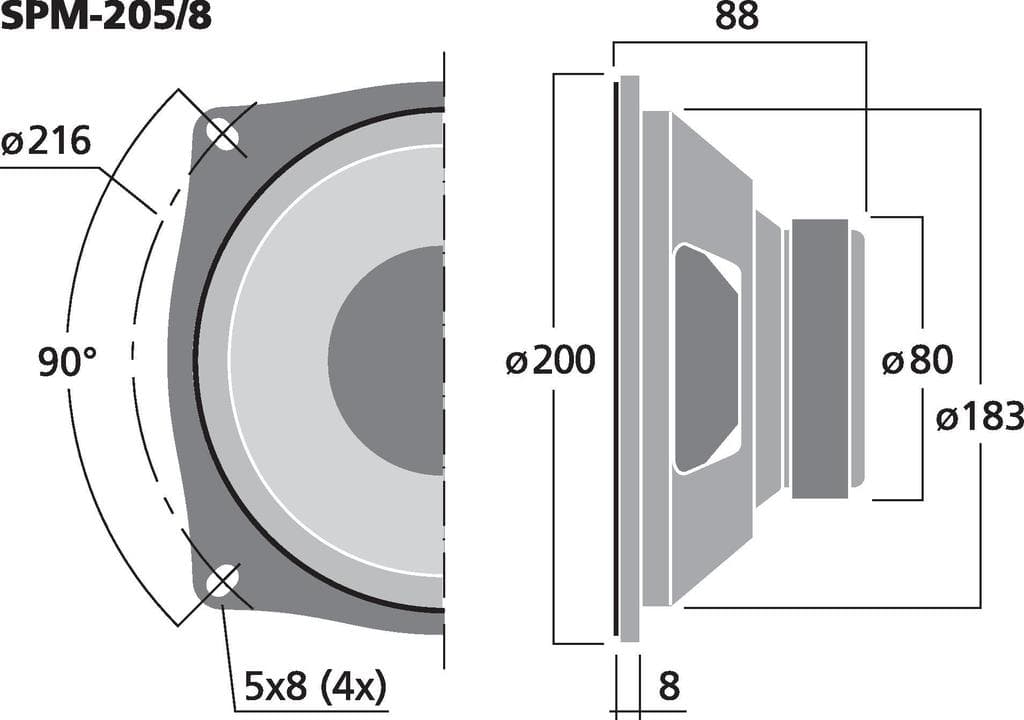

Dimensions & Physical
Weight1.4kg
Diameter200.0mm
Overall Depth88.0mm
Cutout Diameter183.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
SPM-205/8
8"
Best current price
£38.40
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
4 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
65%
Similarity
Monacor
SP-202E
8"
Xmax2.5mm-17%
Qts0.69-1%
BL4.9Tm-25%
Vas39L-28%
Qes0.81-12%
53%
Similarity
Monacor

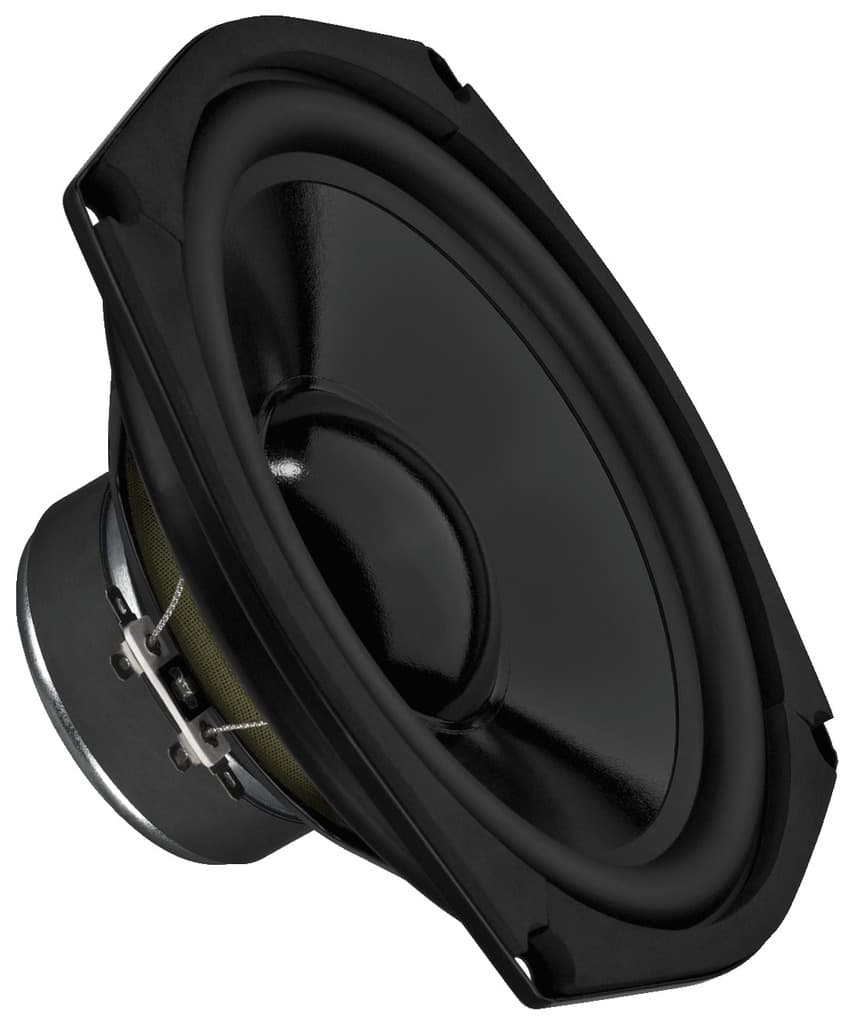

SPM-205/4
