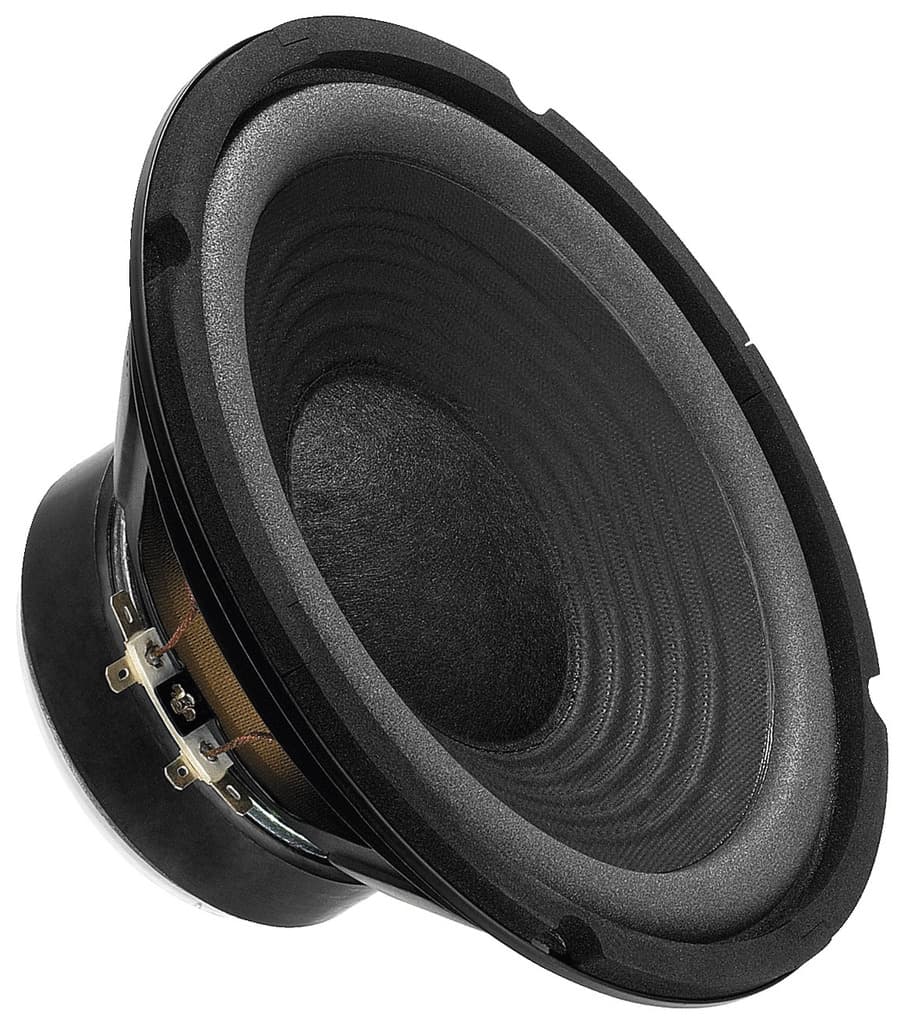

Monacor SP-202E
Monacor SP-202E is a 8" 4 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 51Hz, Qts 0.69, Vas 39L, Xmax 2.5mm, sensitivity 90.1dB, plus 53cm³ Vd and 63 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
RMS Power
50W
Sensitivity
90.1dB
93.0dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
63
Either alignment
Vd
53cm³
T/S Parameters
Valid
Fs51Hz
Qts0.69
Qes0.81
Qms4.5
Vas39.0L
Re3.9Ω
Le0.60mH
BL4.9Tm
Sd210cm²
Mms15g
Xmax2.5mm
SPL90dB
Power50W
Impedance4Ω
F Low3Hz
F High6000Hz
Voice Coil26mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

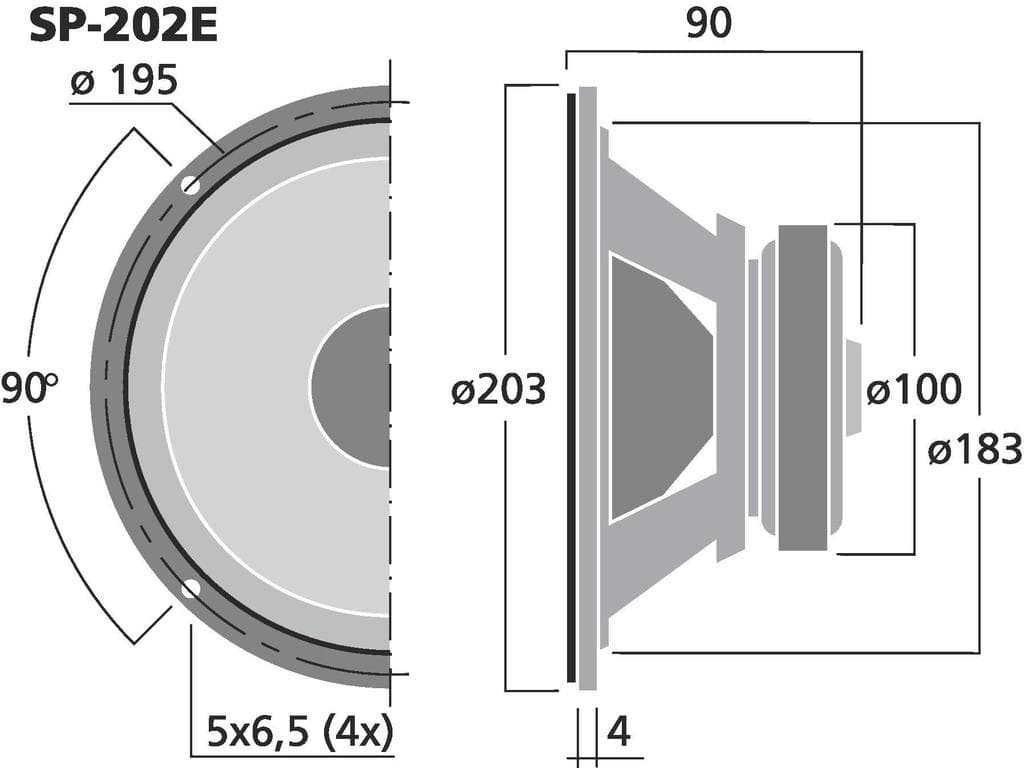

Dimensions & Physical
Weight1.4kg
Diameter203.0mm
Overall Depth90.0mm
Cutout Diameter183.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
SP-202E
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
4 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
56%
Similarity
£38.40

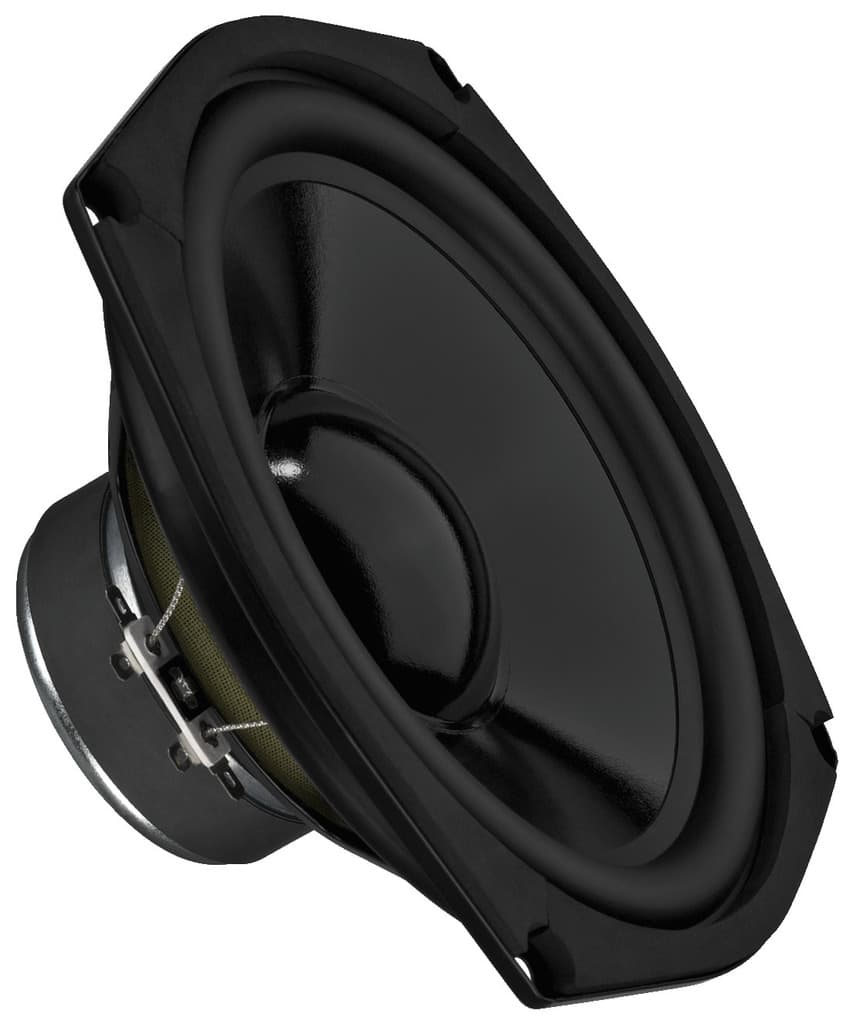

Monacor
