CIARE CW200Z 4Ω
LF DriverMedia
Overview
LF DriverCW series
CIARE

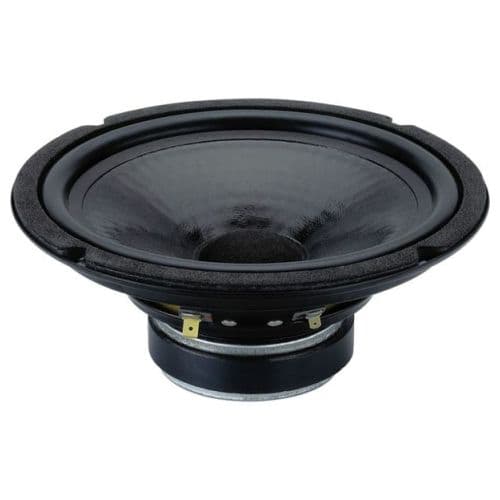

CIARE CW200Z
CIARE CW200Z is a 8" 4 ohm LF driver rated at 160W RMS. The validated T/S data includes Fs 49Hz, Qts 0.53, Vas 38.3L, Xmax 4mm, sensitivity 90.1dB, plus 86cm³ Vd and 69 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
RMS Power
160W
Sensitivity
90.1dB
93.0dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
69
Either alignment
Vd
86cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,361 selected pixels of 1,749
T/S Parameters
Valid
Fs49Hz
Qts0.53
Qes0.71
Qms2.2
Vas38.3L
Re3.5Ω
BL5.2Tm
Sd214cm²
Mms17g
Xmax4.0mm
SPL90dB
Power160W
Power Nominal80W
Impedance4Ω
F Low40Hz
F High40Hz
Voice Coil32mm
Pricing & availability
Price definitionsVendor offers
1 vendorleanaudio
Updated 11 Sept 2026· 4Ω
Source: inc VAT · 20%
£30.95
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.1kg
Diameter205.5mm
Overall Depth84.0mm
Cutout Diameter185.0mm
Bolt Circle Diameter194.0mm
