LF DriverCF0820 series
Celestion

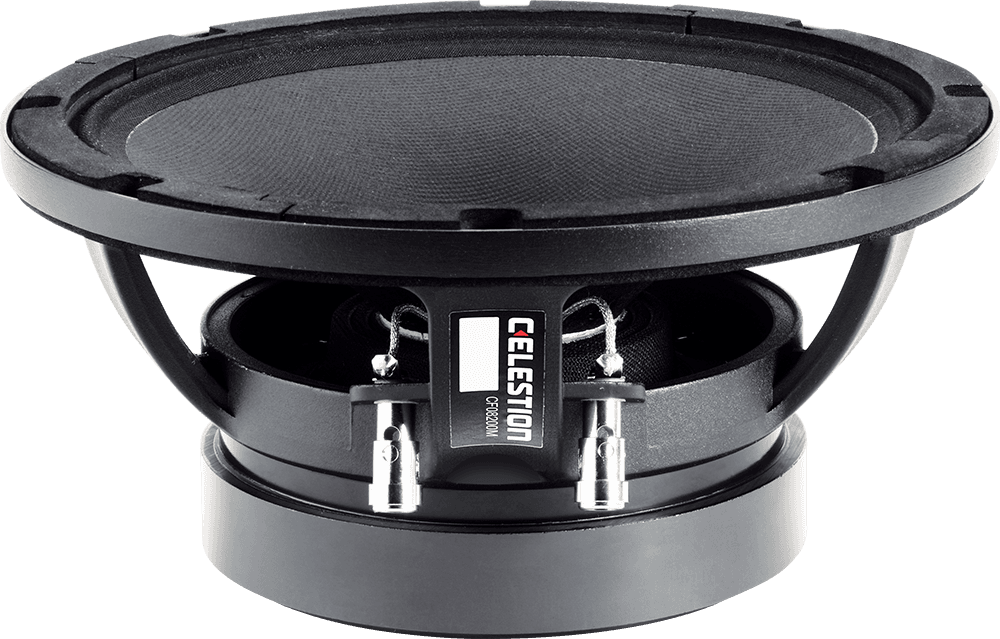

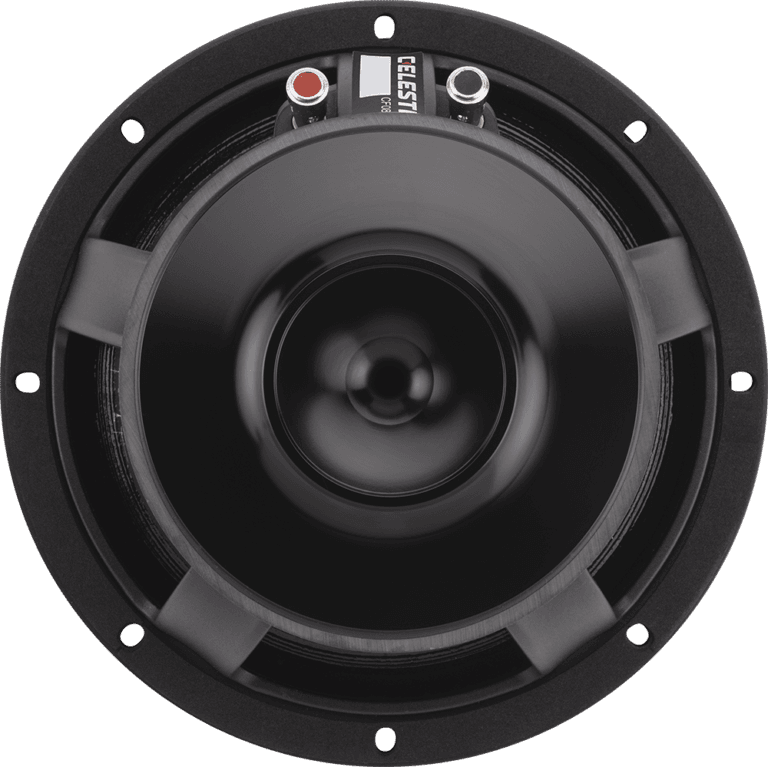

Celestion CF0820M
Celestion CF0820M is a 8" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 202Hz, Qts 0.57, Vas 2.1L, Xmax 3.5mm, sensitivity 95.3dB, plus 79cm³ Vd and 243 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £93.62.
Size
8"
Impedance
8Ω
RMS Power
250W
Sensitivity
95.3dB
98.0dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
243
Vented alignment
Vd
79cm³

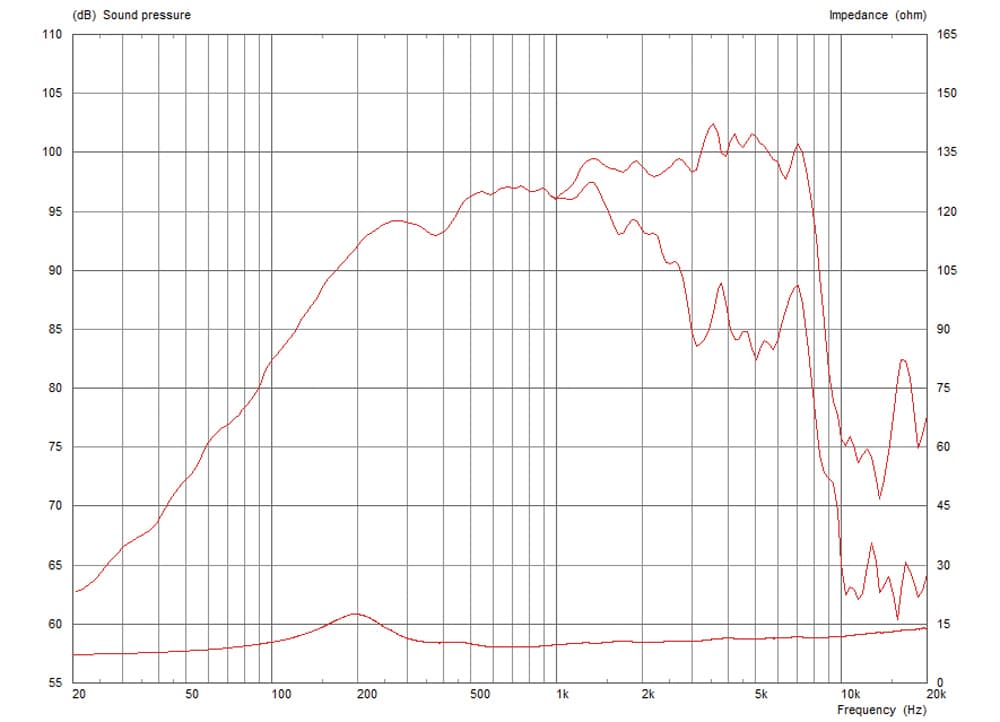

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence187 selected pixels of 347
T/S Parameters
Valid
Fs202Hz
Qts0.57
Qes0.83
Qms1.8
Vas2.1L
Re5.4Ω
Le0.12mH
BL13.3Tm
Sd227cm²
Mms21g
Xmax3.5mm
SPL95dB
Power250W
Impedance8Ω
Voice Coil50mm
Pricing & availability
Price definitionsPrice movement
Best current price
£93.62
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.4kg
Diameter215.0mm
Overall Depth113.0mm
Cutout Diameter187.0mm
Bolt Circle Diameter200.0mm
