LF DriverBSP series
BishopSound
BishopSound BSP8
BishopSound BSP8 is a 8" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 65Hz, Qts 0.51, Vas 13L, Xmax 6mm, sensitivity 90.4dB, plus 192cm³ Vd and 125 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
250W
Sensitivity
90.4dB
95.0dBmanufacturer; using T/S-derived value (4.6dB delta).
EBP
125
Vented alignment
Vd
192cm³
T/S Parameters
Valid
Fs65Hz
Qts0.51
Qes0.52
Qms9.4
Vas13.0L
Re6.0Ω
Le0.51mH
BL19.3Tm
Sd320cm²
Xmax6.0mm
SPL90dB
Power250W
Impedance8Ω
Min Impedance6.5Ω
F Low65Hz
F High7000Hz
Voice Coil50mm
Flux Density0.50T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Mms
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Mms
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.0kg
Diameter210.0mm
Overall Depth110.0mm
Bolt Circle Diameter182.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
BishopSound
BSP8
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
83%
Similarity

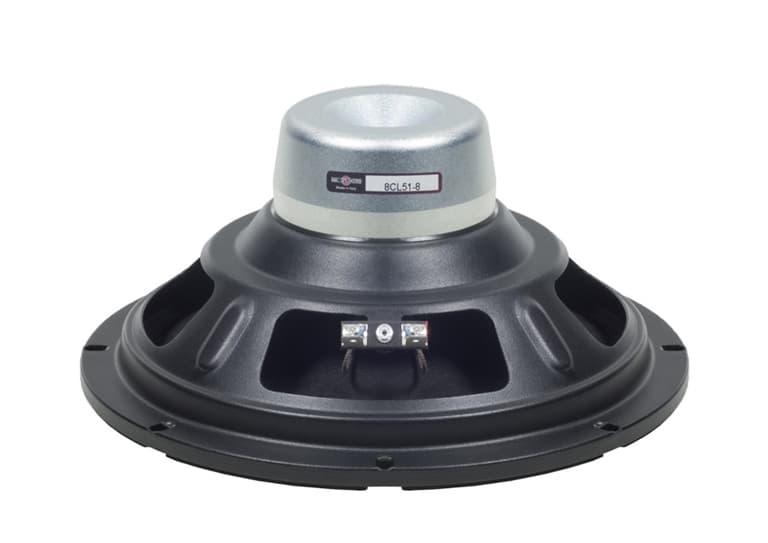

B&C
8CL51
8"
Xmax6mm0%
Qts0.510%
BL16.1Tm-17%
Vas9.5L-27%
Qes0.54+4%
74%
Similarity
£103.00
B&C
8NDL51
8"
Xmax7mm+17%
Qts0.47-8%
BL15.2Tm-21%
Vas13.4L+3%
Qes0.51-2%
59%
Similarity
£99.00
Celestion
FTR08-2011D
8"
Xmax5.5mm-8%
Qts0.44-15%
BL12.7Tm-34%
Vas9L-31%
Qes0.54+4%
59%
Similarity
Monacor
FTR08-2011D/8
8"
Xmax5.5mm-8%
Qts0.43-16%
BL12.7Tm-34%
Vas9L-31%
Qes0.5-4%
57%
Similarity
BMS
8S219
8"
Xmax6.3mm+5%
Qts0.41-20%
BL13.3Tm-31%
Vas9.7L-25%
Qes0.45-13%
55%
Similarity
£50.00
Celestion
TF0818
8"
Xmax5mm-17%
Qts0.43-16%
BL12.9Tm-33%
Vas9.4L-27%
Qes0.49-5%
55%
Similarity
Monacor
TF0818/8
8"
Xmax5mm-17%
Qts0.43-16%
BL12.9Tm-33%
Vas9.4L-28%
Qes0.49-5%
52%
Similarity
£75.00
FaitalPRO
8PR320
8"
Xmax7.3mm+22%
Qts0.41-20%
BL12.9Tm-33%
Vas13.1L+1%
Qes0.43-17%
43%
Similarity
£96.76
B&C
8FMB51
8"
Xmax5.5mm-8%
Qts0.39-24%
BL13.7Tm-29%
Vas20.5L+58%
Qes0.43-17%
