LF DriverRevelator series
Scanspeak

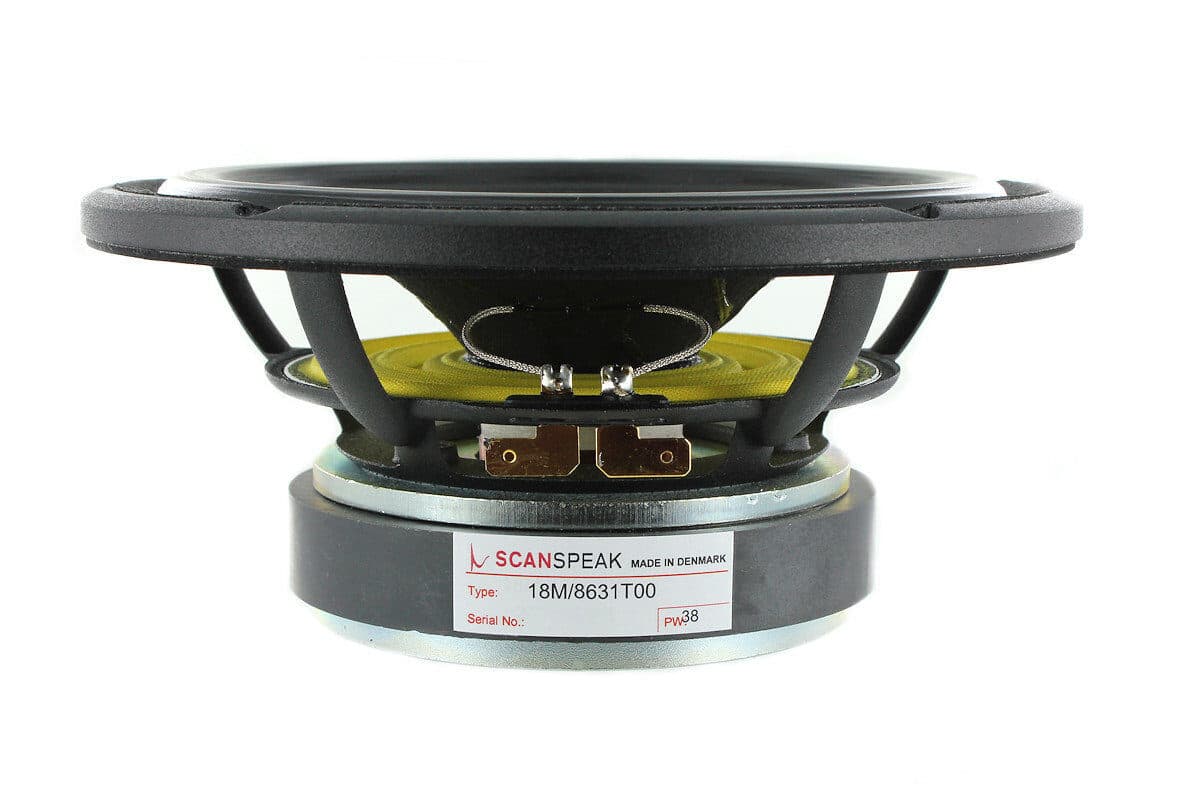

Scanspeak 18M/8631T00
Scanspeak 18M/8631T00 is a 7" 8 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 65Hz, Qts 0.71, Vas 14L, Xmax 3mm, sensitivity 88.7dB, plus 46cm³ Vd and 79 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £213.95.
Size
7"
Impedance
8Ω
RMS Power
120W
Sensitivity
88.7dB
EBP
79
Either alignment
Vd
46cm³
T/S Parameters
Valid
Fs65Hz
Qts0.71
Qes0.82
Qms5.2
Vas14.0L
Re6.0Ω
Le0.22mH
BL6.5Tm
Sd154cm²
Mms14g
Xmax3.0mm
SPL89dB
Power120W
Impedance8Ω
Min Impedance6.3Ω
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
£213.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter180.0mm
