Monacor SP-202PA 8Ω
8 Ω · 3–4500 Hz
No current price
- Fs
- 68Hz
- Xmax
- 3mm
- SPL
- 84dB
- Pe
- 50W
- BL
- 5.6T·m
- Vd
- 65cm³
- Qts
- 1.10
- Vas
- 12L

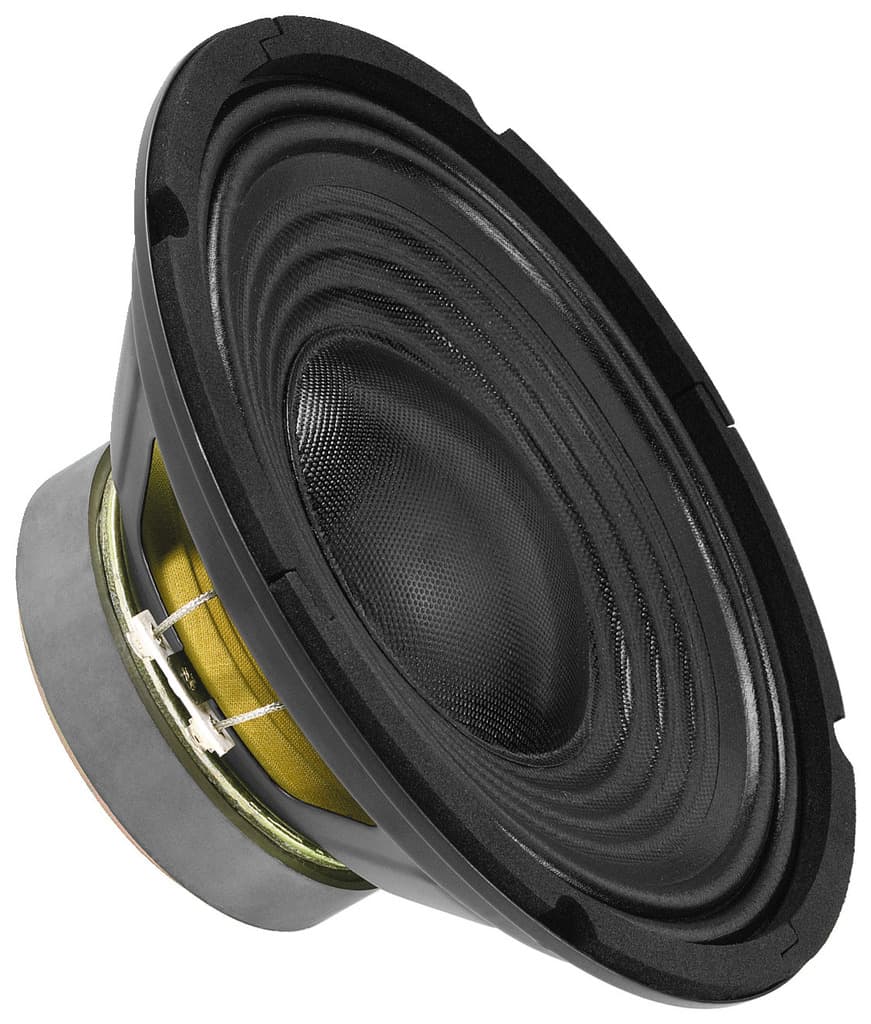

Monacor SP-202PA is an 8-inch 8 ohm LF driver rated at 50 W RMS. The validated T/S data includes Fs 68 Hz, Qts 1.10, Vas 12 L, Xmax 3 mm, sensitivity 84.3 dB, plus 65 cm³ Vd and 30 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 68Hz
- Qts
- 1.10
- Qes
- 2.25
- Qms
- 2.3
- Vas
- 12L
- Re
- 7.4Ω
- Le
- 0.40mH
Motor and cone
- BL
- 5.6T·m
- Sd
- 216cm²
- Mms
- 18g
- Xmax
- 3mm
- Vd †
- 65cm³
- Voice coil
- 25mm
Power and response
- Sensitivity †
- 84.3dB
- Manufacturer sensitivity
- 91dB
- Power
- 50W
- Impedance
- 8Ω
- Range
- 3–4500Hz
- EBP †
- 30 · Leans sealed

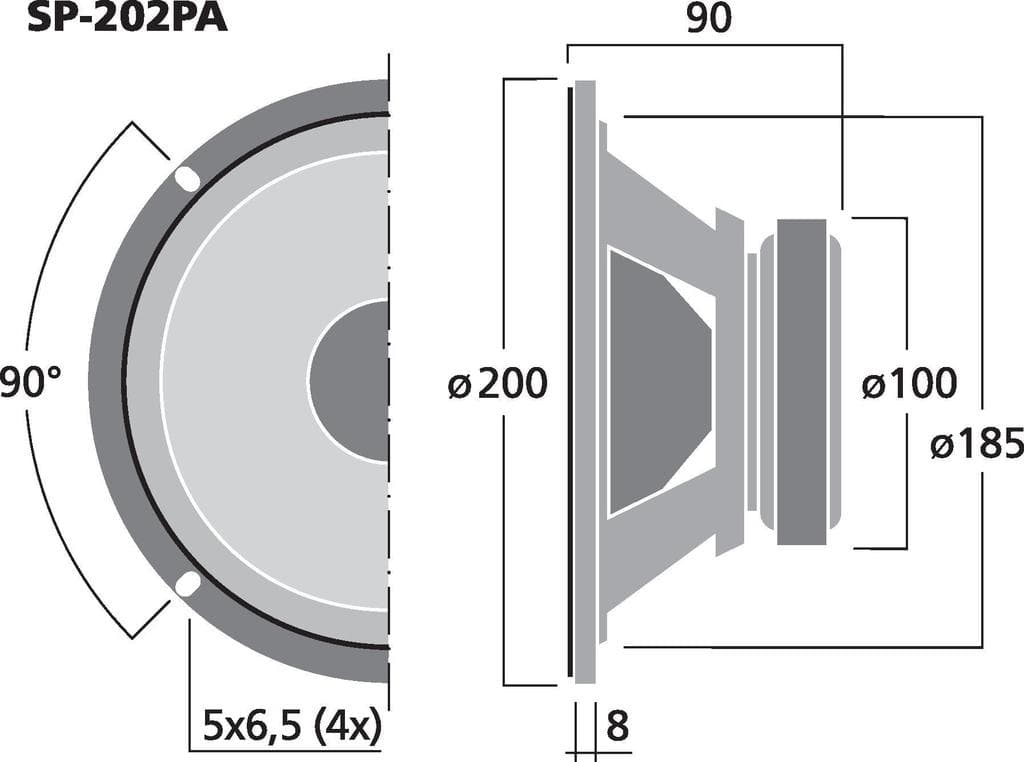

Size and mounting
- Diameter
- 200mm
- Cutout
- 185mm
- Depth
- 90mm
- Weight
- 1.1kg
Other published values
- Cms
- 0.20mm/N
- Power Peak
- 100
Other dimensions
- Mounting Depth
- 82
Sensitivity shows 84.3 dB, calculated from the T/S values. Monacor publishes 91.0 dB, 6.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 8″
- BL
- 5.6T·m
- Fs
- 68Hz
- Le
- 0.40mH
- Re
- 7.4Ω
- Sd
- 216cm²
- Cms
- 0.20mm/N
- Mms
- 18g
- Qes
- 2.25
- Qms
- 2.3
- Qts
- 1.10
- SPL
- 84.3dB
- Vas
- 12L
- Xmax
- 3mm
- Power
- 50W
- Impedance
- 8Ω
- Power Peak
- 100
- Sensitivity
- 91dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 84.3dB
- High limit
- 4500Hz
- Manufacturer sensitivity
- 91dB
- Voice coil
- 25mm
- Weight
- 1.1kg
- Diameter
- 200mm
- Depth
- 90mm
- Mounting Depth
- 82
- Cutout
- 185mm
