8-inch LF driver · 20 W

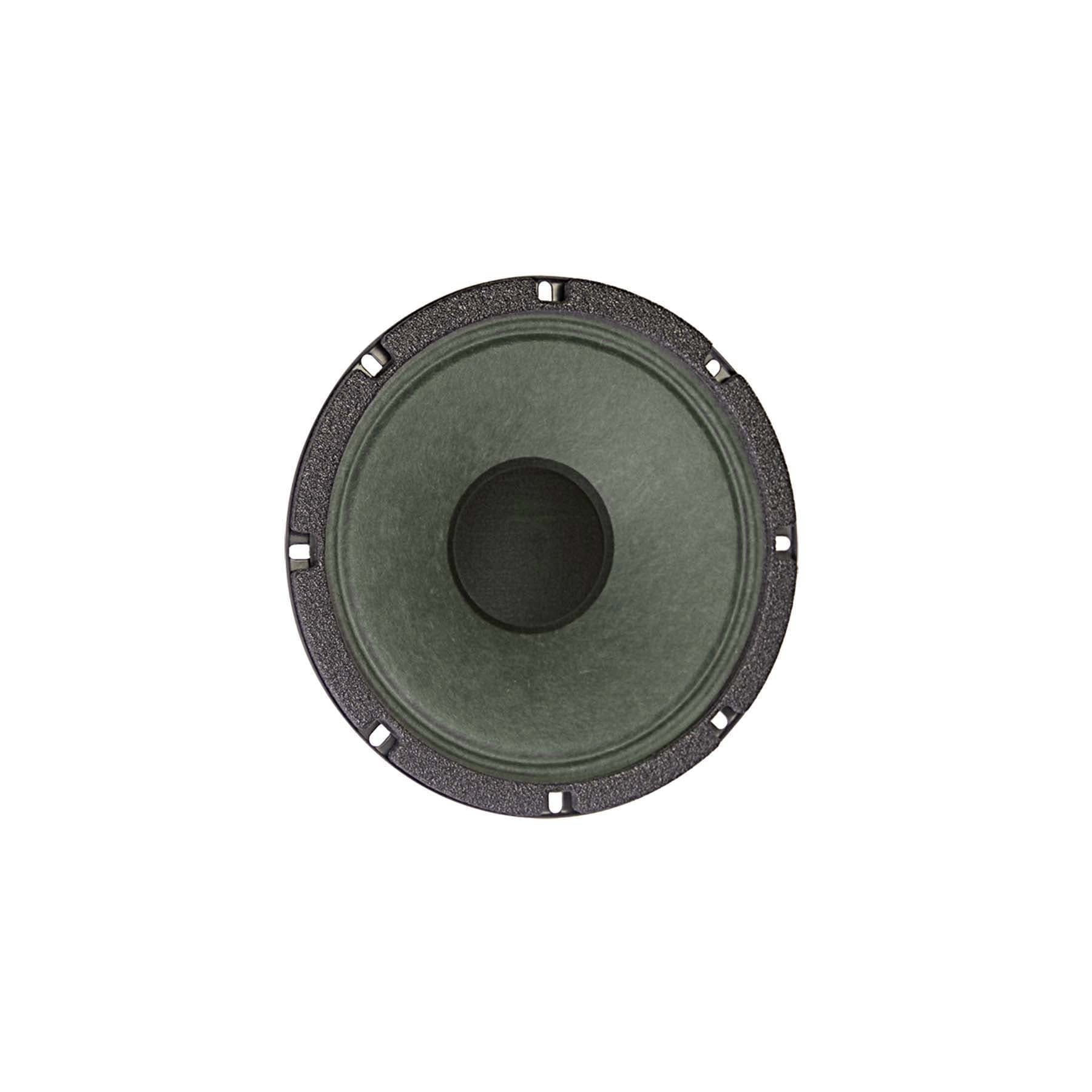

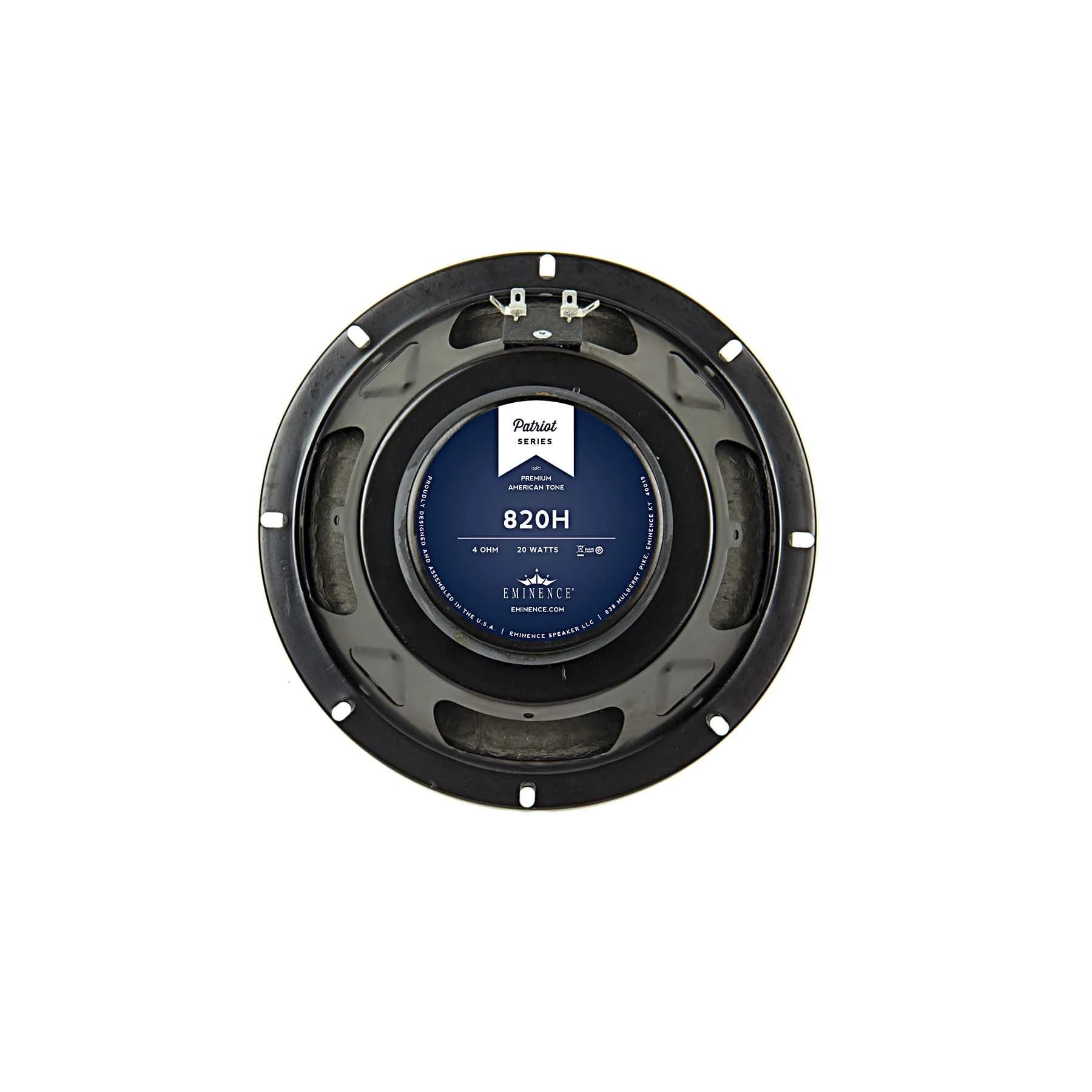

Eminence 820H 4Ω
4 Ω · 80–4600 Hz
No current price
- Fs
- 144Hz
- Xmax
- 1.6mm
- SPL
- 97dB
- Pe
- 20W
- BL
- 5.7T·m
- Vd
- 37cm³
- Qts
- 0.88
- Vas
- 10L
Eminence 820H is an 8-inch 4 ohm LF driver rated at 20 W RMS. The validated T/S data includes Fs 144 Hz, Qts 0.88, Vas 9.6 L, Xmax 1.6 mm, sensitivity 97 dB, plus 37 cm³ Vd and 157 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 144Hz
- Qts
- 0.88
- Qes
- 0.92
- Qms
- 18.8
- Vas
- 9.6L
- Re
- 3.6Ω
- Le
- 0.33mH
Motor and cone
- BL
- 5.7T·m
- Sd
- 231cm²
- Mms
- 9g
- Xmax
- 1.6mm
- Vd †
- 37cm³

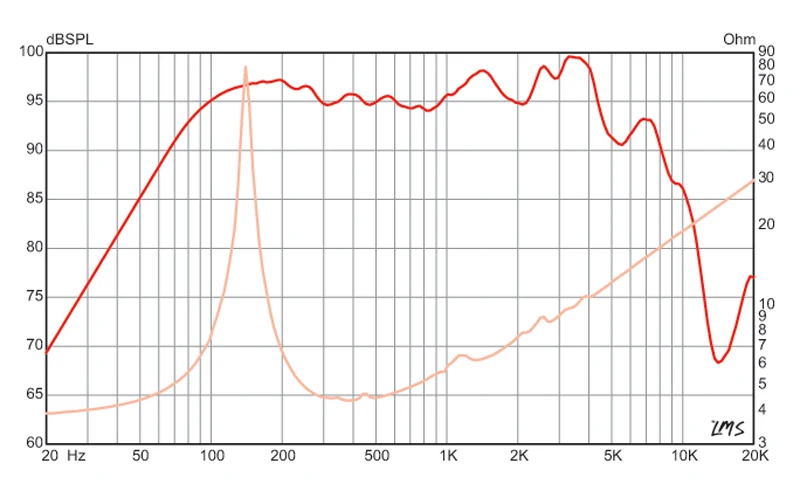

Power and response
- Sensitivity †
- 97dB
- Manufacturer sensitivity
- 96.1dB
- Power
- 20W
- Impedance
- 4Ω
- Range
- 80–4600Hz
- EBP †
- 157 · Leans vented

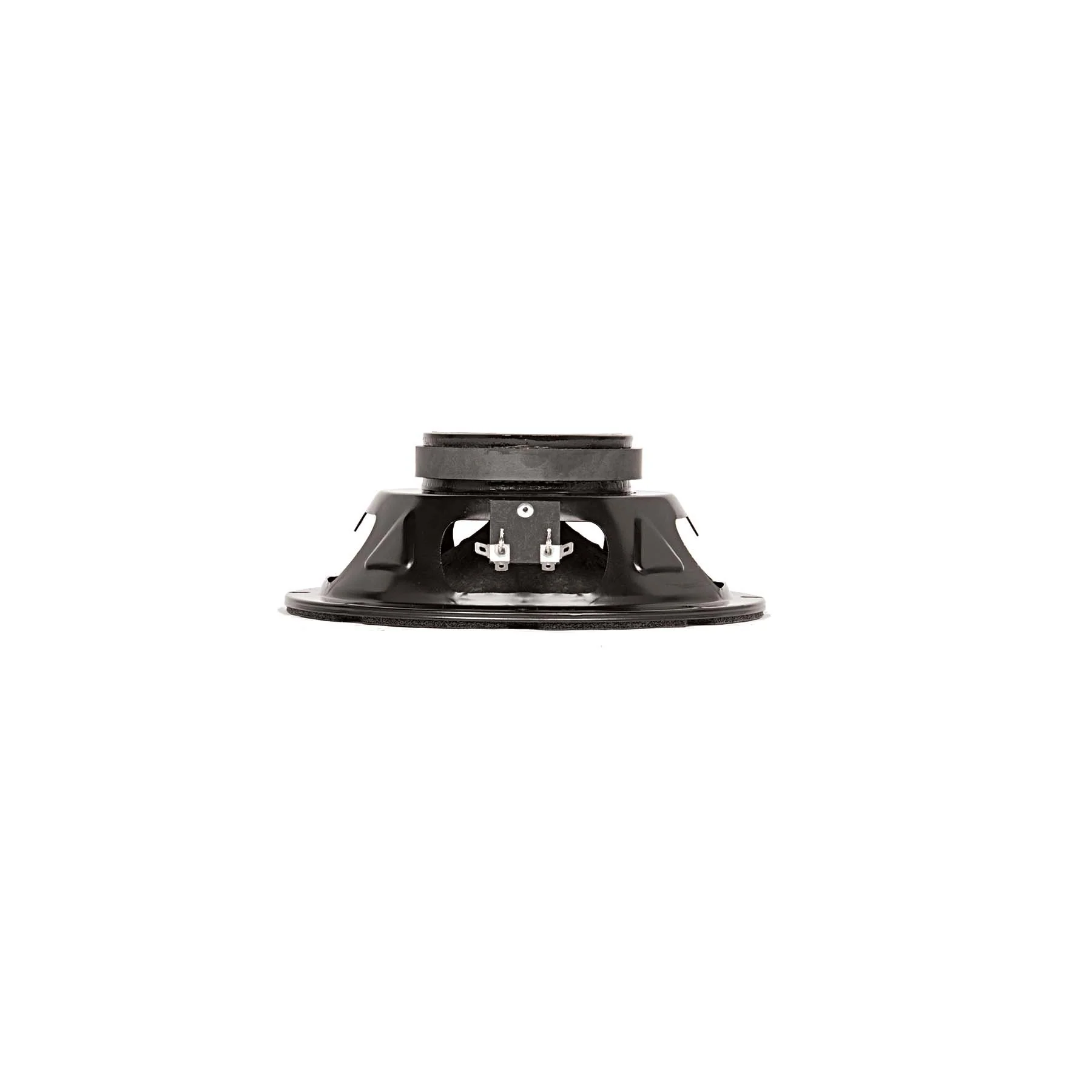

Size and mounting
- Diameter
- 209.3mm
- Cutout
- 181.1mm
- Depth
- 77.7mm
- Weight
- 1.4kg
Other published values
- Cms
- 0.13mm/N
- Power Program
- 40
† Calculated by bits from the published values
What this validation status means
Everything else Eminence lists
LF · Primary · 8″
- BL
- 5.7T·m
- Fs
- 144Hz
- Le
- 0.33mH
- Re
- 3.6Ω
- Sd
- 231cm²
- Cms
- 0.13mm/N
- Mms
- 9g
- Qes
- 0.92
- Qms
- 18.8
- Qts
- 0.88
- SPL
- 97dB
- Vas
- 9.6L
- Xmax
- 1.6mm
- Power
- 20W
- Impedance
- 4Ω
- Sensitivity
- 96.1dB
- Low limit
- 80Hz
- Power Program
- 40
- Calculated sensitivity †
- 97dB
- High limit
- 4600Hz
- Manufacturer sensitivity
- 96.1dB
- Weight
- 1.4kg
- Diameter
- 209.3mm
- Depth
- 77.7mm
- Cutout
- 181.1mm
