Overview
LF DriverSP series
Monacor

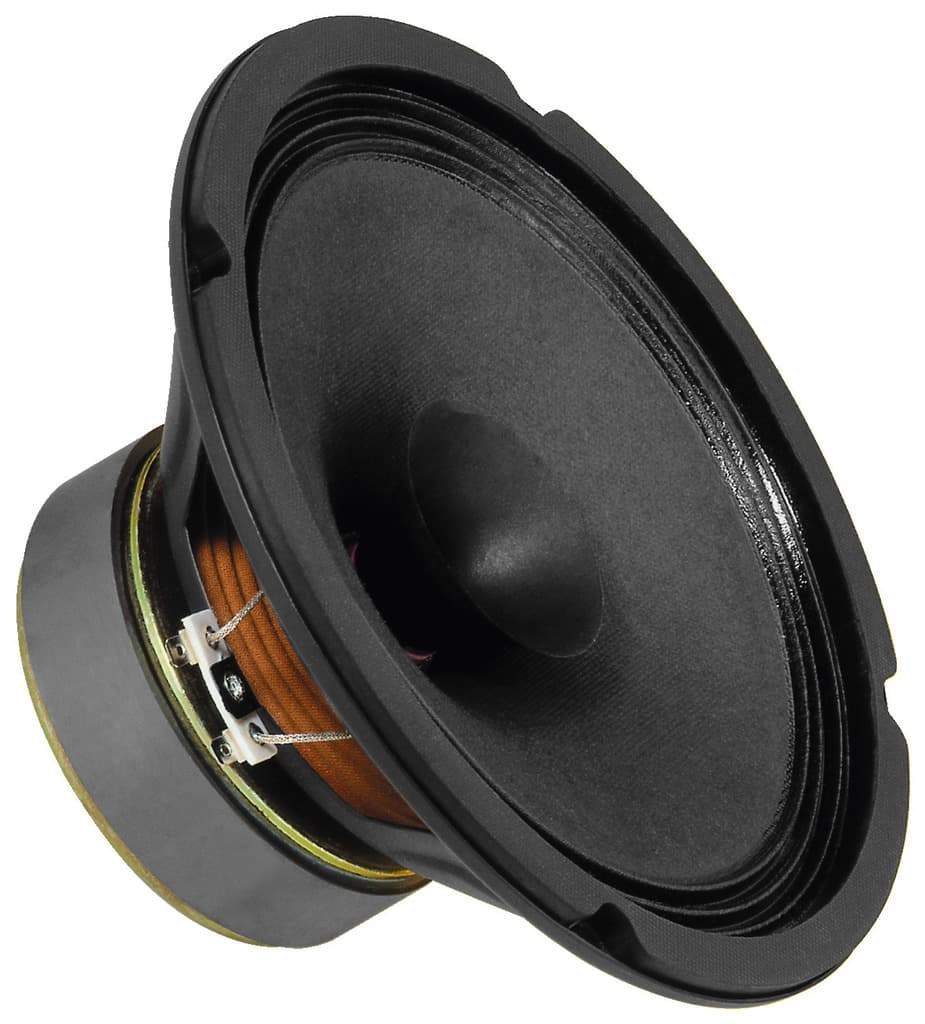

Monacor SP-200X
Monacor SP-200X is a 8" 8 ohm LF driver rated at 35W RMS. The validated T/S data includes Fs 50Hz, Qts 0.52, Vas 48L, Xmax 1.6mm, sensitivity 91.4dB, plus 34cm³ Vd and 71 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
35W
Sensitivity
91.4dB
EBP
71
Either alignment
Vd
34cm³
T/S Parameters
Valid
Fs50Hz
Qts0.52
Qes0.70
Qms2.0
Vas48.0L
Re7.2Ω
Le0.30mH
BL6.1Tm
Sd210cm²
Mms12g
Xmax1.6mm
SPL91dB
Power35W
Impedance8Ω
F Low3Hz
F High15000Hz
Voice Coil26mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

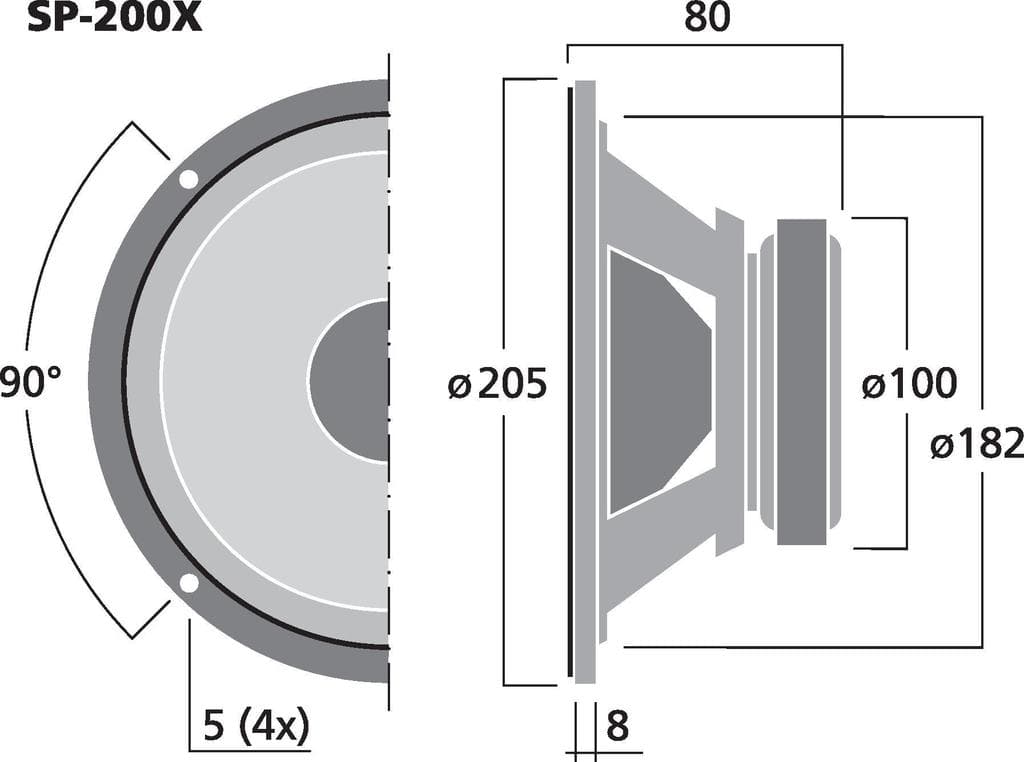

Dimensions & Physical
Weight1.4kg
Diameter205.0mm
Overall Depth80.0mm
Cutout Diameter188.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
SP-200X
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
64%
Similarity

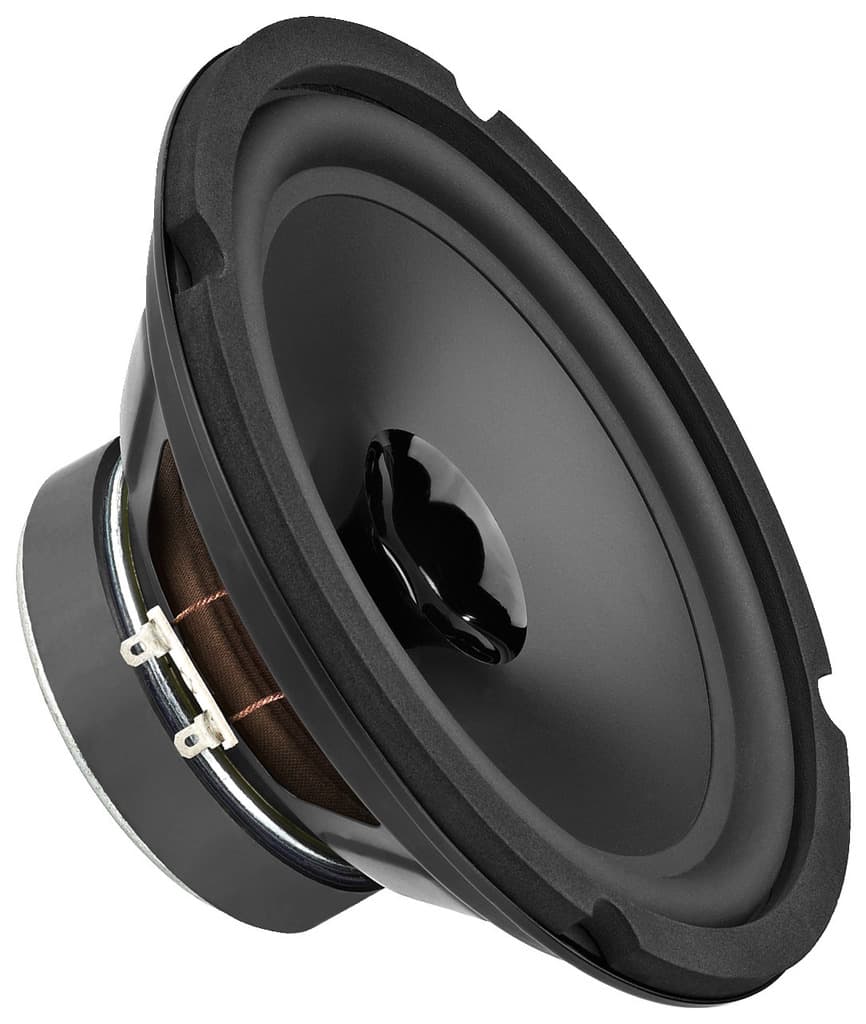

Monacor
